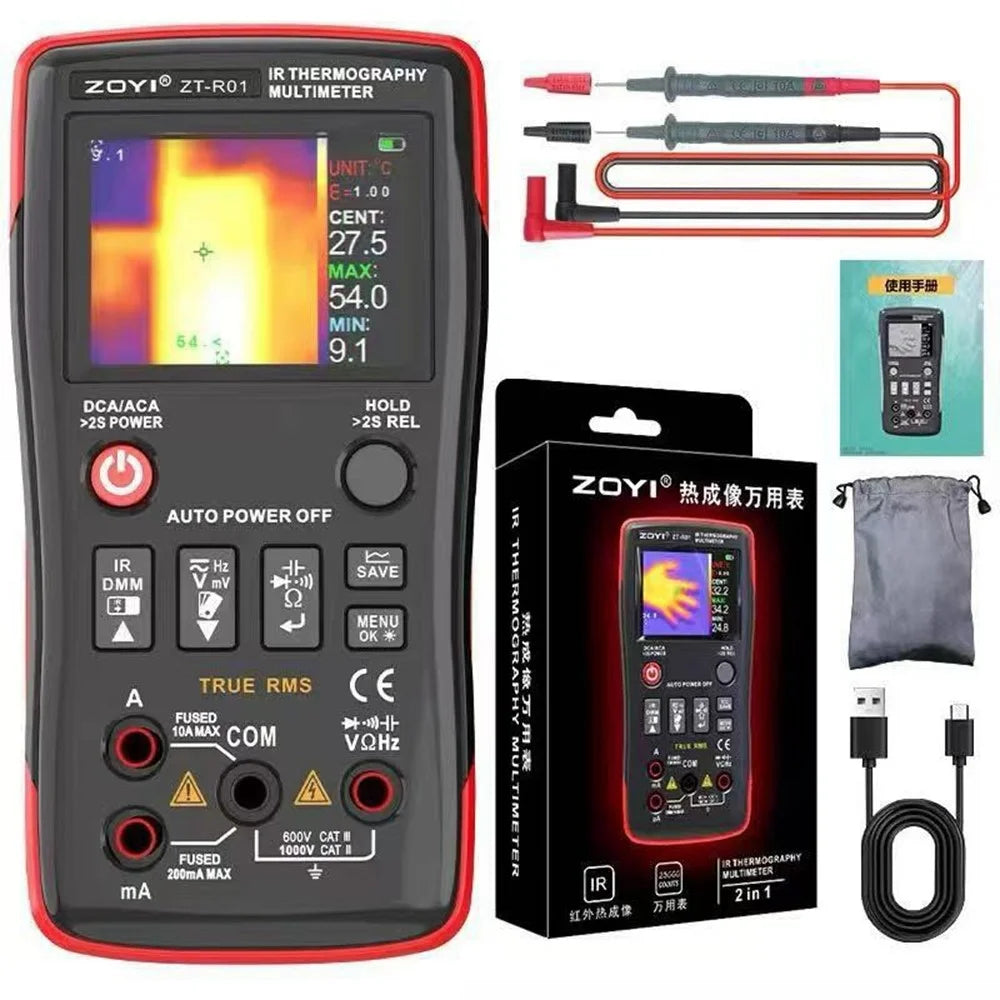

ZOYI ZOTEK ZT-R01 Infrared Thermal Imager Digital Multimeter for Industrial Electrical Underfloor Heating Circuit Board Repair

• 【Dual-Function Thermal Imaging】 Combines infrared imaging (32x32 resolution) with natural light/visible light mode for instant detection of electrical hotspots or HVAC leaks.
• 【Digital Multimeter】 25,000 count true RMS measurements for lab-grade accuracy, including voltage (1000V DC/750V AC), resistance (250MΩ), and capacitance (99.99mF).
• 【Infrared Thermal Imaging Multimeter】 2-in-1 device replaces bulky toolkits: use multimeter for circuit troubleshooting, then switch to thermal imaging to identify overheated breakers or insulation gaps.

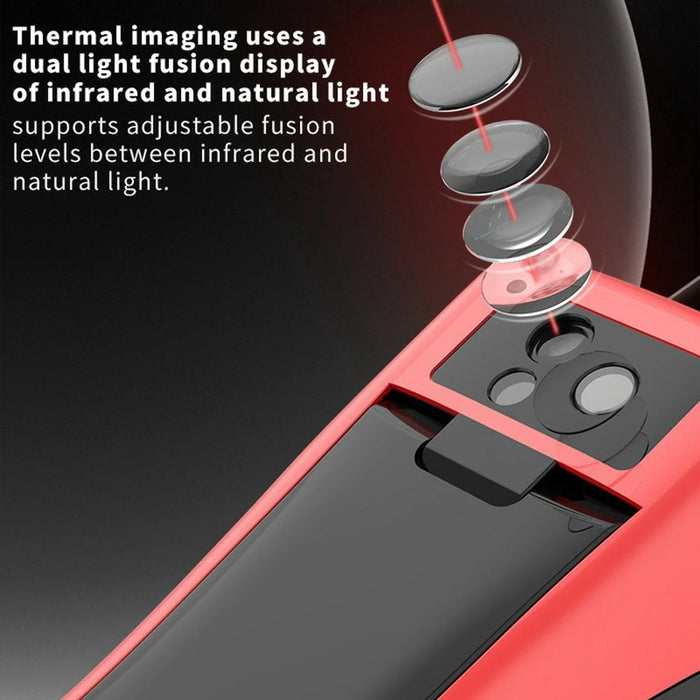

• 【Visible Light and Thermal Fusion】 Seamlessly switch between infrared and visible light modes, overlaying thermal data onto real visual effects with 240x240 visible light resolution.
• 【Type-C Rechargeable Multimeter】 Built-in 1500mAh lithium battery extends field work time without frequent charging. USB-C port offers versatile compatibility.

Specifications:

• Large Display: 2.4-Inch TFT Color Screen
• Infrared Resolution: 32x32 Points
• Visible Light Resolution: 240x240
• FOV: 33° (H) x 33° (V)
• Emissivity: 0.10–1.00
• Color Palette: 4
• Measurement Distance: 0.3–2 m
• Image Focal Length: Fixed Focus
• Wavelength Range: 8–14 μm
• Measurement Range: -20–550 °C
• Measurement Accuracy: ±2 °C or ±2%
• Measurement Distance: ≤2 m
• Power Voltage: 3.6–4.2 V
• Charging Method: Type-C
• Battery Capacity: 1500mAh
• Dimensions: 145 x 74 x 35mm
