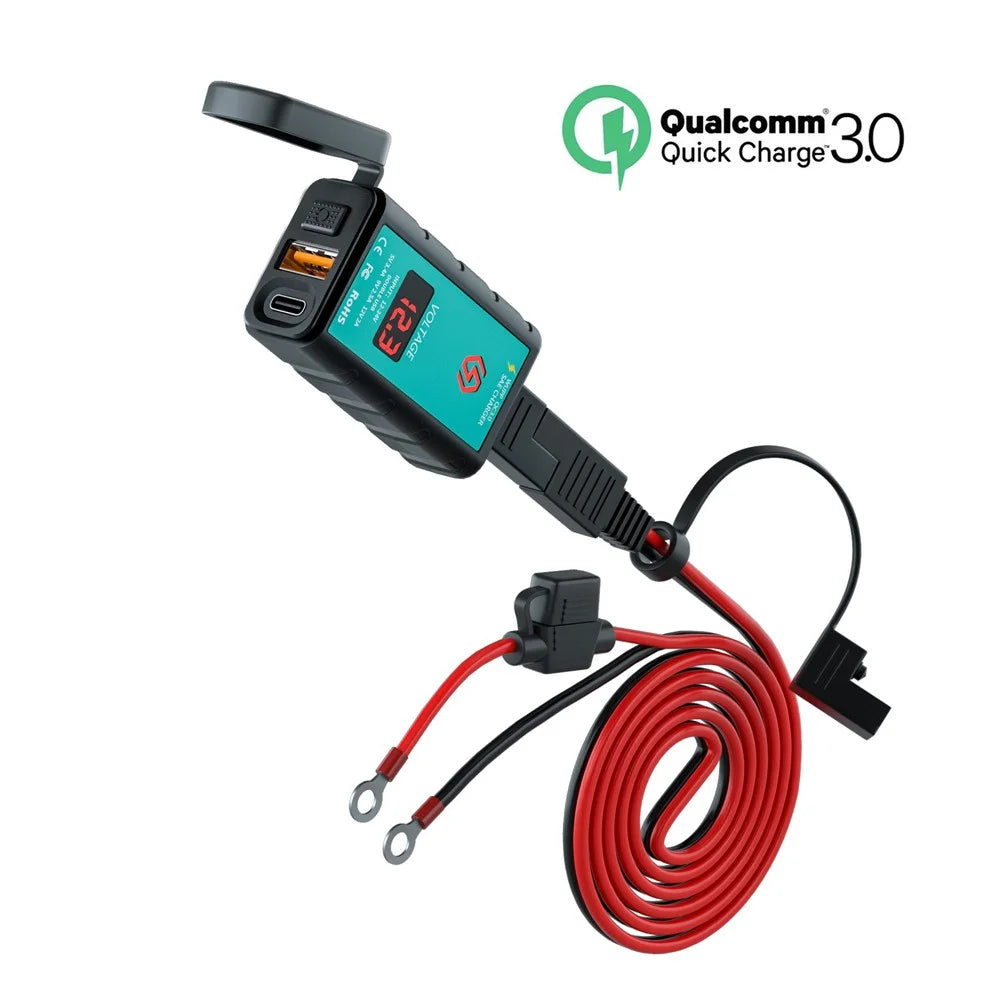

ZH-1422B3 Square Quick Charger USB+Type-C Motorcycle Handlebar Power Adapter for Cell Phone, with Voltmeter Display and 1.4m SAE+OT Terminal Cable

• The product has 1 USB+1 Type-C charging ports, supports Type-C output and USB PD2.0/PD3.0 (PPS) protocol at the same time; supports 5V 3.4A/9V 2.5A/12V 2A three output schemes, supports fast Charging protocols are: DCP (for Apple and BC1.2), Qualcomm QC2.0/QC3.0, for Huawei fast charging protocol FCP and high voltage SCP, for Samsung fast charging protocol AFC (MAX 12V), MTK PE+1.1 and MTK PE+2.0, which can automatically identify the fast charging protocol supported by the output device (if the mobile phone itself does not support fast charging, the charger does not support the fast charging protocol)

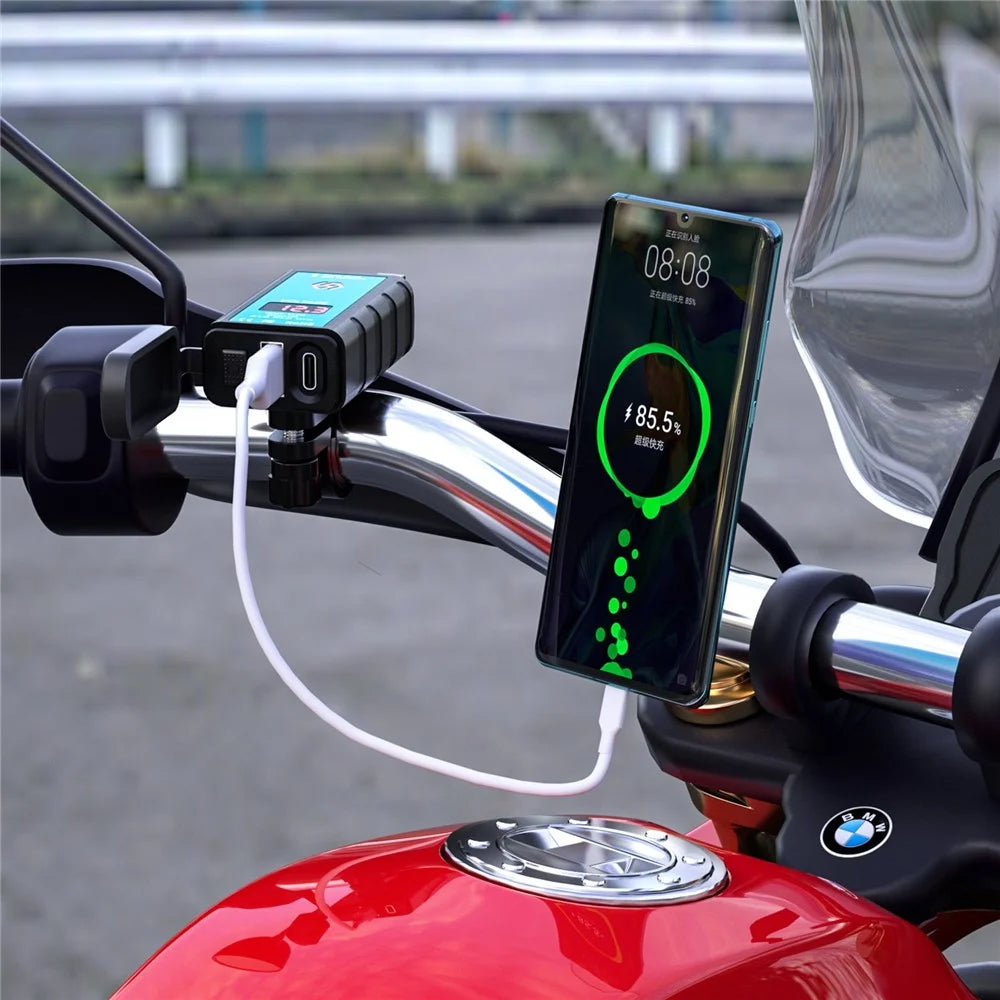

• Two installation methods: handlebar installation and screw installation
• The product design adopts an integrated SAE interface, which can be directly plugged into the original car SAE interface, and the installation is more convenient

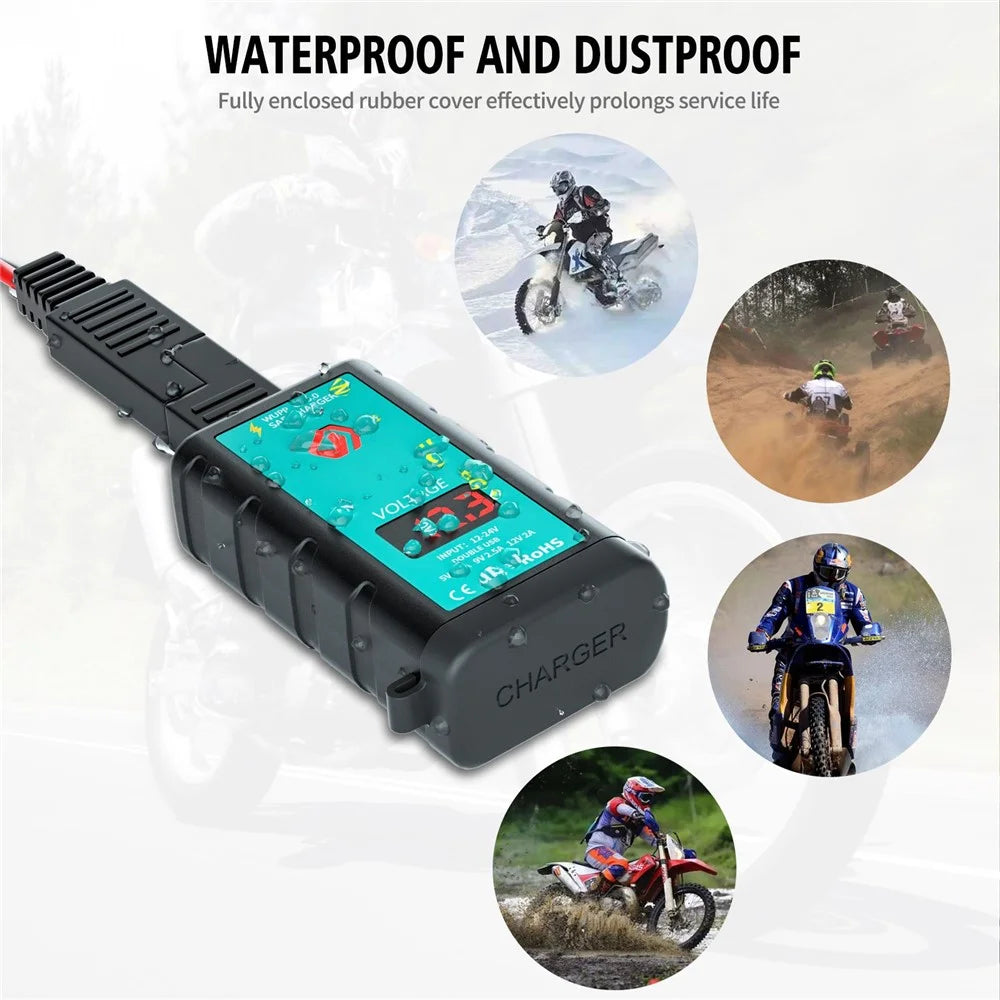

• Comes with waterproof and dustproof cover, IP66 waterproof level, no fear of heavy rain

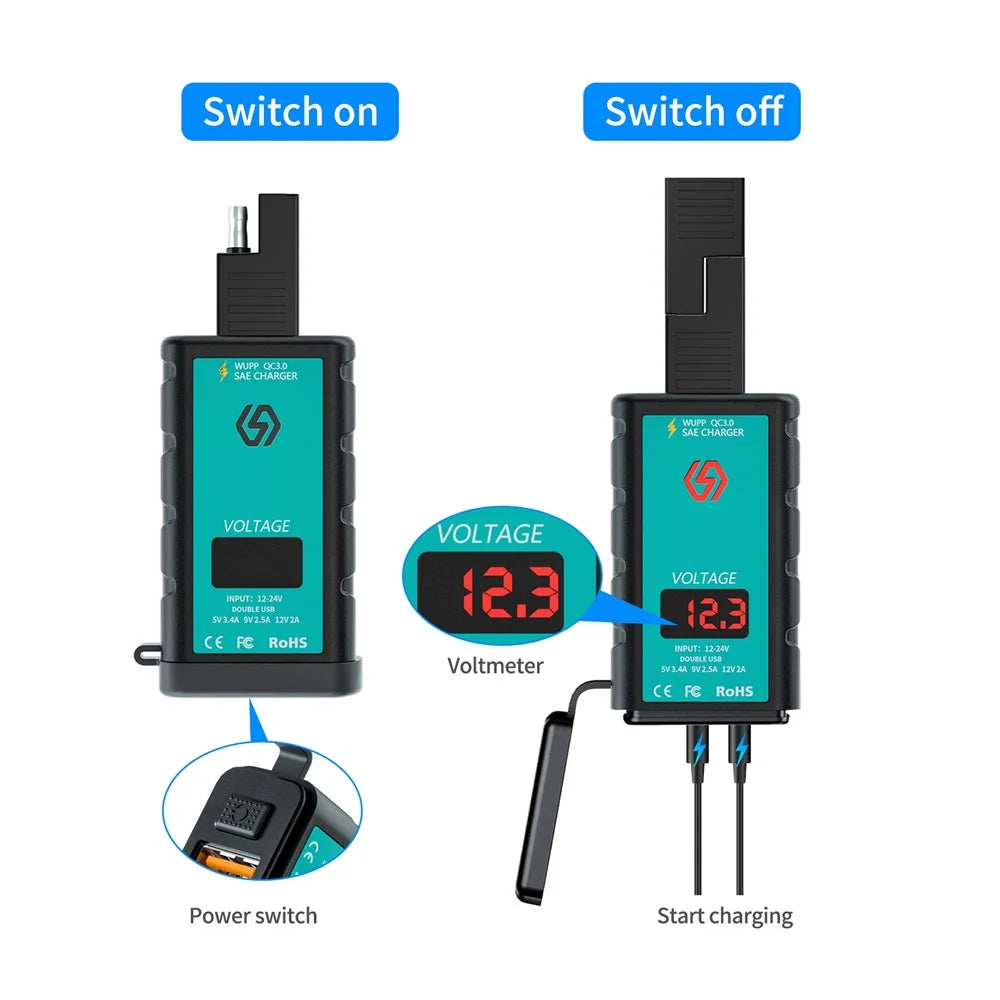

• The product has an independent switch button, which can be turned on immediately, avoiding power consumption and easy to use

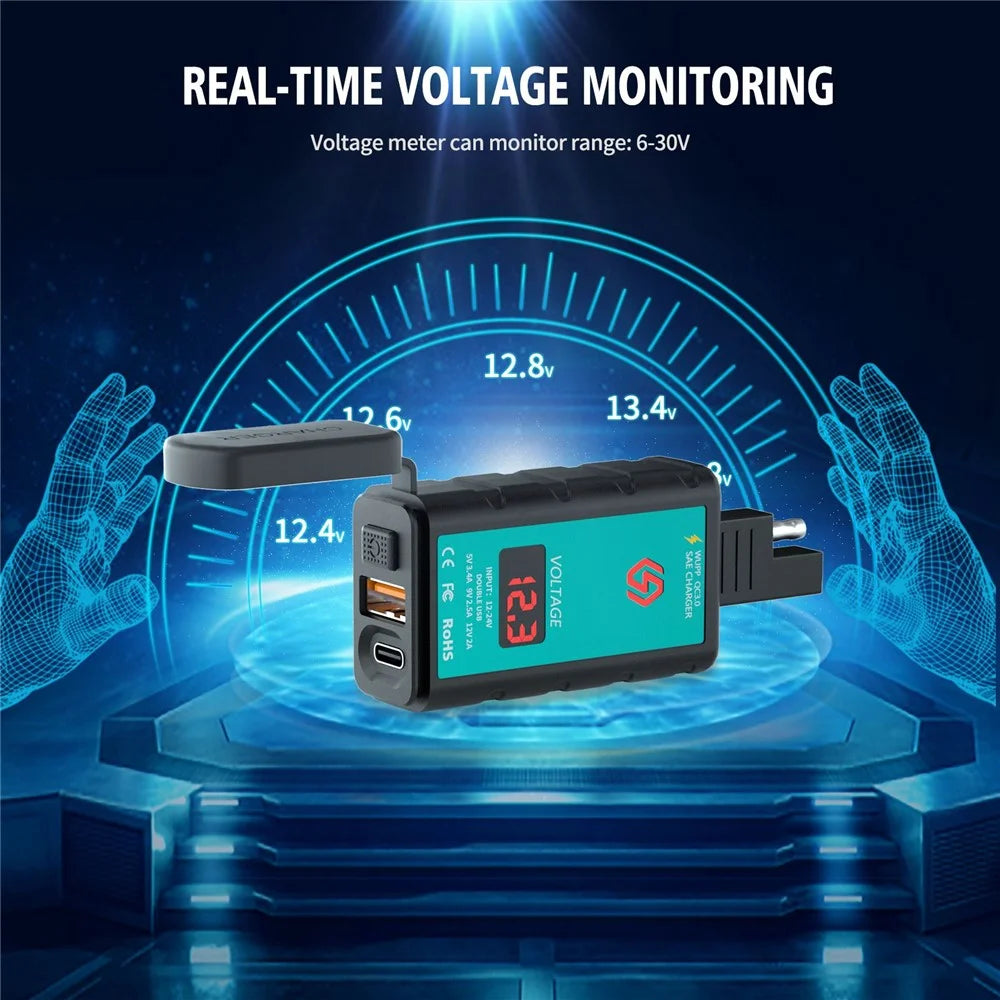

• The product has a voltmeter display to monitor the voltage at any time. With bright logo lighting, it looks beautiful and generous

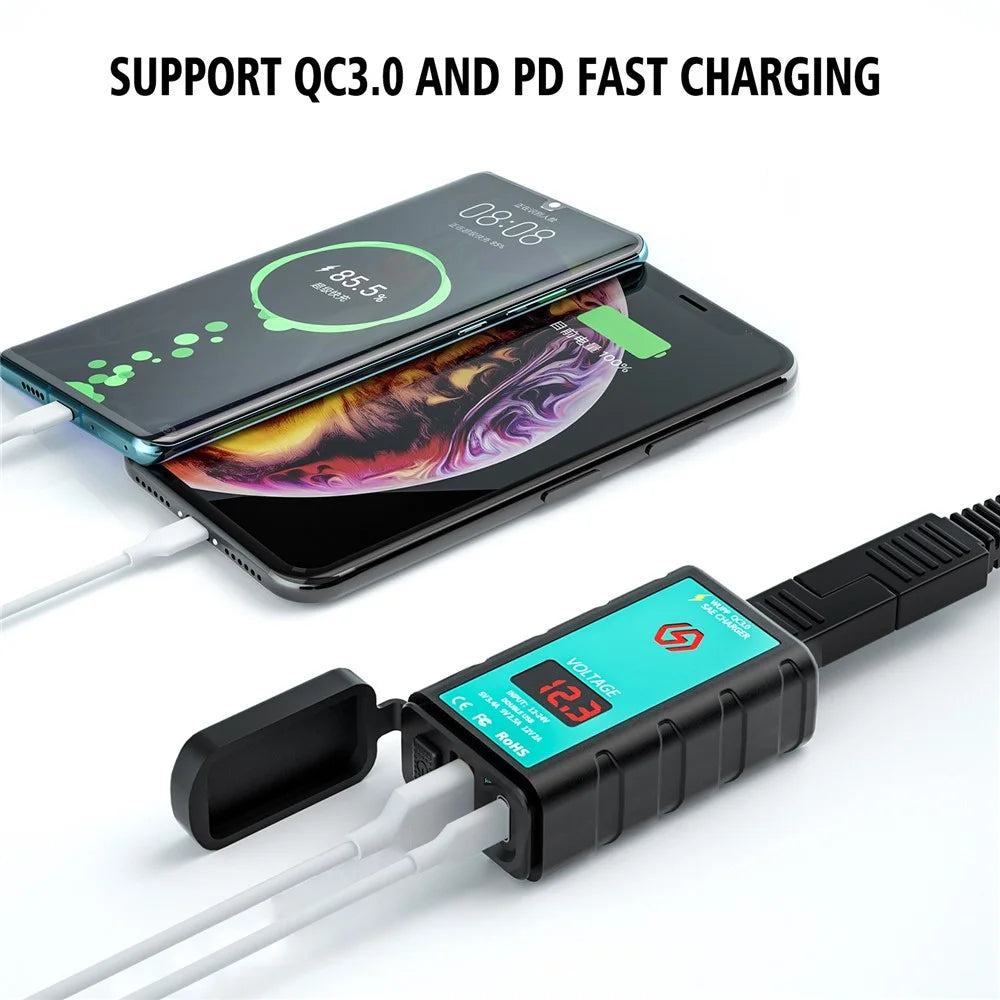

• The product supports USB and PD fast charging, and the scope of application is wider and more convenient

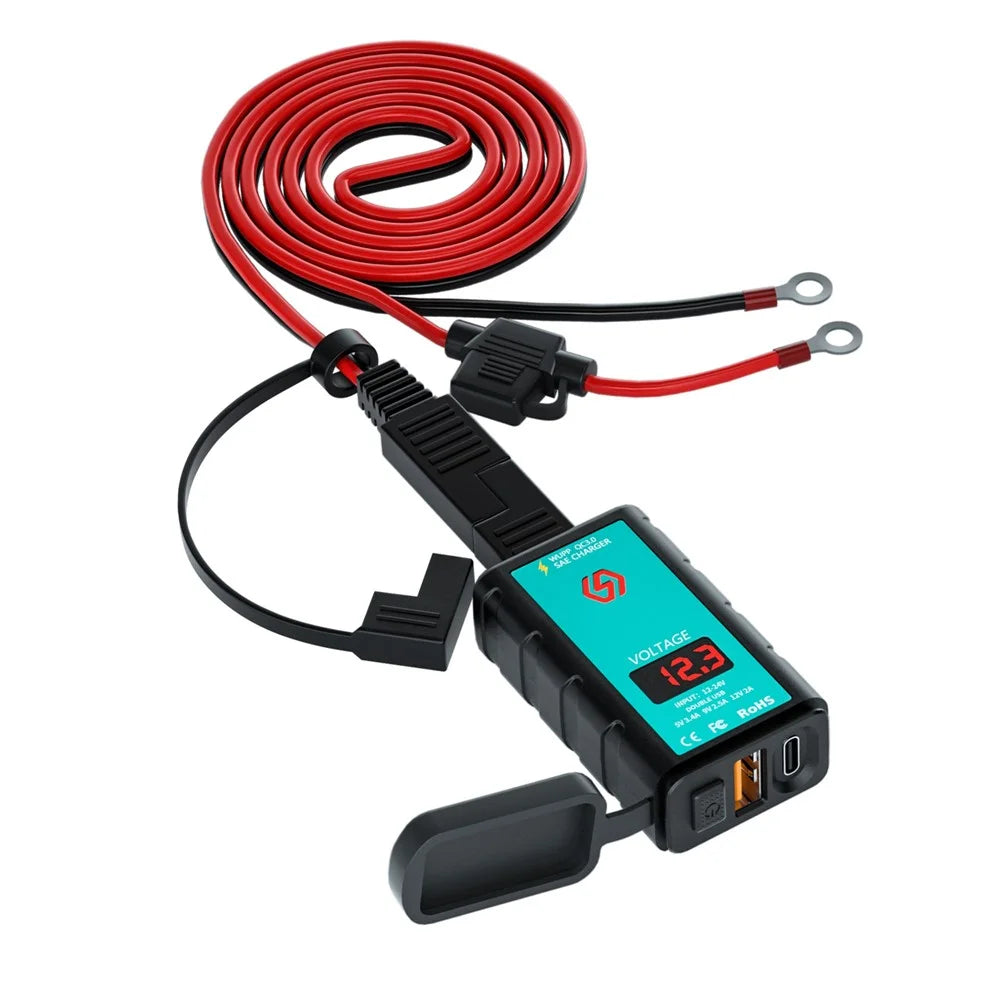

• With 1.4m OT terminal cable and 10A fuse to protect the safety of electrical appliances
• It can be installed on DC 12V-24V cars, motorcycles, ATVs, SUVs, boats and other transportation tools, with a wide range of installations; built-in power MOS, which can provide a maximum output power of 20W, and can automatically adjust the output voltage and current according to the fast charging protocol, thus accommodating the maximum charging power of each phone

Specification:

• Product weight: 135g
• Product size: 66.6mm*38mm*21.3mm
• Product material: high and low temperature resistant, flame retardant ABS material
• Input voltage: DC 12-24V
• USB output voltage: 5V 3.4A / 9V 2.5A / 12V 2A
• PD output power: 20W max, 5V 3A / 9V 2.22A / 12V1.67A
• Monitorable voltage range: 6V-30V
• Installation method: handlebar installation, screw fixing (two installation methods)
• Product use: can be used to power mobile phones, tablets, navigation, GPS, etc
• Scope of use: can be installed in DC12-24V cars, motorcycles, ATVs, SUVs, boats
• Multiple protection functions: input overvoltage/undervoltage protection; output overcurrent/overvoltage/undervoltage/short circuit protection; overload protection; reverse connection protection; chip internal high temperature protection
