YM319 OBD2 Scanner Engine Fault Code Reader Battery Voltage Tester Automotive Diagnostic Tool - 1
YM319 OBD2 Scanner Engine Fault Code Reader Battery Voltage Tester Automotive Diagnostic Tool - 1

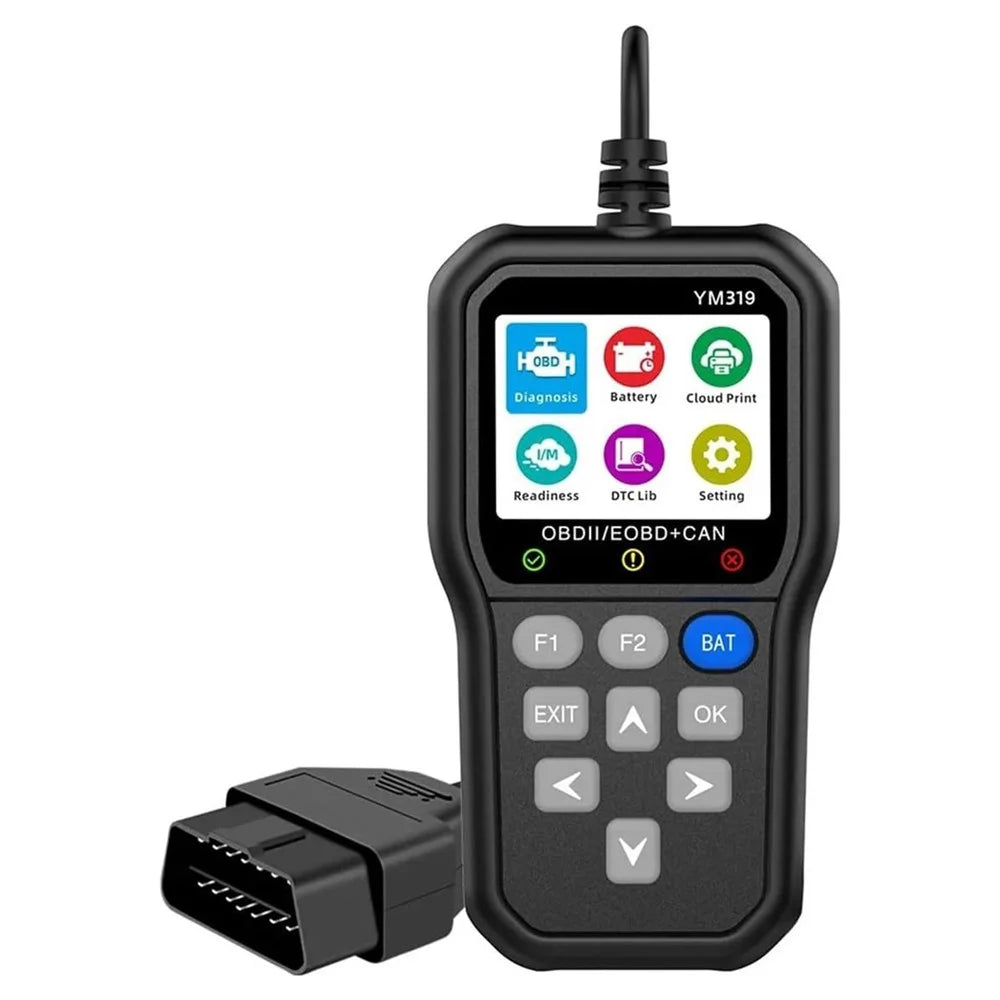

YM319 OBD2 Scanner Engine Fault Code Reader Battery Voltage Tester Automotive Diagnostic Tool

by TVCMall
$800.00




    Delivered in 10-15 Days.
    more info Orders from overseas warehouse are delivered to our customers within 10-15 working days. We have a dedicated team to keep things moving quickly, and we will keep you updated on your order via SMS or email.
    All-Inclusive Pricing.
    more info The price you see is the price you pay. Price includes any Customs, Insurance and Courier fees. Absolutely no hidden fees. We also take care of customs clearance.
    Hassle-Free returns For 7 Days.
    more info View our Return Policy for more info.
  • 【Plug & Play Diagnosis】No battery or charger needed; device powers directly from vehicle's OBDII data link connector for quick and convenient diagnostics.
  • 【Extend Engine Life】Quickly detects major engine faults including MIL warnings to help troubleshoot early and prevent noise and temperature issues.
  • 【Enhanced Performance】Get accurate real-time sensor data with faster GPU Turbo response for clear display and smoother operation on the 2.8-inch full color HD screen.

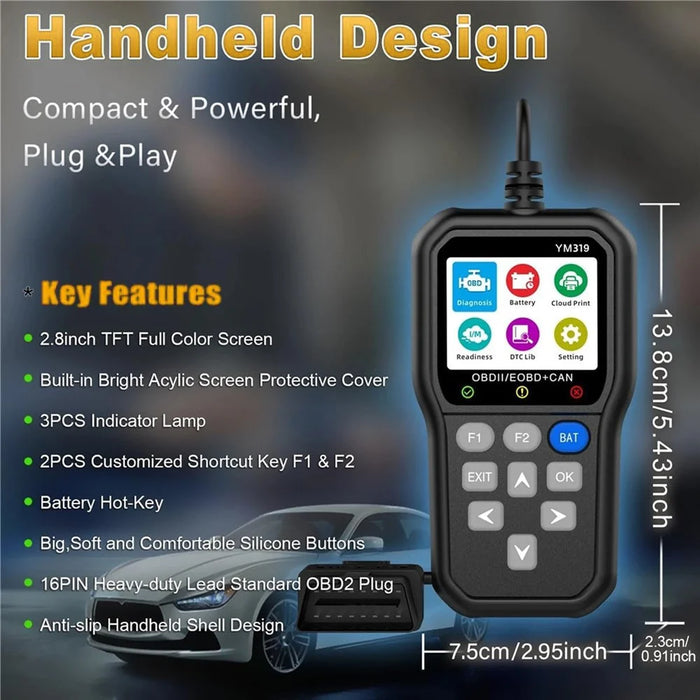

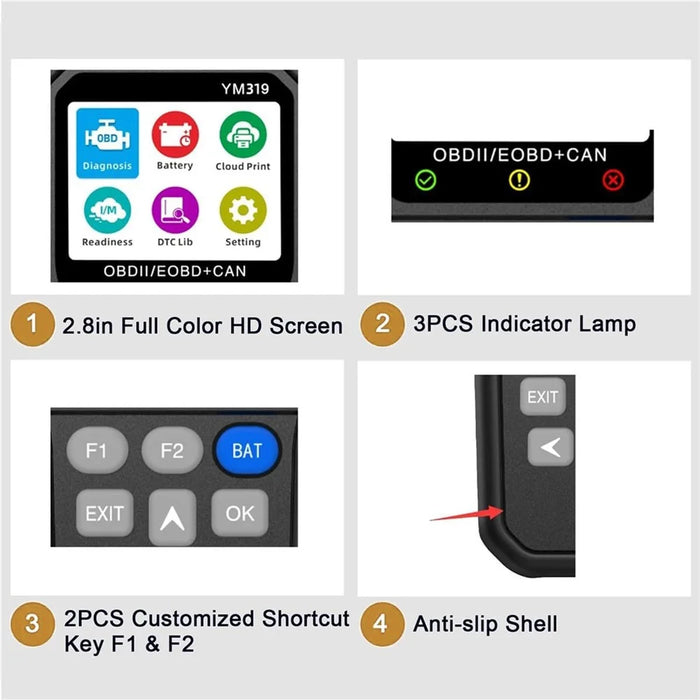

  • 【Portable Design】Compact handheld design with anti-slip shell, TPU protective case, customizable F1/F2 shortcuts, and adjustable buzzer volume and backlight brightness.
  • 【Multi-Language Support】Auto-detects and translates 25 languages via mobile scanning; supports cloud printing of real-time data, freeze frames, and DTC analysis with QR code generation.

Specifications:

  • Model: YM319
  • Screen Size: 2.8 inch TFT Full Color Display
  • Interface: 16PIN Heavy-Duty Standard OBD2 Plug

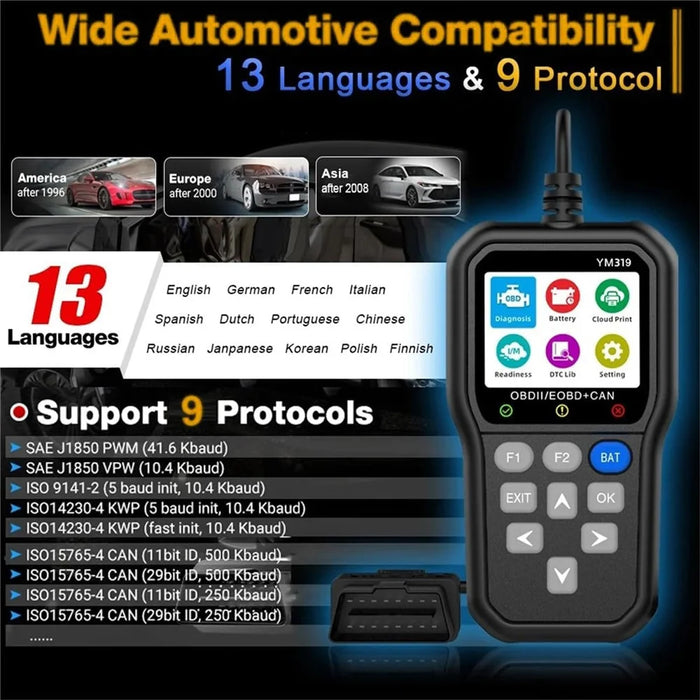

  • Protocol Support: OBDII/EOBD+CAN (9 Standards)
  • SAE J1850 PWM: 41.6 Kbaud
  • SAE J1850 VPW: 10.4 Kbaud
  • ISO 9141-2: 5 baud init, 10.4 Kbaud
  • ISO14230-4 KWP: 5 baud init, 10.4 Kbaud
  • ISO14230-4 KWP: Fast Init, 10.4 Kbaud
  • ISO15765-4 CAN: 11bit ID, 500 Kbaud
  • ISO15765-4 CAN: 29bit ID, 500 Kbaud
  • ISO15765-4 CAN: 11bit ID, 250 Kbaud
  • ISO15765-4 CAN: 29bit ID, 250/251 Kbaud
  • Language Support: 13 Languages (English, German, French, Italian, Spanish, Dutch, Portuguese, Chinese, Russian, Japanese, Korean, Polish, Finnish)
  • Data Capabilities: 250+ Live Data Stream, 35000+ DTC Look-up
  • Dimensions: 13.70 x 7.50 cm (5.39 x 2.95 inch)
  • Vehicle Compatibility: American vehicles (1996 and newer), European vehicles (2000 and newer), and Asian vehicles (2008 and newer).

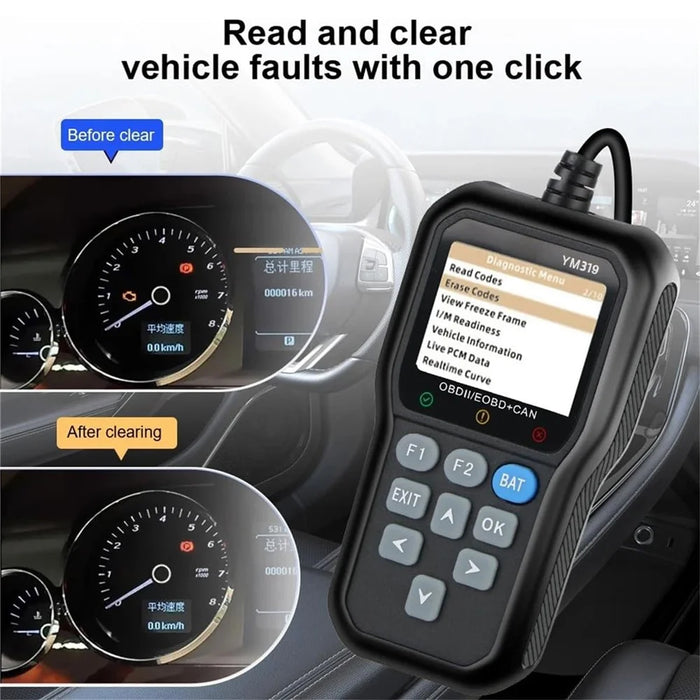

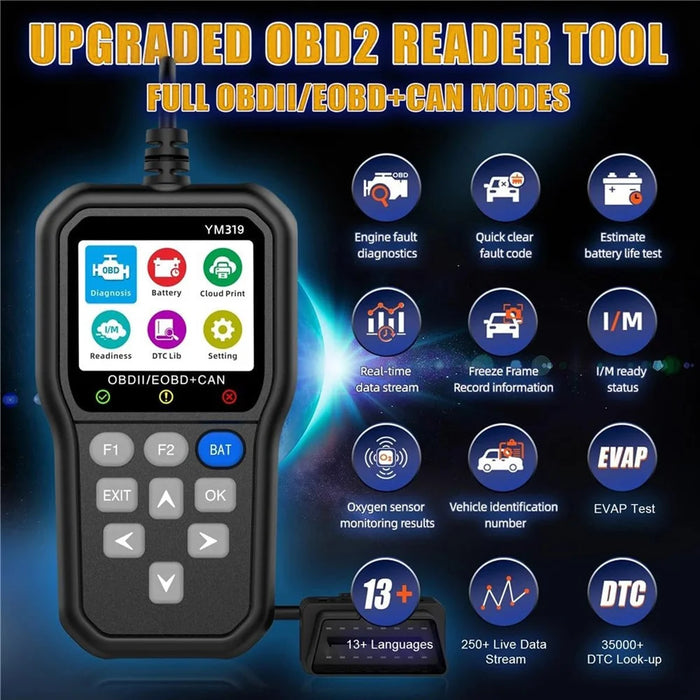

  • Functions: Read/Erase Codes, Freeze Frame, I/M Readiness, Vehicle Info, Real-Time Data Stream, Mode 6 Test, O2 Sensor Test, EVAP Test, Battery Voltage Reading/Monitoring/Life Estimation, Cloud Print

In the box

  • 1 x Automotive Diagnostic Tool
  • 1 x English User Manual
