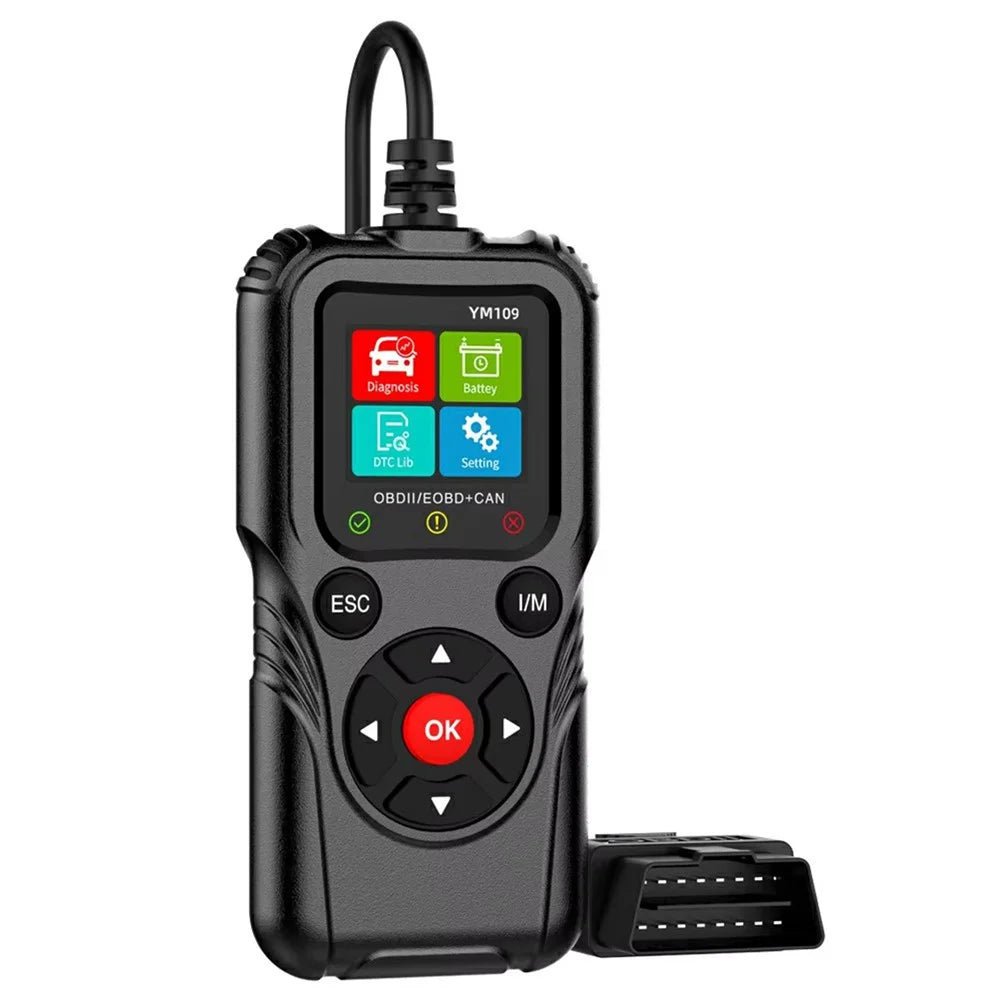

YM109 2.8 inch Color LCD OBD2 Scanner with Battery Test Car Diagnostic Code Reader - Black
by TVCMall
$630.00
Delivered in 10-15 Days.
more info
Orders from overseas warehouse are delivered to our customers within 10-15 working days. We have a dedicated team to keep things moving quickly, and we will keep you updated on your order via SMS or email.
All-Inclusive Pricing.
more info
The price you see is the price you pay. Price includes any Customs, Insurance and Courier fees. Absolutely no hidden fees. We also take care of customs clearance.
Hassle-Free returns For 7 Days.
more info
View our Return Policy for more info.

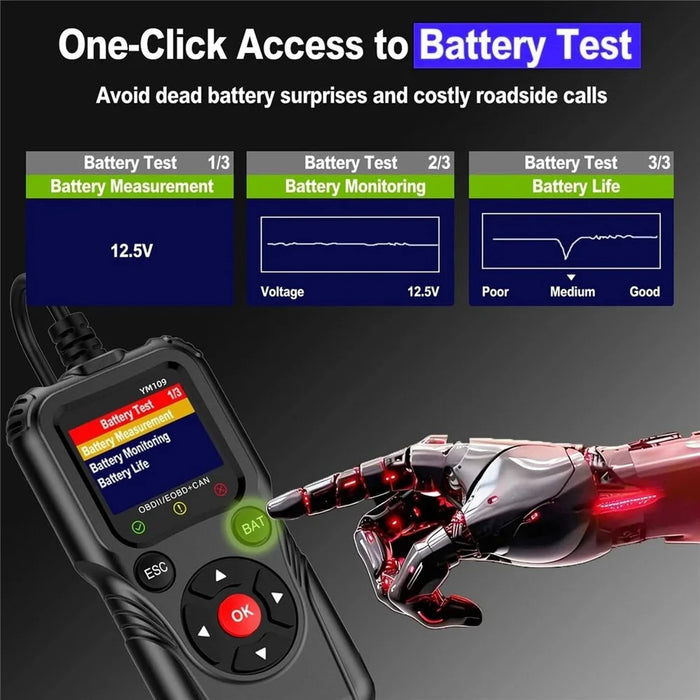

- 【Battery Test & Analysis】Monitors voltage curves and evaluates battery life to detect performance decline before failure.

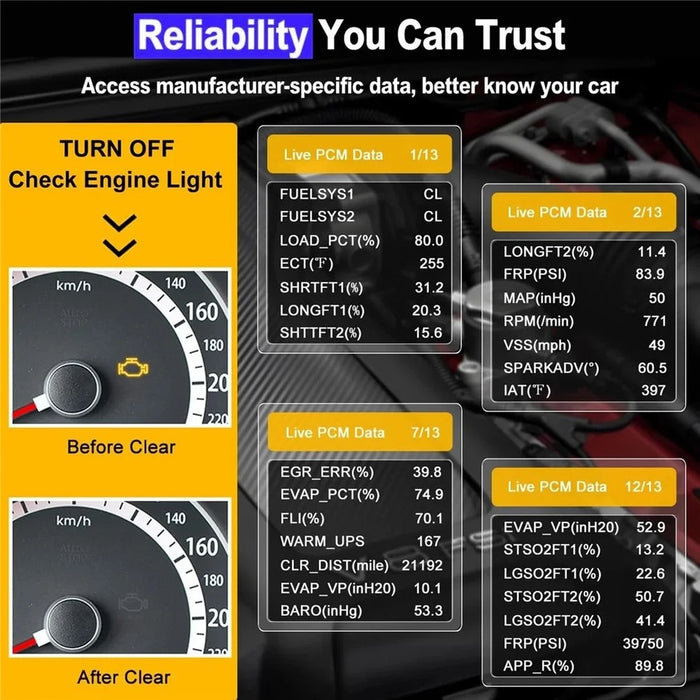

- 【Quick Code Reading】Reads and clears engine fault codes, monitors real-time data including RPM, temperature, and fuel trim for confident repair decisions.

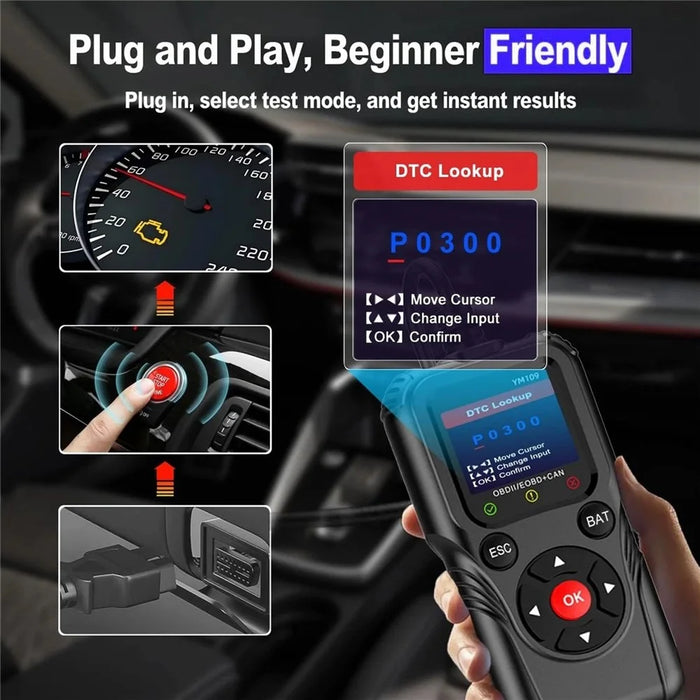

- 【Plug & Play Operation】No app or account required, simply connect to the OBDII port and view results on the 2.8-inch backlit color LCD screen.
- 【Wide Compatibility】Works with most 1996 and newer OBDII-compliant cars, SUVs, and light trucks, supporting SAE J1850, ISO9141-2, KWP2000, and CAN protocols.
- 【Portable Handheld Design】Compact and lightweight, easily fits in a glove box or tool kit for quick roadside diagnostics anytime.

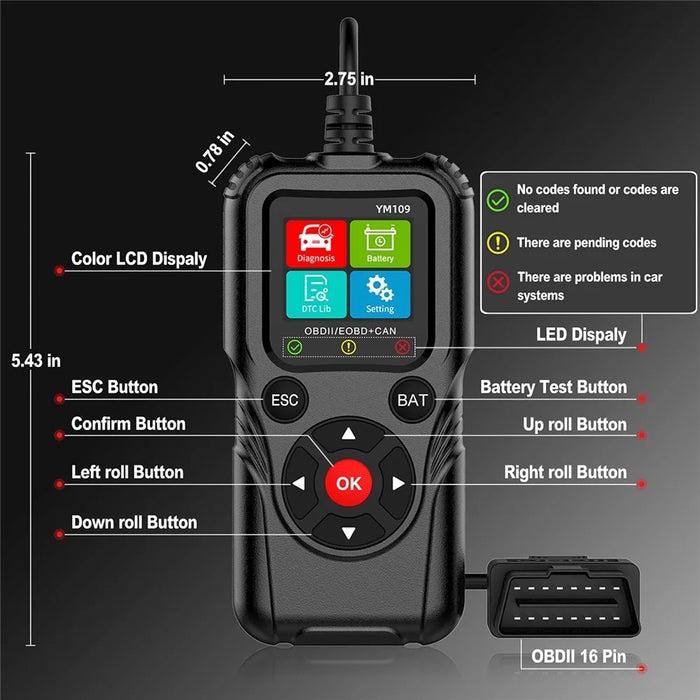

Specifications:
- Item Model: YM109
- Display: 2.8-inch Color LCD
- Interface: OBDII 16 Pin
- LED Indicator: 3-Color LED (Green/Yellow/Red)
- Dimensions: 5.43 x 2.75 x 0.78 inch
- Supported Protocols: SAE J1850 PWM/VPW, ISO9141-2, KWP2000, CAN

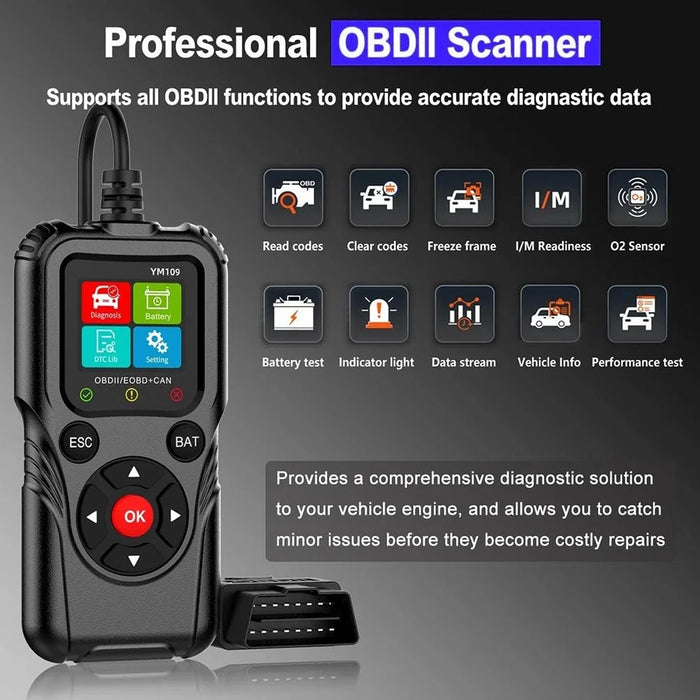

- Functions: Read Codes, Clear Codes, Freeze Frame, I/M Readiness, O2 Sensor Test, Battery Test, Data Stream, Vehicle Info, Performance Test, DTC Lookup
- Battery Test Functions: Voltage Measurement, Voltage Monitoring, Battery Life Assessment
- Operating System: ECU
In the box
- 1 x Car Diagnostic Tool
- 1 x English User Manual
