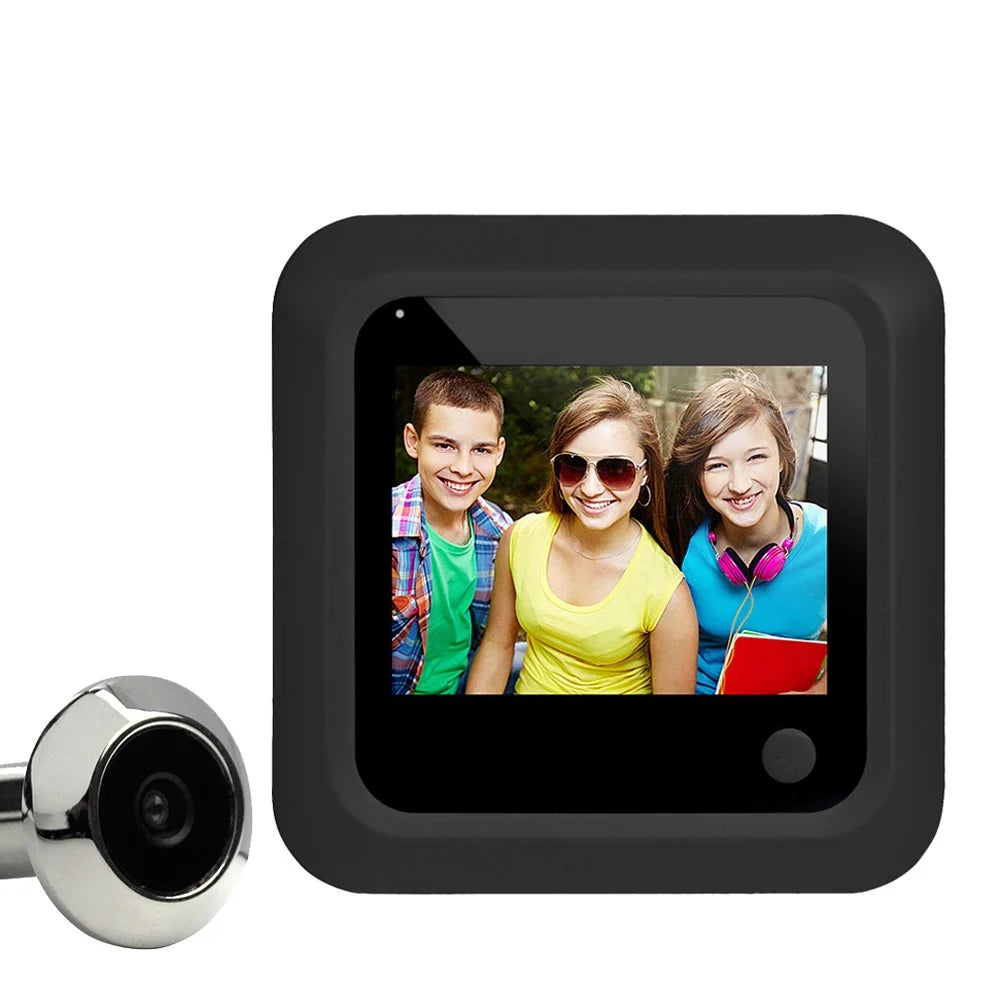

X5-B 2.4-inch Digital Door Viewer Home Smart Doorbell Security Door Peephole Cat Eye
R910
incl. VAT
Dispatches in 1 – 3 days
Nationwide delivery
2–4 working days to major metros
Secure checkout
Card, EFT, Ozow and PayFast
30-day returns
Unused, in original packaging
Description
300,000 pixel CMOS sensor
M7 full glass 200W pixel HD lens
Support multiple video formats, maximum support 640*480P
With wide dynamic and low illumination capabilities, support for automatic color to black
Adopt 32-bit processor and professional video codec chip
Automatic shutdown after 15 seconds
Support manual image capture
2.4 inch TFT LCD display
Supports up to 32G high-speed TF memory cards
Two power supply modes: 3pcs 1.5V / AAA battery or 5V 1A external power supply
Specification:
| Model | X5-B |
|
Camera Module |
Image sensor |
1/4" CMOS (0308) |
Effective pixels |
640(H)x480(V) |
|
Minimum illumination |
0.5Lux/F2.0 (chromatic color) |
|
0.02Lux/F2.0 (black and white) | ||
White balance |
Automatic tracking of white balance |
|
Gain control |
automatic |
|
Signal to noise ratio |
Greater than 50dB |
|
BLC |
automatic |
|
Wide dynamic |
YES |
|
Electronic shutter |
1/4-1/10,000s |
|
Day and night mode |
Filter color to black |
|
Focal length |
2.4mm |
|
Horizontal viewing angle |
120° |
|
Aperture |
F2.0 |
|
Features |
Automatic shut-down |
15 seconds |
Manual capture |
1 piece |
|
Parameter |
Main chip |
Jerry |
Indoor unit size |
80mmx80mmx18mm |
|
Outdoor machine size |
33mmx33mmx7mm |
|
Indoor machine material |
ABS plastic |
|
Outdoor machine material |
Zinc alloy |
|
LCD screen type |
2.4-inches |
|
LCD screen resolution |
240(RGB)*320 |
|
TF card |
Maximum support 32G |
|
Maximum picture size |
640x480 |
|
Stand-by current |
100UA |
|
Operating temperature and humidity |
-30°C-65°C(outdoor) / -10°C-50°C(indoor) Humidity is less than 90% |
|
Protection level |
IP55 |
|
Installation method |
Screw plate |
|
Applicable door |
35~110mm |
|
For cat eyes |
15~20MM |
|
Package Size |
190*117*76mm |
|
Host color |
black |
|
Accessories |
Screws |
M3*35 2 M3*65 2 M3*85 2 |
Mounting base plate |
72mm*52mm*6.5mm |
|
TF card |
Capacity 8G (optional) |
|
battery |
3 x AAA battery(optional) |
|
In the box
- 1 x Host
- 1 x Camera
- 6 x Screws
- 1 x Hanging Plate
- 1 x Certificate
- 1 x Service Card
- 1 x English and Chinese User Manual
- Other items not included
Specifications
- SKU
- 643800010A
- Colour
- As Shown
- Package dimensions
- 19.5 × 12.3 × 4.2 cm
- Gross weight
- 0.29 kg
- Units per pack
- 60
- Dispatch
- 1 - 3 days
- Category
- Consumer Electronics › Security & Surveillance › Video Doorbells
What’s in the box
- 1 Host
- 1 Camera
- 6 Screws
- 1 Hanging Plate
- 1 Certificate
- 1 Service Card
- 1 English and Chinese User Manual
- — Other items not included
