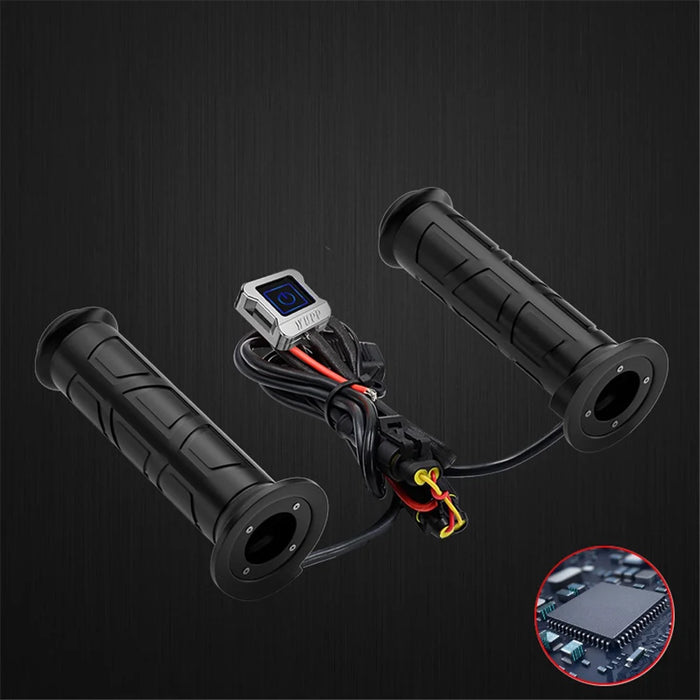

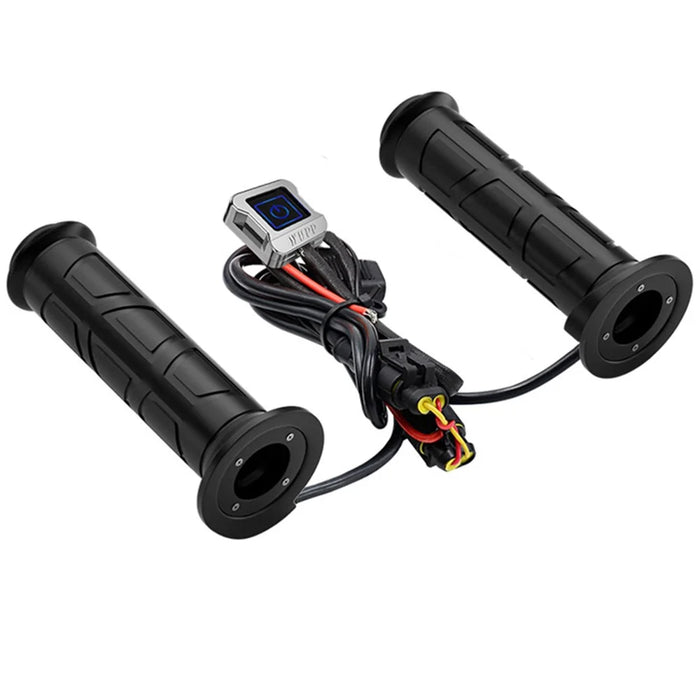

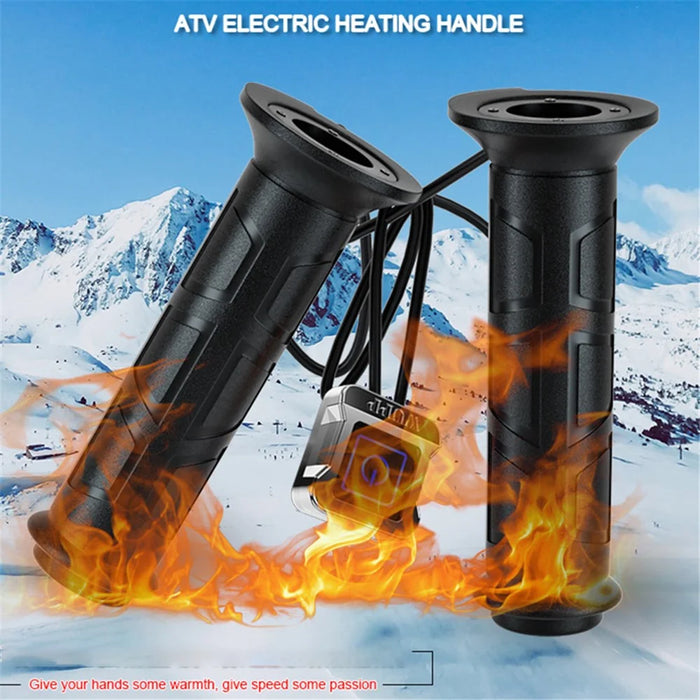

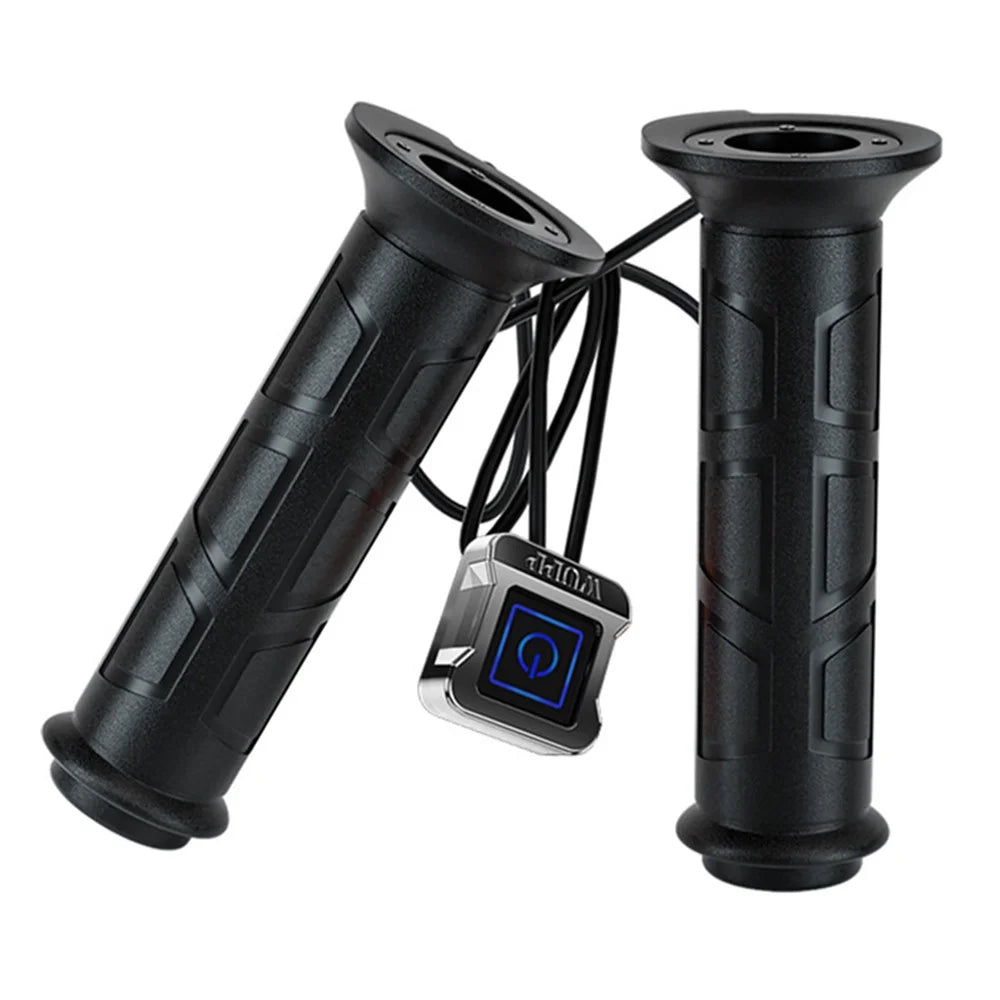

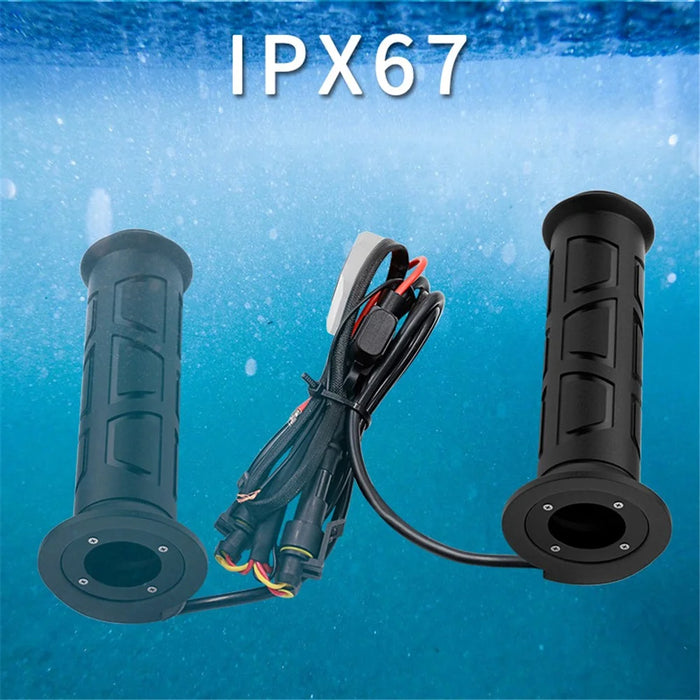

WUPP CSZH-983F2 1 Pair ATV Heated Handlebar Grips 3 Temperature Electric Heated Handle

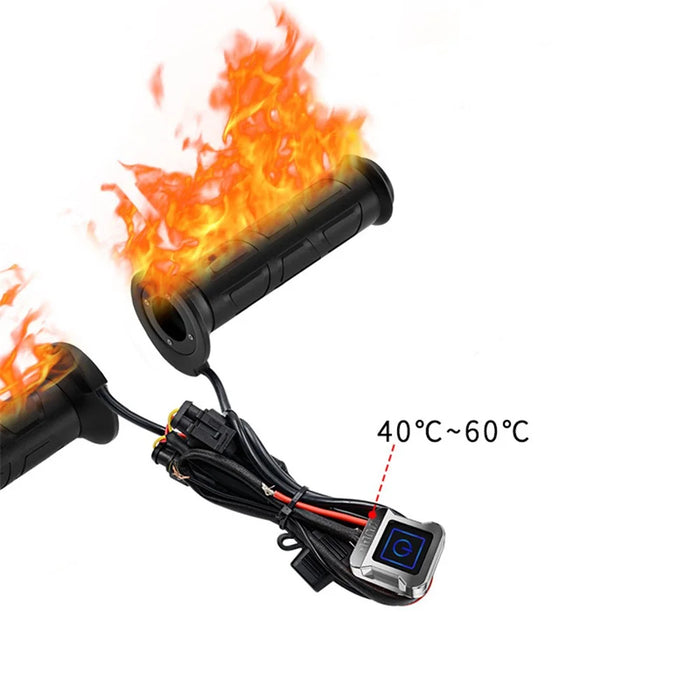

• The handlebar heated grips adopt 3 different temperature regulation controls. Green represents the low temperature of 40℃, blue represents the middle temperature of 50℃, and red represents the maximum temperature of 60℃. Helps you heat up quickly, and you can adjust the temperature suitable for you according to your needs
• Suitable for most 12V (22mm) handle ATVs, just take off your previous handle and install a new heating handle without any modification
• The handle is designed with anti-skid treatment and frosting, making you safer when driving

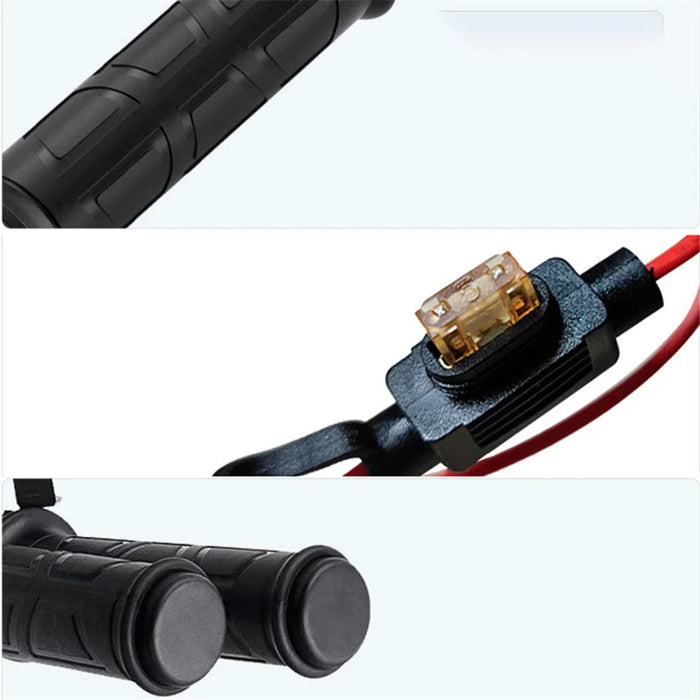

• The built-in 5A fuse piece will automatically disconnect when the handle has problems, so you can use it with ease
• The red wire is connected to the positive pole "+", and the black wire is connected to the negative pole "-". Please confirm before connecting, do not reverse the connection

Specifications:

• Product Model: CSZH-983F2
• Net weight: 258g
• Material: Nitrile material
• Suitable pipe diameter: 22mm
• Input voltage: DC 12V
• Power: 35W red light, 25W blue light, 17W green light
• Handle type: Sealable/passable electric handles
• Switch type: Multi-range adjustable temperature control switch
• Applicable models: 12V ATV with a handle diameter of 22mm

Operating Instructions:

• 1. Energized: red light, blue light, green light each flashes once and then goes out.
• 2. Working status: indicator light is always on (high: red light is always on, medium: blue light is always on, low, green light is always on).
• 3. Long press on the key for 3 seconds: shutdown.
• 4. Click the key: switch the gear.

How to Use the Switch:

• long press 3 seconds to start, bright red breathing light, after reaching the temperature will automatically become blue, lightly press a blue light temperature for the temperature of the temperature, lightly press two green, the temperature is low, press three for the red three high temperature, long press 3 seconds to turn off the machine.

Installation Instructions:

• 1. Remove the original handlebar.
• 2. Wet the inside hole of the left handlebar with soapy water, and do not twist it too much when installing.
• 3. power cord, red line to the positive pole, black line to the negative pole, please confirm and then connect, do not connect the reverse.

Notes: When installing the left handle, do not twist the handle too much, or will cause the electric wire to shift.
