Wired Car OBD Scanner Plug and Play Car Fault Code Reader Auto Diagnostic Scanner Tool Engine Tester - 1
Wired Car OBD Scanner Plug and Play Car Fault Code Reader Auto Diagnostic Scanner Tool Engine Tester - 1

Wired Car OBD Scanner Plug and Play Car Fault Code Reader Auto Diagnostic Scanner Tool Engine Tester

by TVCMall
$540.00




    Delivered in 10-15 Days.
    more info Orders from overseas warehouse are delivered to our customers within 10-15 working days. We have a dedicated team to keep things moving quickly, and we will keep you updated on your order via SMS or email.
    All-Inclusive Pricing.
    more info The price you see is the price you pay. Price includes any Customs, Insurance and Courier fees. Absolutely no hidden fees. We also take care of customs clearance.
    Hassle-Free returns For 7 Days.
    more info View our Return Policy for more info.
  • 5 languages supported

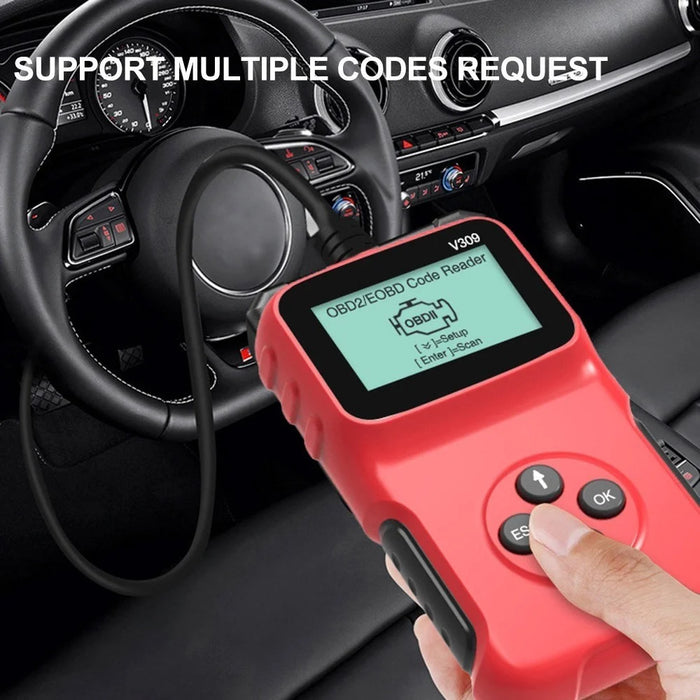

  • Support multiple codes request
  • Read freeze frame data which shows engine condition
  • It is capable of reading/erasing, showing error code definitions, reading I/M and view freeze frame
  • Easier to read manufacture specific codes
  • Clearly arranged keypad, menu-driven navigation, hot-keys and TFT color screen together make it extremely easy to use

Specifications:

  • Communication protocol:
  • SAE J1850 PWM (41.6 Kbaud)
  • SAE J1850 VPM (10.4 Kbaud)
  • ISO 9141-2 (5 baud init,10.4 Kbaud)
  • ISO 14230-4 KWP (5 baud init,10.4 Kbaud)
  • ISO 14230-4 KWP (fast init,10.4 Kbaud)
  • ISO 14230-4 CAN (11bit ID,500 Kbaud)
  • ISO 14230-4 CAN (29bit ID,500 Kbaud)
  • ISO 14230-4 CAN (11bit ID,250 Kbaud)
  • ISO 14230-4 CAN (29bit ID,250 Kbaud
  • Working voltage: 9-16v
  • Working current: 80mA
  • Operating environment: - 30-70 ° C
  • Storage temperature: - 30-80 ° C
  • Item size: 95.5 72.18 22.2mm

In the box

  • 1 x Universal Reader
  • 1 x Cable
  • 1 x English and Chinese User Manual
