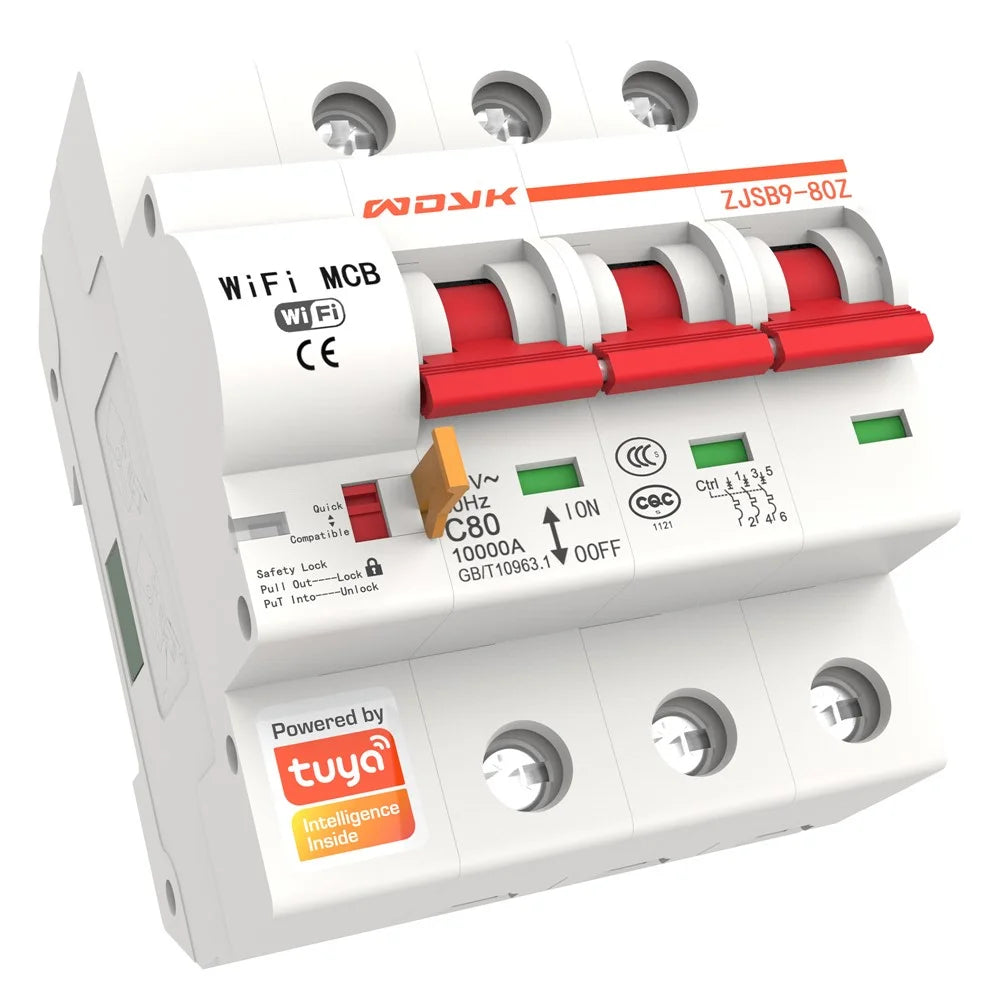

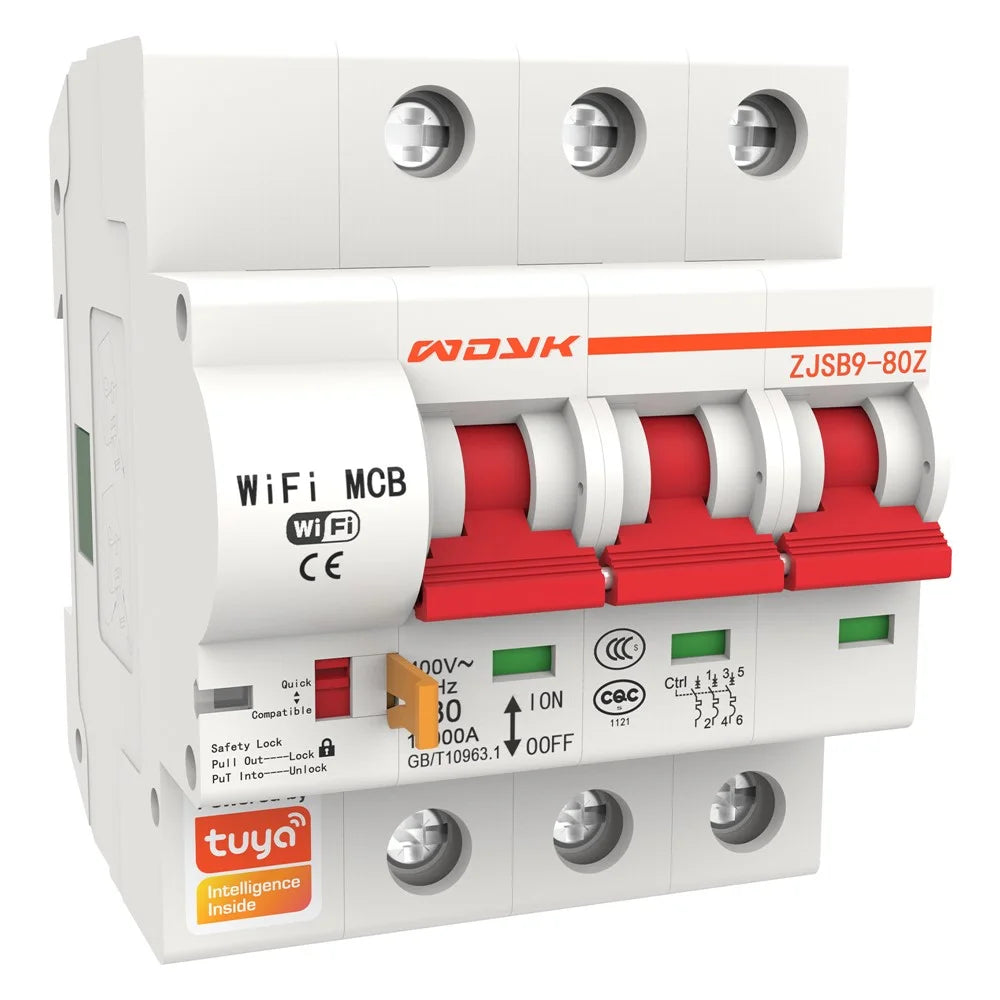

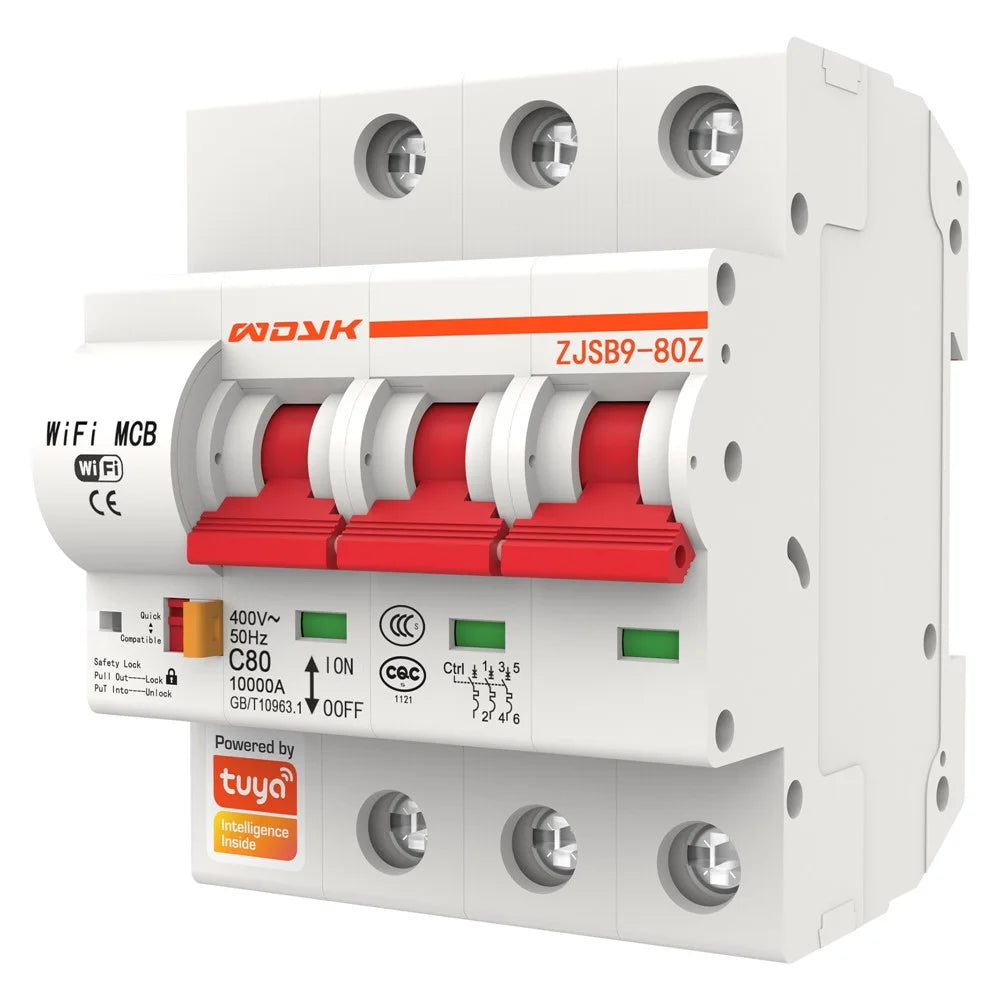

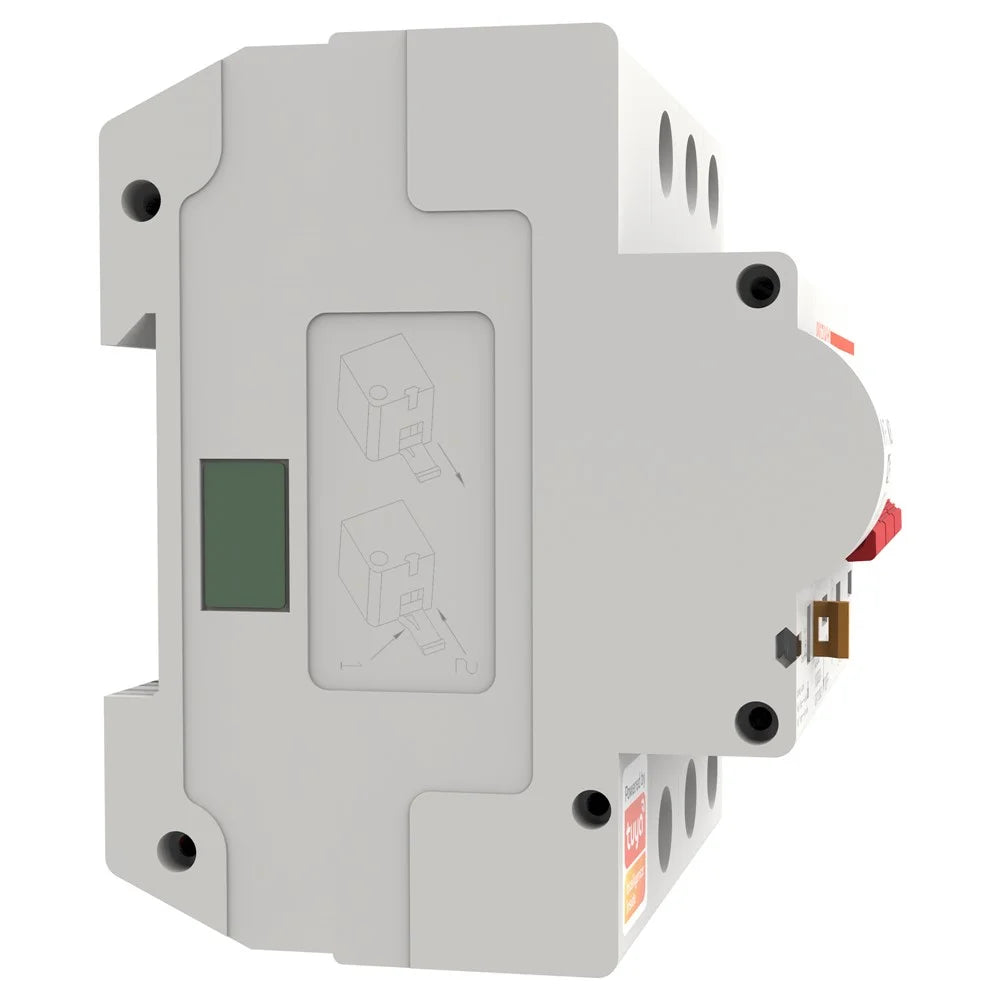

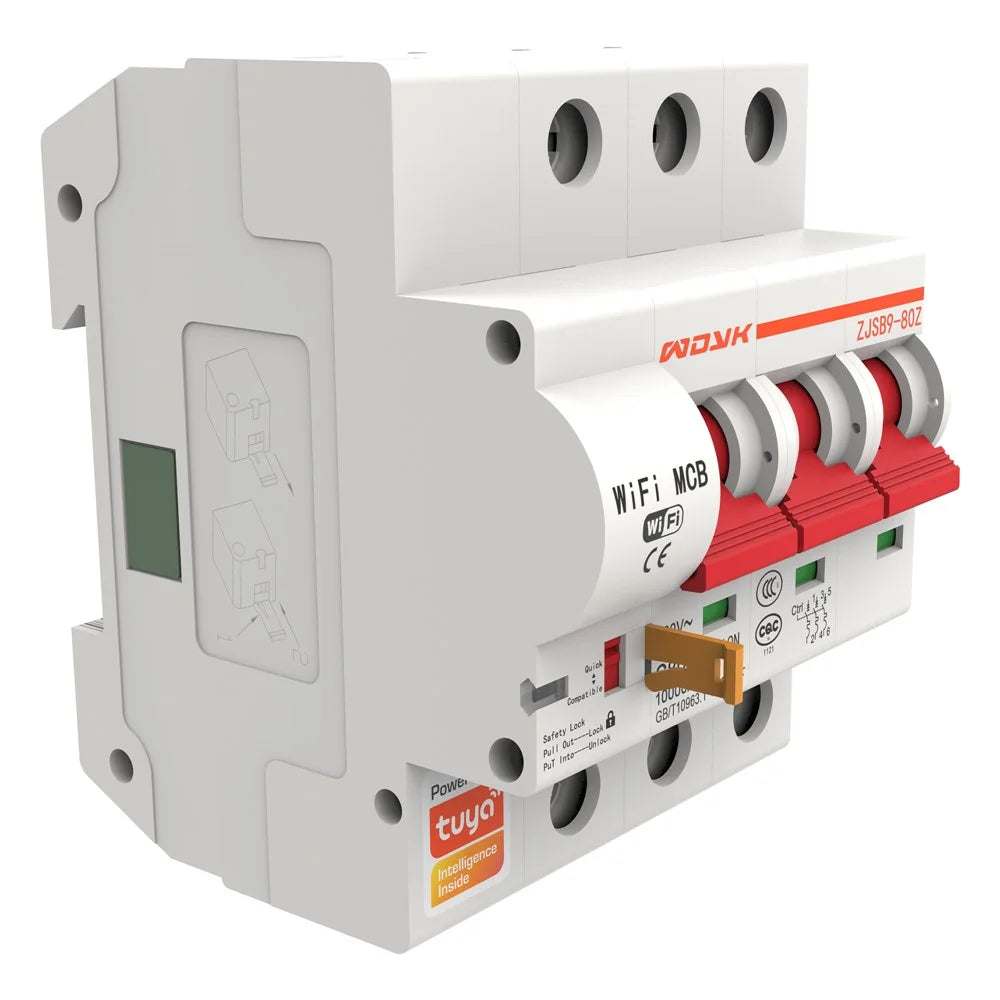

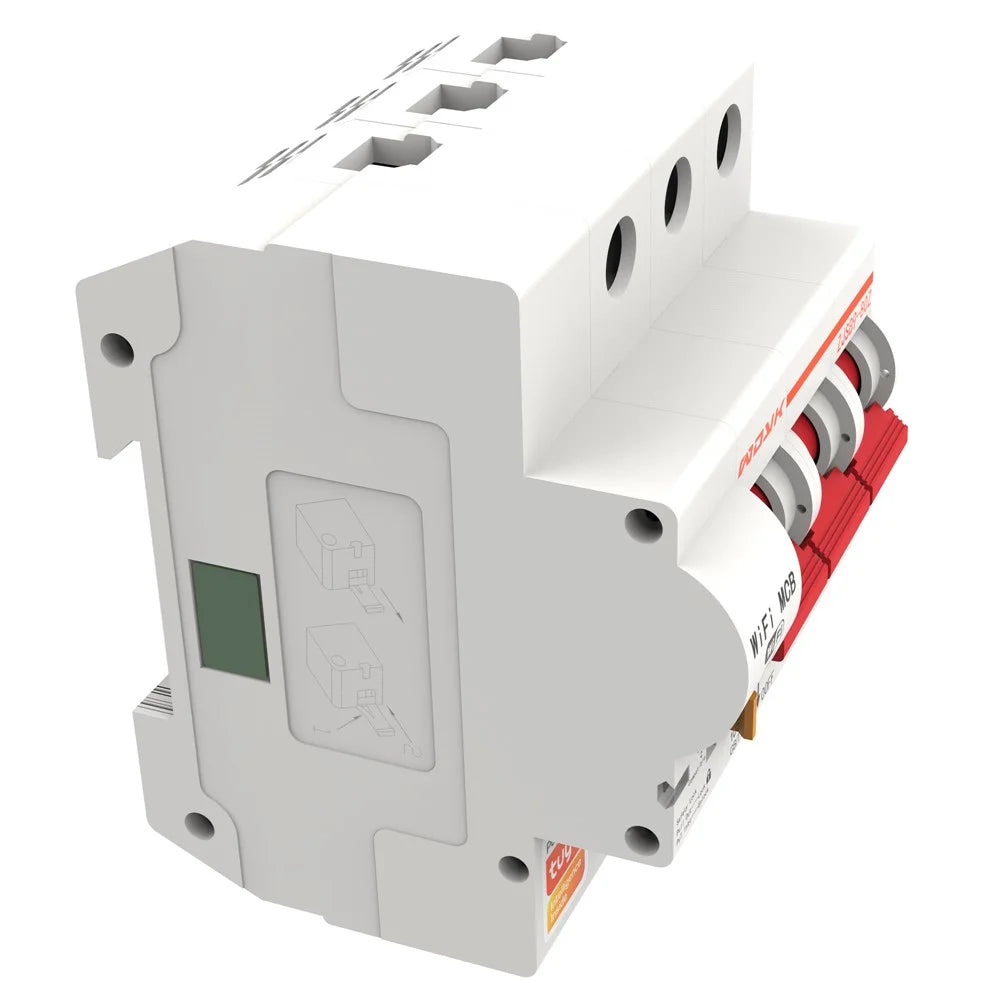

WDYK 10A - 80A 3P Tuya Smart WiFi Circuit Breaker Remote Control Intelligent Switch for Smart Home Automation - 10A
by WDYK
$1,350.00
Delivered in 10-15 Days.
more info
Orders from overseas warehouse are delivered to our customers within 10-15 working days. We have a dedicated team to keep things moving quickly, and we will keep you updated on your order via SMS or email.
All-Inclusive Pricing.
more info
The price you see is the price you pay. Price includes any Customs, Insurance and Courier fees. Absolutely no hidden fees. We also take care of customs clearance.
Hassle-Free returns For 7 Days.
more info
View our Return Policy for more info.
- 【Smart WiFi Circuit Breaker】Tuya smart switch integrates with WiFi for remote control and IoT functionality, perfect for smart home applications
- 【Wide Current Range】Available in multiple current ratings from 10A to 80A, catering to diverse household and commercial needs
- 【Enhanced Safety Features】Equipped with 6kA short-circuit breaking capacity and 6kV rated impulse withstand voltage for superior protection
- 【Durable Performance】Boasts a mechanical life of over 10,000 operations and an electrical life exceeding 6,000 operations, ensuring long-term reliability
- 【Environmental Resilience】Complies with stringent standards for EMC performance, surge withstand, salt spray resistance, and dust resistance, suitable for various environments

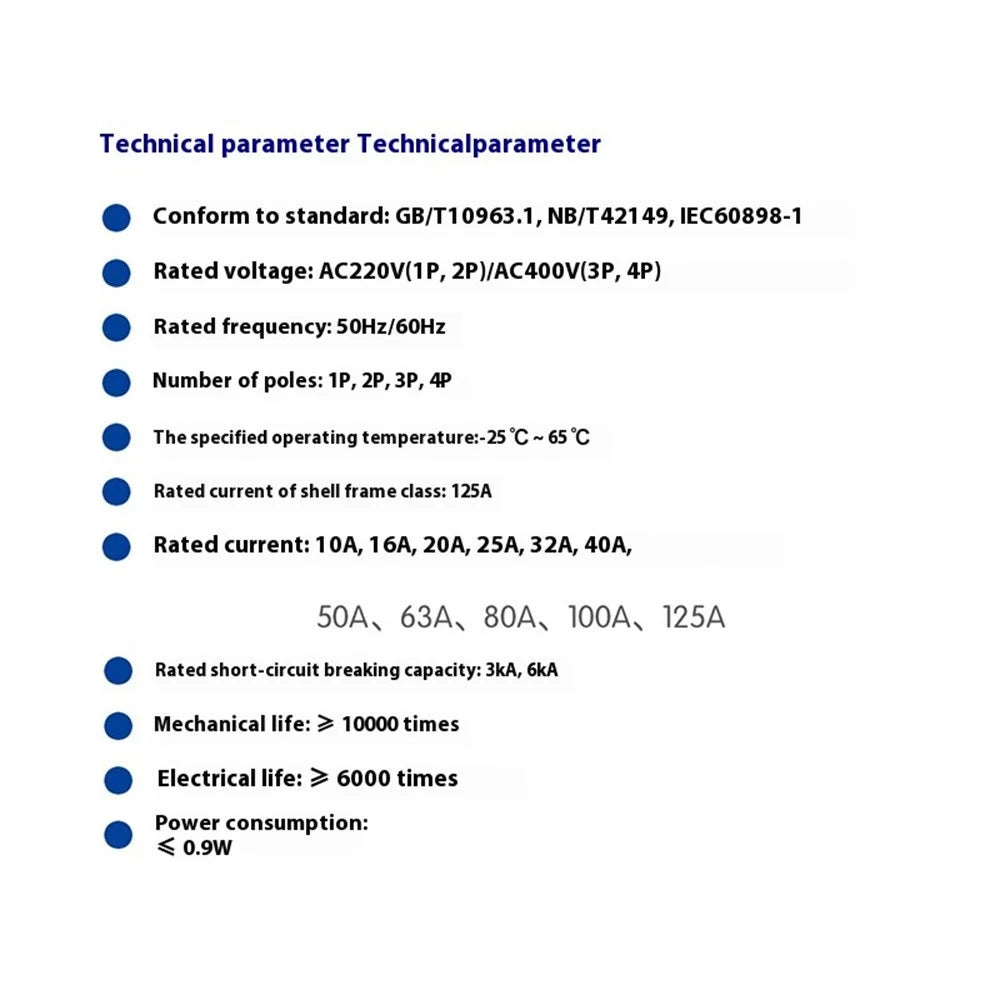

Specifications:
- Comply with standards: GB/T10963.1 IEC60898-1
- Rated voltage: AC400V
- Rated frequency: 60Hz
- Number of poles: 3P
- Pollution level: Level 2
- Protection level: IP20
- Installation category: II, III
- Specified operating temperature: -25℃~+65℃
- Frame grade rated current: 80A, 125A
- Rated current: 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A (optional)
- Instantaneous tripping form: C
- Rated short-circuit breaking capacity: 6kA
- Rated impulse withstand voltage: 6kV
- Mechanical life: more than 10,000 times
- Electrical life: more than 6,000 times
- EMC performance: in accordance with GB/T 18449
- Surge withstand: in accordance with GB/T 17626.5 Voltage 4.0KV
- Salt spray withstand: in accordance with GB/T2423.17 48h
- Dust tolerance: in accordance with GB 4208 8h
- Maximum wiring capacity: 50mm2
- Tightening torque: 4-5Nm
In the box
- 1 x Circuit Breaker
- 1 x English and Chinese User Manual
- Other items not include
