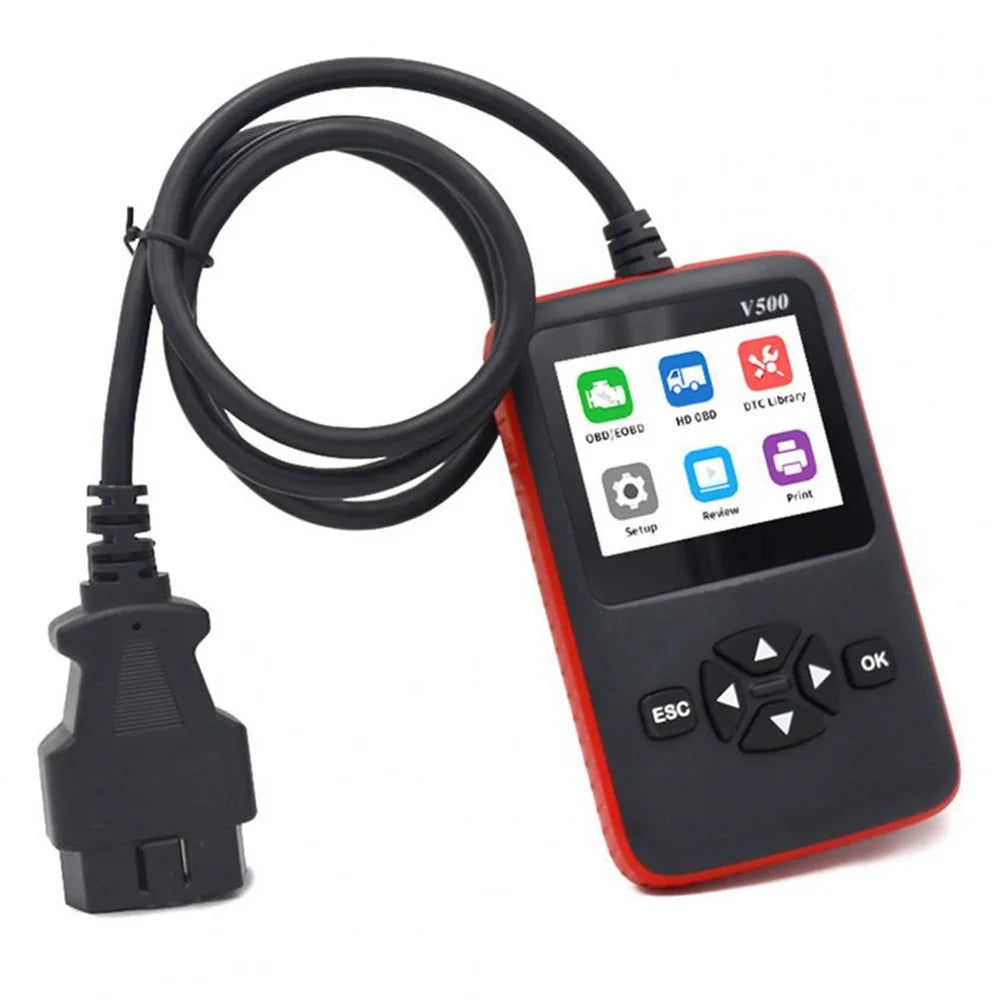

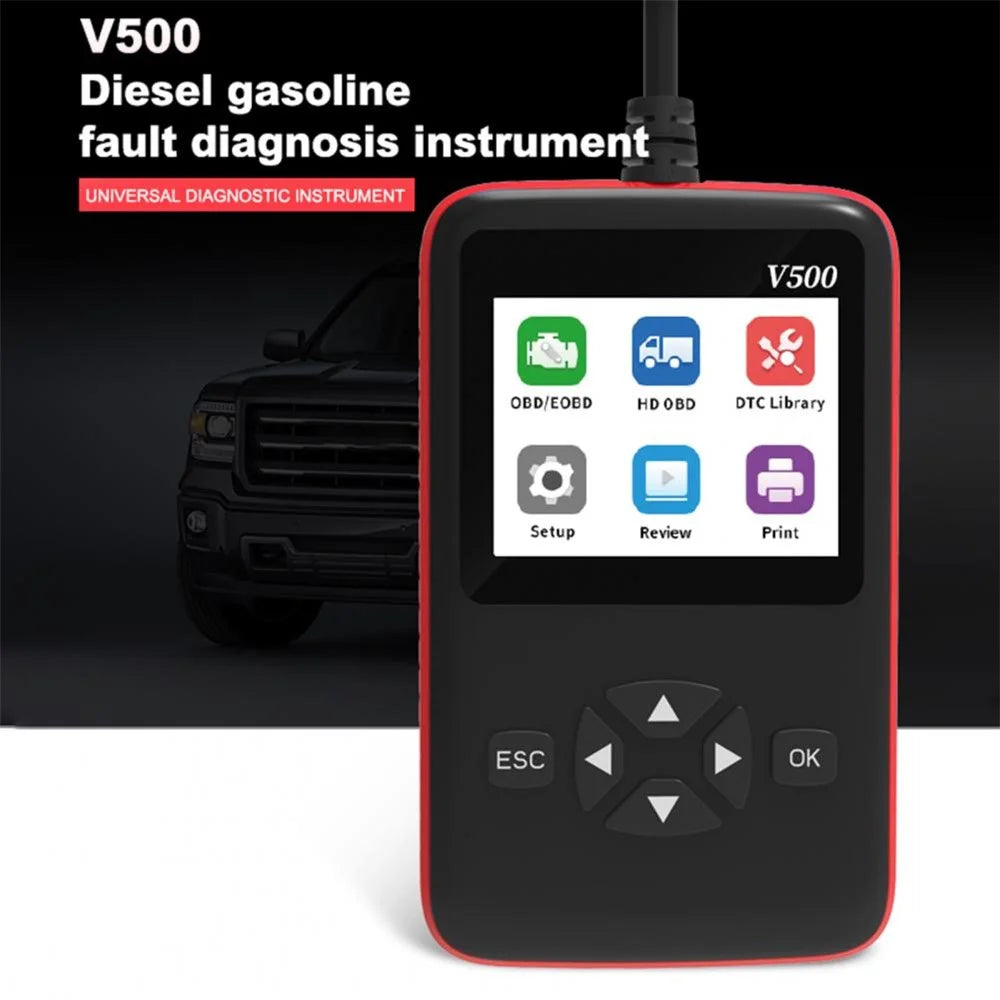

V500 Car Vehicle ELM327 OBD2 Engine Fault Code Reader Diesel Oil Diagnostic Tool Scanner Analyzer
R2 420
incl. VAT
Dispatches in 1 – 3 days
Nationwide delivery
2–4 working days to major metros
Secure checkout
Card, EFT, Ozow and PayFast
30-day returns
Unused, in original packaging
Description
- Support 11 standard protocols

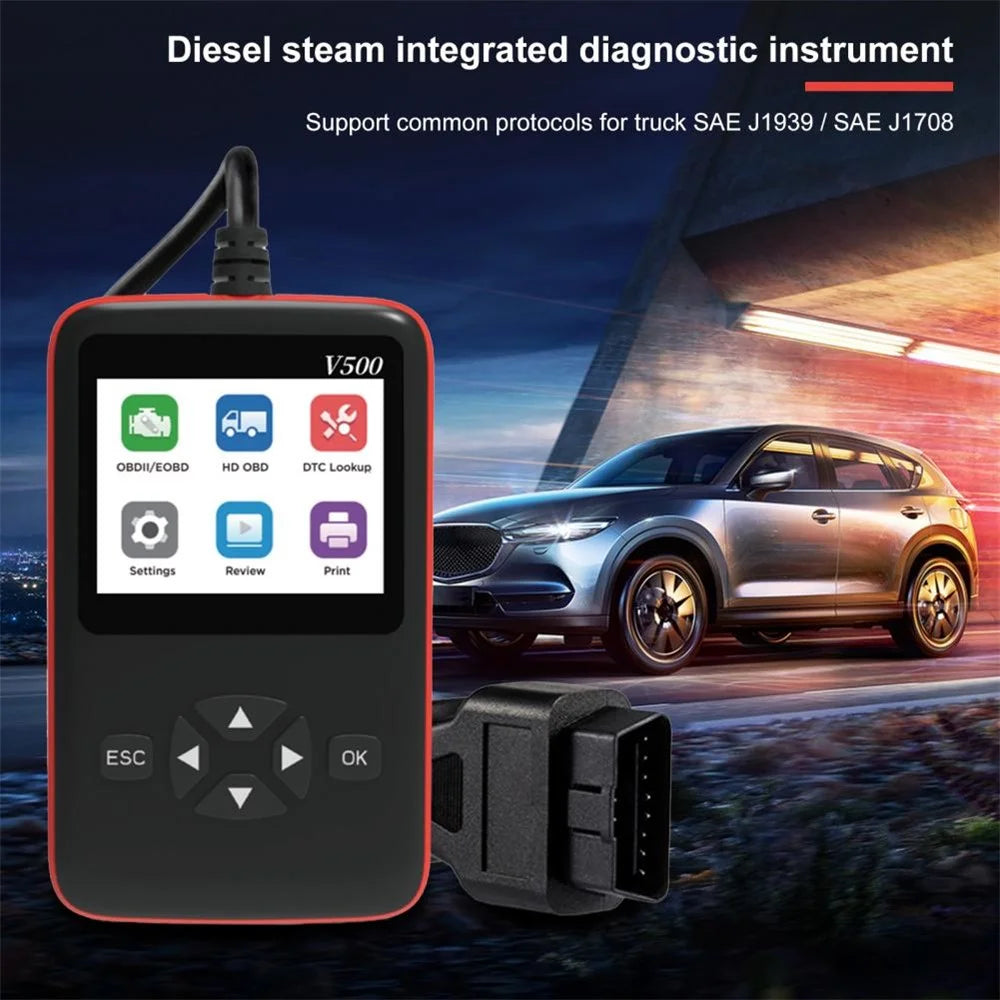

- Support truck SAE J1939/SAE J1708 commonly used protocols

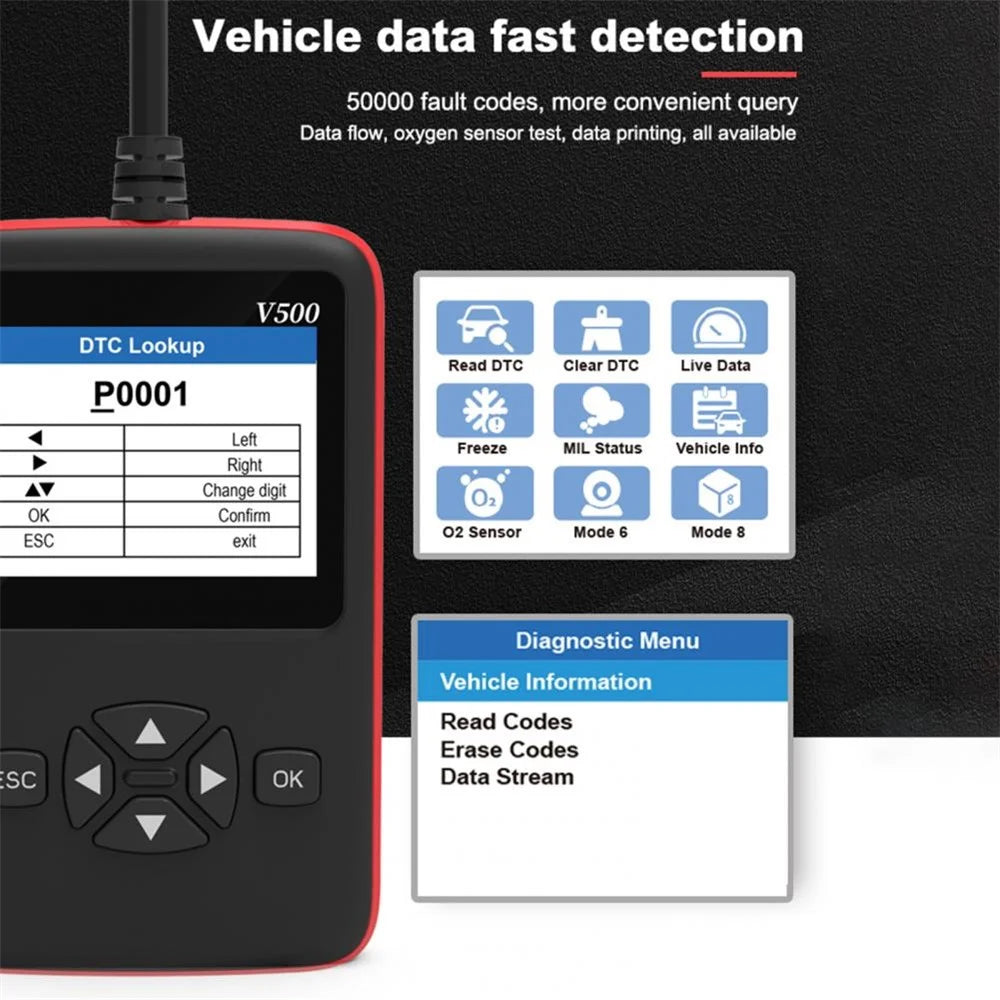

- Support gasoline model reading, clear vehicle fault codes, read data stream, freeze frame information, check MIL status, read vehicle information, oxygen sensor test, vehicle monitoring (mode 6), evaporation system (mode 8) test
- Support truck models to read vehicle information, read/clear fault code information, data stream information
- Support fault code information query, built-in about 50000 fault code database information
- Support data stream playback function, view/delete fault code, data stream, freeze frame information
- Support USB printing function, can print fault code, data stream, freeze frame information
- Support 7 languages: English, Chinese, Italian, French, Spanish, German, Russian
Specification:
- Main control chip: LPC1765FBD100
- Working voltage: 9~16V
- Working current: 89mA
- Operating environment: -20°C~65°C
- Storage temperature: -30℃~80℃
- Size: 138.9*85*22mm
- Protocol:
- SAE J1850 PWM (41.6Kbaud)
- SAE J1850 VPW (10.4Kbaud)
- ISO9141-2(5 baud init, 10.4Kbaud)
- ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
- ISO14230-4 KWP (fast init, 10.4 Kbaud)
- ISO15765-4 CAN (11bit ID, 500 Kbaud)
- ISO15765-4 CAN (29bit ID, 500 Kbaud)
- ISO15765-4 CAN (11bit ID, 250 Kbaud)
- ISO15765-4 CAN (29bit ID, 250 Kbaud)
- SAE J1939
- SAE J1708/ J1587
In the box
- 1 x Diagnostic Tool
- 1 x Adapter Cable
- 1 x Engine User Manual
- 1 x Storage Bag
- Other things not included
Specifications
- SKU
- 674300052A
- Colour
- As Shown
- Package dimensions
- 26 × 17.5 × 6.2 cm
- Gross weight
- 0.79 kg
- Units per pack
- 20
- Dispatch
- 1 - 3 days
- Category
- Car Accessories › Diagnostic Scan Tools › Code Readers & Scan Tools
What’s in the box
- 1 Diagnostic Tool
- 1 Adapter Cable
- 1 Engine User Manual
- 1 Storage Bag
- — Other things not included
