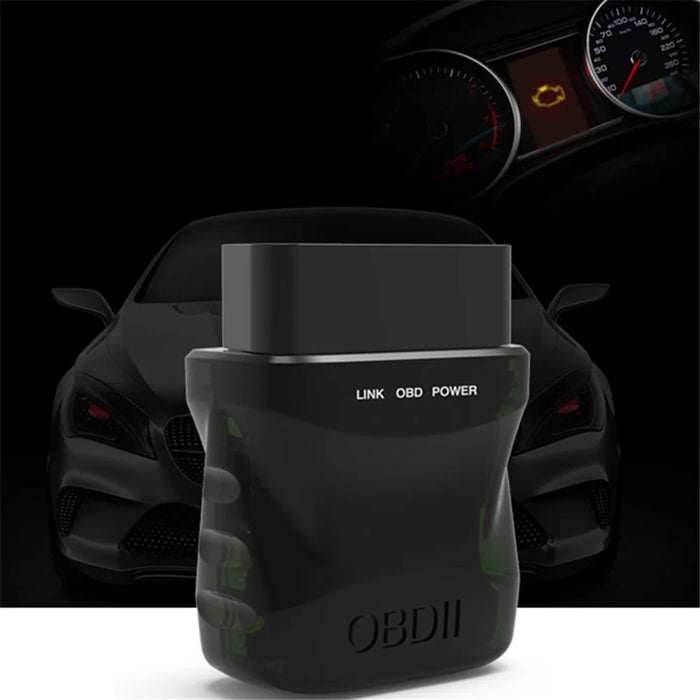

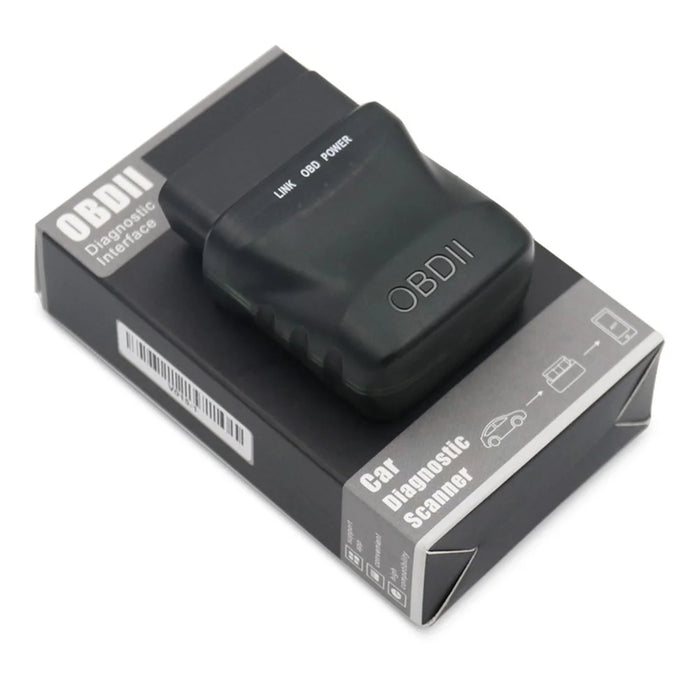

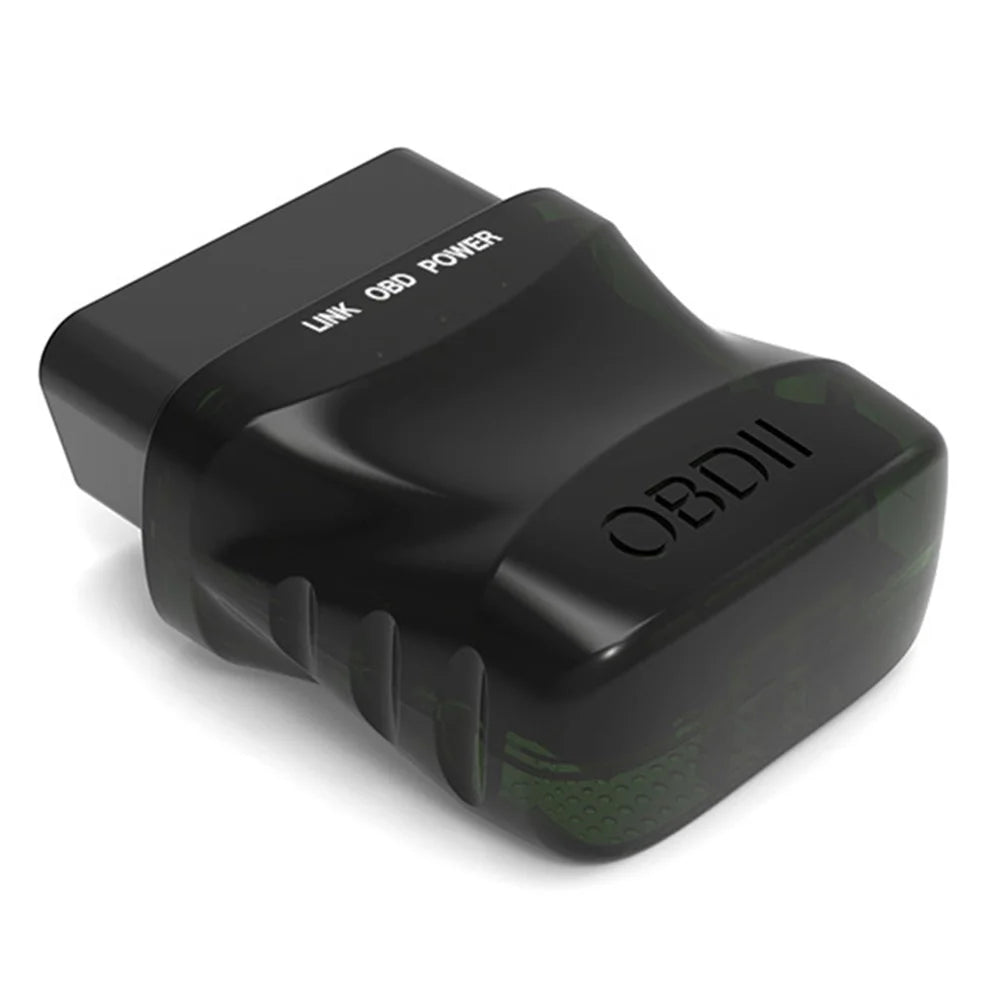

V015 OBD2 Car Fault Diagnostic Scanner Bluetooth-compatible elm327 Universal Car Reader Code Engine Tester Tool - 1
V015 OBD2 Car Fault Diagnostic Scanner Bluetooth-compatible elm327 Universal Car Reader Code Engine Tester Tool - 1

V015 OBD2 Car Fault Diagnostic Scanner Bluetooth-compatible elm327 Universal Car Reader Code Engine Tester Tool

by TVCMall
$340.00




    Delivered in 10-15 Days.
    more info Orders from overseas warehouse are delivered to our customers within 10-15 working days. We have a dedicated team to keep things moving quickly, and we will keep you updated on your order via SMS or email.
    All-Inclusive Pricing.
    more info The price you see is the price you pay. Price includes any Customs, Insurance and Courier fees. Absolutely no hidden fees. We also take care of customs clearance.
    Hassle-Free returns For 7 Days.
    more info View our Return Policy for more info.
  • Car engine system diagnosis
  • Engine fault light clearing
  • Auto Data Flow
  • Conventional OBD functions can be realized

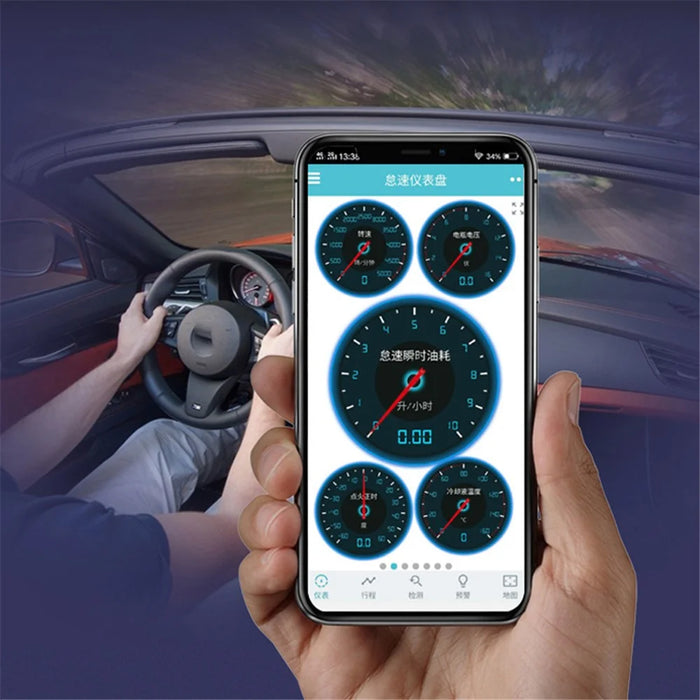

  • Self-developed APP
  • Small size, high chip integration

Specifications:

  • Connection mode: Bluetooth-compatible 4.0
  • Main control chip: Epistar
  • Support system: Android / Windows / iOS
  • Operating voltage: 9V~16V
  • Operating current: 35mA
  • Working temperature: -40℃~85℃
  • Product Size: 57 x 46.2 x 24.2mm

Protocol:

  • SAE J1850 PWM (41.6Kbaud)
  • SAE J1850 VPW (10.4Kbaud)
  • ISO9141-2 (5 baud init, 10.4Kbaud)
  • ISO14230-4 KWP (5 baud init, 10.4 Kbaud) 5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
  • ISO15765-4 CAN (11bit ID, 500 Kbaud)
  • ISO15765-4 CAN (29bit ID, 500 Kbaud)
  • ISO15765-4 CAN (11bit ID, 250 Kbaud)
  • ISO15765-4 CAN (29bit ID, 250 Kbaud)

In the box

  • 1 x Car Diagnostic Scanner
