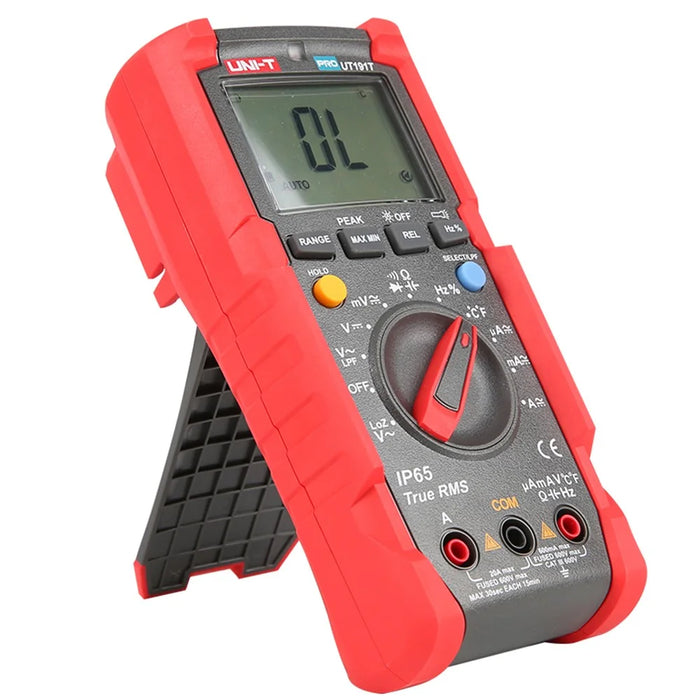

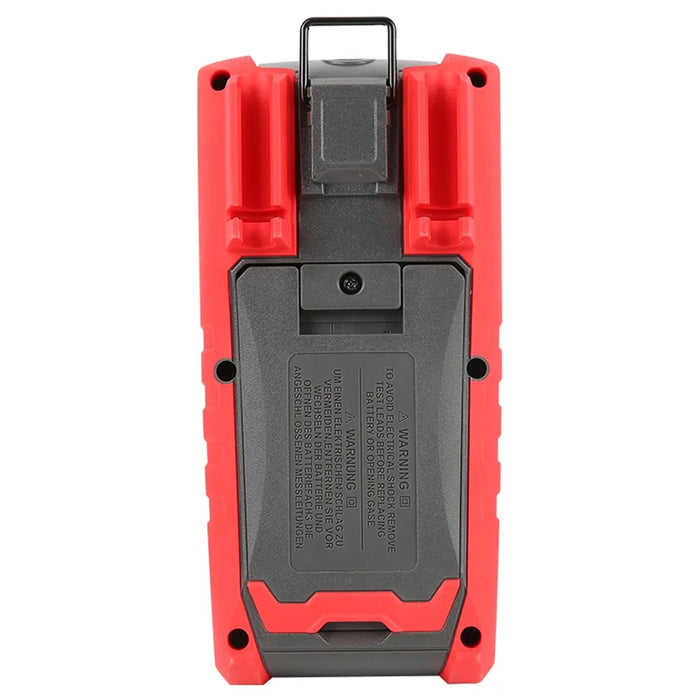

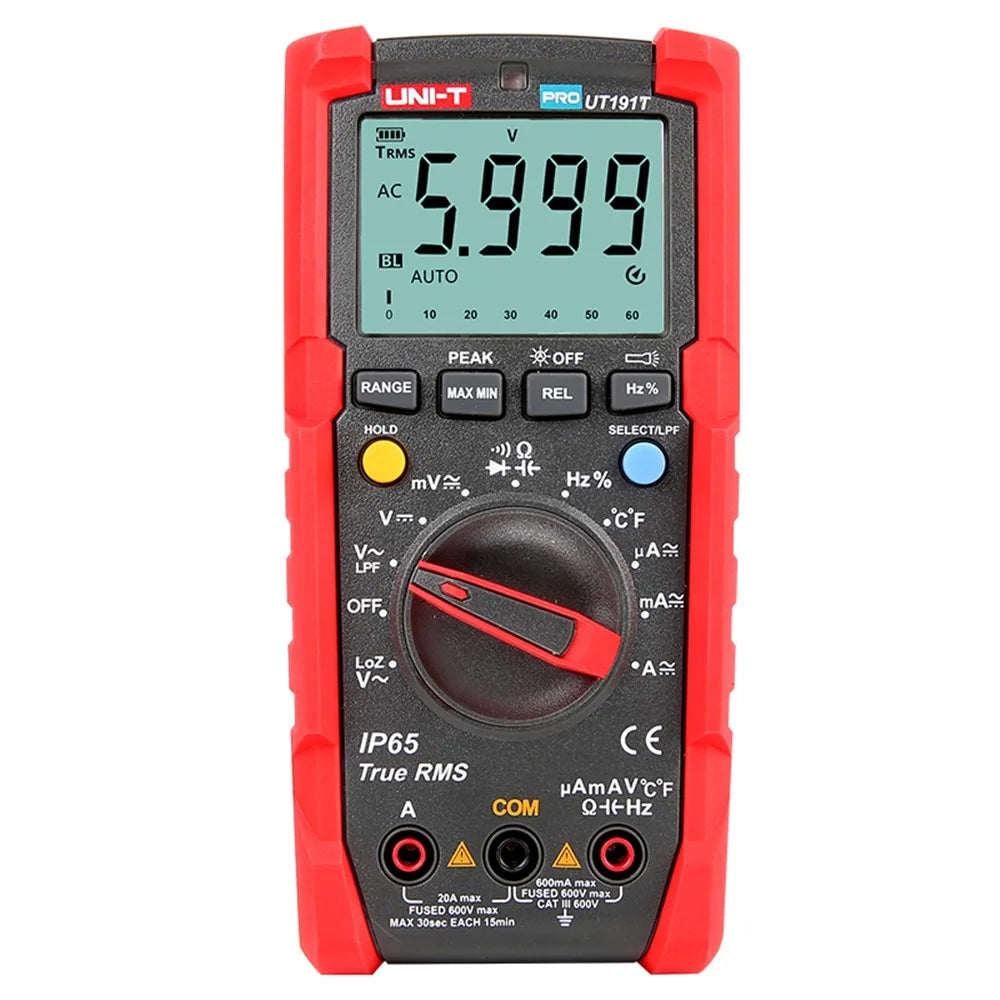

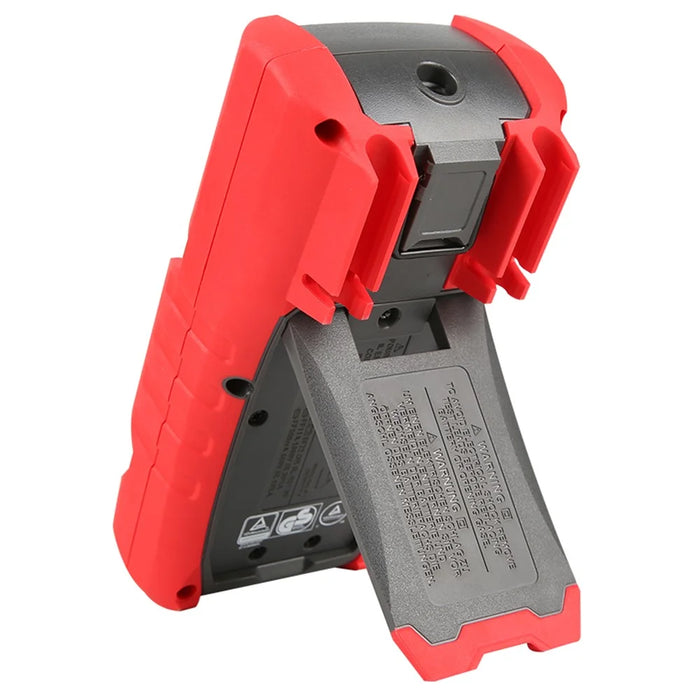

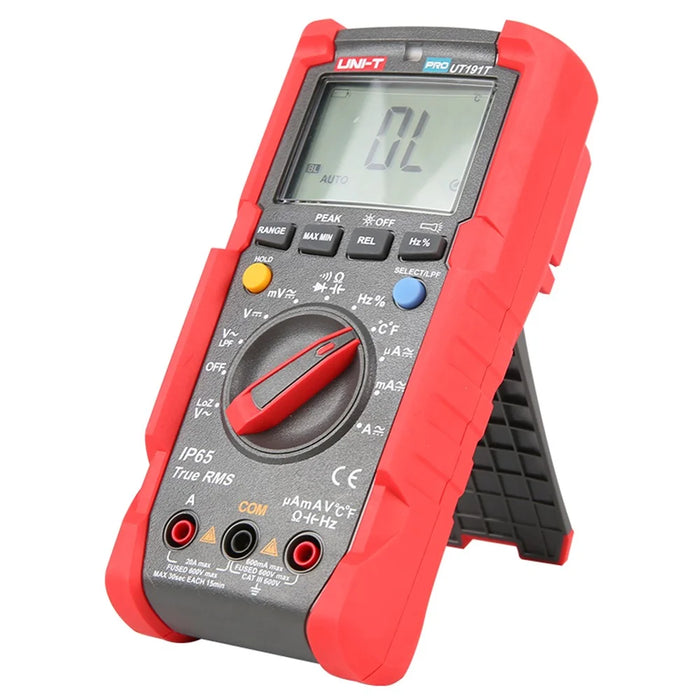

UNI-T UT191T Digital Meter Multimeter Handheld LCD Display Digital Multimeter

• IP65 waterproof and dustproof design, can withstand a drop of 2 meters

• LPF low-pass filtering for accurate voltage, current and frequency measurements on variable speed motor drive systems and other equipment with high electrical noise

• With built-in thermometer for easy temperature reading, no need to carry another temperature measuring instrument with a resolution of 0.1

• There is a flashlight on the top of the fuselage, and the screen comes with a backlight, which is good for working in poor lighting areas.

• True RMS AC voltage and current measurement for accurate measurement of nonlinear signals

Specifications:

• Materials: ABS + PC

• Display: LCD Display With Backlight, 6000 Bit (3 5/6)

• Range Control: Automatic Range

• Screen Size: 58 x 42mm

• Frequency Range: 1Mhz

• Frequency Resolution: ± (0.1% + 4)

• Resistance Range: 600Ω/6000Ω/60kΩ/600kΩ/6MΩ/60MΩ

• Resistance Resolution: ± (0.8% + 2)

• Capacitance Range: 6nf / 60nf / 600nf / 6uf / 60uf / 600uf / 6mf / 60mf

• Capacitance Resolution: ± (3.0% + 5)

• Duty Cycle: 0.1~99.9%

• Temperature Range: -40~400℃/ -40~752℉

• Temperature Resolution: ±(1.0%+ 2℃)/±(1%+ 4℉)

• Frequency Response: 45~400Hz

• Dustproof and Waterproof: IP65

• Sampling Time: About 3 Times / Sec

• Working Temperature / Humidity: 18-28℃, <80%

• Storage Temperature / Humidity: -10-50℃, <70%

• Power: 1 x 9V 6F22 Battery (battery not included)
