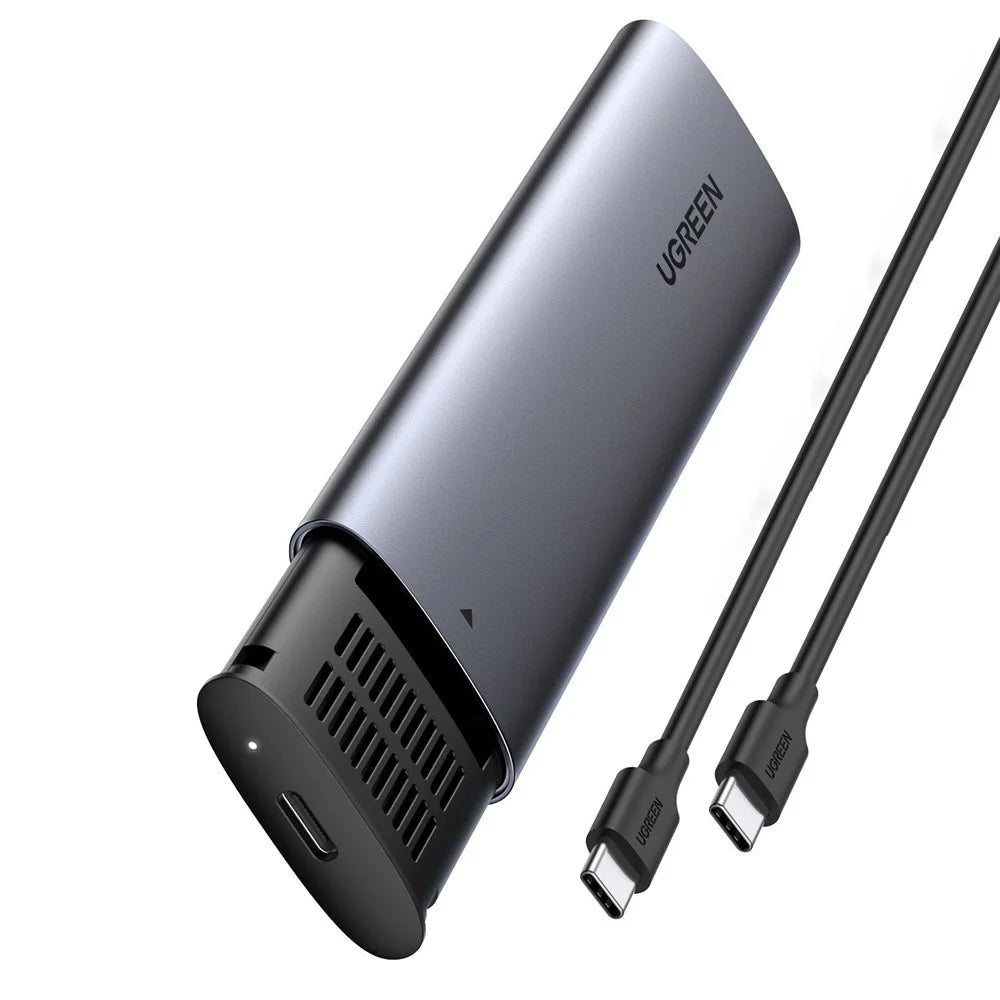

UGREEN M.2 NVMe Case Enclosure USB 3.1 Type-C Gen2 PCIe M2 SSD Caddy Case External Hard Drive

• Portable NVMe M.2 SSD External Enclosure: UGREEN M.2 USB-C Enclosure is designed to house an M-Key or M+B Key NVMe PCIe SSD and turn it into a portable USB 3.1 external drive for maximum utilization. Tool-free and no driver needed, just plug and play. Ideal for cloning files, backing up data, reusing old M.2 SSD, expanding storage space

• 10Gbp SuperSpeed & UASP Supported: The USB 3.1 interface incorporates with UASP (USB Attached SCSI Protocol) that enables it to perform a 70% faster read speed and 40% faster write speed than conventional USB 3.1 when used with a UASP-enabled host computer

• Plug & Play and Hot-Swapping. Easy installation & no driver required. No additional power required

• Support all 2230 2242 2260 2280 PCIe NVMe M.2 SSD of M-Key or M+B Key form factor

• Support UASP, S.M.A.R.T and TRIM

• Constructed with aluminum alloy which is better for heat dissipation, no worry about over-heat

• Built with short-circuit, over-current and multi-protection to ensure safety for your SSD and valuable data

• Designed for NVMe PCIe M.2 SSD: The NVMe M.2 Caddy features a sleek and compact size(L122*W40*H12mm), it is specially designed for M-Key and M+B Key PCIe NVMe M.2 SSD of 2230/2242/2260/2280 from factors up to 2TB, Does not support NGFF SATA based B-Key and M&B-Key M.2 SSD, M.2 PCIe AHCI SSD, mSATA SSD

Specification:

• Input: USB-C Female

• Output: M.2 M-Key

• USB Standard: USB 3.1 Gen 2; 10Gbps

• Supported SSD type: M.2 PCI-E NVMe SSD

• Supported SSD size: 2230, 2242, 2260, 2280

• Case Material: Aluminum alloy

• Compatible Systems: for Windows/for mac OS/for Linux

• Dimension: L119mm x W37mm x H12mm

Wide Compatibility:

• M-Key M.2 SSD: Compatible with Samsung 970 EVO Plus 250GB/500GB/1TB, for Samsung 970 EVO 250GB/500GB/1TB/2TB, for Samsung 970 Pro, for Samsung 960 EVO, for Samsung 950 PRO, for Crucial P1 500GB/1TB, for WD Black SN750 250GB/500GB/1TB/2TB, for WD Blue SN500 2280, for Intel 760P Series, for ADATA XPG SX8000/XPG SX8200, for CORSAIR Force Series, for Plextor M8Pe, for Plextor M9Pe, for HP EX900, for Kingston A1000, for PNY CS2030,for Seagate BarraCuda 510/ FireCuda 510, for EXTREME PRO 3D SSD 500GB/1GB

• M+B Key M.2 NVMe PCIe SSD: Compatible with Kingston A1000, for Intel Optane 800P, for Toshiba RC100, for Pioneer APS-SE10G-512

• USB USB-C & USB-A Devices Supported: For USB-A devices, compatible with Sony PlayStation 4, for PS4 Slim, for PS4 Pro, for PS3, for Xbox One S, USB-A to USB-C Cable is requested (not included)

Note:

• Not support NGFF SATA SSD

• Only support PCIe NVME M-Key M.2 SSD. Not Support PCIe AHCI M.2 SSD or M.2 NGFF SATA SSD. Some SSDs have both AHCI & NVMe or SATA & NVMe editions available. For example, for Samsung SM951 SSD

• To achieve a 10Gbps data transmission rate, the USB 3.1 interface on your PC should be USB 3.1 Gen 2. Some PCs only come with USB 3.1 Gen1 whose max speed is 5Gbps

• It is normal that the aluminum case heating up, for the high-speed NVMe M.2 drives generates much heat while working

• If your M.2 SSD is the first use, you should format it before using. Only in this way SSD can be recognized by computers
