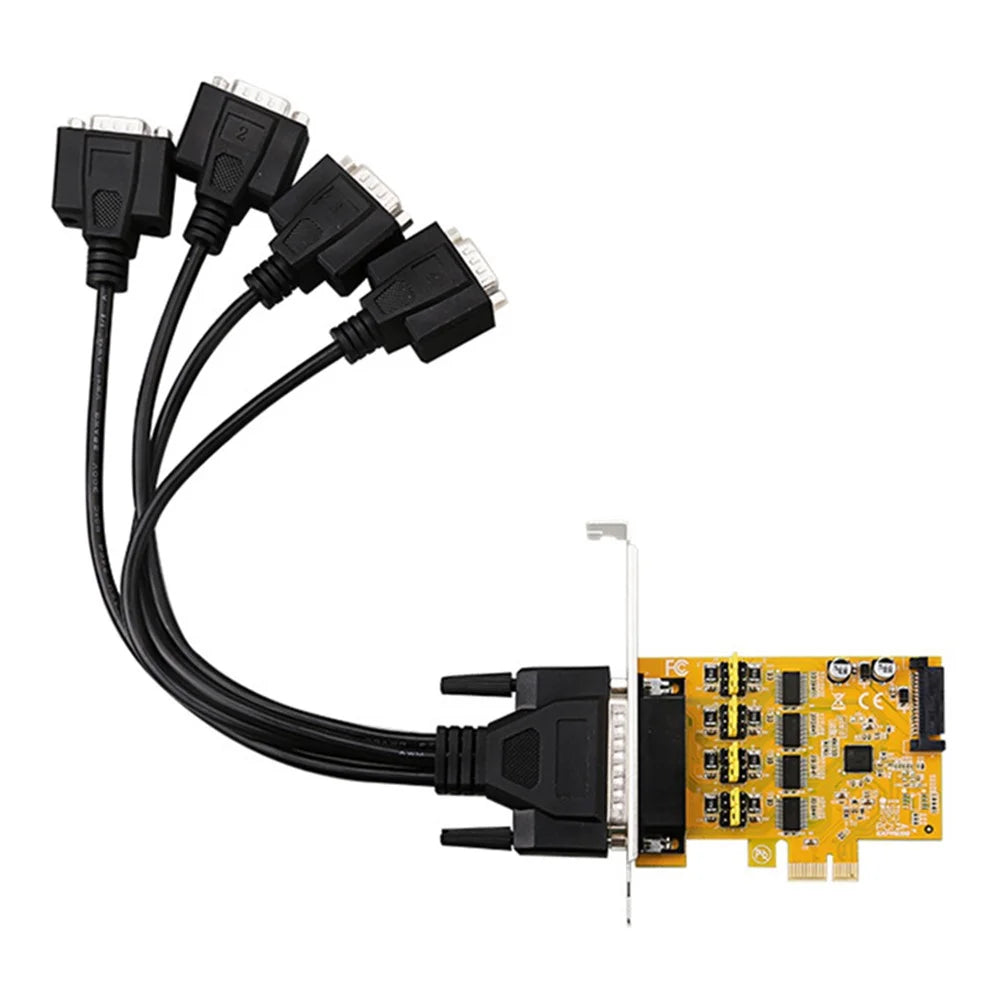

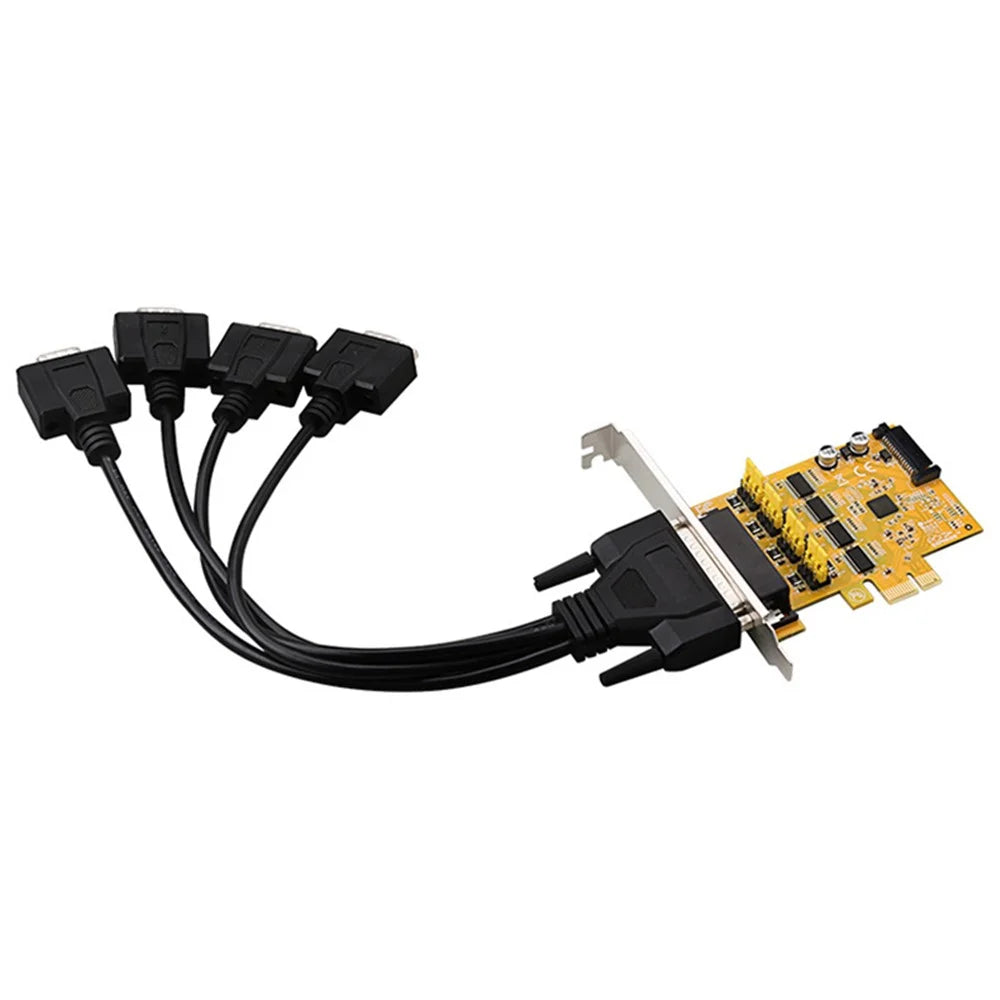

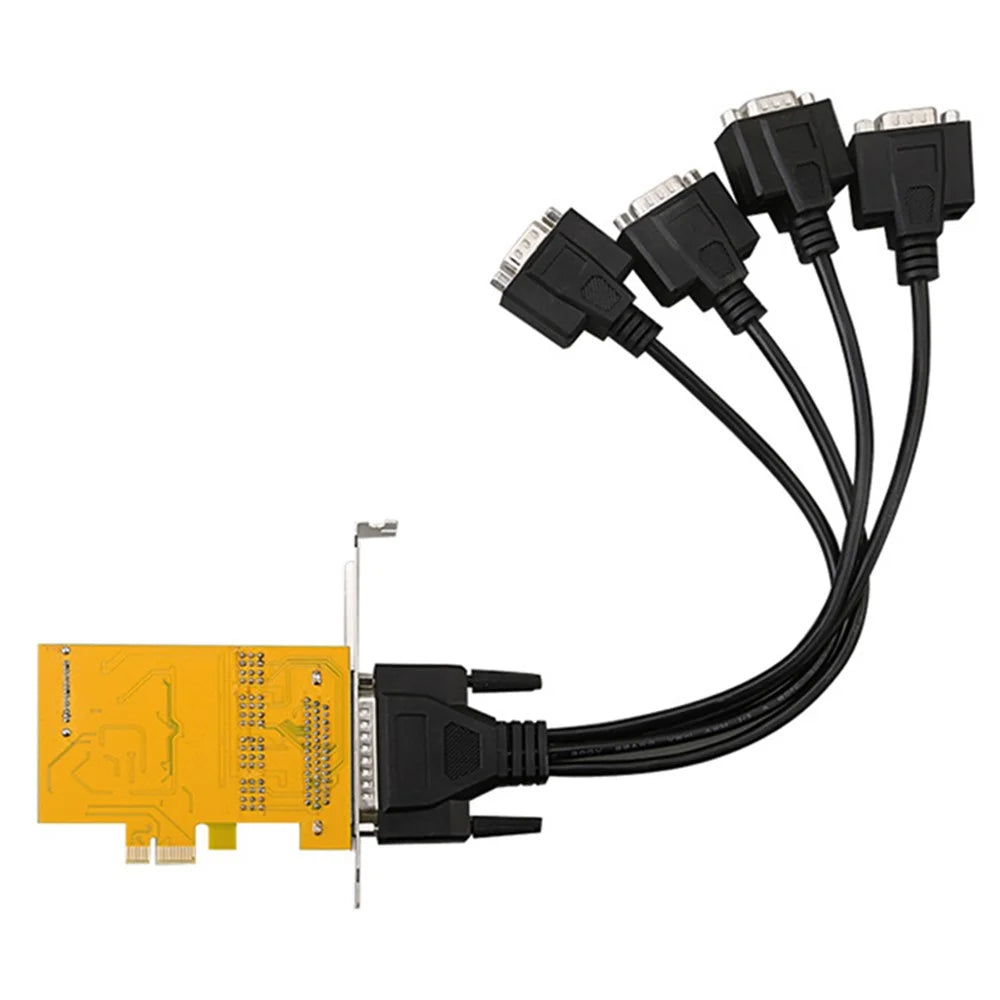

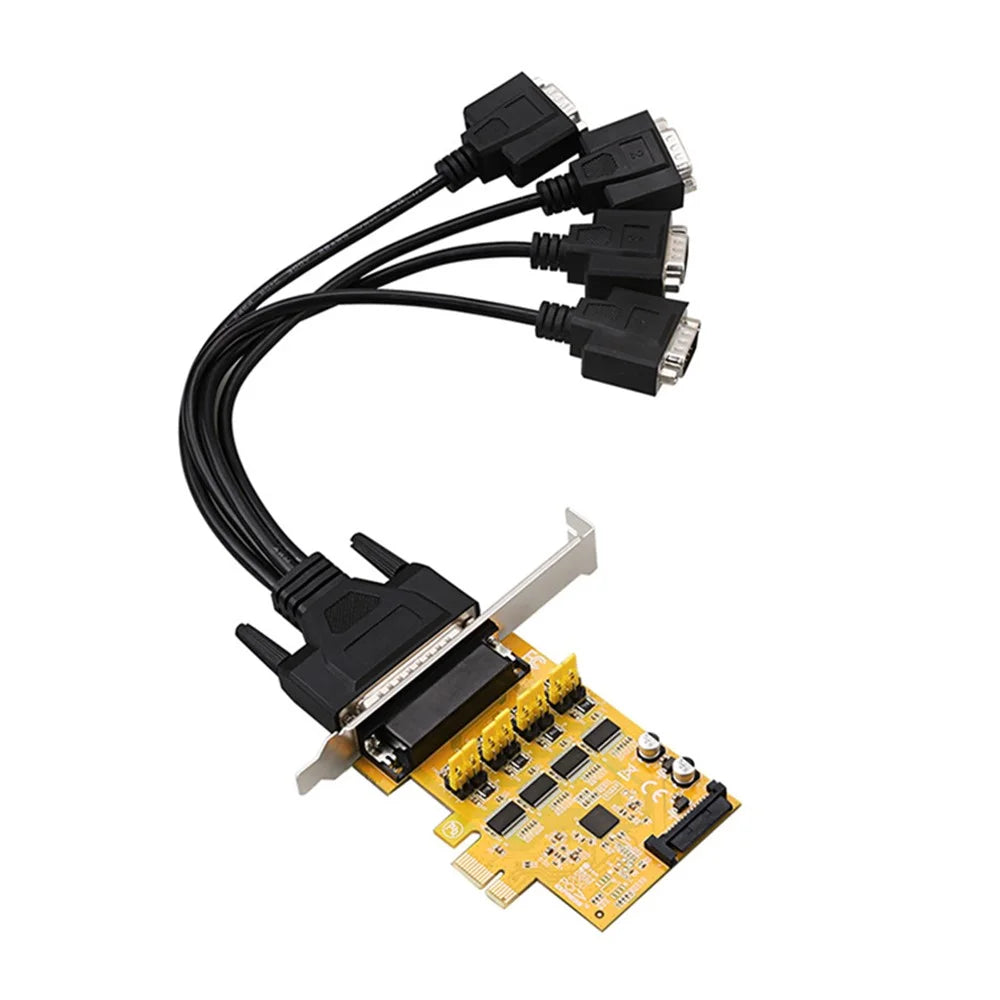

TXB182 RS232 Serial Port SATA Powered 9-Pin Adapter Card PCI-E Connection Cable
R740
incl. VAT
Dispatches in 1 – 3 days
Nationwide delivery
2–4 working days to major metros
Secure checkout
Card, EFT, Ozow and PayFast
30-day returns
Unused, in original packaging
Description
- 4 high-speed RS-232 serial ports with data transfer rates up to 921.6 Kbps
- Includes disconnect dongle cable
- 256-byte deep FIFO for each transmitter and receiver
- Automatic out-of-band hardware flow control using Tx/Rx/RTS/CTS/DSR/DTR/DCD/GND
- Provide RS-232 serial ports with 5V or 12V power output through COM pins 1 or 9
- Built-in SATA power socket to obtain efficient DC power from the system
- Built-in ±15KV ESD protection for all serial signals
- Supports automatic hardware flow control and automatic software flow control to reduce CPU load
- Compliant with PCI Express Base Specification Revision 2.0
- Native single-chip, single-channel PCI Express
Specification:

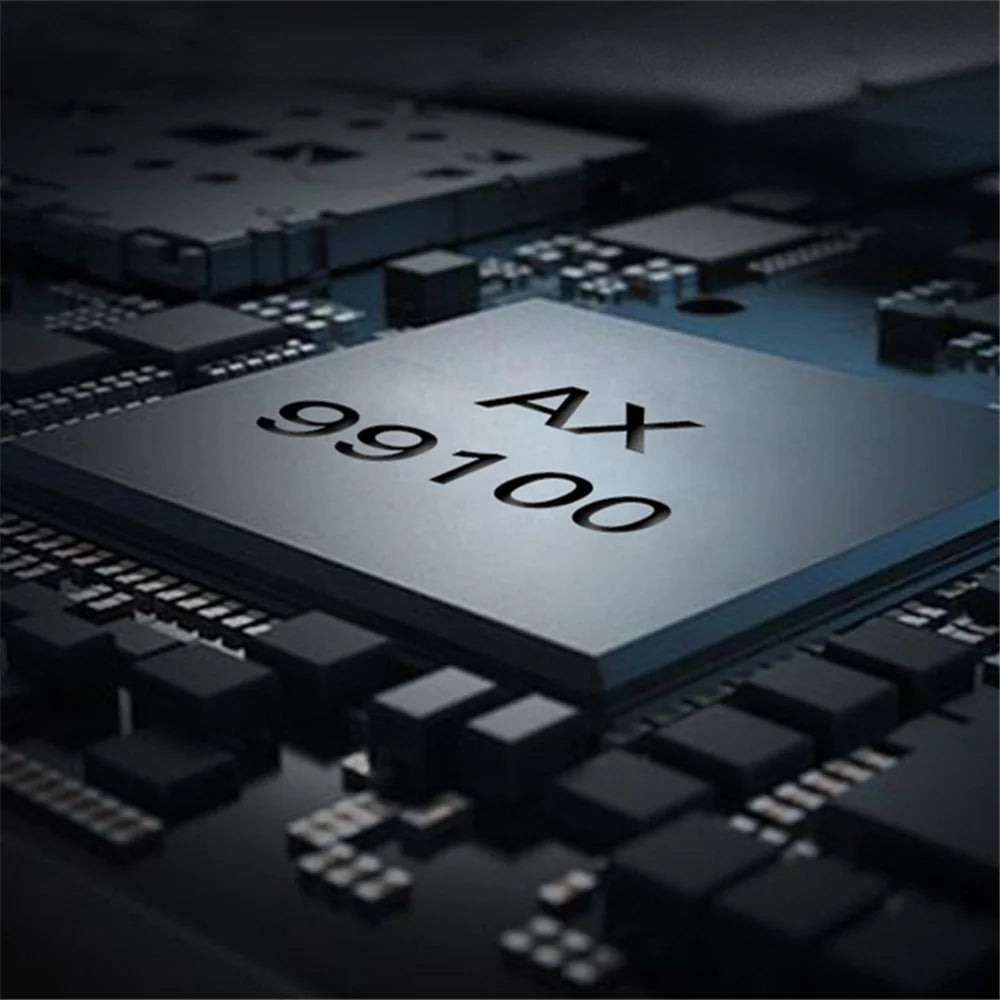

- Chip: AX99100
- Interface standard: 4 RS232 standard serial ports, DB9 pins
- Communication rate: Supports up to 920.6KBPS communication rate
- Slot: Can be used for PCI-E slots of different lengths of X1 X4 X8 X16
- Powered serial port: Set the jumper to supply 5V or 12V to the serial port pin 1 or pin 9
- Operating system: Windows 11/10/8.1/8/7/VISTA/XP2003-2008 32/64-BIT, Linux
In the box
- 1 x Adapter Card
- Other things not included
Specifications
- SKU
- 6199000854A
- Colour
- As Shown
- Package dimensions
- 22.8 × 15.6 × 3.1 cm
- Gross weight
- 0.12 kg
- Units per pack
- 48
- Dispatch
- 1 - 3 days
- Category
- Computer & Networking › Other Computer & Networking
What’s in the box
- 1 Adapter Card
- — Other things not included
