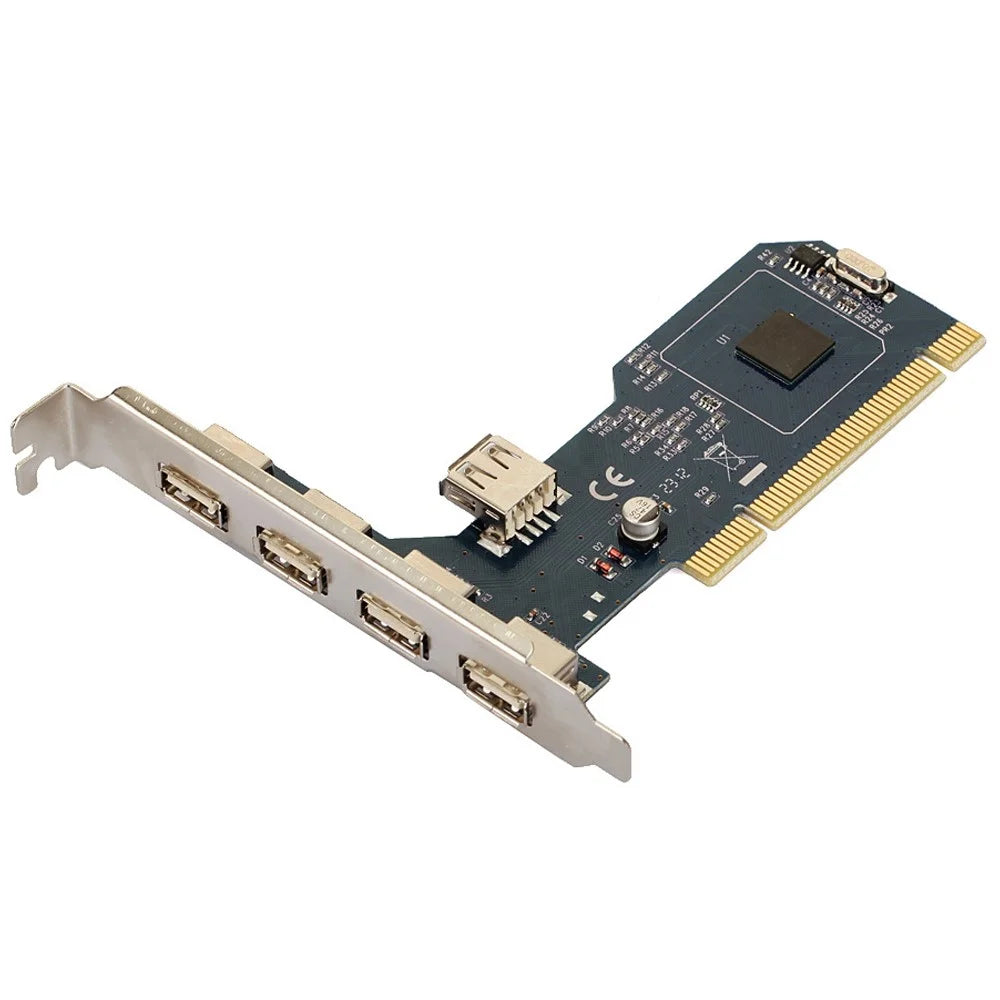

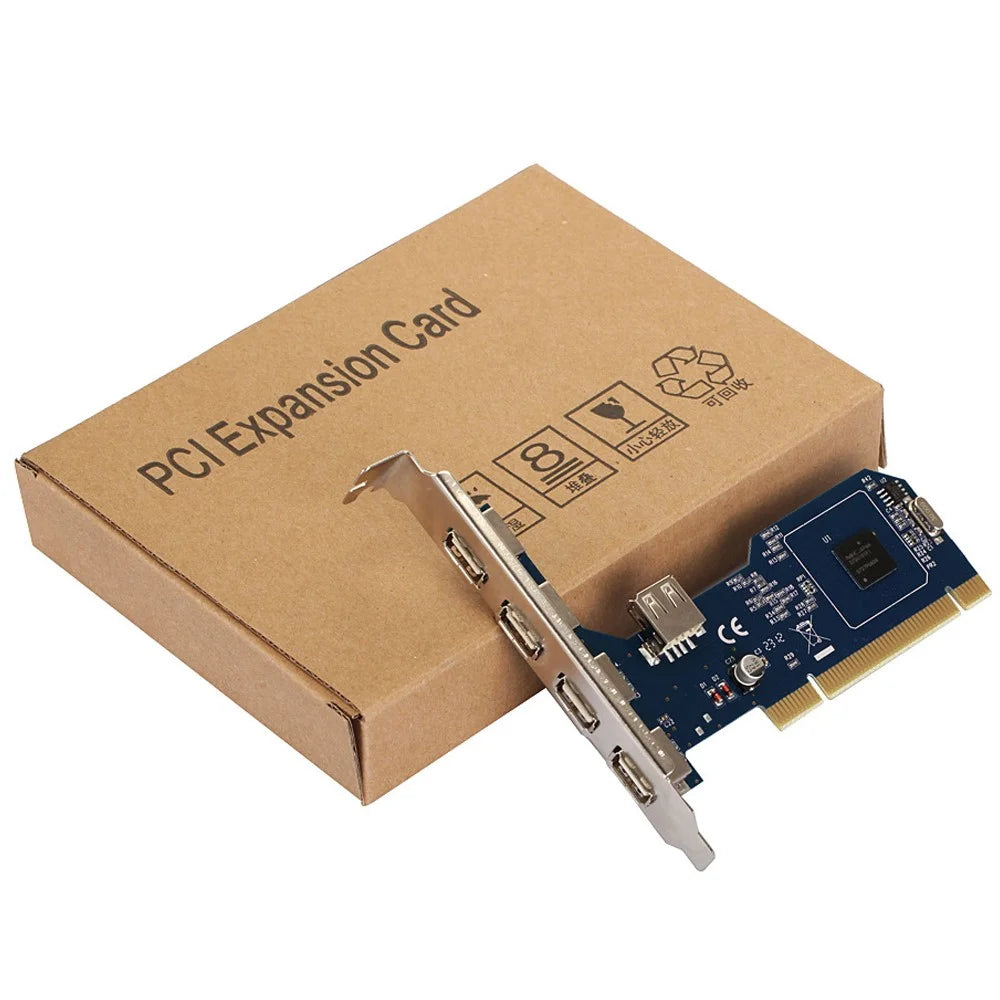

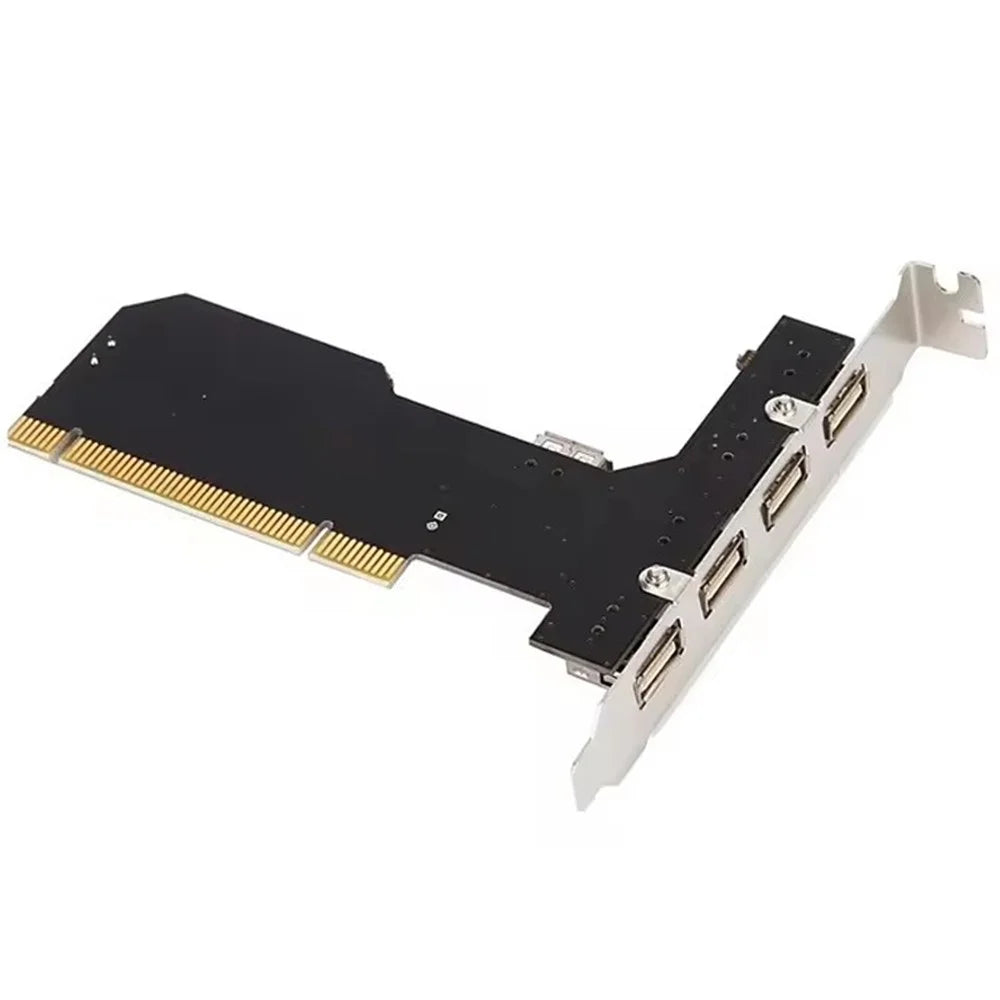

TXB045 NEC Chip PCI to 5 USB2.0 Adapter Card for Desktop PC TXIC USB2.0 Expansion Card

• Compliant with Universal Serial Bus Specification Revision 2.0 (data rates 1.5/12/480 Mbps)
• Compliant with Open Host Controller Interface Specification USB Rev 1.0 a
• Compliant with USB Rev 1.0 Enhanced Host Controller Interface Specification
• The PCi Multifunction Device consists of two OHC! host controller cores for full/low speed signaling and one EHCl host controller core for high speed signaling.
• The root hub has 5 (maximum) downstream facing ports, shared by the OHCl and EHCi host controller cores
• All downstream facing ports can handle high speed (480 Mbps), full speed (12 Mbps), and low speed (1.5 Mbps) transactions
• Configurable number of downstream interfaces (2 ~ 5)
• 32-bit 33 MHz host interface, compliant with PCI specification version 2.2
• Supports PCI mobile design guide revision 1.1
• Supports PCI-Bus power management interface specification version 1.1
• PCI bus master bus access
• System clock is generated by 30 MHz X or 48 MHz clock input
• System clock frequency should be set from system software (BlOS) or EEPROM
• Operation registers are directly mapped to PCI memory space, supporting all downstream facing ports. Legacy support function allows easy migration of motherboard implementations
• 3.3 V power supply, PCl signal pins have 5V tolerance circuit
• Compatible with USB2.0, backward compatible with USB1.1
• 5 external USB2.0 interfaces
• USB2.0 data transfer rate up to 480Mbps

Specifications:

• Model: TXB045

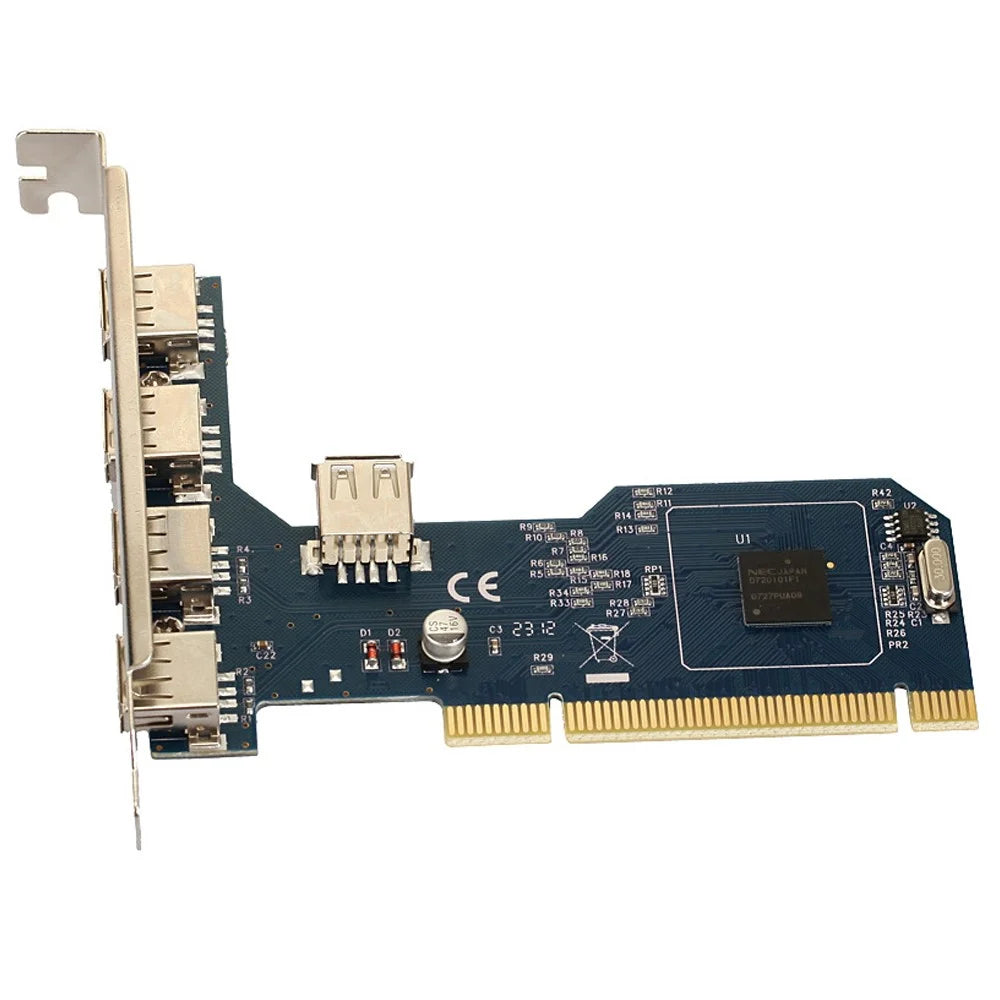

• Chip: NEC/uPD720101
• Port number: 5*USB2.0

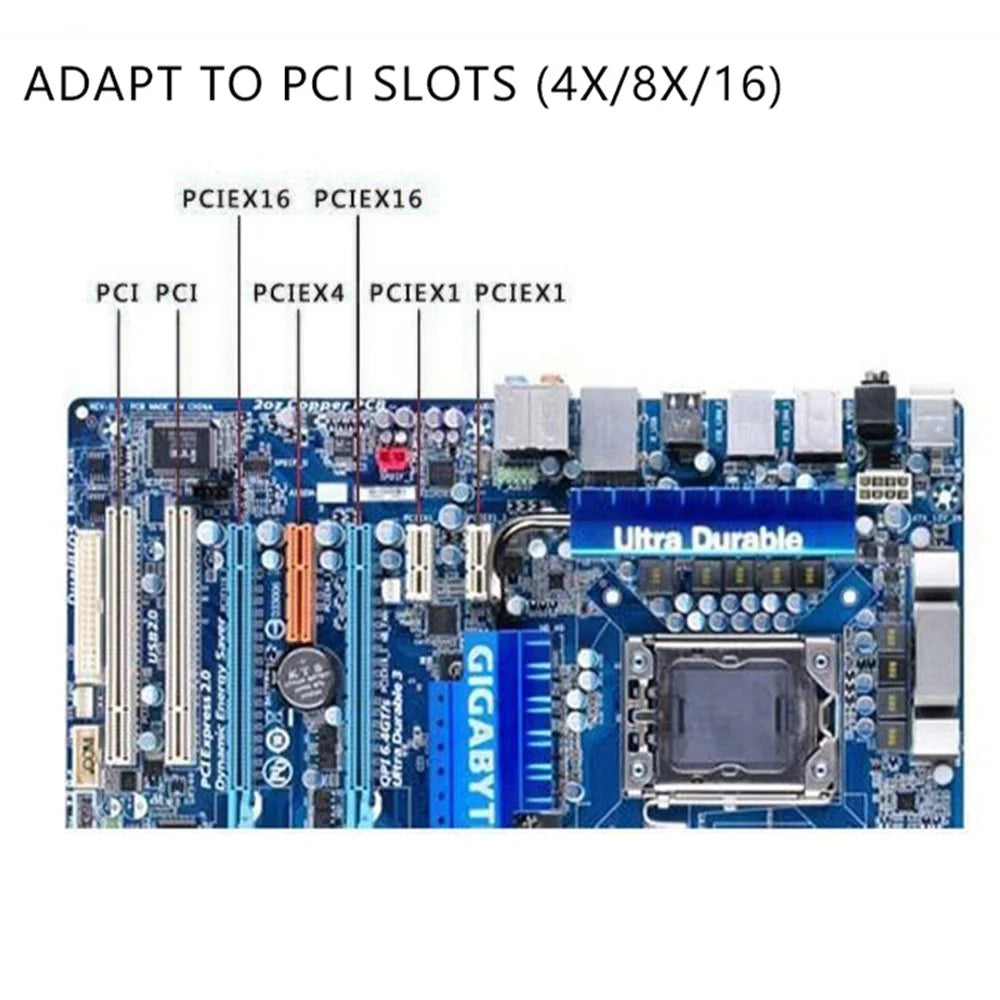

• Interface: PCl slot
• Dimensions: 115*83.6*89mm
• Supported operating systems:
• Windows*10(32/64), 8/8.1(3264), 7(3264), Vista(3264), XP(3264), 2000
• Windows Server 2012, 2008 R2, 2003(32/64)
• For Mac Ose 10.x (Intel based, tested up to 10.9)
• Linux 2.4.x and later (Tested up to 3.5)
• Environment:
• Working temperature: 0℃~ 50℃
• Relative humidity: 10%-90% (non-condensing)
• Storage temperature: -0℃-80℃
• Relative humidity: 5% ~ 90% (non-condensing)
