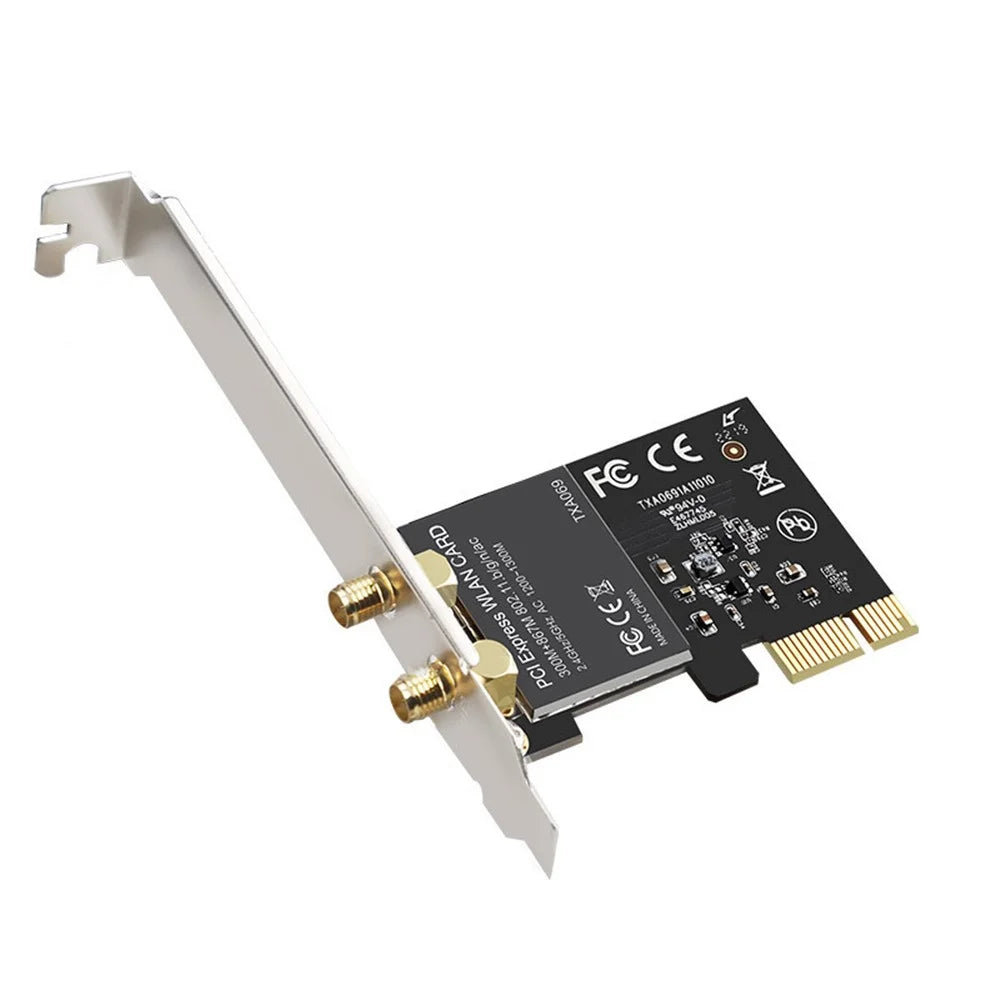

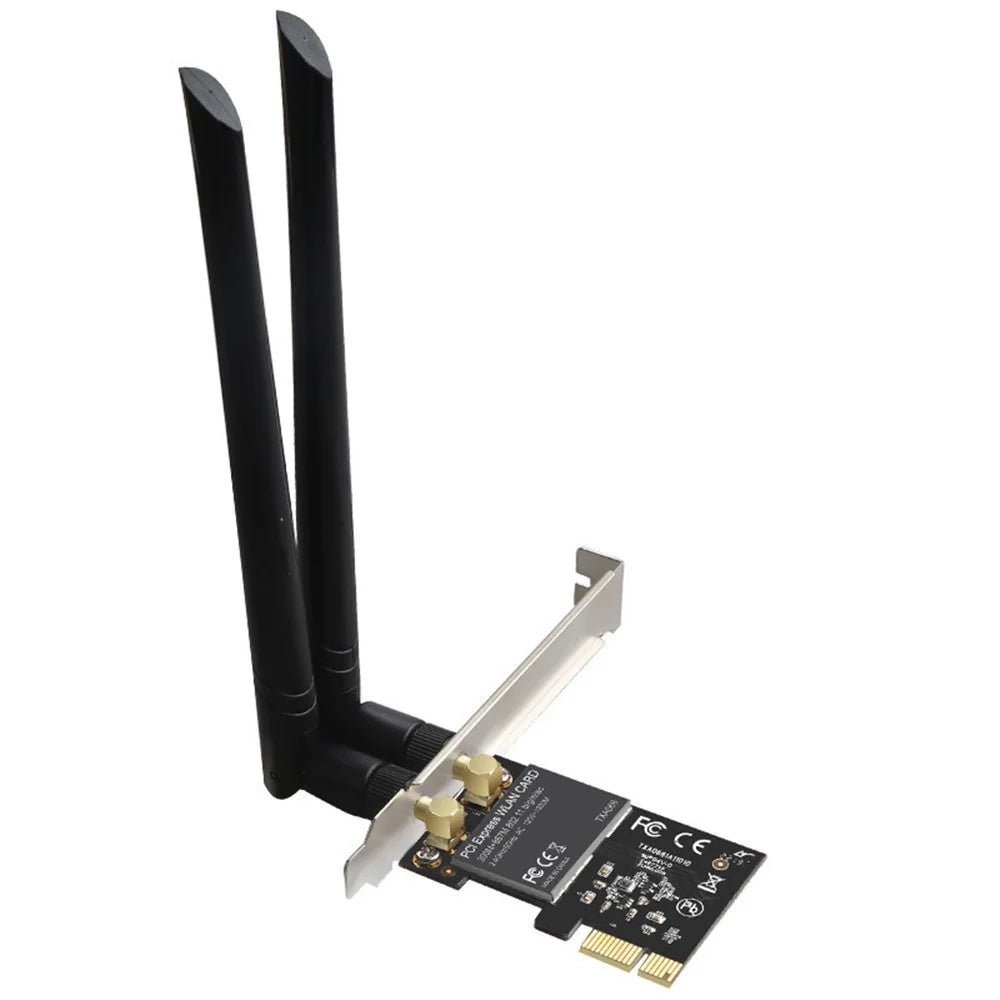

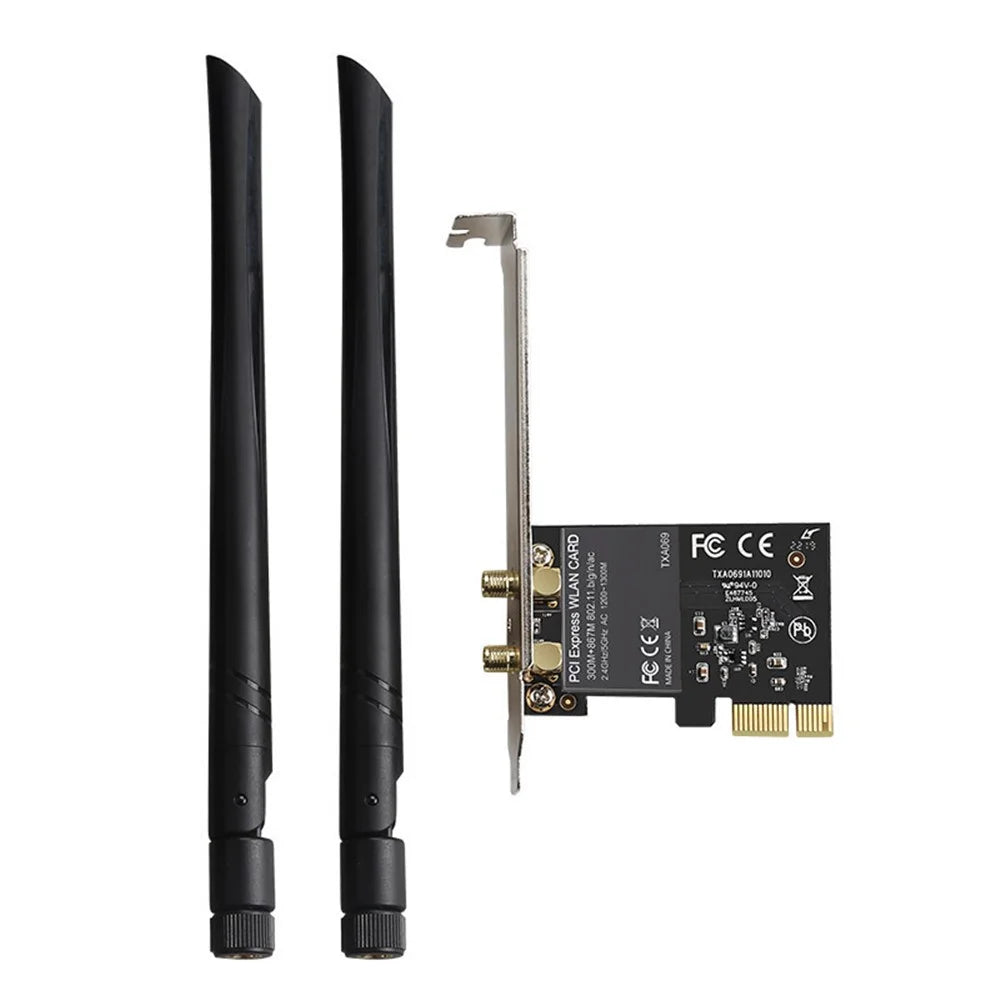

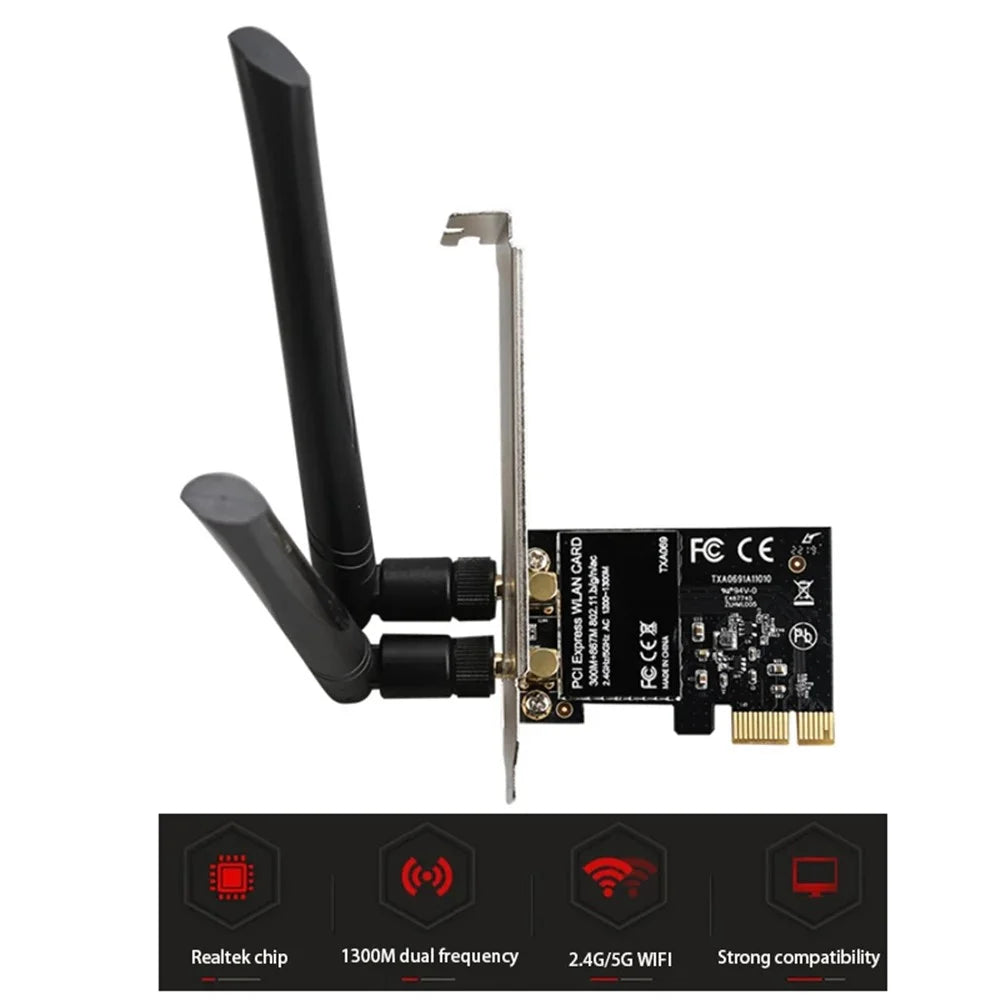

TXA069 2.4G / 5G Dual Band WiFi Adapter Gigabit Wireless Network Card for Desktop PC

• The TXA069 is a highly integrated and cost-effective wireless adapter offering PCI Express interface, fully compliant with IEEE802.11ac and IEEE802.11a/b/g/n standards. It provides a wireless transmission rate of up to 867Mbps
• Using the TXA069 Wireless Desktop PCI-E Adapter, you can connect your desktop computer to a high-speed Wi-Fi network, experiencing faster file transfers and high-speed internet browsing compared to previous wireless G technology. When the PCI-E adapter operates in 11AC 5G mode, you can also enjoy high-performance, lag-free HD multimedia streaming and real-time online gaming
• This desktop PCI-E adapter is the perfect choice for desktop users looking to enjoy better wireless performance and high-speed Wi-Fi networks
• Compliant with IEEE 802.11ac, IEEE 802.11n, and IEEE 802.11a/b/g standards
• Supports PCI-E 1.1 X1 bus
• Supports 20MHz/40MHz/80MHz bandwidth
• Supports IEEE802.11e QoS enhancement (WMM)
• Supports IEEE802.11h TPC
• Supports WAPI certification
• Supports Cisco CCS
• Supports multiple BSSID

Specifications:

• Model: TXA069
• Chipset: RTL8812AE
• Standards: IEEE802.11ac, IEEE802.11n, IEEE802.11b, IEEE802.11g, IEEE802.11a

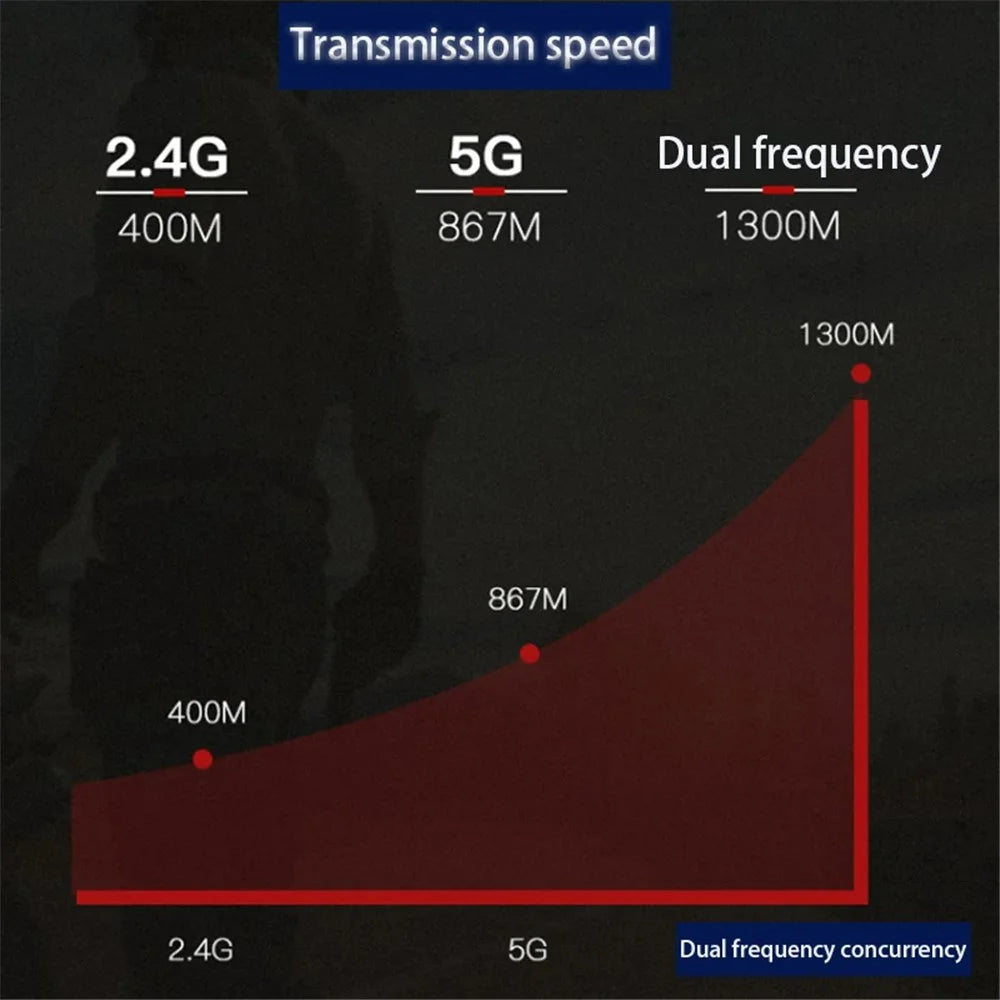

• Data Rates: 2.4G: 300Mbps, 5G: 867Mbps
• Interface: PCI Express 1x slot
• Antenna: 2 * 5dBi non-fixed
• LED Indicator: WLAN enable
• Dimensions: 65 * 44.5 * 1.6mm
• Operating Temperature: 0℃ to 70℃
• Relative Humidity: 10% to 90% (non-condensing)
• Storage Temperature: -10℃ to 80℃
• Relative Humidity for Storage: 5% to 90% (non-condensing)
• Output Power:
• 2.4G:
• 802.11.b@11M:18dBm
• 802.11.g@54m:15dBm
• 802.11.n@HT20:15dBm
• 802.11.n@HT40:14dBm
• 5G:
• 802.11.ac@54m:15dBm
• 802.11.ac@HT20:15dB
• 802.11.ac@HT40:15dBm
• 802.11.ac@HT80:13.5dBm
• Sensitivity:
• 5G_11ac:
• HT80M_MCS9:-51dBm @10% PER
• HT40M_MCS7: -62dBm @10% PER
• HT20M_MCS7: -65dBm @10% PER
• 11N_2.4G:
• HT40M_MCS7: -62dBm @10% PER
• HT20M_MCS7: -65dBm @10% PER
• OFDM_54M:-68dBm@10% PER
• 11b_11M: -81dBm@10% PER
• Support operating systems:
• Windows 10 (32/64), 8/8.1 (32/64),7 (32/64), Vista (32/64), XP(32/64), 2000
• Windows Server 2012, 2008, R2, 2003 (32/64)
• For Mac OS 10.x (Intel-based, tested to 10.9)
• Linux 2.4.x and higher (tested to 3.5)
