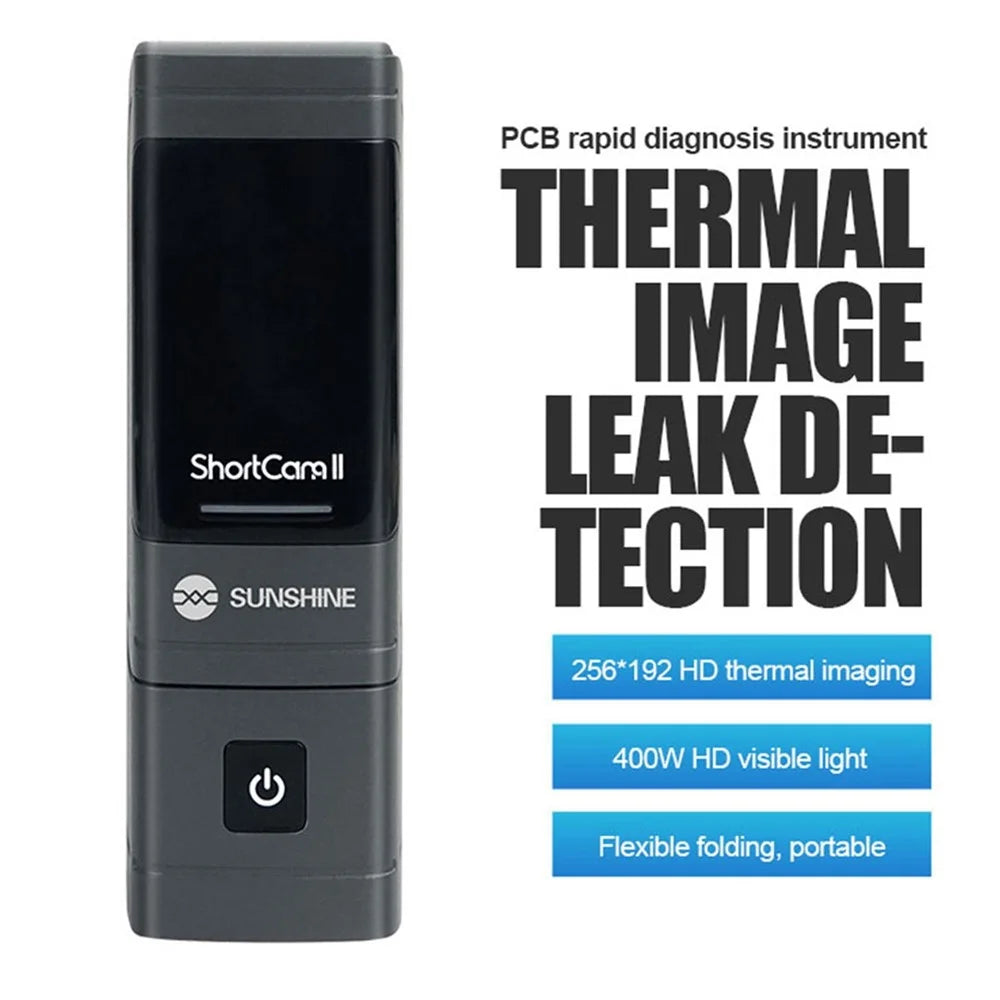

SUNSHINE PCB ShortCam II Phone Repair Test Bench Thermal Imager Camera Motherboard Fault Diagnosis Instrument
R10 440
incl. VAT
Dispatches in 1 – 3 days
Nationwide delivery
2–4 working days to major metros
Secure checkout
Card, EFT, Ozow and PayFast
30-day returns
Unused, in original packaging
Description
- Supports detection of all models/brands of mobile phone motherboards and other products with motherboards, etc.

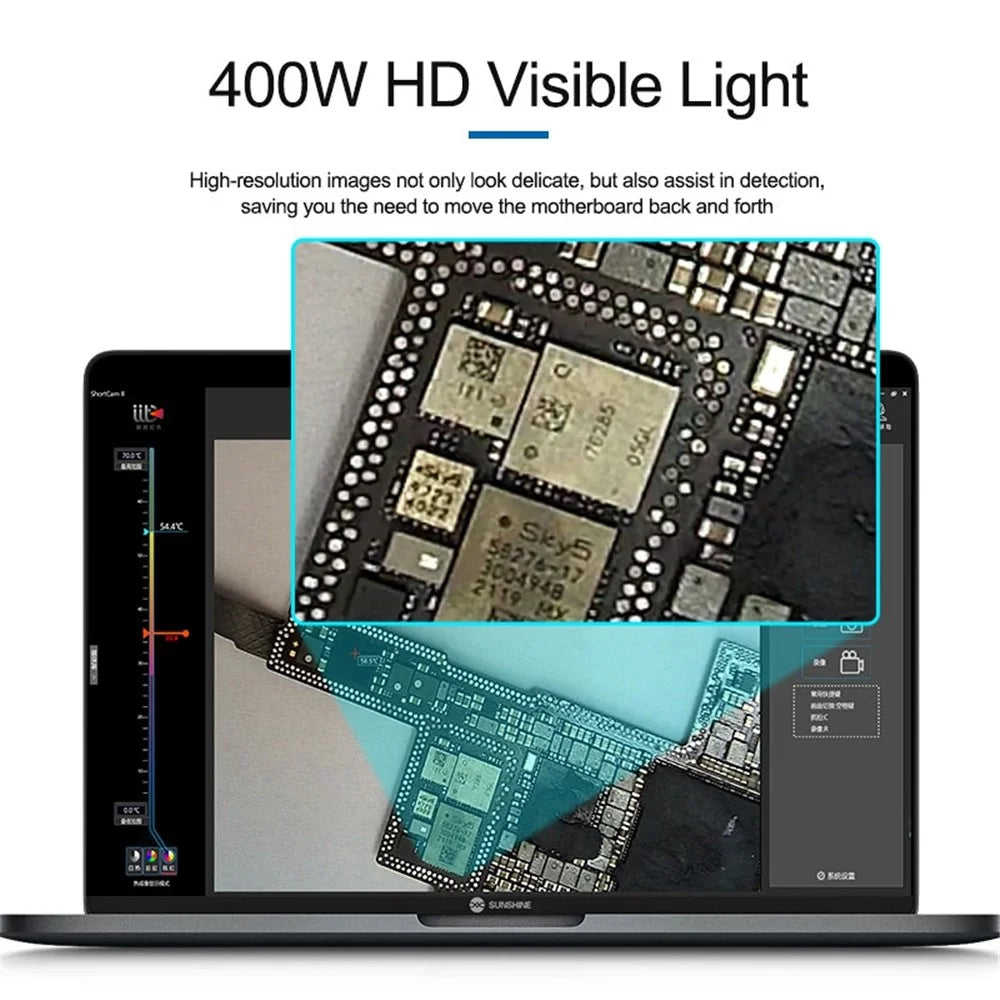

- 400W HD visible light, high-resolution images not only look delicate, but also assist in the detection

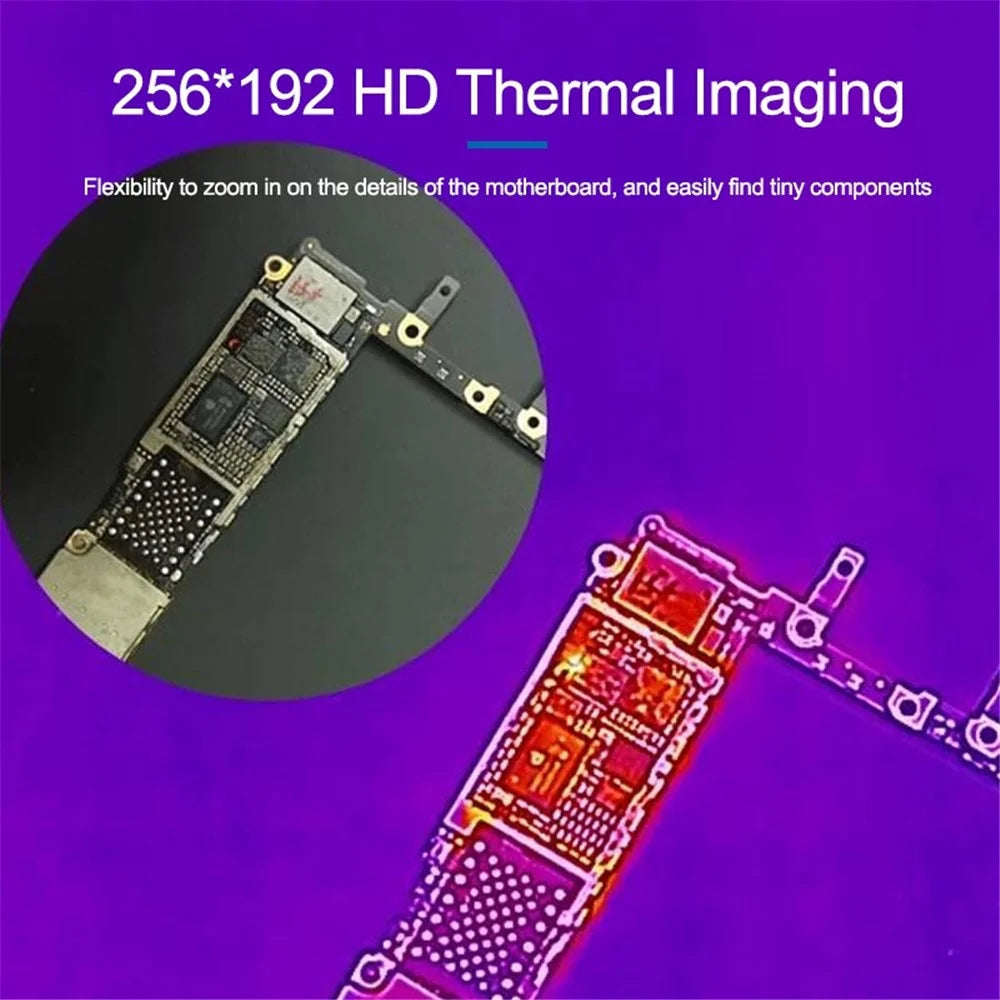

- 256*192 HD thermal imaging, flexibility to zoom in on the details of the motherboard, and easily find tiny component

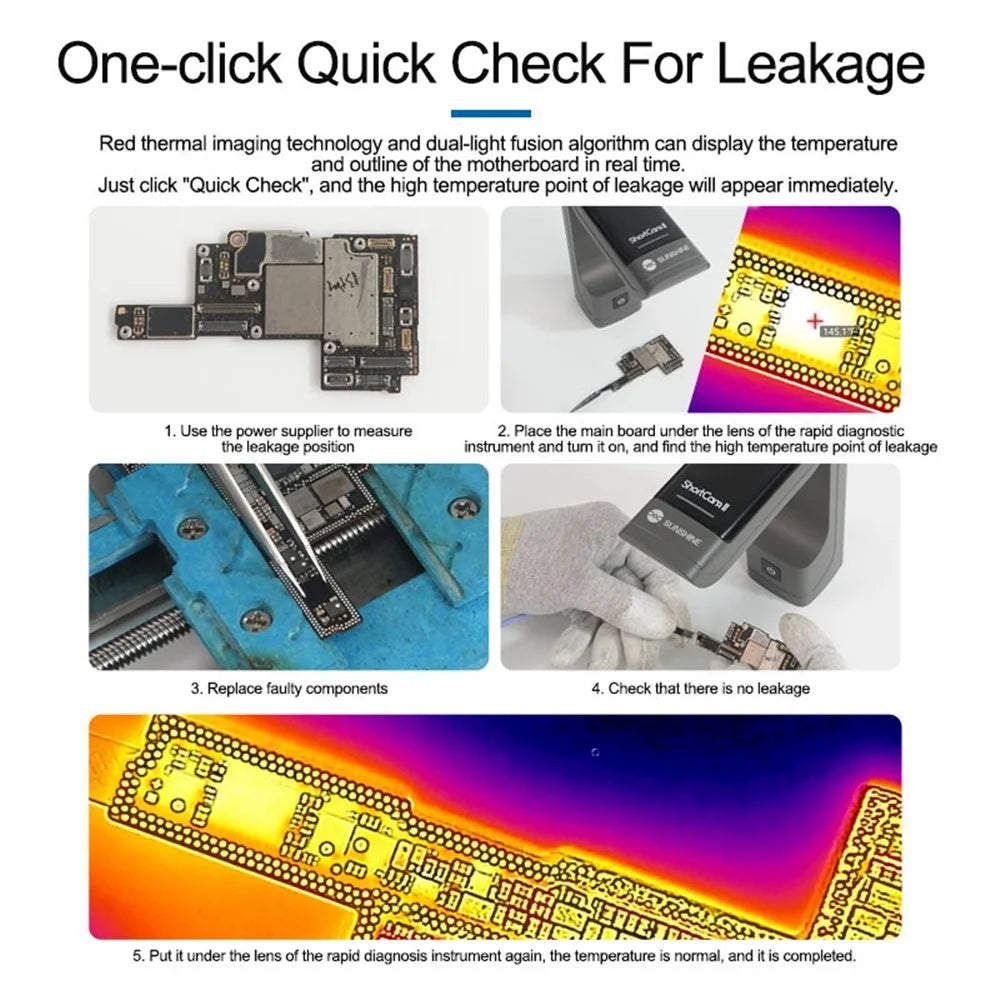

- One-click quick check for leakage, accurate fault location and high-precision intelligent temperature measurement
- High contrast display and high-temperature real-time tracking
Specifications:
- Product name: PCB rapid diagnosis instrument
- Product size: 48*48*154mm
- Net weight: About 455g
- Detector type: Uncooled Vanadium Oxide (VOX) Detectors
- Infrared resolution: 256*192
- Wavelength range: 7.5-13 5um
- Camera angle: 250*13.5°
- Visible light resolution: 2568*1448
- Display mode: Visible Light/Thermal Imaging/Quick Check
- Connection method: Type-C
- Image storage format: JPG
- Video storage format: MP4
- Input supply voltage: 5V DC
- Power consumption: 2.5W
- Storage temperature range: -20℃ to 60℃
- Working temperature: 3℃ to 45℃
- Humidity: 95% relative humidity
- Temperature measurement function: Full-frame temperature measurement/frame temperature measurement
- Temperature measurement distance:13cm
- Temperature measurement accuracy: + 5℃ or ± 5℃ (whichever is the largest)
- Temperature measurement range: -20℃ to 550℃
- Install: Plug and play, no installation required
Note: Manual measurement will have ± tolerance, for reference only, please refer to the actual product.
In the box
- 1 x Host
- 1 x Type-C Power Cord
- 1 x Qualification Certificate
Specifications
- SKU
- 661600592A
- Colour
- As Shown
- Package dimensions
- 18.3 × 7.2 × 7.2 cm
- Gross weight
- 0.9 kg
- Units per pack
- 27
- Dispatch
- 1 - 3 days
- Category
- Consumer Electronics › Test Equipment › Other Test Tool
What’s in the box
- 1 Host
- 1 Type-C Power Cord
- 1 Qualification Certificate
