SUNSHINE MS10E-05 4K HD Digital Microscope with Universal Stand 180 Degree Rotation Wireless Remote Soldering Tool for Motherboard PCB Repair (No Screen) - 1
SUNSHINE MS10E-05 4K HD Digital Microscope with Universal Stand 180 Degree Rotation Wireless Remote Soldering Tool for Motherboard PCB Repair (No Screen) - 1

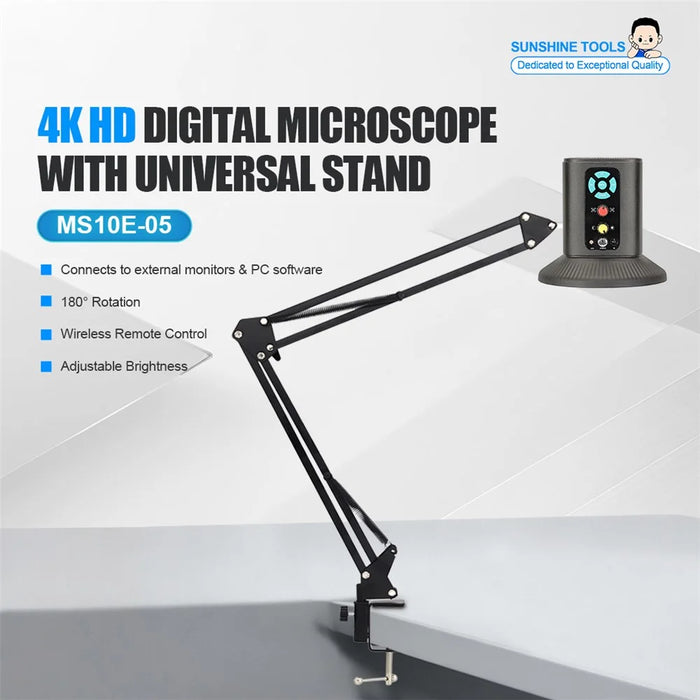

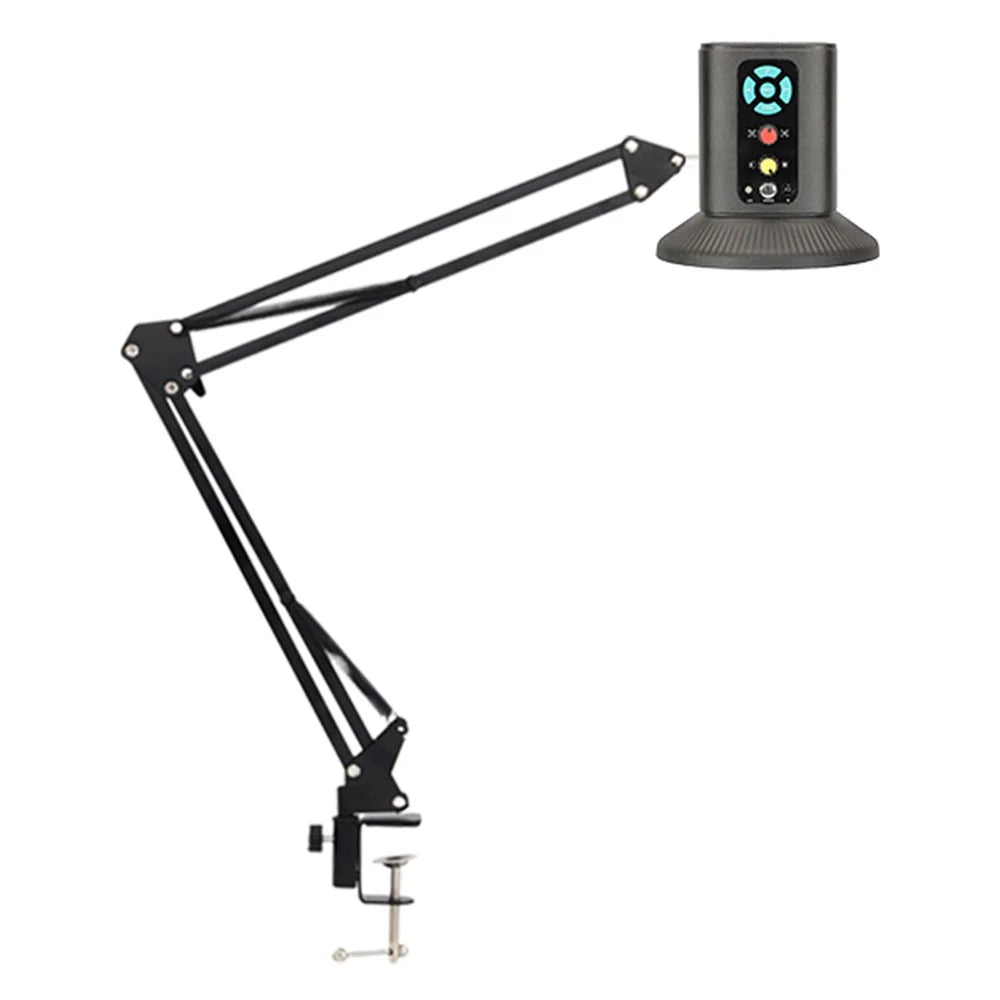

SUNSHINE MS10E-05 4K HD Digital Microscope with Universal Stand 180 Degree Rotation Wireless Remote Soldering Tool for Motherboard PCB Repair (No Screen)

by SUNSHINE
$4,180.00




    Delivered in 10-15 Days.
    more info Orders from overseas warehouse are delivered to our customers within 10-15 working days. We have a dedicated team to keep things moving quickly, and we will keep you updated on your order via SMS or email.
    All-Inclusive Pricing.
    more info The price you see is the price you pay. Price includes any Customs, Insurance and Courier fees. Absolutely no hidden fees. We also take care of customs clearance.
    Hassle-Free returns For 7 Days.
    more info View our Return Policy for more info.

  • 【4K Ultra HD Resolution】Delivers exceptional 3840×2160 @30FPS resolution through both HD and USB outputs for crystal-clear microscopic imaging and detailed observation.

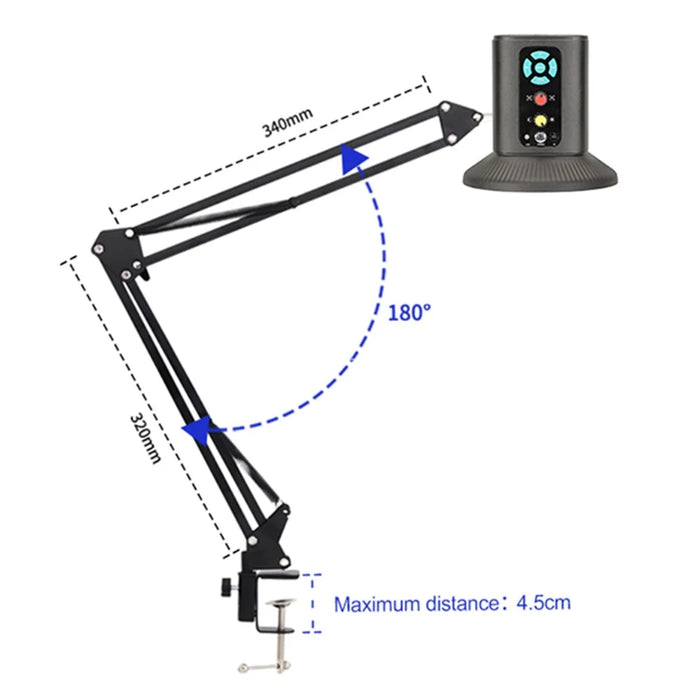

  • 【Universal Articulating Stand】Features a professional articulating arm with 340mm + 320mm segments, providing 660mm total reach and 180° rotation for versatile positioning and multi-angle observation.

  • 【Wireless Remote Control】Infrared remote control enables convenient operation of menu navigation, focus adjustment, brightness control, and power management for smoother user experience.

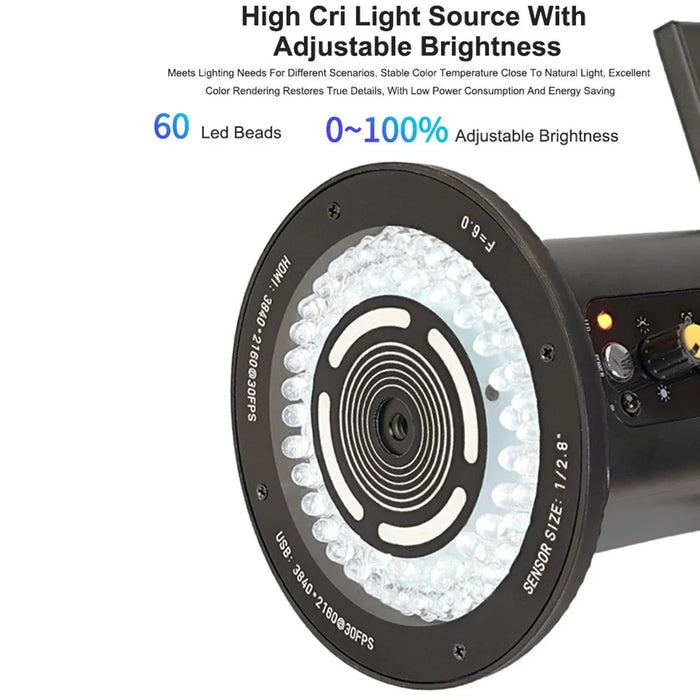

  • 【Adjustable LED Ring Light】60 high-CRI LED beads with 0-100% brightness adjustment provide natural light color temperature and excellent color rendering to restore true sample details.

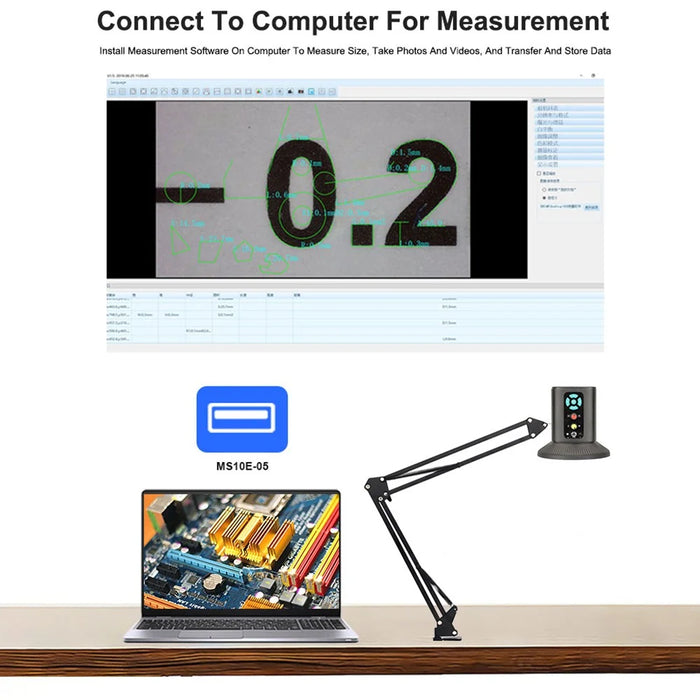

  • 【Multi-Interface Connectivity】Supports external monitor connection via HD, direct PC connection through Type-C, and USB storage for versatile data transfer and display options.

Specifications:

  • Model: MS10E-05
  • Resolution: 3840×2160 @30FPS (HD/USB Output)
  • Sensor Size: 1/2.8"
  • Focal Length: F=6.0
  • LED Light Quantity: 60 LEDs
  • Brightness Adjustment: 0-100%
  • Maximum Working Distance: 4.5cm
  • Articulating Arm Length: 340mm + 320mm (Total 660mm)

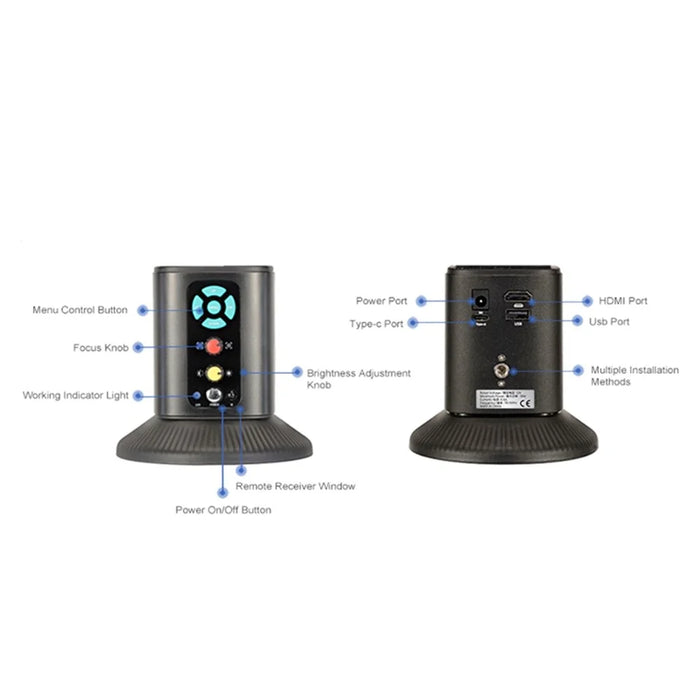

  • Power Interface: DC Power Port, Type-C Port, HD Port, USB Port
  • Mounting Type: Desktop Clamp (C-clamp + Screw Fastening)
  • Rotation Range: 180°
  • Light Source: High CRI LED Ring Light
  • Remote Control: Infrared Wireless

In the box

  • 1 x Microscope
  • 1 x Cantilever Stand
  • 1 x HD Cable
  • 1 x Remote Control
  • 1 x Mounting Bracket
  • 1 x USB-C Cable
  • 1 x English and Chinese User Manual
  • 1 x Power Adapter
