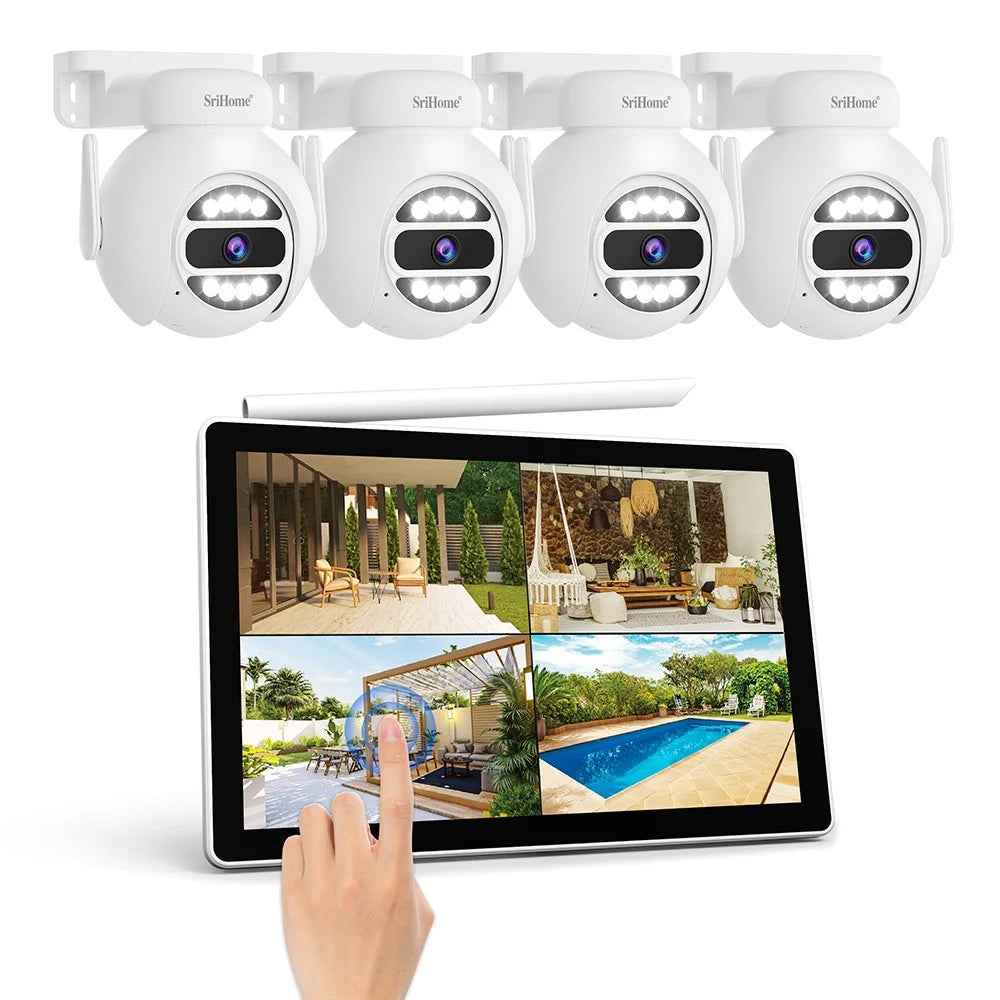

SRIHOME NVS010+IPC047 10.1 Inch LCD Screen IP66 Waterproof 8CH WiFi NVR 5MP HD CCTV Camera Kit - US Plug
R7 200
incl. VAT
Dispatches in 1 – 3 days
Adapter Plug
US Plug
Same price across all adapter plug options · selecting one updates the gallery
Nationwide delivery
2–4 working days to major metros
Secure checkout
Card, EFT, Ozow and PayFast
30-day returns
Unused, in original packaging
Description

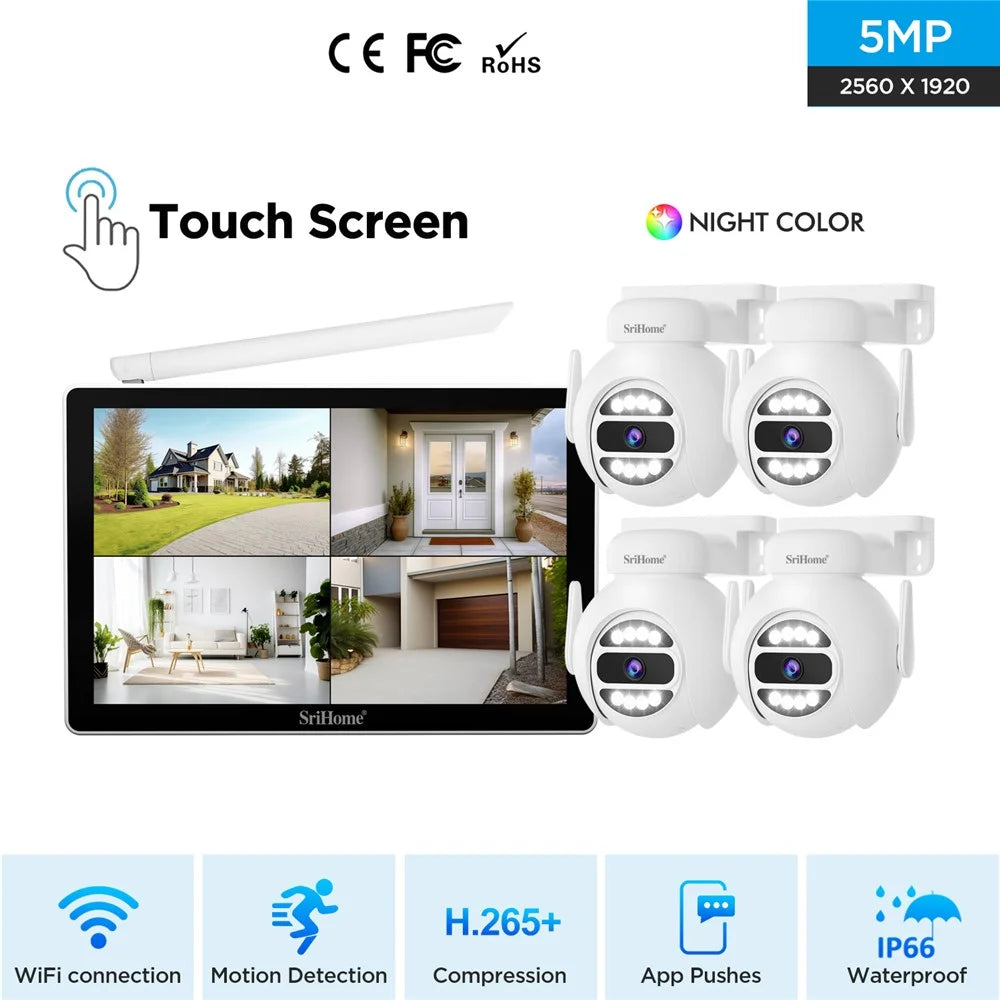

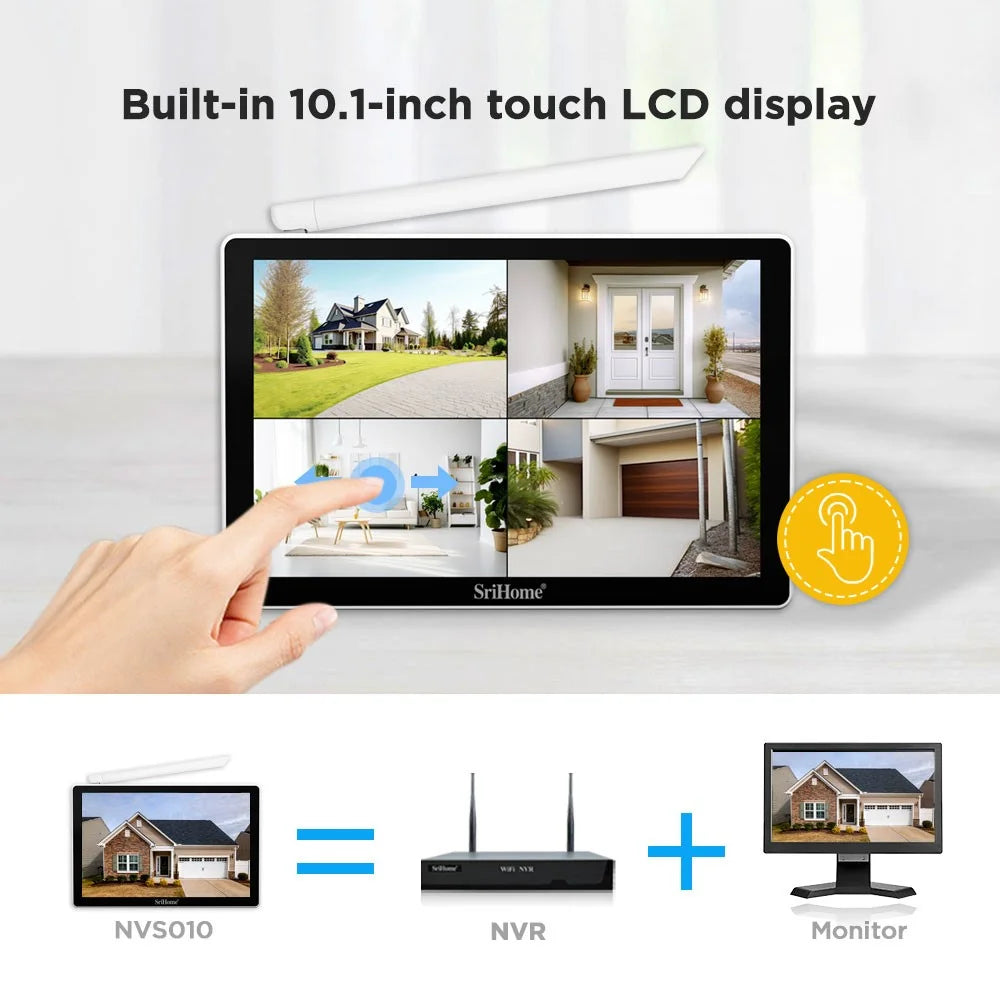

- 10.1-Inch LCD Screen with Multi-Touch Control: Provides an interactive and user-friendly interface for easy operation
- 5MP Camera with 8 CH Screen Mirroring: Offers high-definition video and the ability to view up to 8 channels simultaneously
- Extensive Storage Capacity: Supports storage and playback with up to 16TB hard drive (2.5-inch) for ample recording space

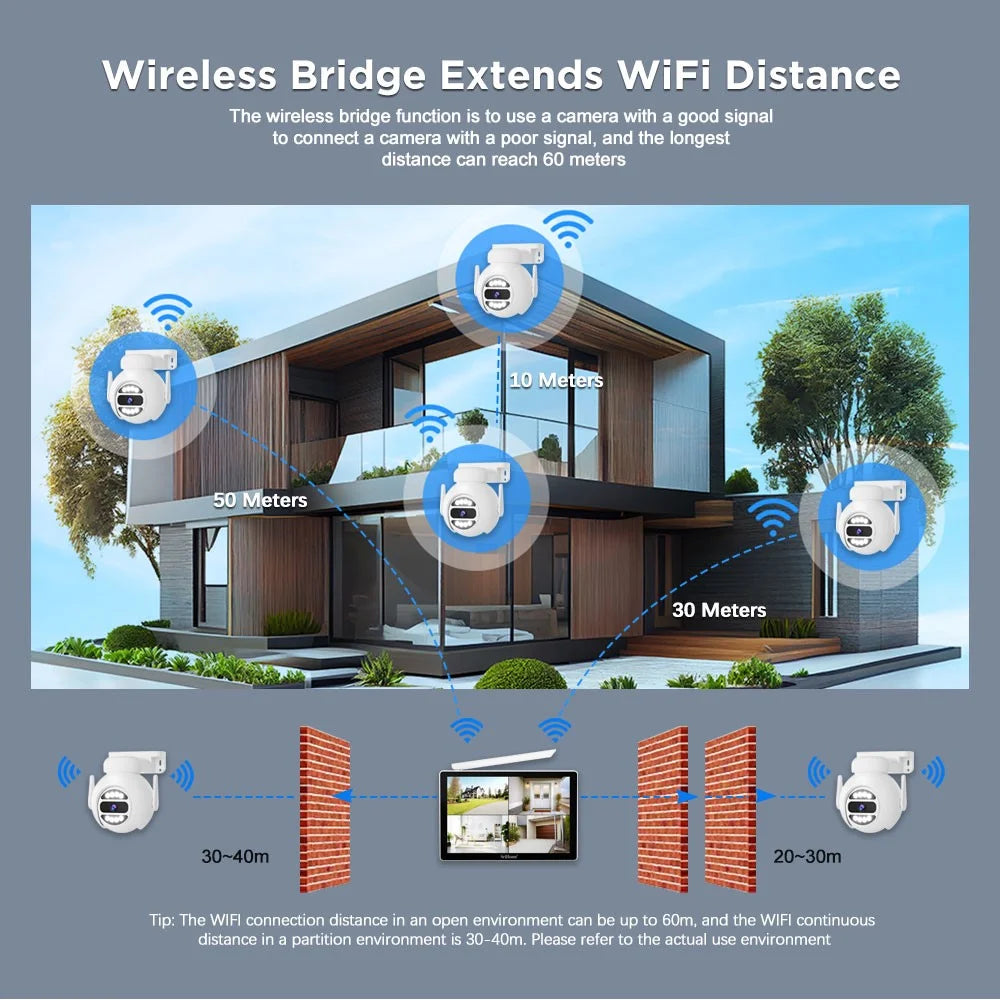

- Wireless Bridge Mode: Features a WiFi range of up to 60 meters, allowing flexible camera placement
- Efficient H.265 Compression: 1TB storage can retain footage for approximately 30 days, optimizing space and data management
- Bidirectional Voice Communication: Equipped with a built-in microphone and speaker for two-way audio
- Advanced AI Intelligence: Includes humanoid tracking, motion detection, and alarm functions for enhanced security
- Mobile Phone Remote Access: Enables remote monitoring, intercom, and playback through mobile devices for convenience
- IP66 Waterproof: Ensures durability and reliable performance in both indoor and outdoor environments
Specifications:
| WiFi NVR | Model | NVS010 (WiFi version) |
| Display Screen |
Screen size | 10.1 inch LCD screen |
| Display resolution | 800xRGB (3) x1280 | |
| Touch control | Support multi-touch | |
| Video | Video input | 8 CH |
| Video output | 1 HD, 1 VGA | |
| Compressed format | H265/H264/Smart264 | |
| Coding ability | 8*5M/25fps | |
| Decoding capability | 1*5M/25fps (main stream); 8*D1/25fps (secondary stream) | |
| Decoding format | H265; H.264; | |
| Audio | Audio | Support two-way audio, built-in microphone and speaker |
| Audio output | HD and 1 AUX audio output with built-in speaker | |
| Decoding format | G.711U; AAC | |
| Hard Disk | Hard disk interface | 1 SATA interface (2.5 inch hard disk only), SSD & HDD |
| Hard disk capacity | Maximum support 16TB | |
| Recording /Playback |
Recording mode | Timing video recording, alarm video recording |
| Playback mode | Regular playback and APP playback | |
| Backup mode | General backup | |
| Network | WiFi | 2.4 G, for standard camera connection only |
| WAN | RJ45 Wired Connection | |
| Network service | Support DHCP, DNS, DDNS, NTP, UPNP, etc | |
| Alarm | Alarm mode | Motion detection alarm, humanoid detection alarm |
| Alarm reminding | APP push, alarm whistle | |
| External Interface |
Network interface | An RJ45 network interface |
| USB interface | 1 USB2.0 | |
| HD interface | 1 | |
| VGA interface | 1 | |
| Audio interface | 1 AUX audio output interface | |
| Power interface | 1 DC 12V 2A (5.5*2.1*10) | |
| APP | Support SriHome APP, IOS and Android remote access | |
| Standard Cameras | ||
| Camera | Model | NVS010-IPC047 |
| System | Main processor | Multi-core high-speed processor |
| Sensor | 1/3-inch, 5 MP HD color CMOS sensor | |
| Compression format | H.265 | |
| Len | Lens parameter | Focal length: 4mm, 5 mp |
| Visible angle | Angle of view: D 110 H 80 V 58 | |
| Video | Resolution | 1920P (2560*1920), VGA (480*360) |
| Frame rate | 15 frames | |
| IR-Cut | Built-in IR-Cut, no color cast indoors and outdoors | |
| Audio | Audio | Built-in Mic and speaker, Support two-way audio |
| Agreement | G711 | |

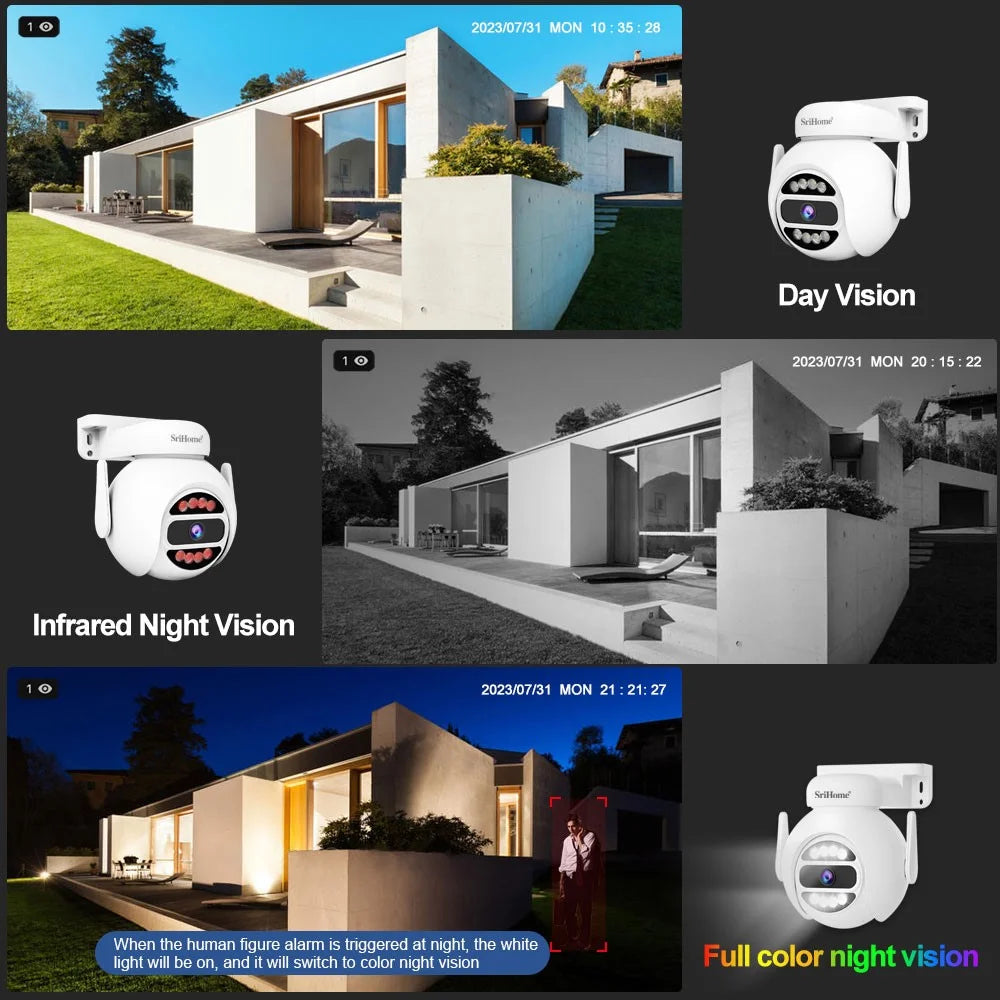

| Night Vision |
Alarm mode | The default is black and white night vision. When an alarm is detected, the white light is turned on and switches to full color night vision |
| White light mode | Working hours 5:00 p.m to 8:00 a.m, the white light turn on, the brightness can be adjusted, and the night vision is full color | |
| Infrared mode | White light is turned off and switched to normal night vision | |
| Pan-tilt | Tracing | Humanoid tracking is supported |

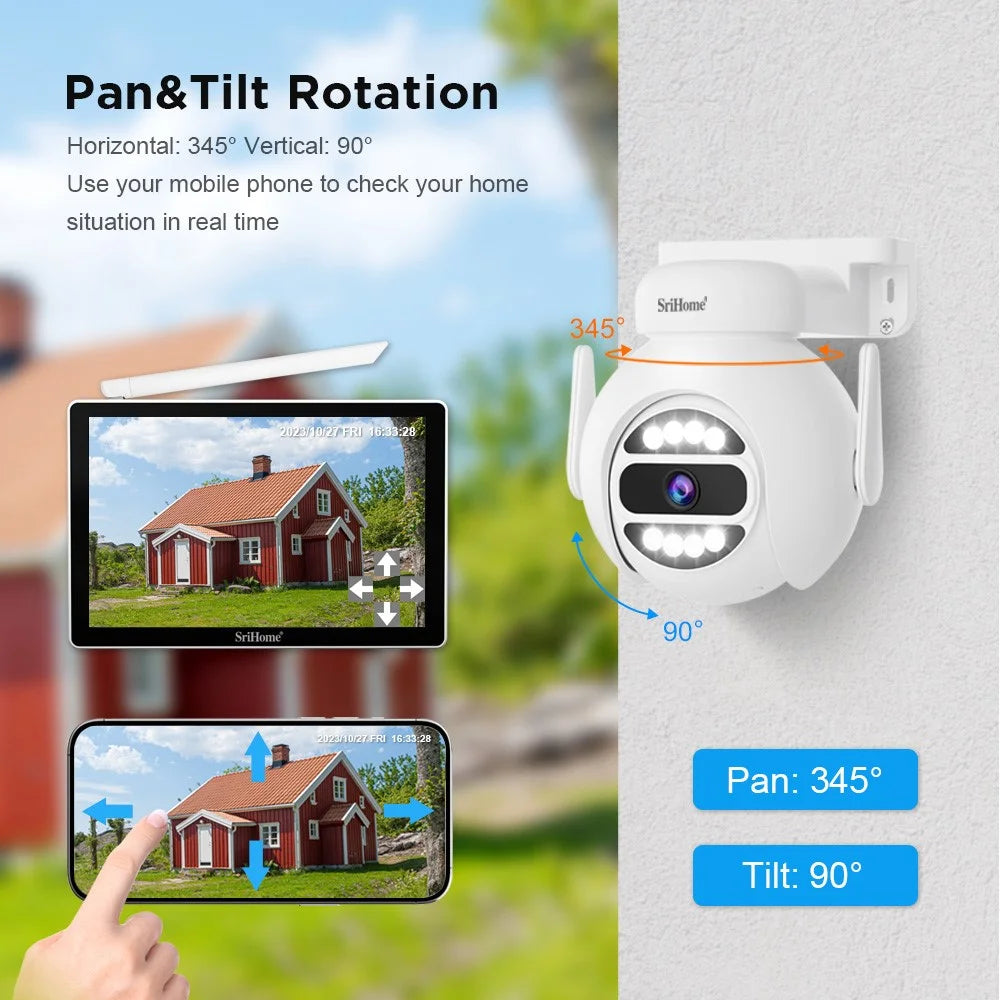

| Angle of rotation | Horizontal: 340°, vertical: 90° | |
| Alarm | Alarm | Motion detection alarm, humanoid alarm |
| Siren | Alarm whistle can be set | |
| Custom alarm area | Support custom motion detection alarm area to improve alarm accuracy | |
| Wireless | Wireless | 2.4 G (Connect to NVS001E/NVS010 Host Only) |
| Pairing Mode | QR code pairing, Reset button pairing | |
| Others | Product type | Plastic PTZ camera, suitable for indoor and outdoor |
| Power adapter | Input AC: 100 ~ 240V, output DC: 12V | |
| Working temperature | -10 ~ 50℃ | |
| Weight | Net weight 375g (based on actual weight) | |
| Body size | 130 * 110 * 125 mm (length x width x height) | |
In the box
- 1 x WiFi NVR Host
- 4 x WiFi Camera
- 1 x Power Adapter for NVR
- 4 x Power Adapter for Camera
- 2 x HDD Screw
- 4 x Screw Pack
- 1 x 1m LAN Cable
- 1 x Reset Pin
- 1 x English and Chinese User Manual
Specifications
- SKU
- 6803000449A
- Package dimensions
- 32.2 × 26 × 22.7 cm
- Gross weight
- 3.61 kg
- Units per pack
- 2
- Dispatch
- 1 - 3 days
- Certification
- CE
- Category
- Consumer Electronics › Security & Surveillance › Surveillance Cameras
What’s in the box
- 1 WiFi NVR Host
- 4 WiFi Camera
- 1 Power Adapter for NVR
- 4 Power Adapter for Camera
- 2 HDD Screw
- 4 Screw Pack
- 1 1m LAN Cable
- 1 Reset Pin
- 1 English and Chinese User Manual
