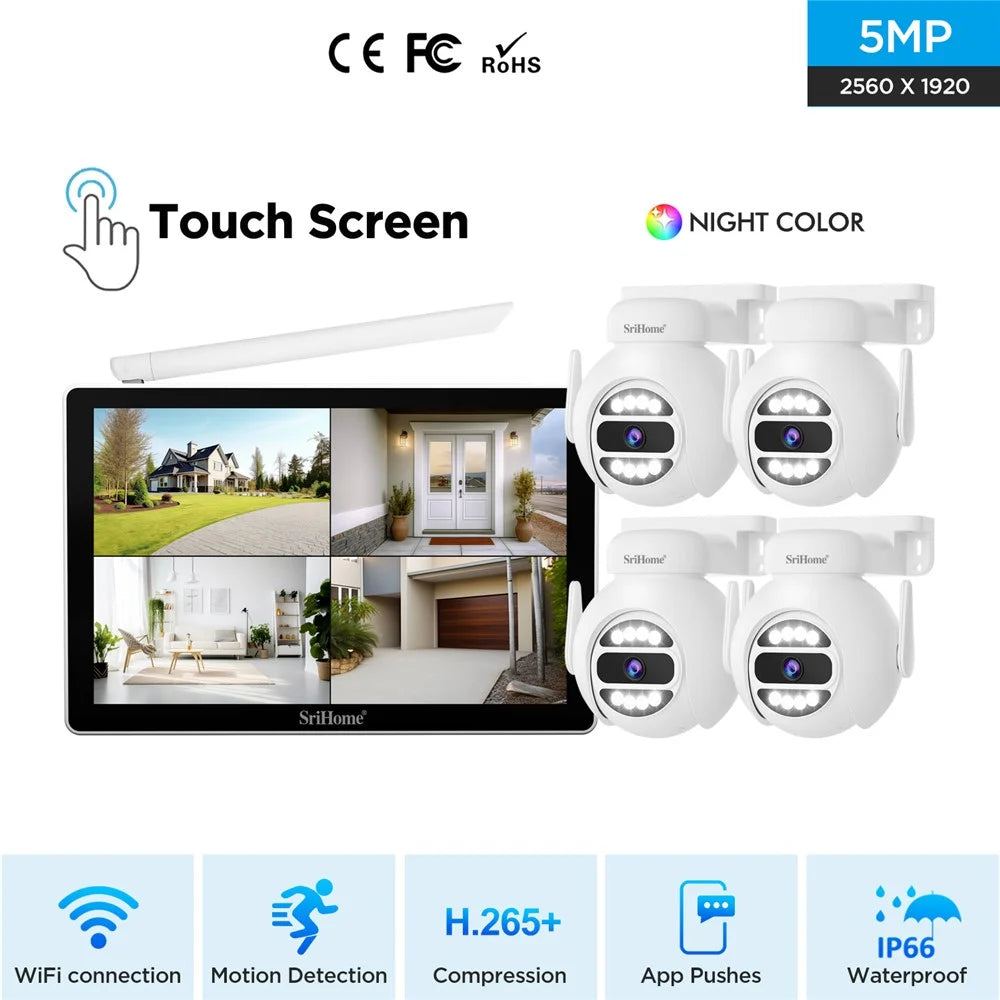

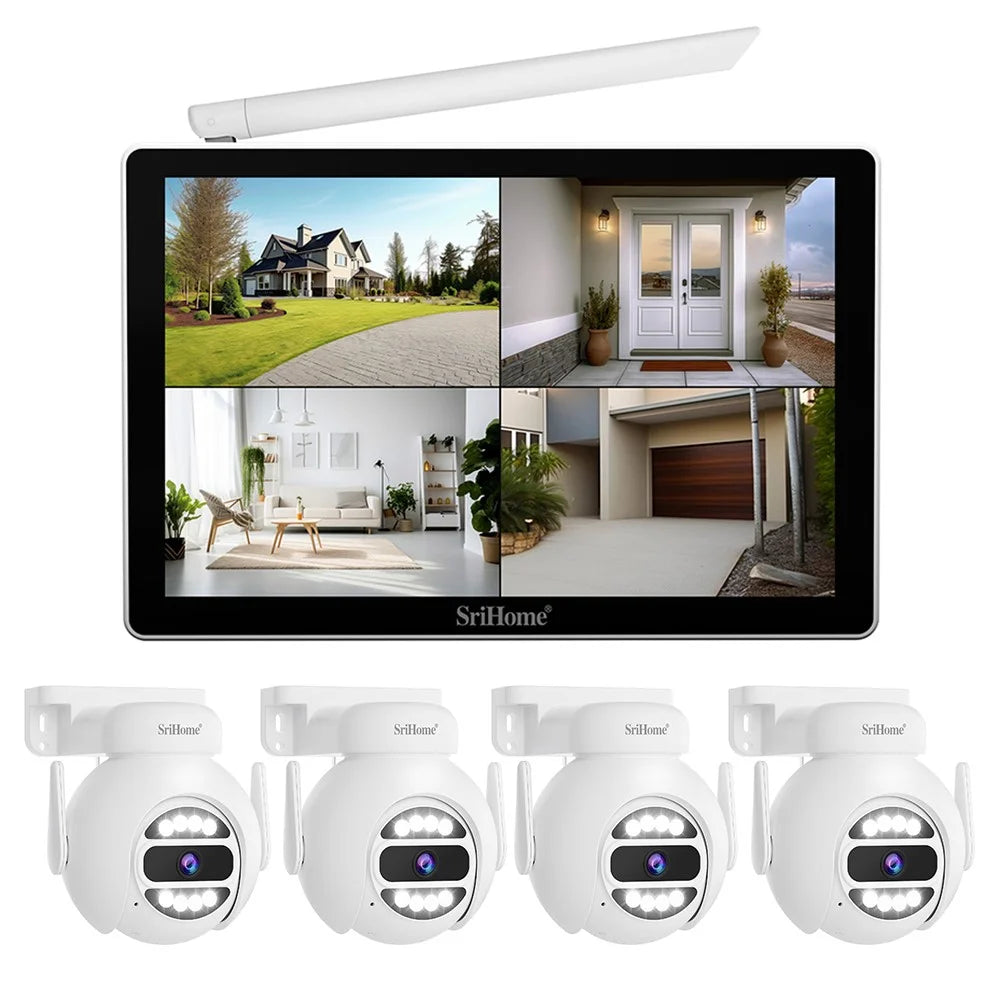

SRIHOME NVS010 1 to 4 Wireless Touch Screen 5MP HD Surveillance Camera NVR Video Recorder, EU Plug

WiFi NVR:

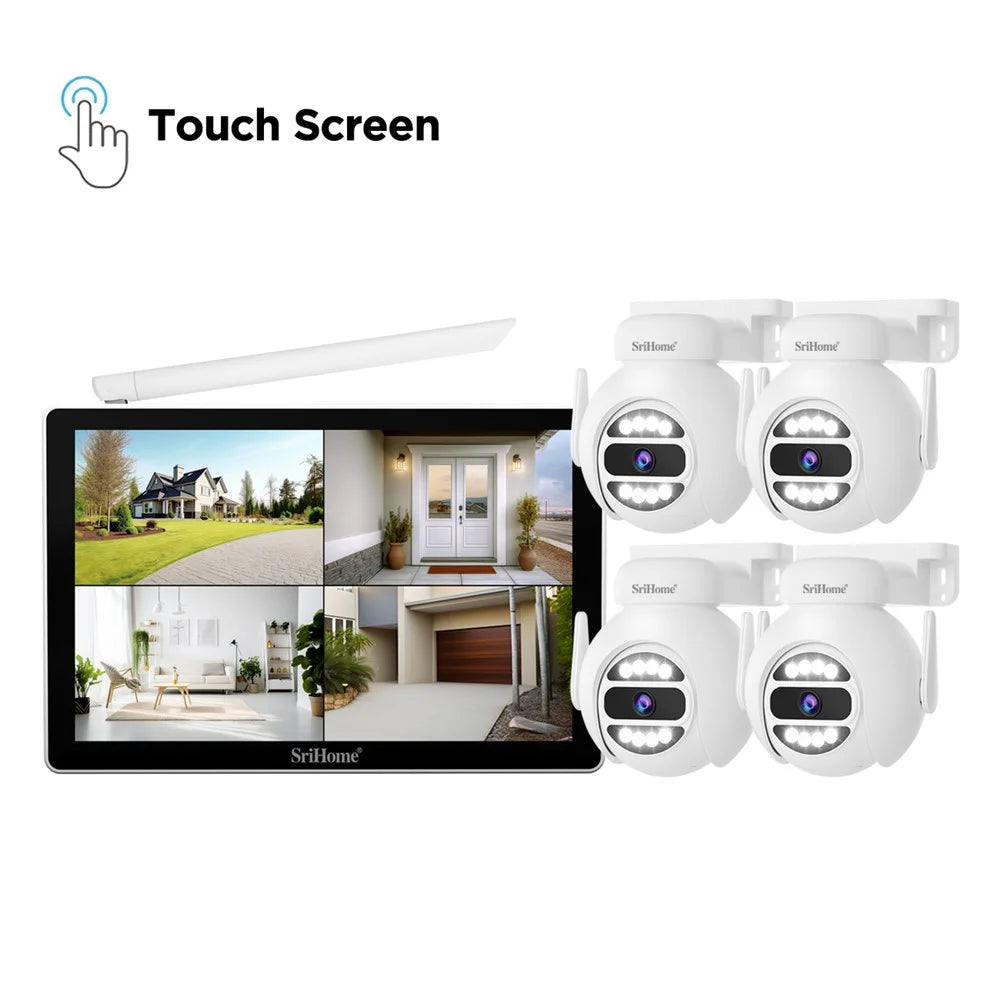

• Comes with 10.1-inch LCD screen, supports multi-touch
• Supports up to 8 wireless cameras
• Support SriHome cloud platform
• Supports up to 16TB hard drive (2.5-inch) storage and playback
• Support wireless bridge mode - WiFi range up to 60 meters
• HD and VGA can be set up, built-in omnidirectional microphone and speakers

Camera:

• Pixels: 5 million pixels (2560*1920P), H265 compression format Compression format
• Audio: two-way voice, built-in microphone and speaker, supports monitoring and intercom
• Sensor: Digital wide dynamic
• Lens: 4mm lens, supports 3x electronic zoom
• Night vision: supports dual light sources, supports full-color night vision
• Ultra-long distance Wifi: only connected to the NVS010 host, the distance in the open air can reach 100 meters
• Wifi bridge: supported, the bridge distance is about 15 meters

Specification:

• Model: NVS010 (WiFi version)
• Display parameters:
• Screen size: 10.1-inch LCD screen
• Display resolution: 800xRGB(3)x1280
• Touch: Support multi-touch
• Video parameters:
• Video input: 8ch
• Video output interface: 1 HD, 1 VGA
• Compression format: H265/H264/Smart264
• Coding capability: 8*5M/25fps
• Decoding capability: 1*5M/25fps (main stream); 8*D1/25fps (auxiliary stream)
• Video decoding format: H265; H.264
• Audio parameters:
• Audio: two-way voice
• Audio output: HD and 1-way AUX interface audio output, built-in speaker
• Audio decoding format: G.711U; AAC
• Hard disk parameters:

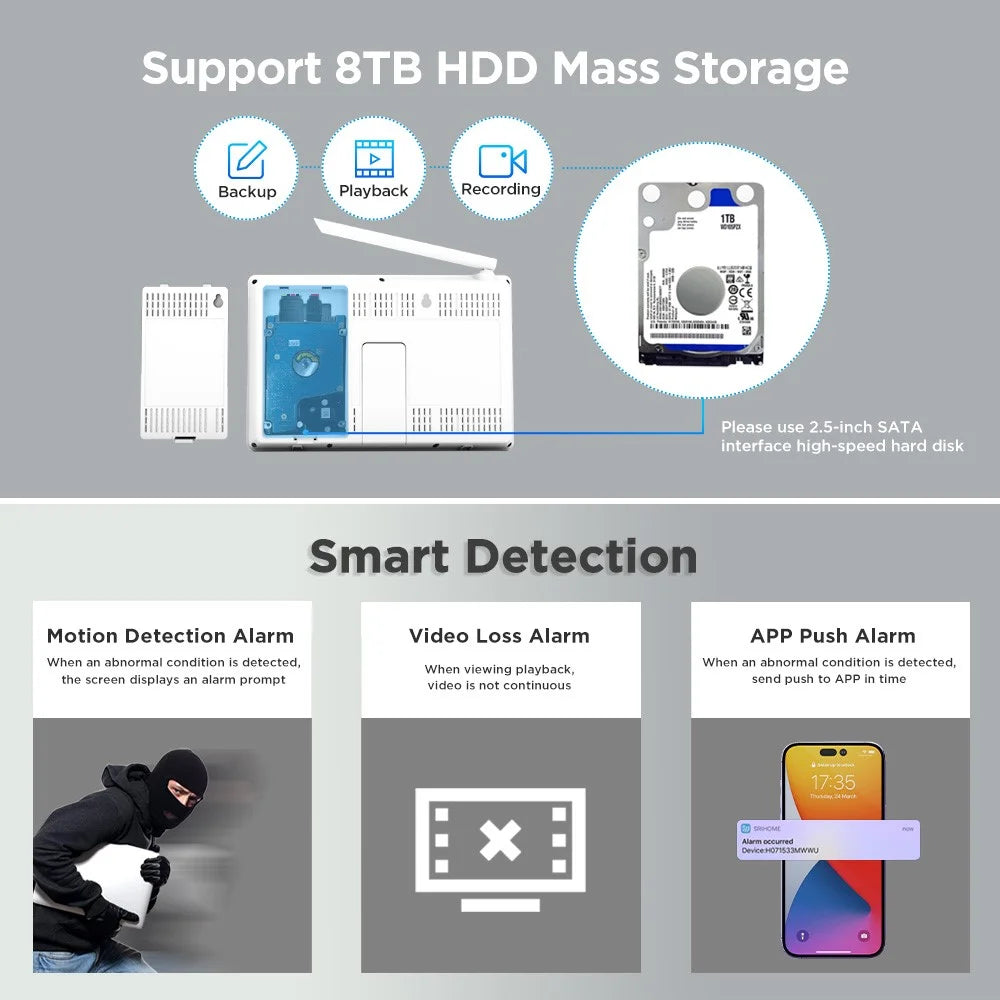

• Hard drive interface: 1 SATA interface (only supports 2.5-inch hard drives), SSD&HDD
• Hard drive capacity: maximum support 16TB
• Recording/playback: recording mode, scheduled recording, alarm recording
• Playback mode: regular playback and APP playback
• Backup mode: regular backup
• Network management: WiFi 2.4G, only for standard camera connection
• WAN: RJ45 wired connection
• Network services: Support DHCP, DNS, DDNS, NTP, UPNP, etc.
• Alarm:
• Alarm mode: motion detection alarm, humanoid detection alarm
• Alarm reminder: APP push, alarm whistle
• External interface:
• Network interface: one RJ45 network interface
• USB interface: 1 USB2.0
• HD interface: 1
• VGA interface: 1
• Audio interface: 1 AUX audio output interface
• Power interface: 1 DC 12V 2A (5.5*2.1*10)
• Others:
• Working temperature: -10°C ~50°C
• Working humidity: 10%~90% RH
• APP: Support SriHome APP, IOS and Android remote access
• Camera:
• System:
• Main processor: multi-core high-speed processor
• Sensor: 1/3 inch, 5 million high-definition color CMOS sensor
• Compression format: H.265
• Lens parameters:
• Focal length: 4mm, 5 million pixels
• Field of view: D 110 H 80 V 58
• Video:
• Resolution: 1920P(2560*1920), VGA(480*360)
• Frame frequency: 15 frames
• Auto Exposure: Auto Exposure White Balance
• Lighting settings:
• Alarm mode: The default is black and white night vision. When a human figure is detected, the white light will be automatically turned on and switched to full color night vision.
• White light mode: The white light will be on from 18:00 to 7:00, the brightness is adjustable, and the night vision is full color
• Infrared mode: Turn off the white light and switch to normal night vision
• IR-Cut: Built-in IR-Cut, no color cast indoors and outdoors, good night vision effect
• Audio:
• Audio: Built-in microphone and speaker, supports two-way voice
• Protocol: G711
• PTZ: tracking, does not support humanoid tracking

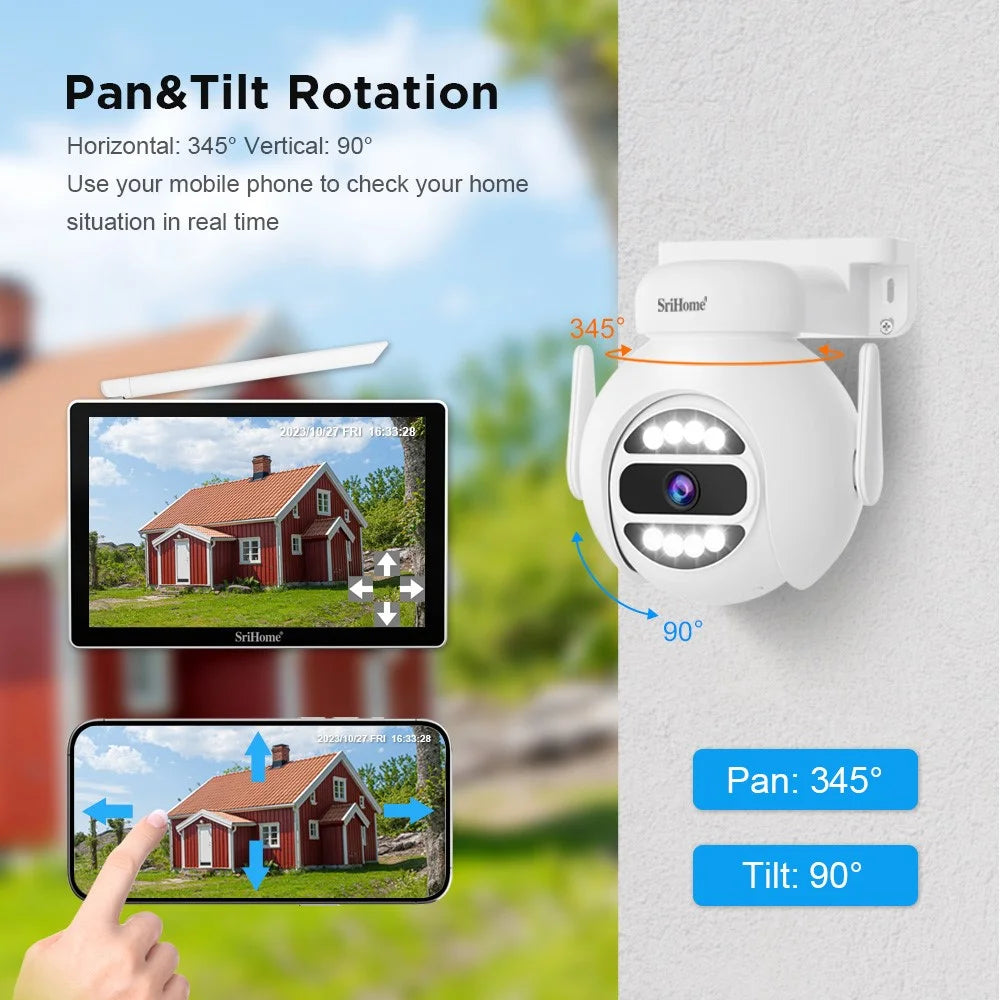

• Rotation angle: horizontal: 355°, vertical: 90°
• Alarm:
• Alarm: motion detection alarm, humanoid alarm
• Siren: Alarm whistle can be set
• Advanced area detection: supports customized motion detection alarm areas to improve alarm accuracy
• Wireless: 2.4G (only connected to NVS010 host, cannot be connected to network distribution mode, QR code network distribution, button network distribution)
• Wired: not supported
• Recording mode: scheduled recording, alarm recording
• Resolution: HD (1920P), SD (360P)
• Playback: Support remote video playback
• Other:
• Power adapter: input AC: 100~240V, output DC: 12/500mA
• Working temperature: -10℃ ~50℃
• Working humidity: 10%~90% RH
• Net weight: 375g
• Dimensions: Body size: 130 * 110 * 125 mm (length x width x height)
