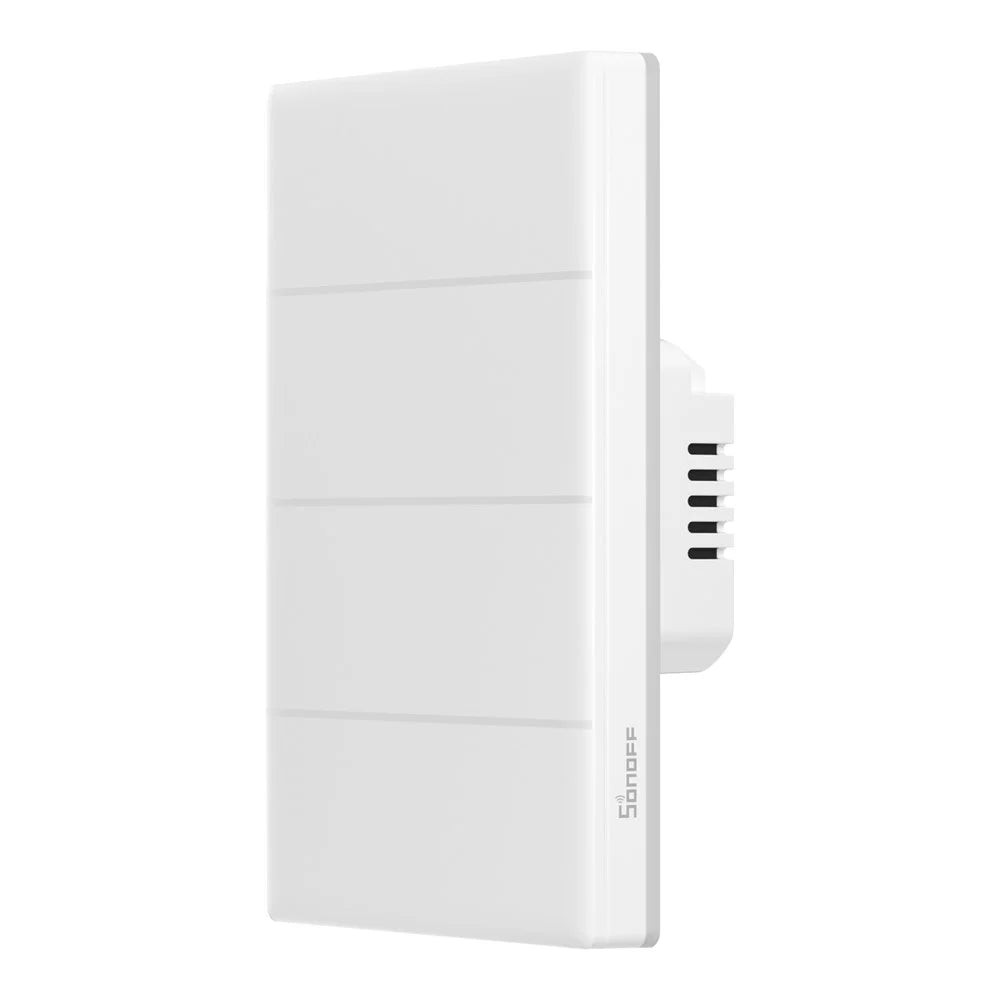

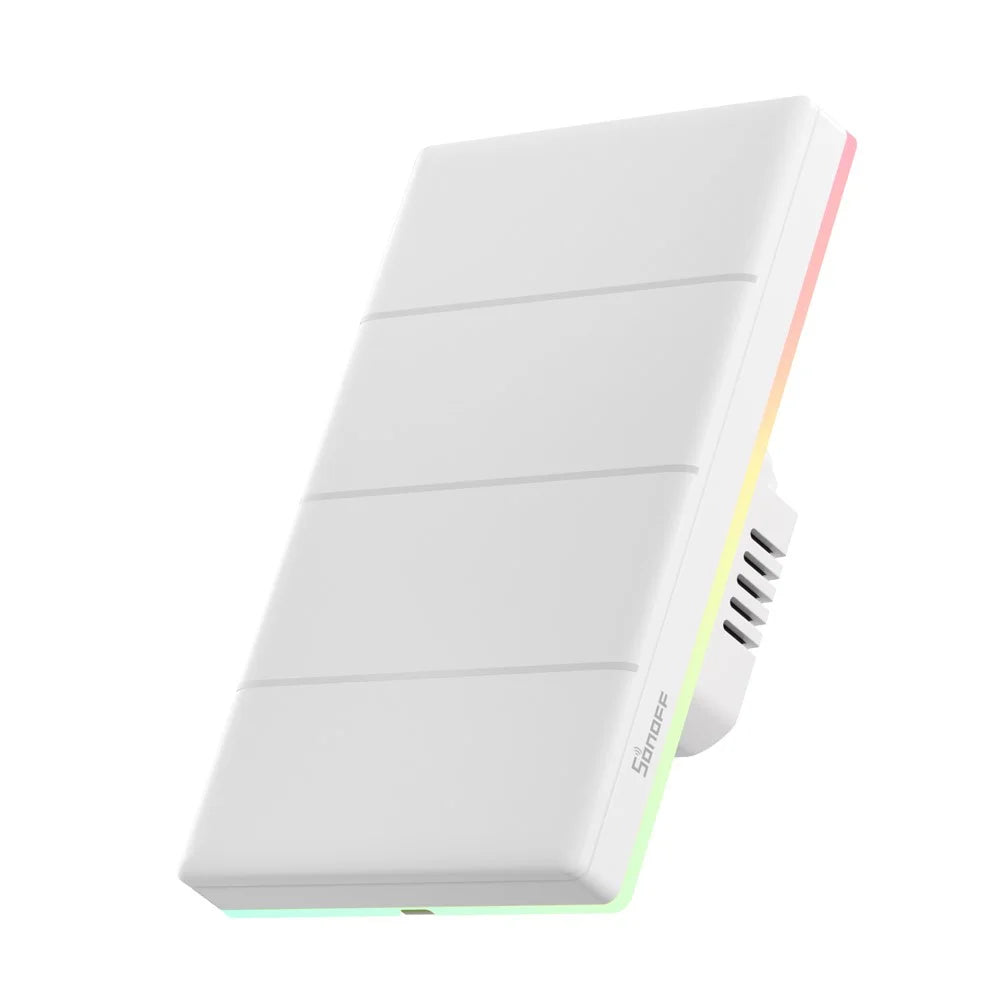

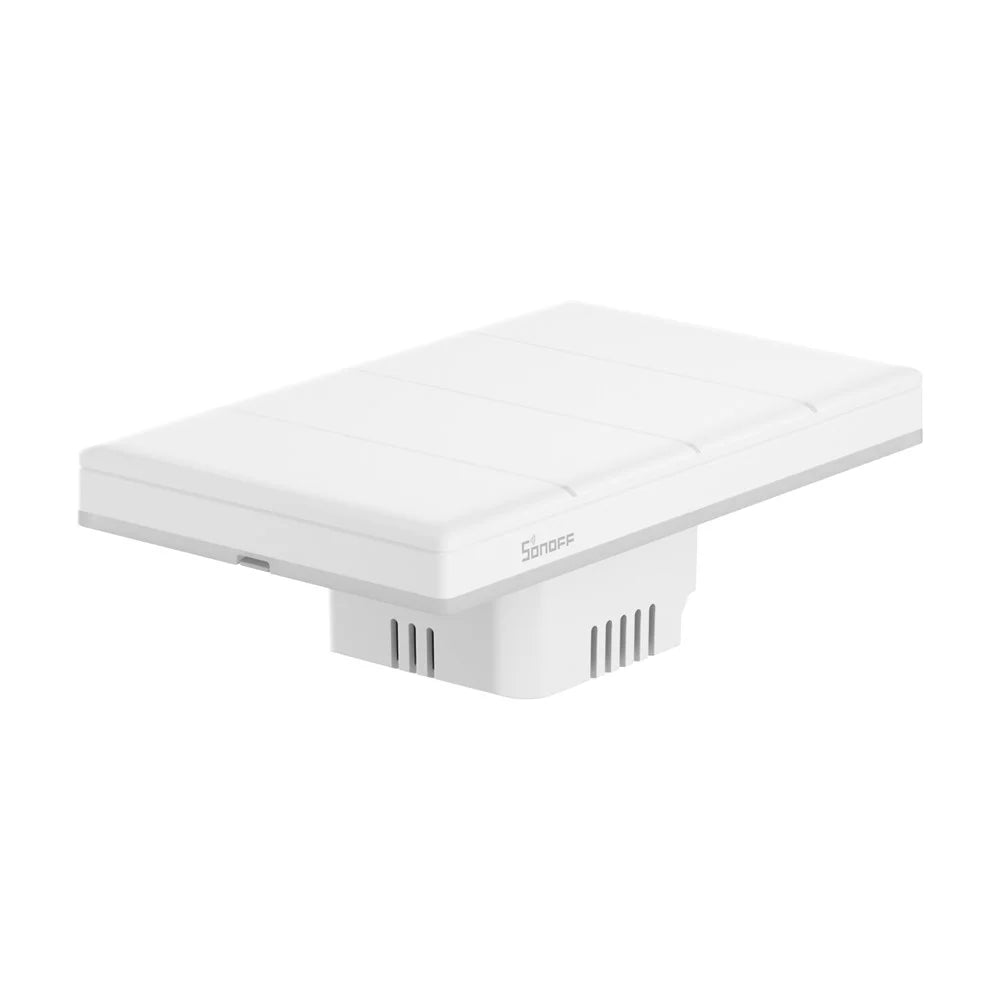

SONOFF TX Ultimate WiFi / eWeLink-Remote Smart Touch Wall Switch with RGB Light - US Plug / T5-4C-120
R1 150
incl. VAT
Dispatches in 1 – 3 days
Color
US Plug/T5-4C-120
Same price across all color options · selecting one updates the gallery
Nationwide delivery
2–4 working days to major metros
Secure checkout
Card, EFT, Ozow and PayFast
30-day returns
Unused, in original packaging
Description
- Full Touch Operation: Unlike conventional touch switches, the TX Ultimate features an enlarged touch-sensitive area that covers almost the entire panel, allowing for easy on/off operation with just a light press

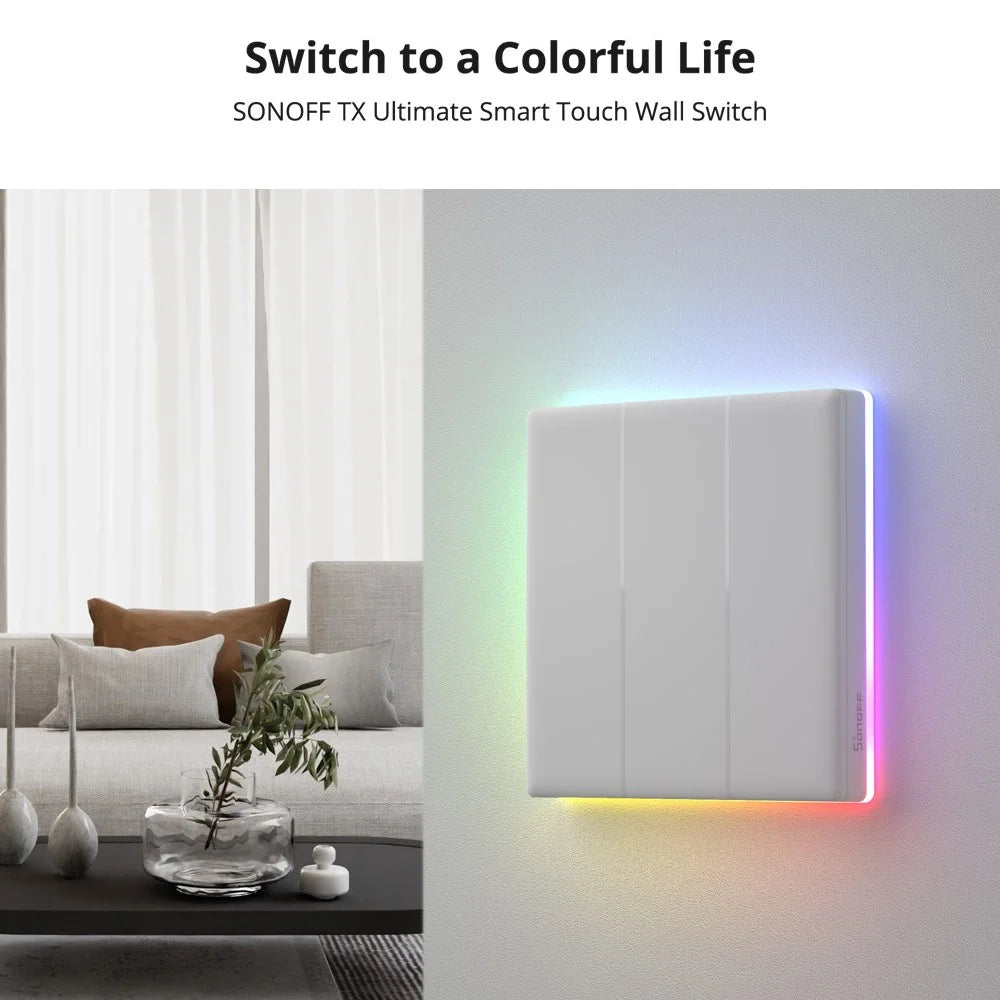

- Smart LED Light: Encircled with a ring of RGB color lights, it serves not only as an indicator for switch status but also as a night light or ambiance lighting
- Multi-Sensory Touch Experience: The TX Ultimate integrates LED lights, a speaker, and a built-in motor, offering a combined effect of light transitions, sound feedback, and panel vibration upon pressing
- Interchangeable Switch Covers: Offers customizable options with replaceable covers in star and cartoon styles, allowing for a match with various interior designs. Additional panels can be considered for purchase to suit different decoration styles
- eWeLink-Remote Control: As a smart switch, the TX Ultimate incorporates gateway functionality for "eWeLink-Remote" control. It requires pairing with S-MATE or the R5 scene remote controller to utilize the "eWeLink-Remote" control features (Not Included)
Specifications:
| Model | T5-4C-86 | T5-4C-120 |
| Input | 100-240V ~ 50/60Hz Max 16A | |
| Output | 100-240V ~ 50/60Hz Max 4A/Gang 16A/Total | |
| Max. Power | 960W Max@240V/Gang, 3840W/Total | |
| LED Load | 150W Max@240V/Gang, 75W Max@100V/Gang | |
| Gang | 1-Gang/2-Gang/3-Gang/4-Gang | |
| MCU | ESP32 | |
| Certification | CE/SRRC/RoHS | |
| Size | 86 x 86 x 39mm | 120 x 74 x 39mm |
| Weight | 181g | 210g |
| Casing Material | PC+CRS | |
| App OS | Android & iOS | |
| Wi-Fi | IEEE 802.11 b/g/n20/n40 2.4GHz(2400MHz-2483.5MHz) | |
| Bluetooth | 4.2 BLE (2400MHz-2483.5MHz) | |
| Antenna | FPC board with antenna | |
| Security Mode | WPA/WPA2 | |
| Encryption Type | TKIP/WEP/CES | |
| Applicable Place | Indoor | |
| Working Temperature | -10℃ ~ 40℃ | |
| Working Humidity | 5%-95%RH, non-condensing | |
| Working Height | Less than 2000m | |
| Installation Method | Embedded mounting box | |
| Installation Type | Screws installation | |
| Wiring Way | N and L | |
| Wire Diameter | 1m㎡-4m㎡AWG17-AWG11 | |
In the box
- 1 x Smart Touch Wall Switch
- 2 x Screw
- 1 x English and Chinese Manual
- Other items not included
Specifications
- SKU
- 680201197A
- Package dimensions
- 13.7 × 10.2 × 4.8 cm
- Gross weight
- 0.32 kg
- Units per pack
- 77
- Dispatch
- 1 - 3 days
- Certification
- CE
- Category
- Consumer Electronics › Smart Electronics › Smart Home › Smart Home Controls
What’s in the box
- 1 Smart Touch Wall Switch
- 2 Screw
- 1 English and Chinese Manual
- — Other items not included
Shipping & returns
Dispatch
Orders placed before 13:00 are picked the same day. Dispatch time for each item is shown next to the price.
Delivery
Courier to your door: 2–4 working days to Gauteng, Cape Town and Durban; 3–6 days to outlying areas.
Returns
30 days from delivery for unused goods in original packaging. Faulty items are replaced or refunded in full.
Warranty
12-month warranty against manufacturing defects, handled locally — no cross-border shipping required.
R1 150
1 - 3 days
