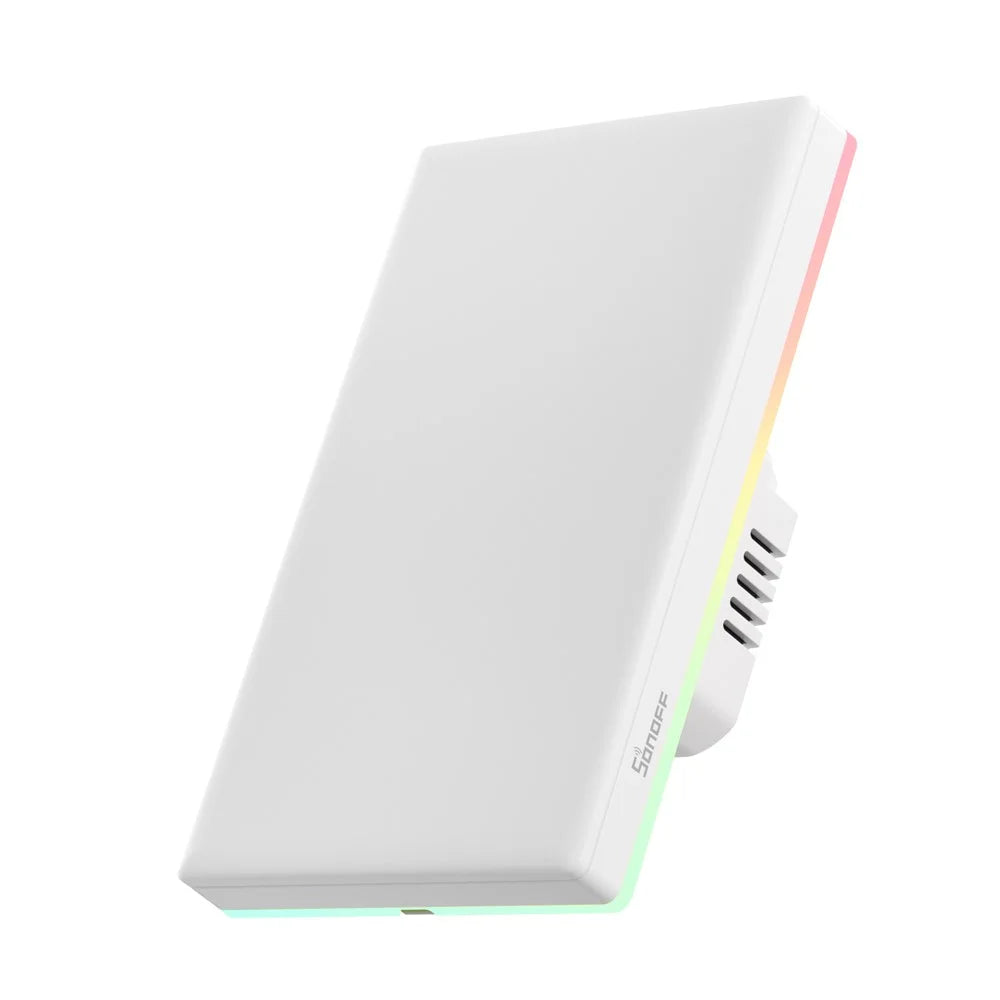

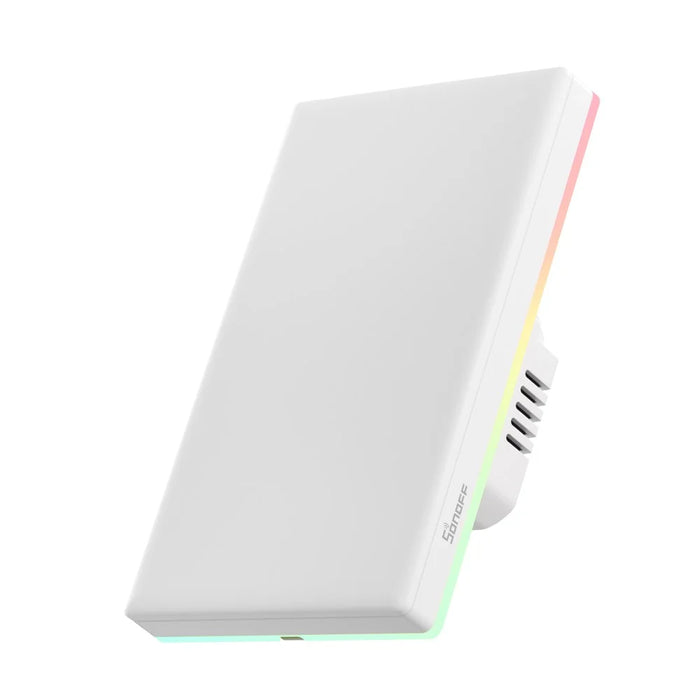

SONOFF TX Ultimate Smart Touch Wall Switch with WiFi and eWeLink-Remote Compatibility - US Plug / T5-1C-120
by SONOFF
$1,030.00
Delivered in 10-15 Days.
more info
Orders from overseas warehouse are delivered to our customers within 10-15 working days. We have a dedicated team to keep things moving quickly, and we will keep you updated on your order via SMS or email.
All-Inclusive Pricing.
more info
The price you see is the price you pay. Price includes any Customs, Insurance and Courier fees. Absolutely no hidden fees. We also take care of customs clearance.
Hassle-Free returns For 7 Days.
more info
View our Return Policy for more info.
- Full Touch Operation: Unlike conventional touch switches, the TX Ultimate features an enlarged touch-sensitive area that covers almost the entire panel, allowing for easy on/off operation with just a light press

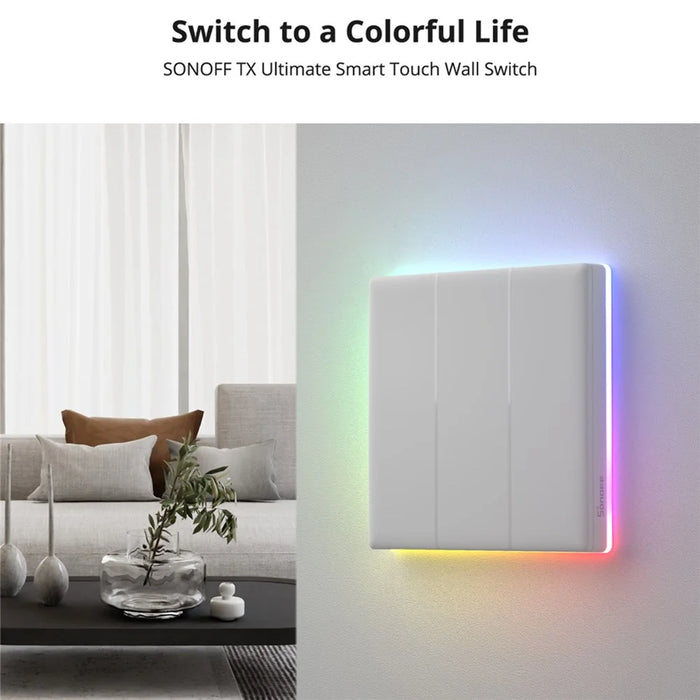

- Smart LED Light: Encircled with a ring of RGB color lights, it serves not only as an indicator for switch status but also as a night light or ambiance lighting
- Multi-Sensory Touch Experience: The TX Ultimate integrates LED lights, a speaker, and a built-in motor, offering a combined effect of light transitions, sound feedback, and panel vibration upon pressing
- Interchangeable Switch Covers: Offers customizable options with replaceable covers in star and cartoon styles, allowing for a match with various interior designs. Additional panels can be considered for purchase to suit different decoration styles
- eWeLink-Remote Control: As a smart switch, the TX Ultimate incorporates gateway functionality for "eWeLink-Remote" control. It requires pairing with S-MATE or the R5 scene remote controller to utilize the "eWeLink-Remote" control features (Not Included)
Specifications:
| Model | T5-1C-86 | T5-1C-120 |
| Input | 100-240V ~ 50/60Hz Max 5A | |
| Output | 100-240V ~ 50/60Hz Max 5A | |
| Max. Power | 1200W Max@240V | |
| LED Load | 150W Max@240V, 75W Max@100V | |
| Gang | 1-Gang/2-Gang/3-Gang/4-Gang | |
| MCU | ESP32 | |
| Certification | CE/SRRC/RoHS | |
| Size | 86 x 86 x 39mm | 120 x 74 x 39mm |
| Weight | 164g | 196.6g |
| Casing Material | PC+CRS | |
| App OS | Android & iOS | |
| Wi-Fi | IEEE 802.11 b/g/n20/n40 2.4GHz(2400MHz-2483.5MHz) | |
| Bluetooth | 4.2 BLE (2400MHz-2483.5MHz) | |
| Antenna | FPC board with antenna | |
| Security Mode | WPA/WPA2 | |
| Encryption Type | TKIP/WEP/CES | |
| Applicable Place | Indoor | |
| Working Temperature | -10℃ ~ 40℃ | |
| Working Humidity | 5%-95%RH, non-condensing | |
| Working Height | Less than 2000m | |
| Installation Method | Embedded mounting box | |
| Installation Type | Screws installation | |
| Wiring Way | N and L | |
| Wire Diameter | 1m㎡-4m㎡AWG17-AWG11 | |
In the box
- 1 x Smart Touch Wall Switch
- 2 x Screw
- 1 x English and Chinese Manual
- Other items not included
