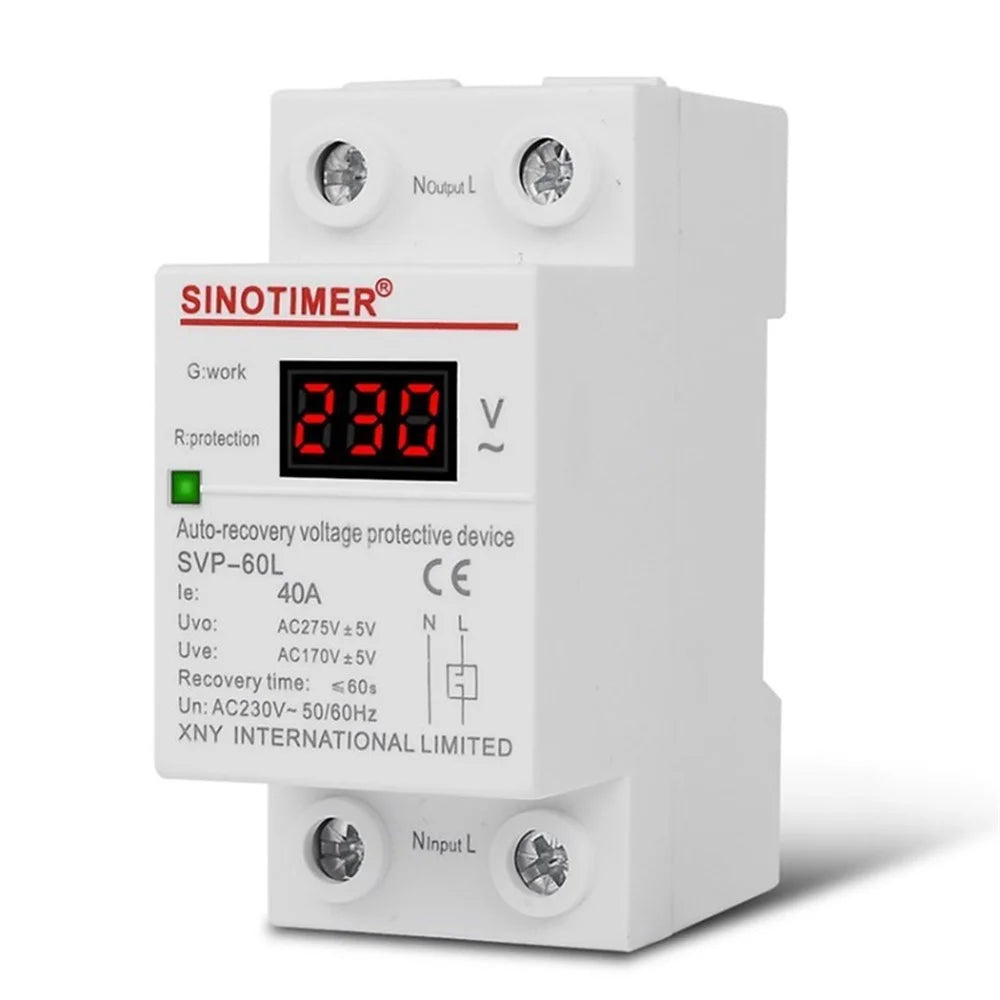

SINOTIMER SVP-60L 230V 40A AC Intermediate Relay Power Overvoltage Undervoltage Voltage Relay Protective Device

by SINOTIMER
$360.00




    Delivered in 10-15 Days.
    more info Orders from overseas warehouse are delivered to our customers within 10-15 working days. We have a dedicated team to keep things moving quickly, and we will keep you updated on your order via SMS or email.
    All-Inclusive Pricing.
    more info The price you see is the price you pay. Price includes any Customs, Insurance and Courier fees. Absolutely no hidden fees. We also take care of customs clearance.
    Hassle-Free returns For 7 Days.
    more info View our Return Policy for more info.

  • The automatic recovery overvoltage and undervoltage protection device conforms to the modular design standard

  • High-quality electronic components with reliable performance

  • When the power condition is unstable, the protection function is automatically activated

  • If the voltage is too high, it will automatically cut off

  • When the power returns to normal, it will re-power within 1 minute

  • Green light - normal power supply. Red light - overvoltage or undervoltage

Specifications:

  • AC voltage: 230V±10%, frequency 50Hz/60Hz

  • Max current: 40A or 60A

  • Max load power: 8.8KVA

  • Overvoltage action cut-off value: >270VAC±5V

  • Normal voltage value: 175-270VAC

  • Cut-off value for undervoltage: <170VAC±5V

  • Overvoltage and undervoltage cut-off: <1s

  • Delay after power failure: <60s

  • Self-consumption: <2W

  • Motor life: = 100000 times

  • Size: 35*70*77mm

  • Mounting type: 35mm Din Rail

Note:

  • When connecting for the first time, wait 1 minute. The product can only work after the red light goes out.

In the box

  • 1 x Voltage Monitoring Relay
