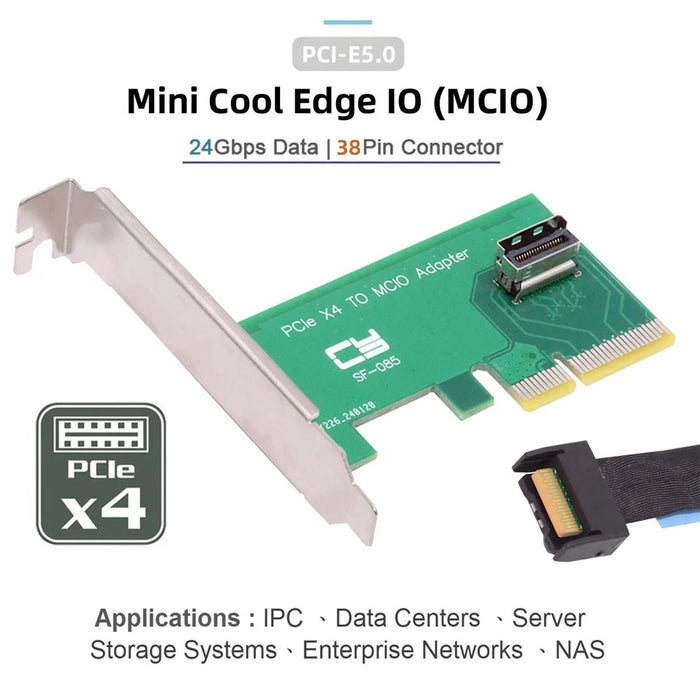

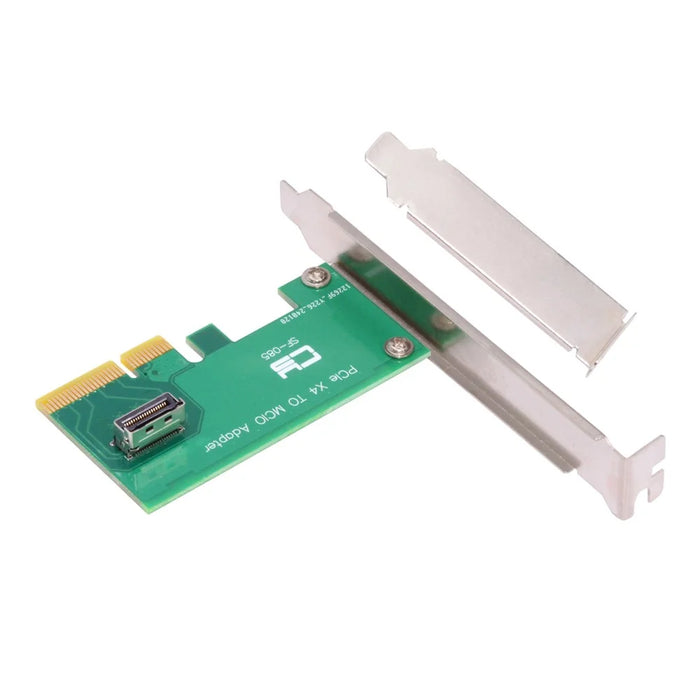

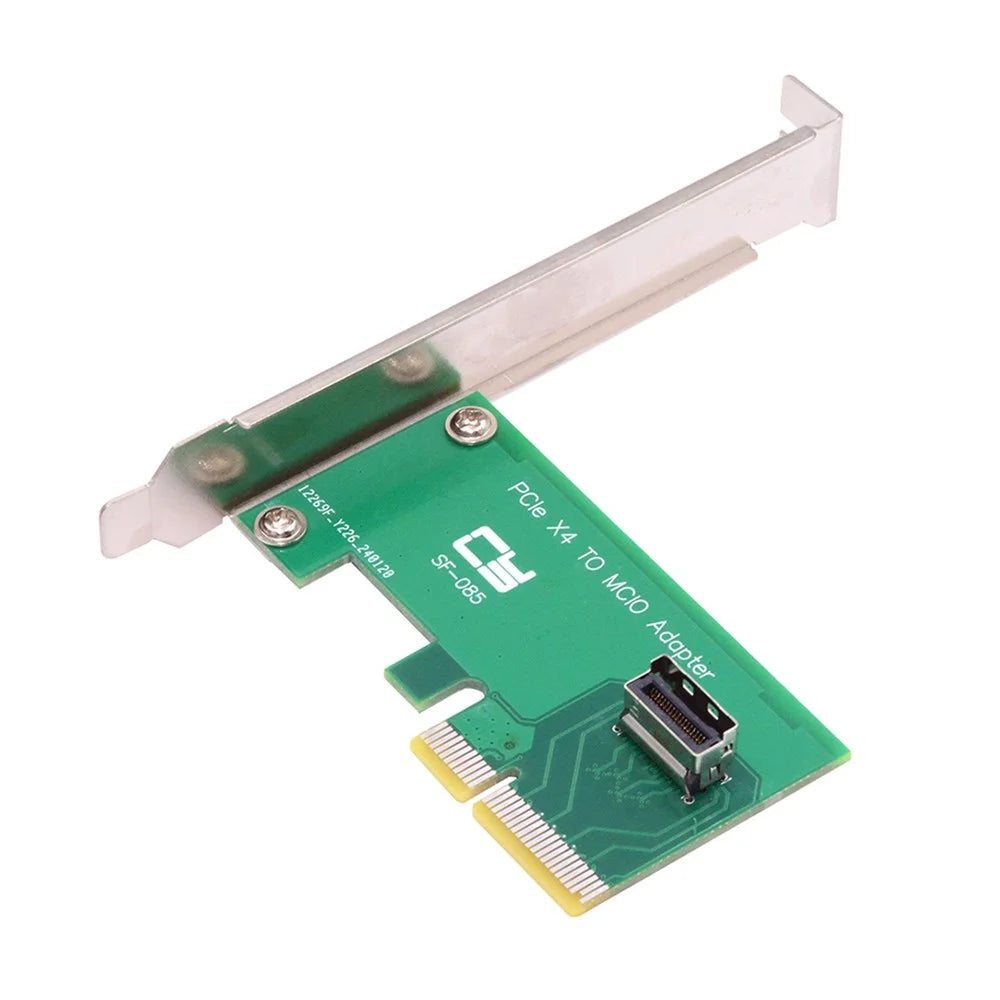

SF-085 PCI-Express 5.0 4.0 4X to MCIO Mini Cool Edge IO Female Host Adapter for PCIe Nvme U.2 SSD

by TVCMall
$650.00




    Delivered in 10-15 Days.
    more info Orders from overseas warehouse are delivered to our customers within 10-15 working days. We have a dedicated team to keep things moving quickly, and we will keep you updated on your order via SMS or email.
    All-Inclusive Pricing.
    more info The price you see is the price you pay. Price includes any Customs, Insurance and Courier fees. Absolutely no hidden fees. We also take care of customs clearance.
    Hassle-Free returns For 7 Days.
    more info View our Return Policy for more info.

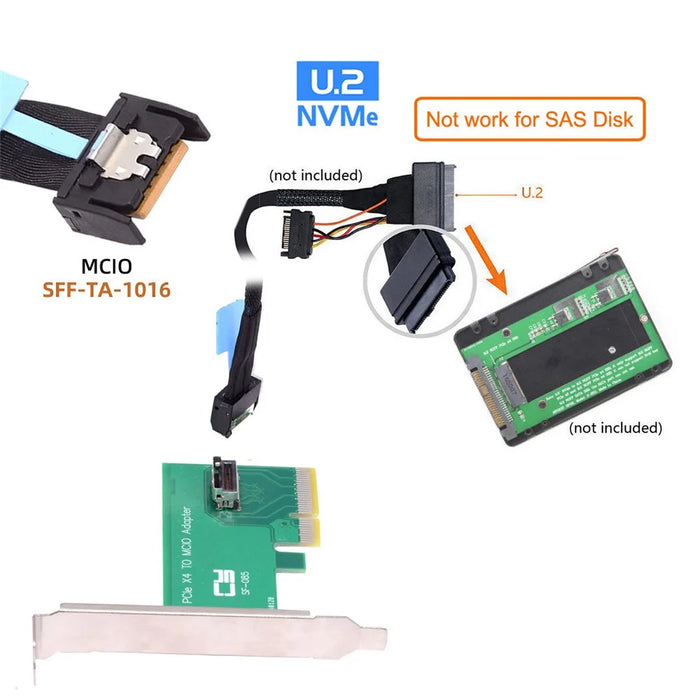

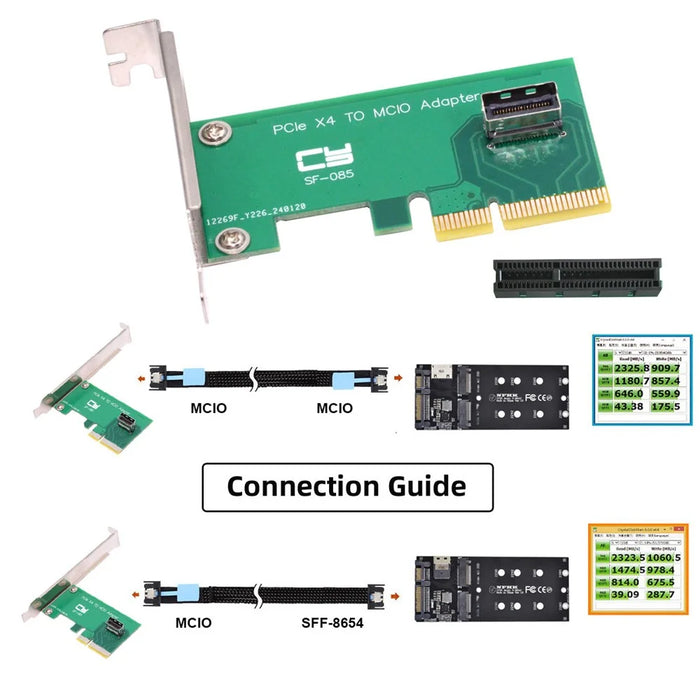

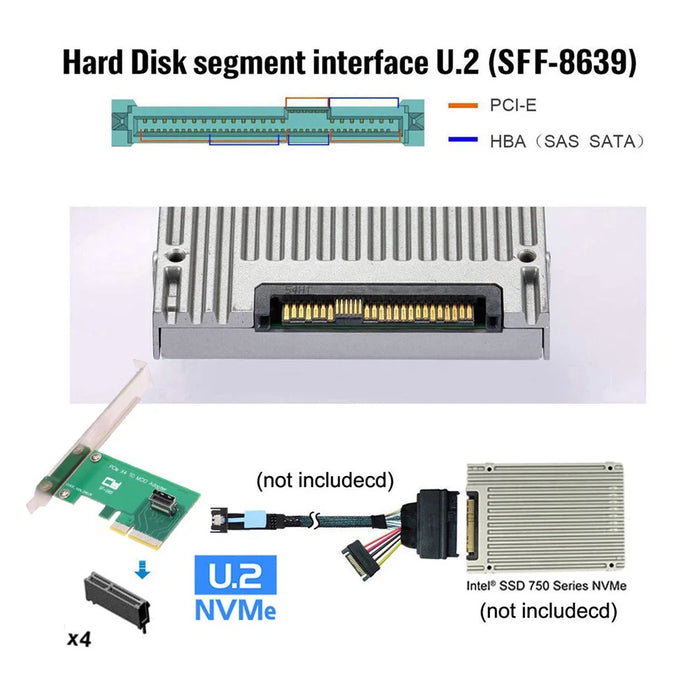

  • This converter expands the system by one MCIO interface. It can be connected e.g. one SSD by using an optional cable
  • The card transmits PCI Express signals using the 4x pcie protocol

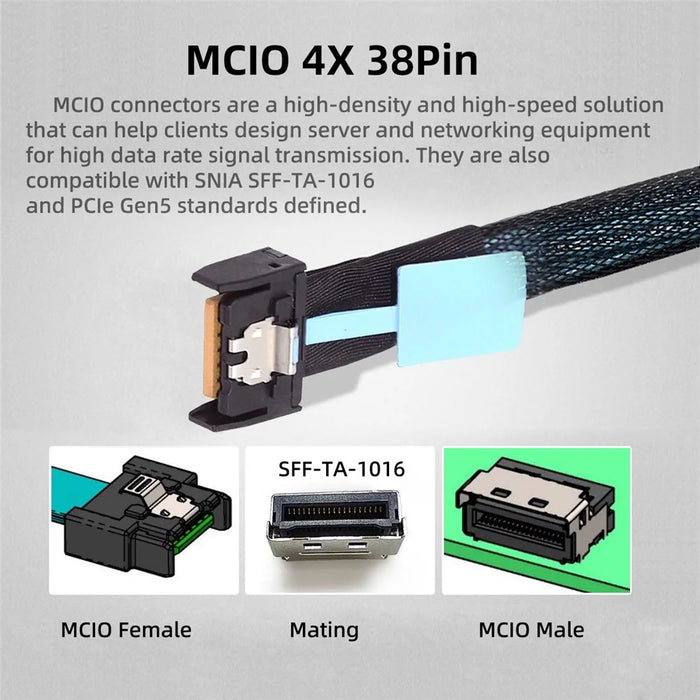

  • What is mini cool edge Io (MCIO): MCIO cables are designed for data center, networking and telecommunications markets that use SAS, PCIe, Ethernet and othersignal protocols
  • The solution can support cable to board and card to board applications in system, which include chip to chip, chiptomodule, chip to board and card edge option
  •  High-performance cable for networking and server equipment: The MCIO Mini Cool Edge IO is designed to support a wide range of protocols, including SAS, PCIe, Ethernet, and more, ensuring optimal performance for your equipment
  • Industry standards: Support for SAS 3.0/4.0, PCIe Gen 3/4/5, 25G Ethernet, and 56GT/s PAM4 means that you can trust that your equipment will perform at optimal levels without any signal loss or degradation

Specification:

  • Connectors:
  • 1 x MCIO female
  • 1 x pci-e 4x male
  • Data transfer rate: up to 64 Gbps
  • Bootable, ex UEFI version: 2.3.1
  • Support: NVM Express (NVMe) 1.2
  • System requirements:
  • Linux Kernel 4.3 or above
  • Windows 8.1/8.1-64/10/10-64
  • A free pci-e interface with 4x/8x/16x

In the box

  • 1 x Host Adapter
