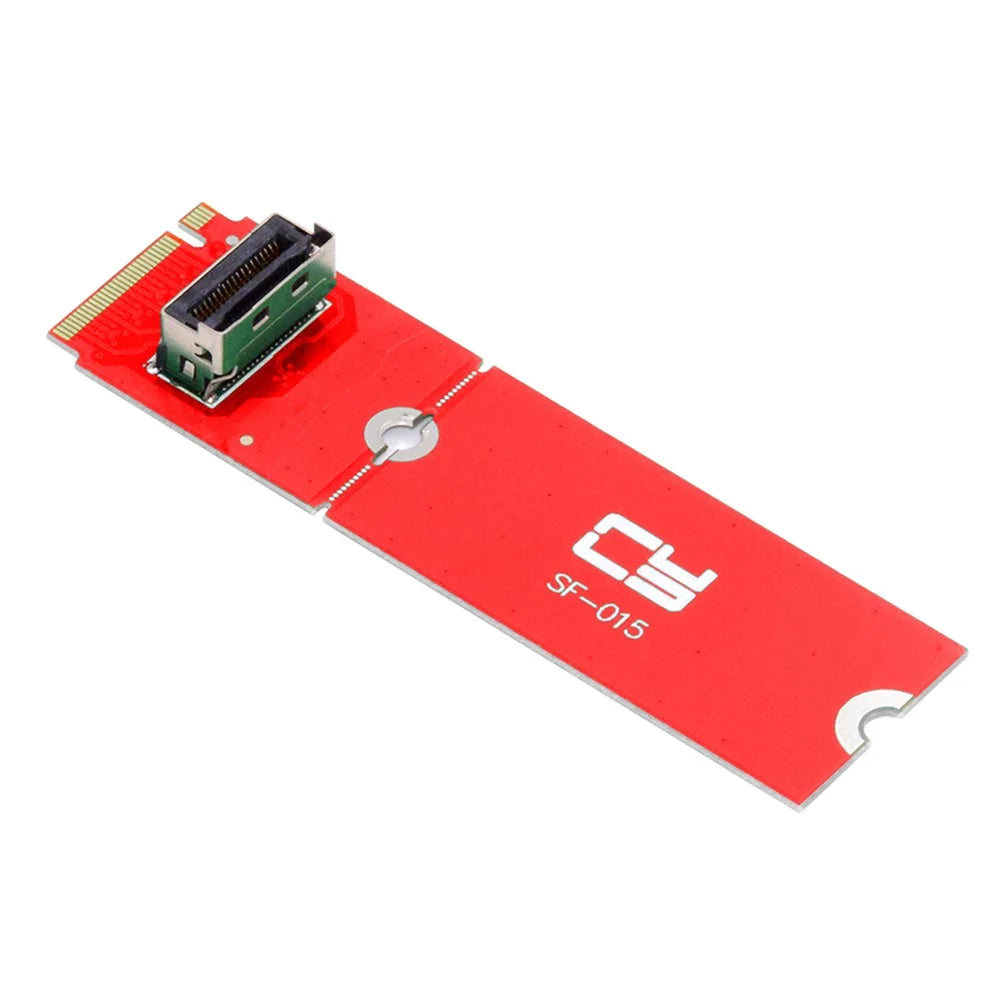

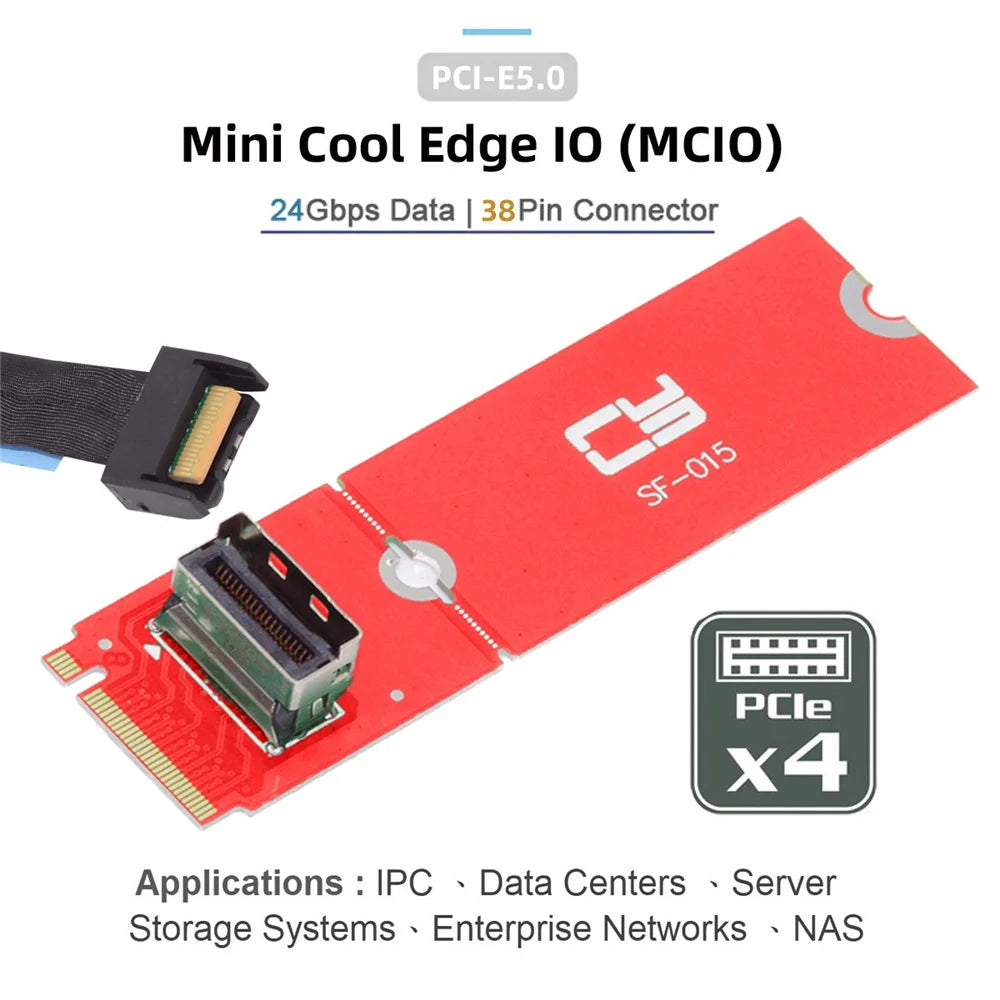

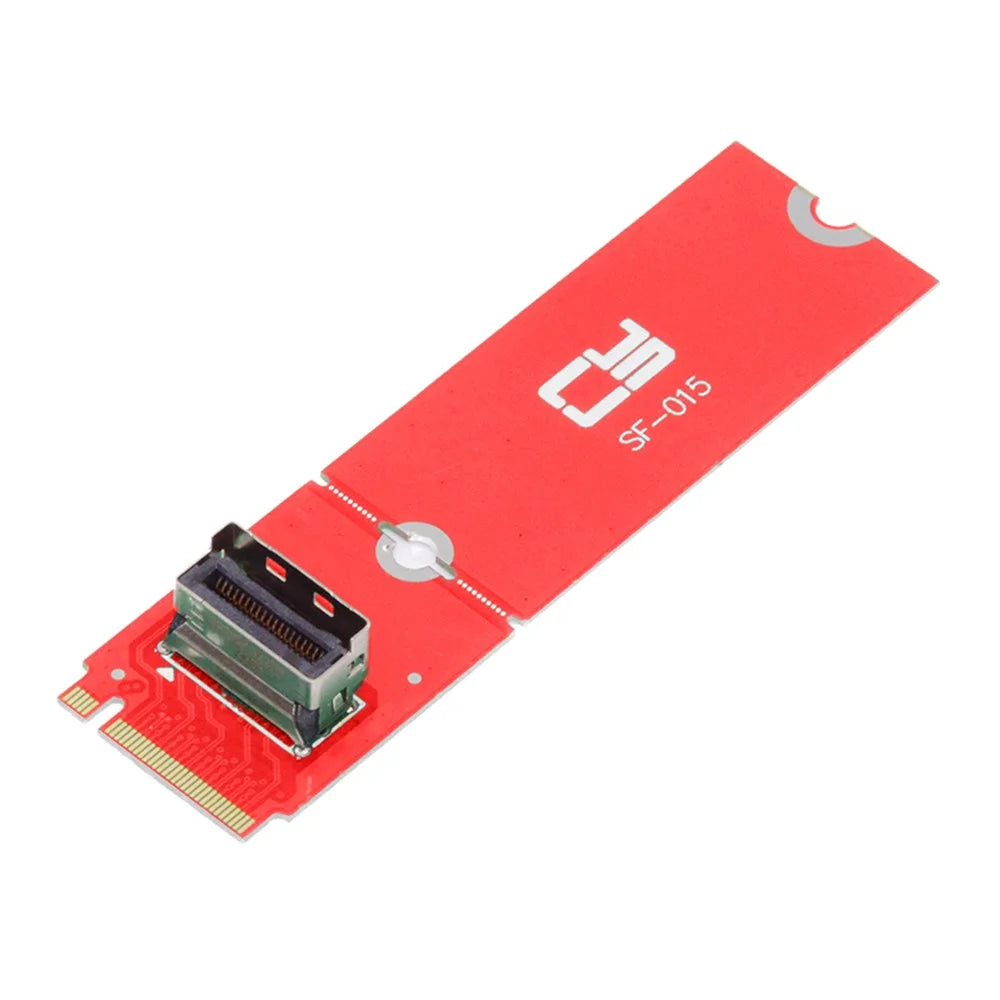

SF-015 PCI-E 5.0 4.0 M.2 M-key to MCIO Mini Cool Edge IO Female Host Adapter for PCIe Nvme SSD 2280

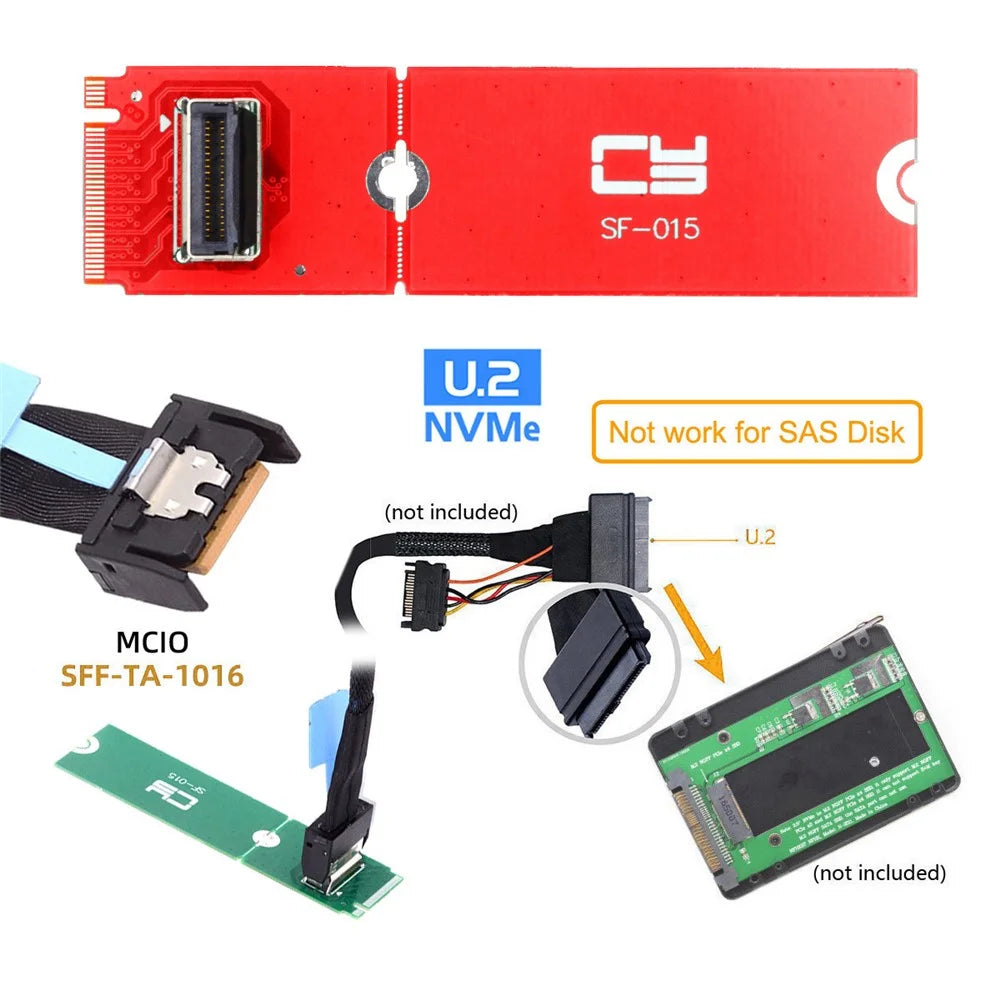

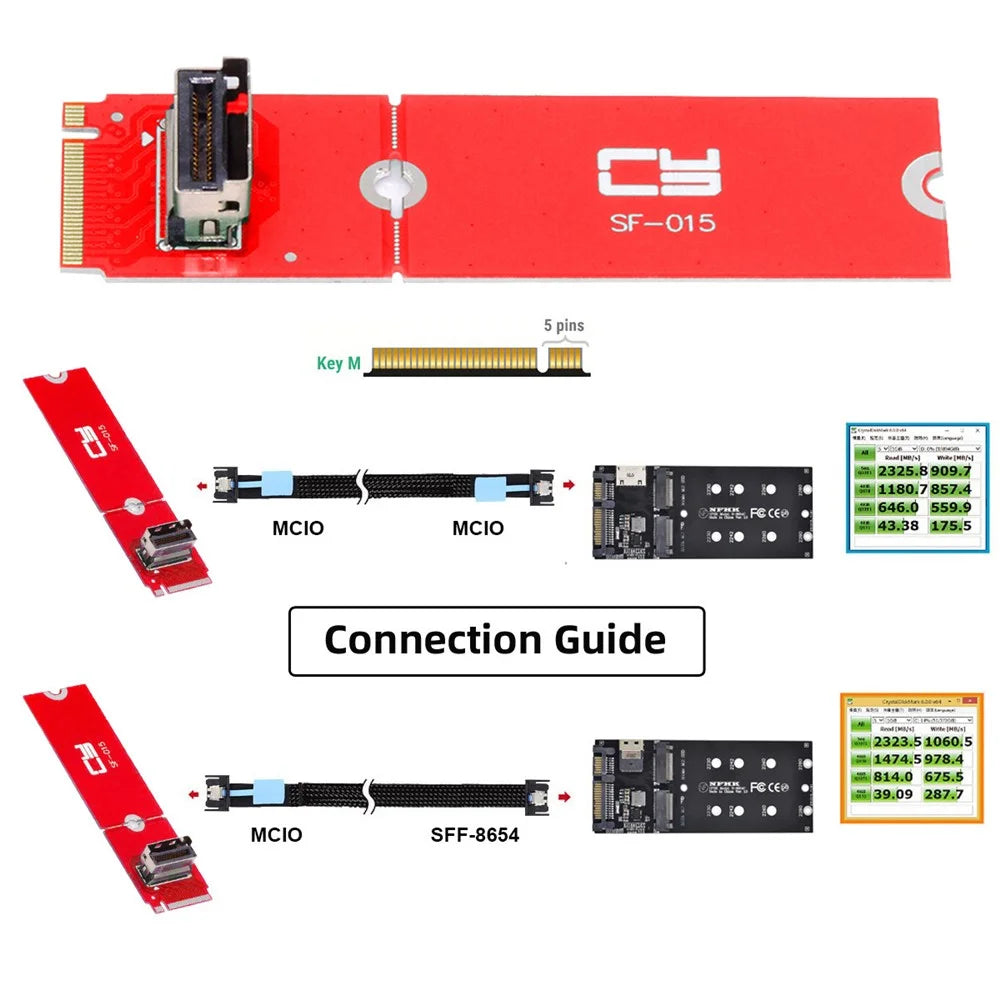

• This converter expands the system by one MCIO interface. It can be connected e.g. one SSD by using an optional cable
• The card transmits PCI Express signals using the NVMe protocol

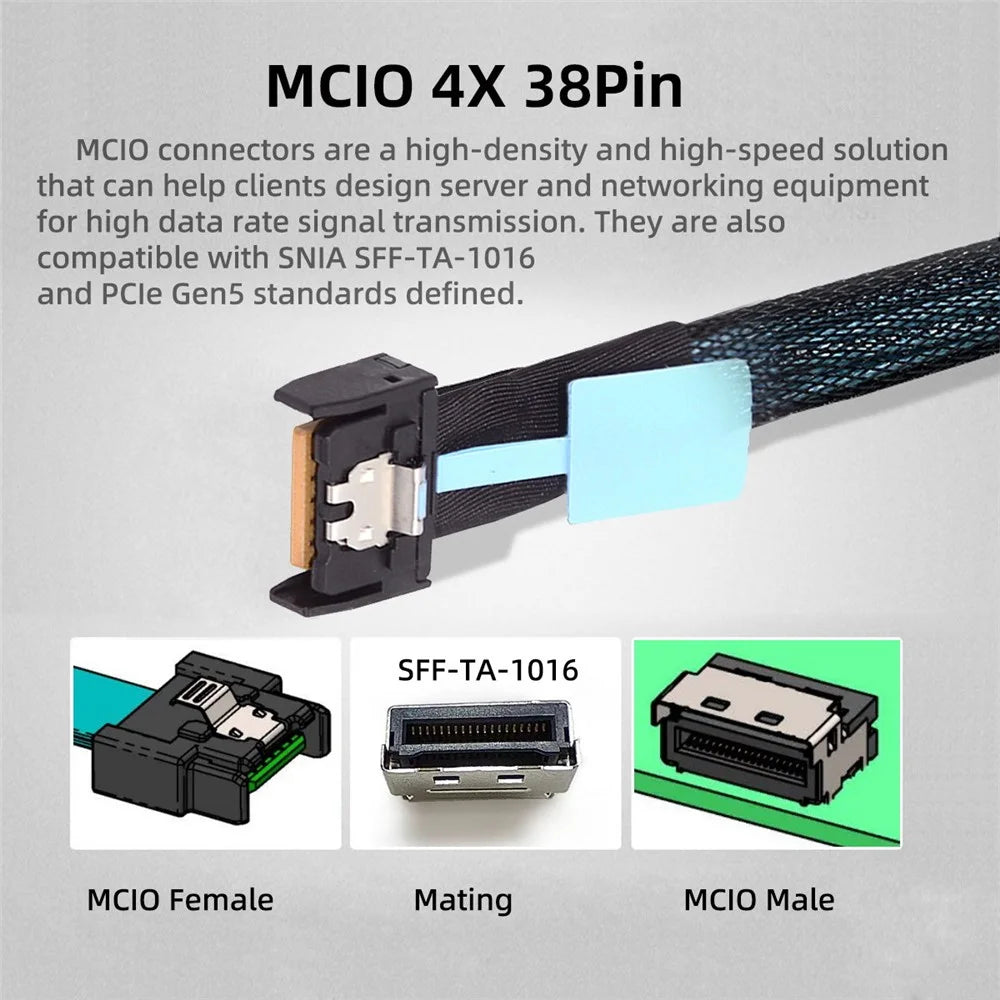

• What is mini cool edge Io (MCIO): MCIO cables are designed for data center, networking and telecommunications markets that use SAS, PCIe, Ethernet and othersignal protocols
• The solution can support cable to board and card to board applications in system, which include chip to chip, chiptomodule, chip to board and card edge option
•  High-performance cable for networking and server equipment: The MCIO Mini Cool Edge IO is designed to support a wide range of protocols, including SAS, PCIe, Ethernet, and more, ensuring optimal performance for your equipment
• Industry standards: Support for SAS 3.0/4.0, PCIe Gen 3/4/5, 25G Ethernet, and 56GT/s PAM4 means that you can trust that your equipment will perform at optimal levels without any signal loss or degradation

Specification:

• Connectors:
• 1 x MCIO female
• 1 x 67 pin M.2 Key M male
• Data transfer rate: up to 64 Gbps
• Bootable, ex UEFI version: 2.3.1
• Support: NVM Express (NVMe) 1.2
• System requirements:
• Linux Kernel 4.3 or above
• Windows 8.1/8.1-64/10/10-64
• A free M.2 interface with key M
