SEETEC ATEM156S 15.6 inch Broadcast Studio Monitor 4 SDI Multi-Source Display Professional Multi-Camera Monitoring - US Plug - 1
SEETEC ATEM156S 15.6 inch Broadcast Studio Monitor 4 SDI Multi-Source Display Professional Multi-Camera Monitoring - US Plug - 1

SEETEC ATEM156S 15.6 inch Broadcast Studio Monitor 4 SDI Multi-Source Display Professional Multi-Camera Monitoring - US Plug

by SEETEC
$25,360.00




    Delivered in 10-15 Days.
    more info Orders from overseas warehouse are delivered to our customers within 10-15 working days. We have a dedicated team to keep things moving quickly, and we will keep you updated on your order via SMS or email.
    All-Inclusive Pricing.
    more info The price you see is the price you pay. Price includes any Customs, Insurance and Courier fees. Absolutely no hidden fees. We also take care of customs clearance.
    Hassle-Free returns For 7 Days.
    more info View our Return Policy for more info.
  • 【Comprehensive Monitoring Tools】Equipped with essential features like histogram, HDR support, focus assist (with 5 color options), false color, zebra patterns, and waveform monitoring for precise image analysis.

  • 【Versatile Display Modes】Offers various display modes including Picture-in-Picture, underscan/overscan, anamorphic modes, pixel-to-pixel, and multiple aspect ratio markers for flexible viewing options.

  • 【Professional Connectivity】Supports GPI control, dynamic IMD with TSL 3.1/4.0 and IMAGE VIDEO protocols, TALLY, and displays up to 16 channels of embedded audio meters.

  • 【High-Quality IPS Panel】Features a 15.6-inch IPS display with 1920x1080 resolution, 16.7M colors, 200cd/m² brightness, and an 800:1 contrast ratio for exceptional image quality.

  • 【Extensive Signal Support】Compatible with a wide range of SDI and HD formats, including 720p, 1080i, 1080p, and 2K resolutions, making it suitable for various production workflows.

Specifications:

  • Display: 15.6-inch IPS, 1920x1080 pixels, 16.7M colors
  • Brightness: 200cd/m²
  • Contrast Ratio: 800:1
  • Viewing Angle: 85°/85° (L/R), 85°/85° (U/D)

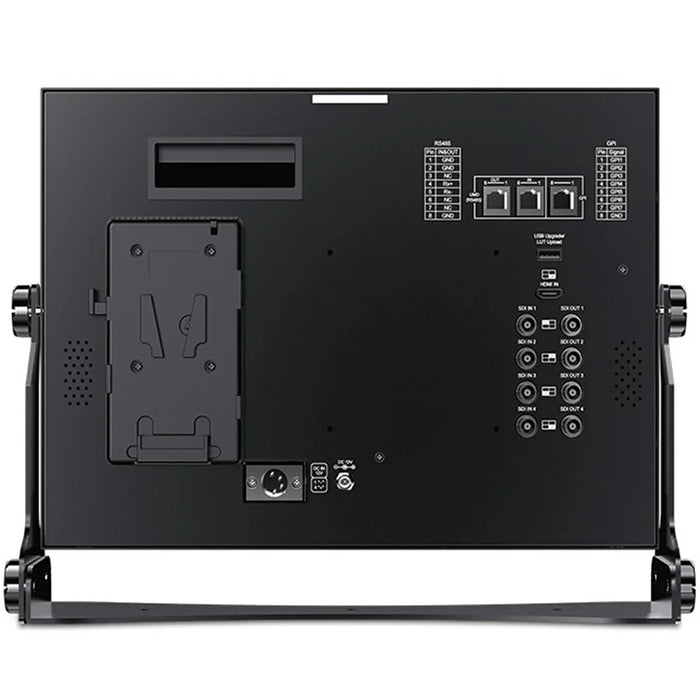

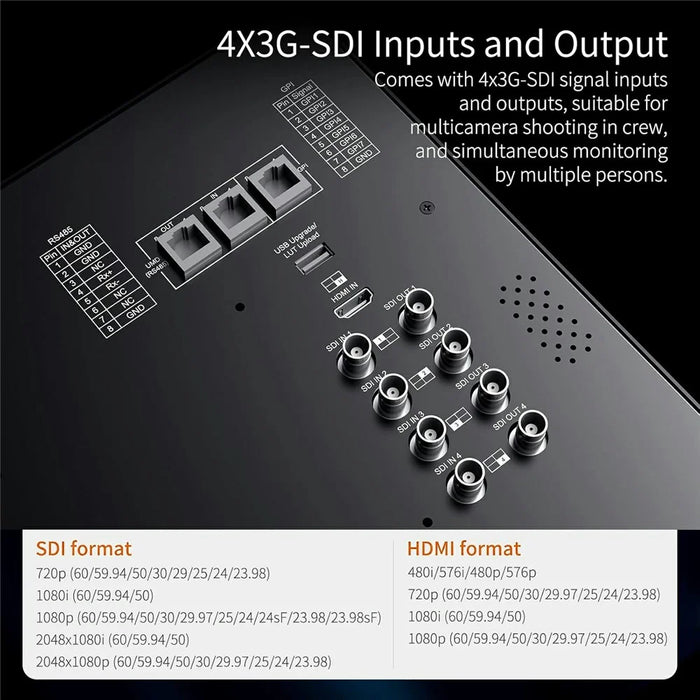

  • Inputs: 4x 3G-SDI, 1x HD, 1x RS485, 1x GPI, 1x USB
  • Outputs: 4x 3G-SDI, 1x RS485
  • Audio: Stereo headphone output
  • Power Input: DC 12V
  • Power Consumption: ≤21W
  • Dimensions: 372L x 262H x 28.4D mm (without stand)
  • Weight: 1.81kg
  • Operating Temperature: 0°C to 50°C
  • Storage Temperature: -20°C to 60°C
  • SDI Supported Formats: 720p, 1080i, 1080p, 2048x1080i, 2048x1080p
  • HD Supported Formats: 480i/576i/480p/576p, 720p, 1080i, 1080p

In the box

  • 1 × Monitor
  • 1 × Mini HD Cable
  • 1 × SDI Cable
  • 1 × Sunshade
  • 1 × V-mount Battery Plate
  • 1 × U-shape Bracket
  • 1 × Power Adapter
  • 1 × English User Manual
