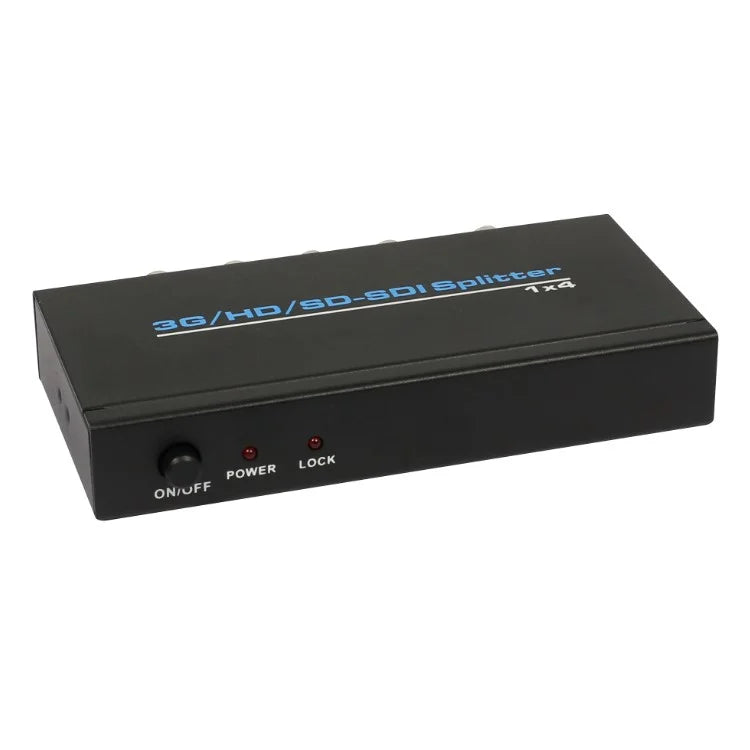

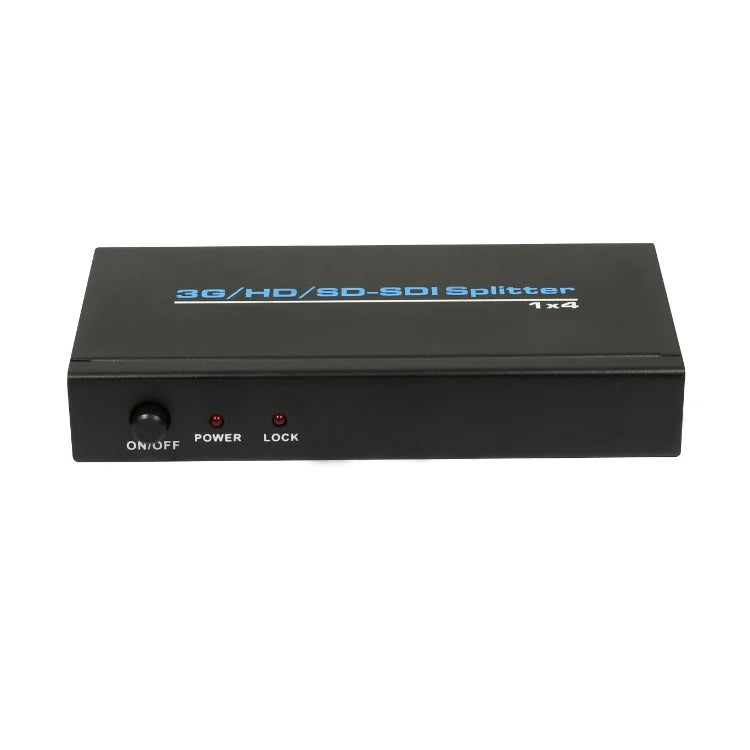

SDI Splitter 1x4 Supports 3G-SDI, HD-SDI, SD-SDI (1 Input and 4 Outputs) - AU Plug

• 1 SDI input signal splits to 4 SDI sink devices

• Supports SD-SDI(270Mb/s), HD-SDI(1.485Gb/s), 3G-SDI(2.97Gb/s) video format

• Built-in cable equilibrium, clock recovery and drive

• Supports resolutions up to 1920x1080@60Hz

• Supports signal input and output distances of up to 300m for SD signals, 200m for HD signals and 100m for 3G signals

• Supports 5-12V wide voltage input

Specification:

• Frequency Bandwidth: 3Gbps

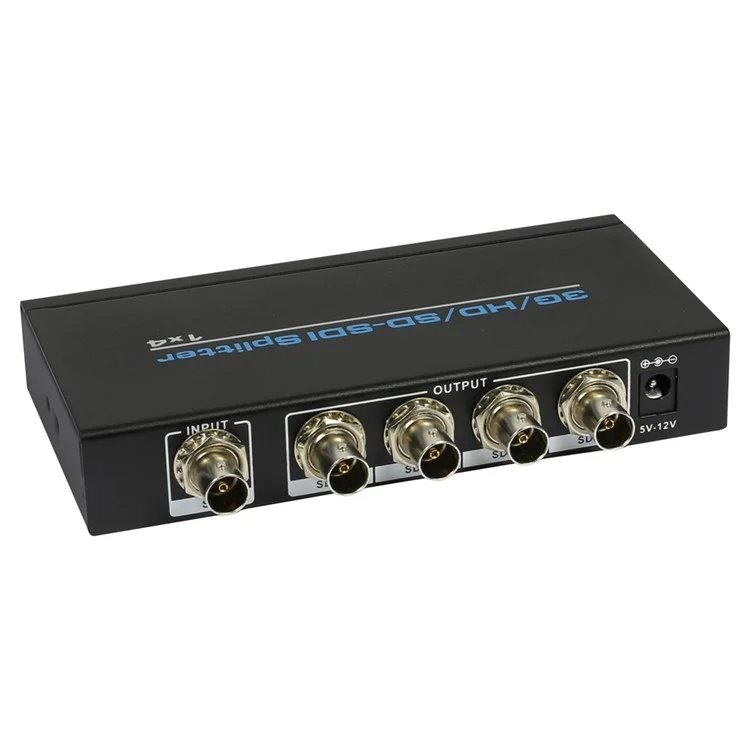

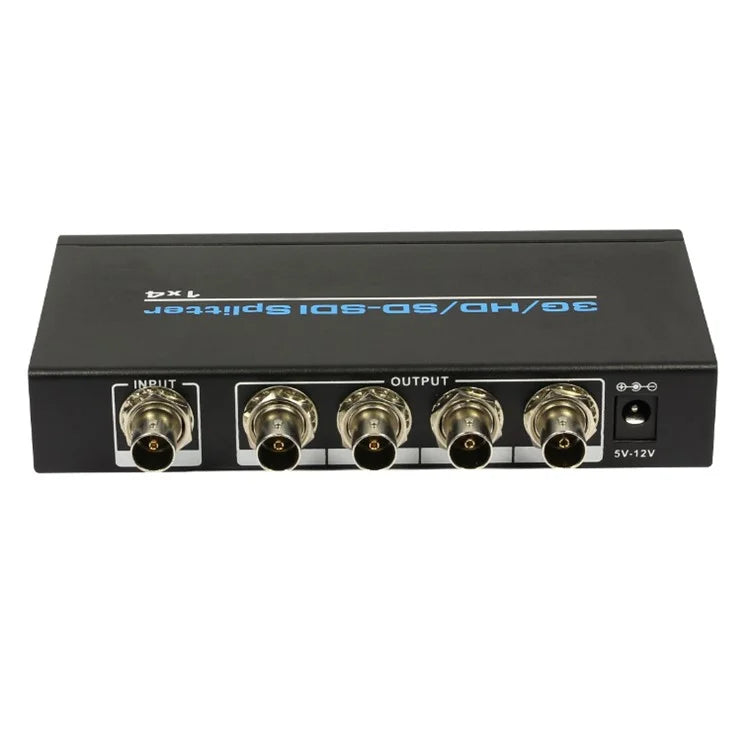

• SDI Splitter Input Port: 1 x BNC Female input port

• SDI Splitter Output Ports: 4 x BNC Female output ports

• Power Supply: DC 5V 1A

• ESD Protection Human Body Model: ±8kV (air-gap discharge), ±4kV (contact discharge)

• Dimensions (mm): 70(W) x 145 (D) x 25 (H)

• Weight: 350g

• Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F

• Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F

• Relative Humidity: 20 ~ 90% RH (Non-condensing)

• Power Consumption (Max): 1.5W
