SA-035-TC 10Gbps Type-C to NGFF Key B+M SATA 6Gbps 5 Ports Adapter Converter, Chip: JMB575+JMS580 - 1
SA-035-TC 10Gbps Type-C to NGFF Key B+M SATA 6Gbps 5 Ports Adapter Converter, Chip: JMB575+JMS580 - 1

SA-035-TC 10Gbps Type-C to NGFF Key B+M SATA 6Gbps 5 Ports Adapter Converter, Chip: JMB575+JMS580

by TVCMall
$650.00




    Delivered in 10-15 Days.
    more info Orders from overseas warehouse are delivered to our customers within 10-15 working days. We have a dedicated team to keep things moving quickly, and we will keep you updated on your order via SMS or email.
    All-Inclusive Pricing.
    more info The price you see is the price you pay. Price includes any Customs, Insurance and Courier fees. Absolutely no hidden fees. We also take care of customs clearance.
    Hassle-Free returns For 7 Days.
    more info View our Return Policy for more info.

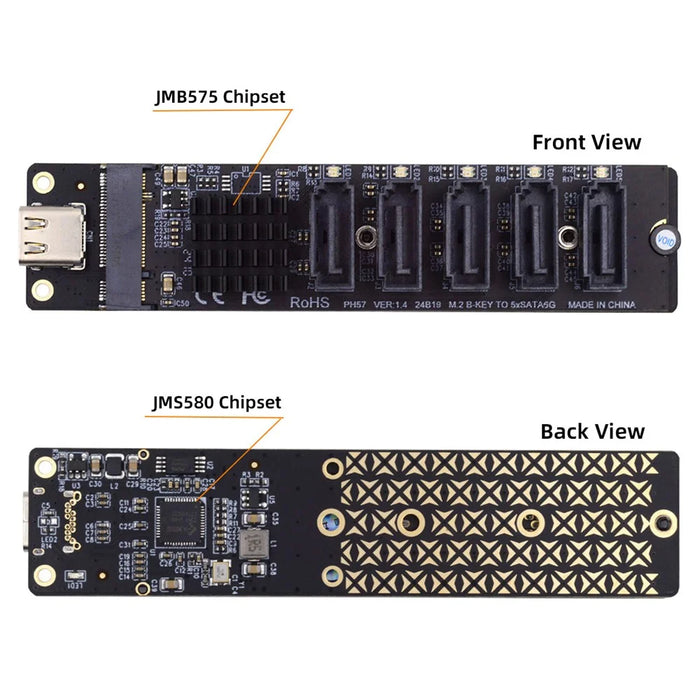

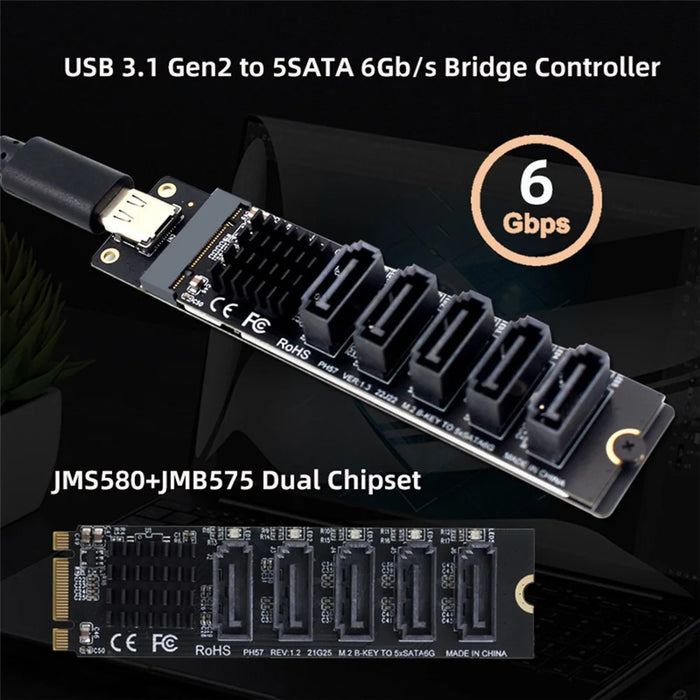

  • [Superior Performance] This adapter features a powerful dual chipset configuration, integrating the JMB575 and JMS580 chips

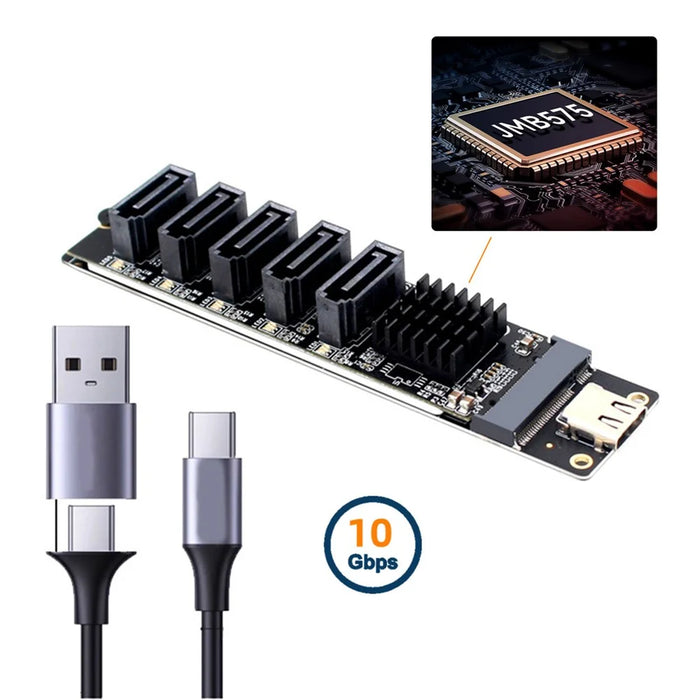

  • [JMB575 Chip] JMB575 is a single chip solution. It integrated 5 independent SATA channels and a micro-processor. Supports cascaded mode which enables maximum 5 drives connected to one host

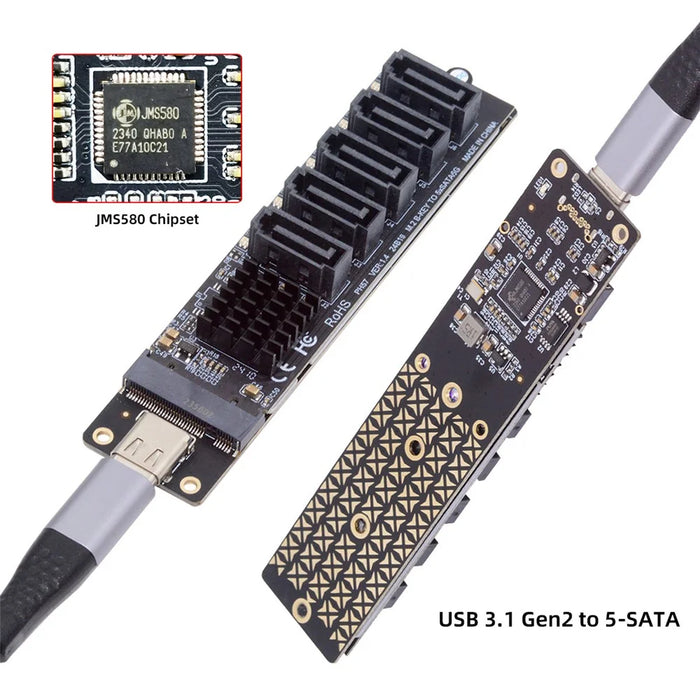

  • [JMS580 Chip] JMS580 is a USB 3.1 Gen 2 to SATA 6Gb/s bridge controller between USB host and SATA storage device
  • [High Speed] TheUSB 3.1 Gen 2 interface offers data transfer speed up to 10Gbps, doubling the USB 3.1 Gen 1 data rate

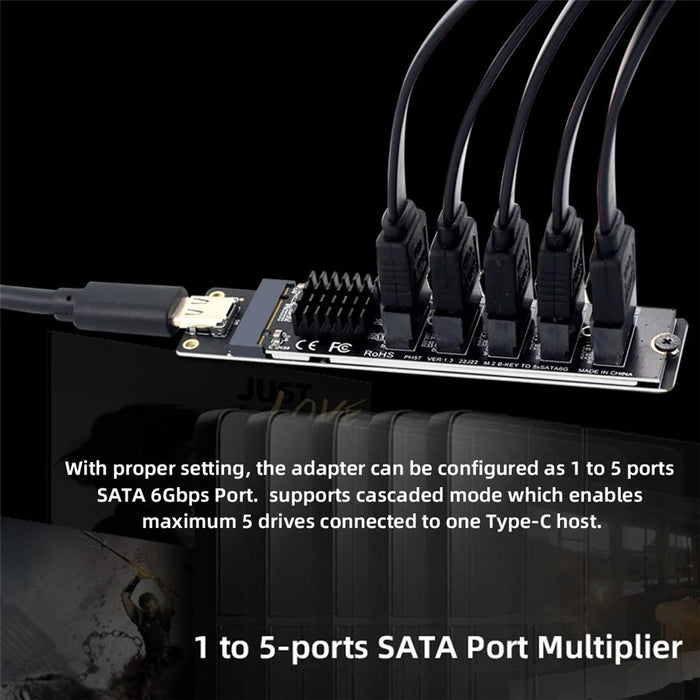

  • [Flexible Configuration] With proper setting, the chip can be configured as Type-C to 5 ports SATA 6Gbps Port

Specifications:

  • Main control chip: JMB575+JMS580
  • Interface: 5 x SATA3.0 interface
  • Complies with:
  • Serial ATA 6Gb/s Electrical Specification 3.2
  • USB 3.1 Specification Revision 1.0, USB BOT Specification
  • Support:
  • 5 port SATA 6Gbps interface
  • BIST and loopback mode
  • Command-based and FIS-based switching
  • Support PM aware and non-PM aware host

In the box

  • 1 x Adapter
  • 1 x Cable
