RH-702H 7" LCD Video Wireless Monitor Rear View 12LED Camera Parking and Reverse System Kit (12V-24V)

by TVCMall
$1,420.00




    Delivered in 10-15 Days.
    more info Orders from overseas warehouse are delivered to our customers within 10-15 working days. We have a dedicated team to keep things moving quickly, and we will keep you updated on your order via SMS or email.
    All-Inclusive Pricing.
    more info The price you see is the price you pay. Price includes any Customs, Insurance and Courier fees. Absolutely no hidden fees. We also take care of customs clearance.
    Hassle-Free returns For 7 Days.
    more info View our Return Policy for more info.

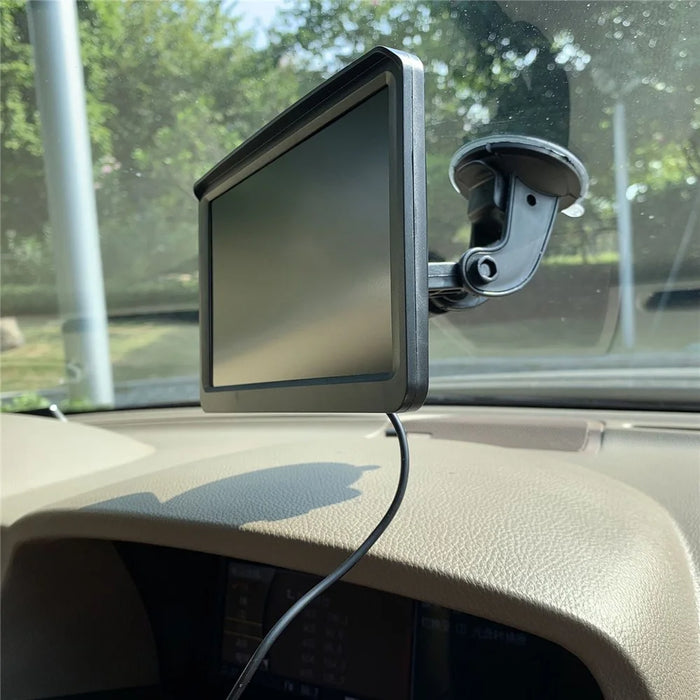

  • Suction cup mounts can be attached to the dashboard or windshield
  • 2.4G wireless transmitter/receiver
  • Equipped with a switch car charger, eliminating the trouble of connecting the power cord

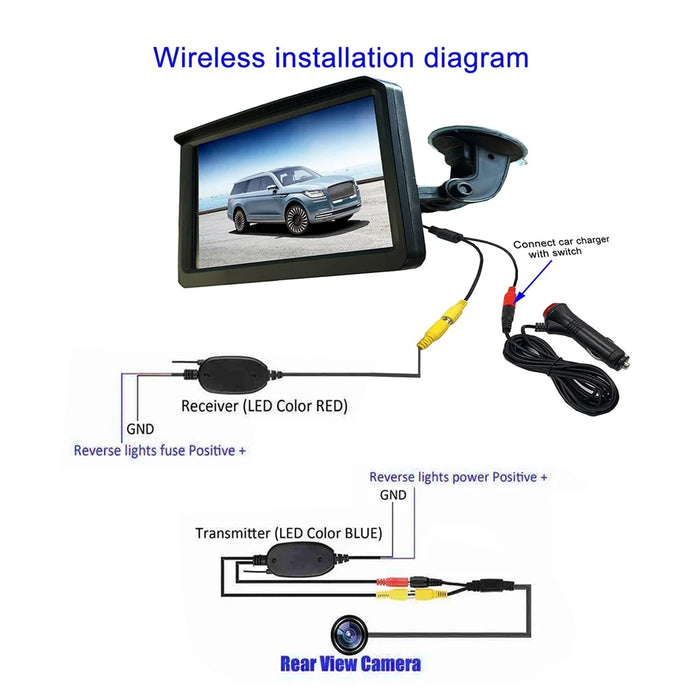

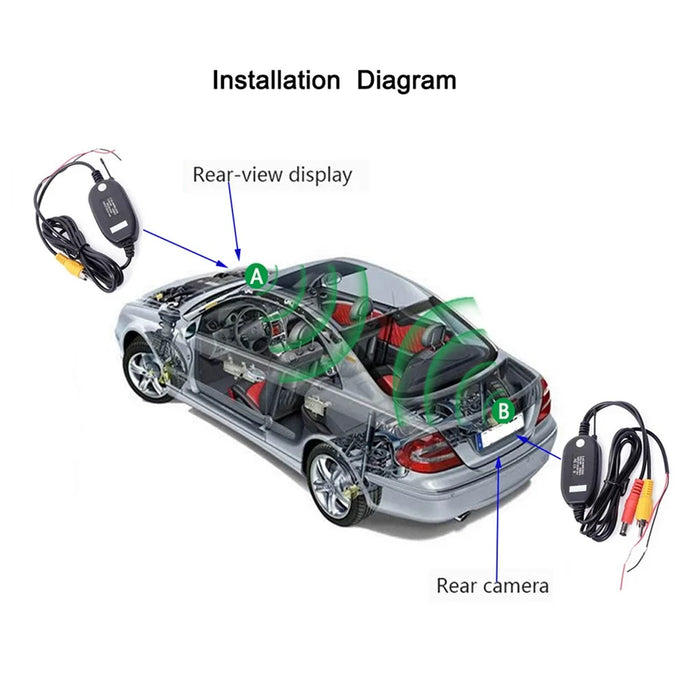

  • The camera is connected to the transmitter, and the transmitter is connected to the reversing light (installed in the back)
  • Connect to a 12V power supply, the receiver is connected to a 12V power supply (installed on the front)

Specification:

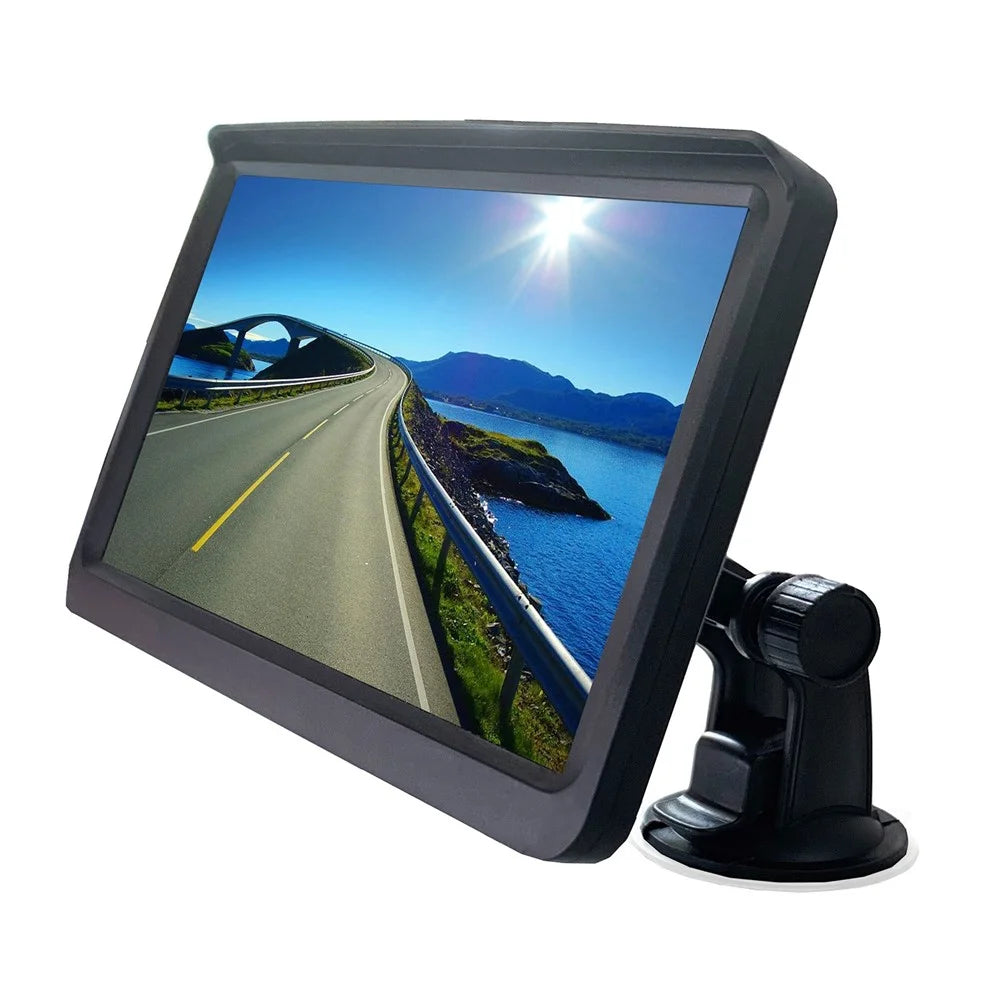

  • Display size: 7.0 inches
  • Display: 16:9, TFT-LCD high-definition screen, making the image clearer and the color more vivid
  • Resolution: 1024(H)×600(V)
  • Power: ≤6W. Ultra-low power consumption to prevent overheating
  • Video input: can be used when connected to a wireless receiver
  • Operating temperature: -10°C~+50°C
  • Contrast: 300:1
  • Working voltage: DC 12V/24V
  • Switch machine: signal input automatic power on
  • Transmitting and receiving frequency: 2370MHZ
  • Output power 100MW
  • Working voltage DC=12V
  • Video input PAL/NTSC composite video signal
  • Transmitting and receiving distance 10-15M
  • Operating temperature -20°C+80°C
  • Receive sensitivity -85Dbm
  • Working current DC=12V 200mA
  • Power OUT DC=5V 1.5A

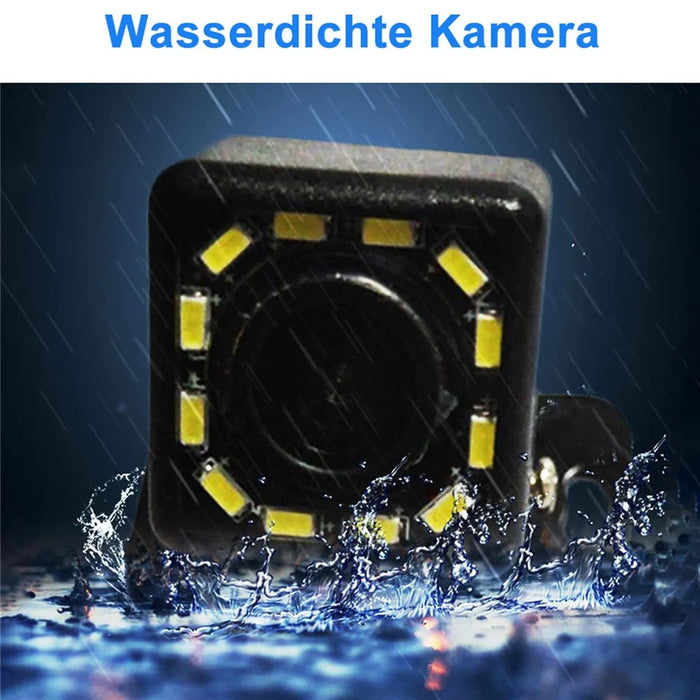

  • 12LED light camera: night vision fill light, waterproof rear camera
  • The camera angle of view: 170°
  • Image chip: 1/3 inch color CMOS PC1030
  • TV system: NTSC/PAL
  • Pixels: 628*582 pixels
  • Power supply: DC 12V
  • Operating temperature: -40°C~+80°C
  • Video output: connect to wireless transmitter

In the box

  • 1 x 7'' Display Monitor
  • 1 x Camera
  • 1 x Car Charger
  • 1 x Transmitter
  • 1 x Receiver
  • 1 x Brackets
  • 1 x Monitor Power Cable
  • 1 x English User Manual
  • Other things not included
