RH-701D 7" LCD Video Display Screen Monitor Rear View Backup Car 8-LED Camera Parking and Reverse System Kit with 20cm Video Cable

by TVCMall
$1,390.00




    Delivered in 10-15 Days.
    more info Orders from overseas warehouse are delivered to our customers within 10-15 working days. We have a dedicated team to keep things moving quickly, and we will keep you updated on your order via SMS or email.
    All-Inclusive Pricing.
    more info The price you see is the price you pay. Price includes any Customs, Insurance and Courier fees. Absolutely no hidden fees. We also take care of customs clearance.
    Hassle-Free returns For 7 Days.
    more info View our Return Policy for more info.
  • Equipped with a 7-inch LED-backlit color TFT LCD display

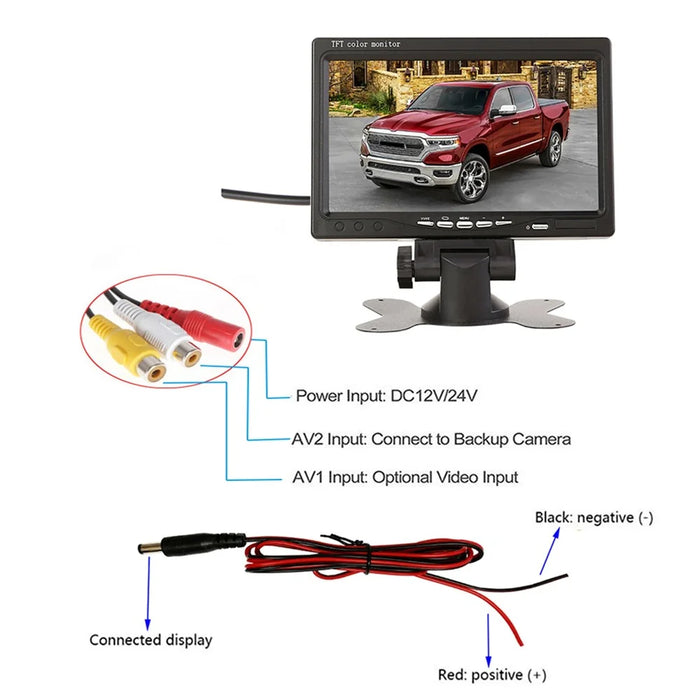

  • There are 2 AV inputs. AV1 connects to car DVDs, VCRs, and other video equipment. AV2 to car backup camera
  • Reversing rearview priority: The display will automatically activate and display the video from the rearview camera synchronously when reversing; the display will automatically turn off after reversing
  • When reversing, the scene will automatically switch to the rearview camera and then switch back to the original scene. Support rotating screen, screen ratio 16:9/4:3 adjustable. Support to adjust brightness, contrast, color

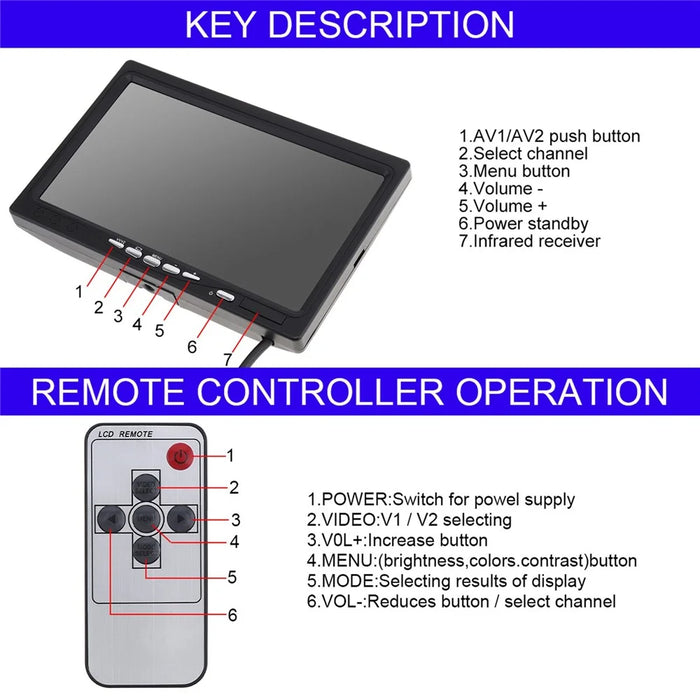

  • There is no audio input or output. Equipped with infrared remote control, easy to operate. Works perfectly with car DVDs, VCDs, webcams, set-top boxes, satellite receivers, and other video equipment
  • It can be applied to large trucks, buses, cars, commercial vehicles, pickup trucks, trailers, engineering vehicles, agricultural vehicles, and electric vehicles

Specification:

  • Model: RH-701B
  • Display: Color TFT LCD
  • Screen size: 7 inches
  • Resolution: 800x600
  • Contrast: 350:1
  • Video: PAL/NTSC
  • Video input: bidirectional video input
  • Power supply: DC 12V/24V
  • Shell material: ABS
  • Operating temperature: 0°C to 80°C
  • Storage temperature: -10°C to 80°C
  • Product size: 174 x 114mm
  • Waterproof grade: IP69K

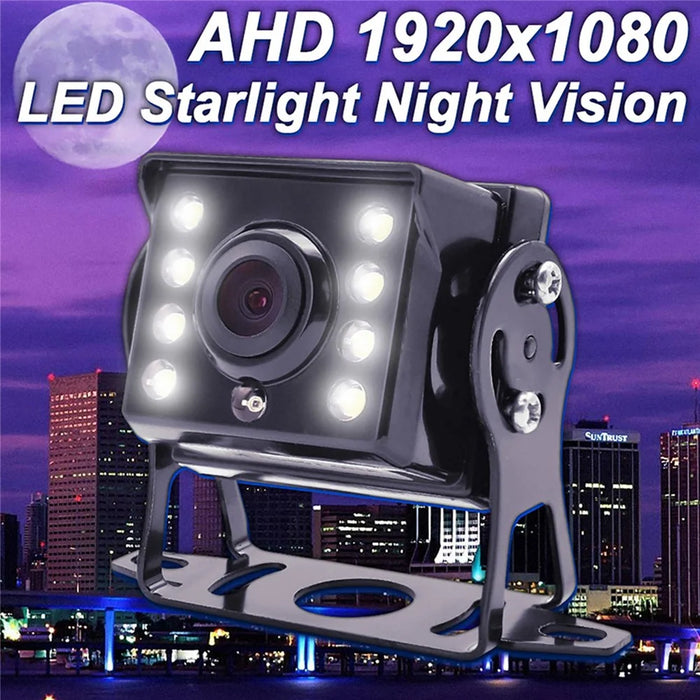

  • Camera angle: 170°
  • Image chip: 1/3 inch color CMOS sensor
  • TV system: NTSC/PAL
  • Resolution: 480 TV lines
  • Lens: 4-layer glass, 2.5mm
  • Pixels: 800*782 pixels
  • Power supply: DC 12V-24V
  • Operating temperature: -40°C～+80°C
  • Video output: CVBS 1.0VP P.75Ω
  • Auto fill light and white balance

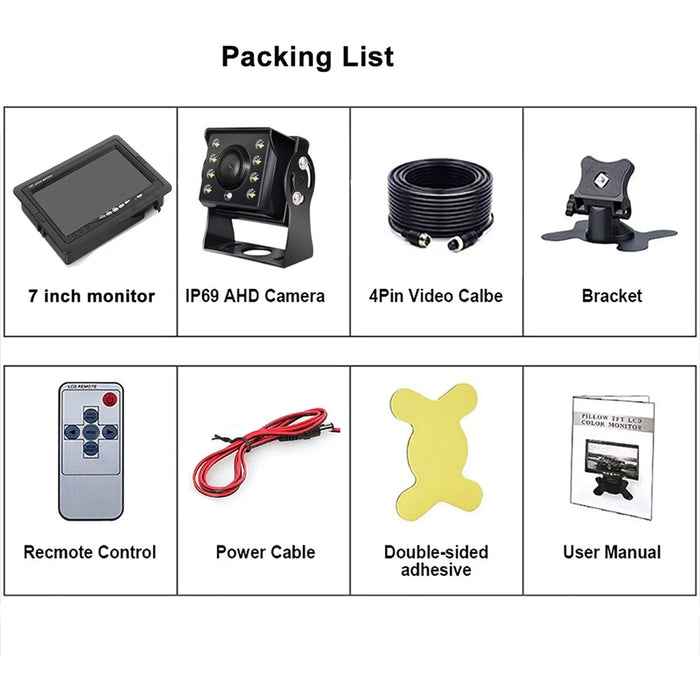

In the box

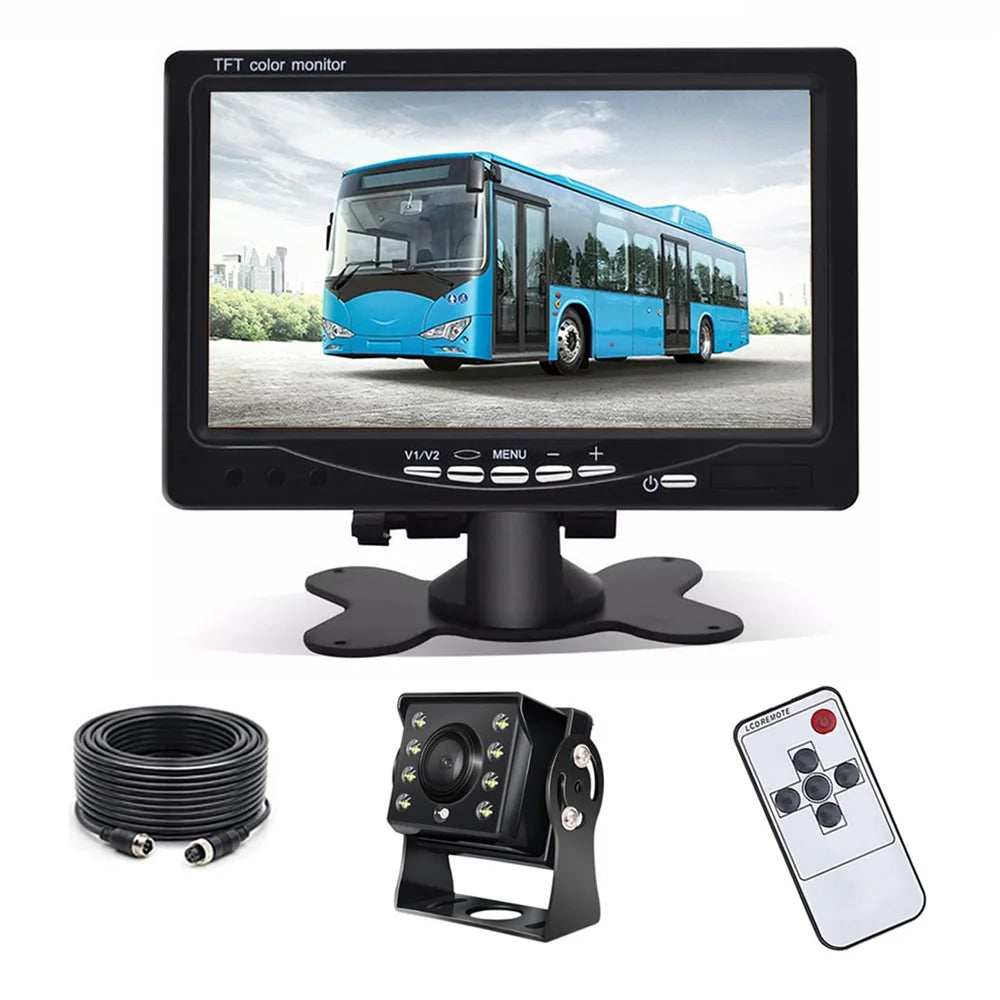

  • 1 x 7'' Display Monitor
  • 1 x Camera
  • 1 x Monitor Power Cable
  • 1 x Remote Control (Included 1Pc CR2025 Battery)

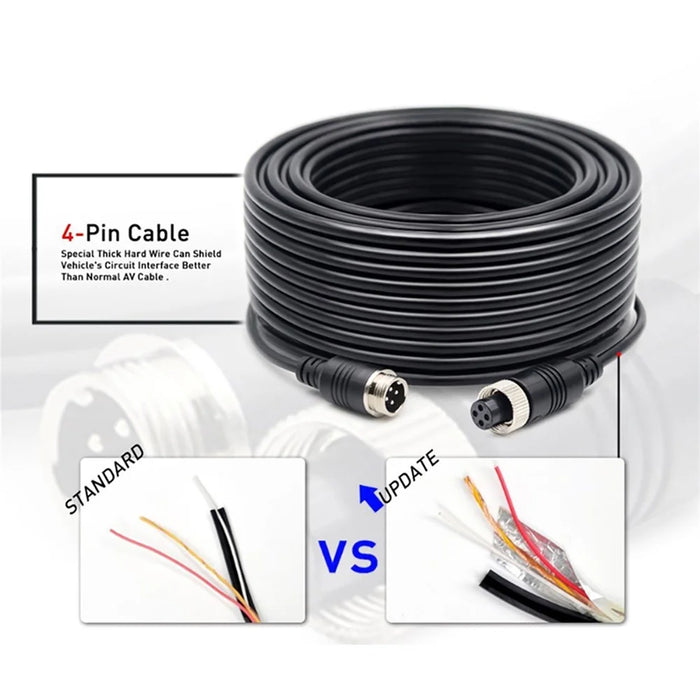

  • 1 x 20m Video Cable
  • 1 x Brackets
  • 1 x Double-sided Adhesive
  • 1 x English User Manual
  • Other things not included
