RELIFE RL-M5T Pro-B11 Trinocular HD Microscope 7-50X Zoom for PCB Inspection Repair
R9 080
incl. VAT
Dispatches in 1 – 3 days
Nationwide delivery
2–4 working days to major metros
Secure checkout
Card, EFT, Ozow and PayFast
30-day returns
Unused, in original packaging
Description

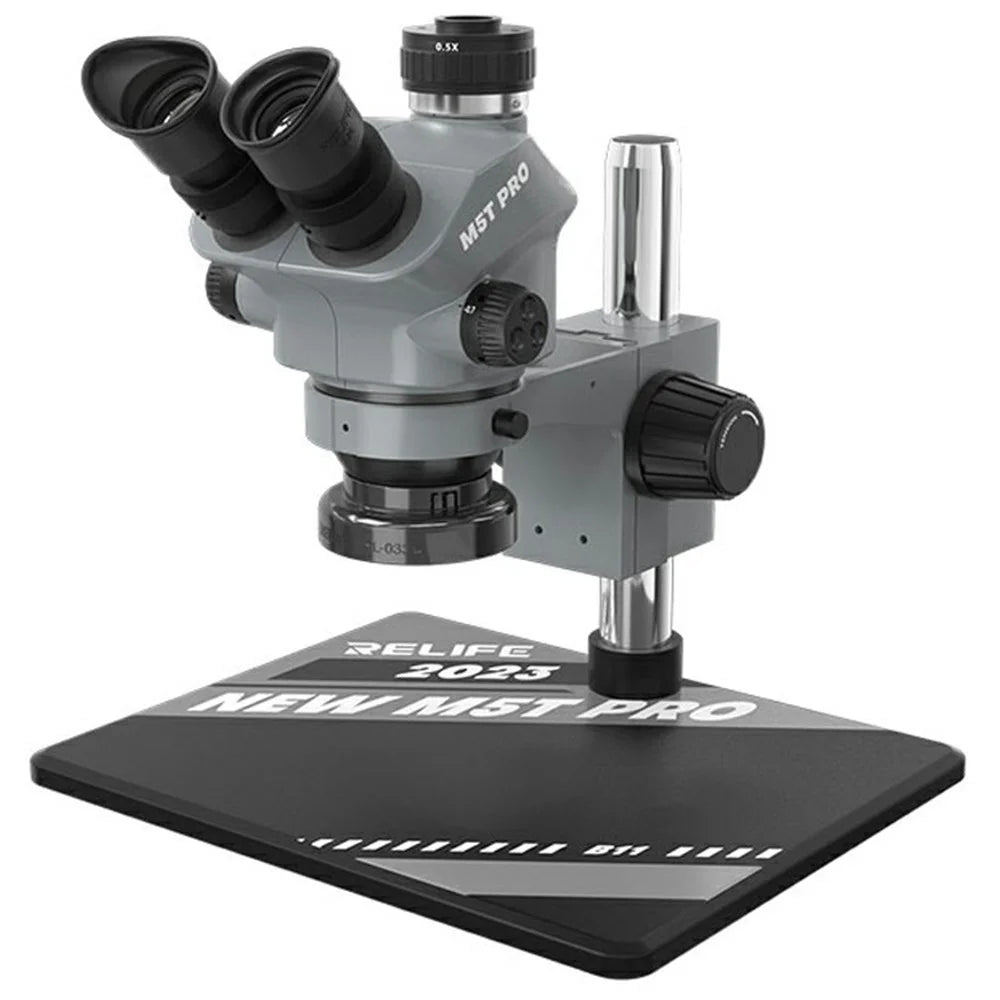

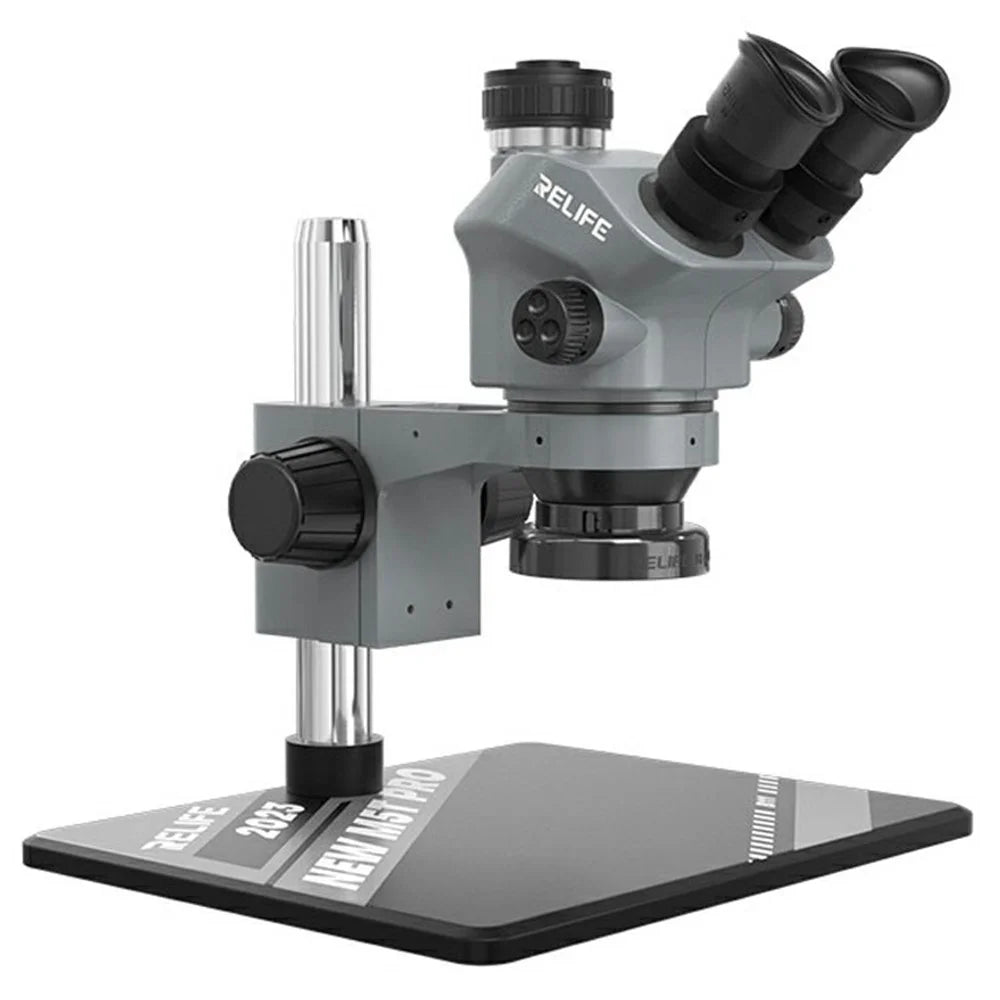

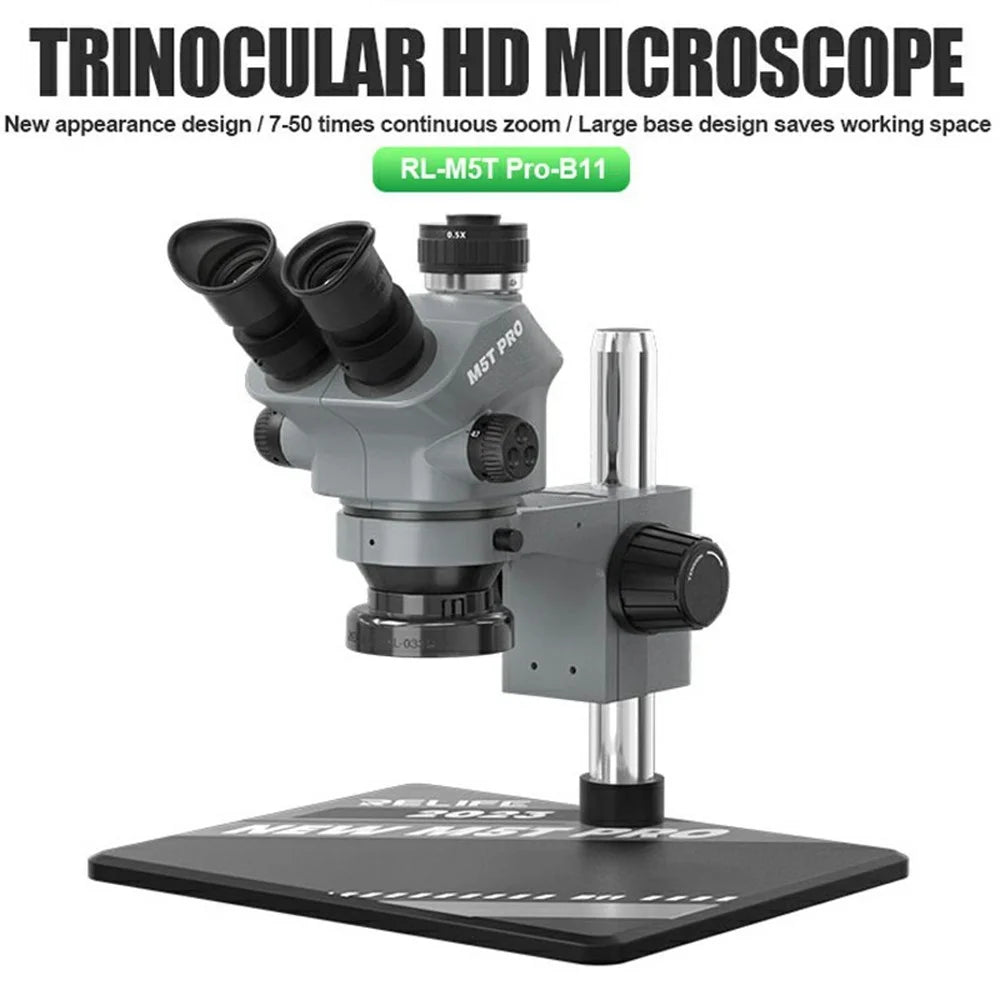

- 【Trinocular HD Stereo System】Features dual eyepieces plus CTV video output interface for simultaneous observation and external display connection, perfect for documentation and collaborative work.

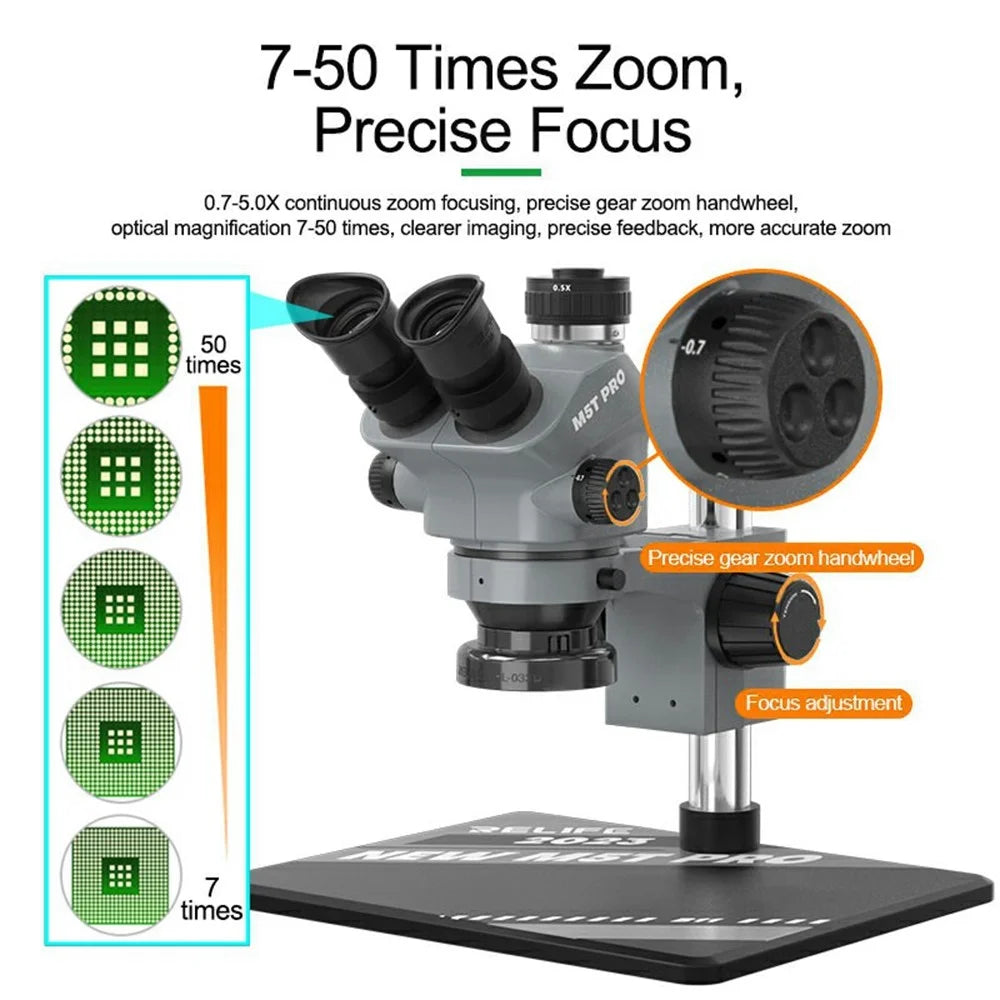

- 【Continuous 7-50X Zoom Range】0.7X-5.0X objective lens with 10X eyepieces provides seamless magnification from 7X to 50X with precise gear zoom handwheel for accurate focusing.

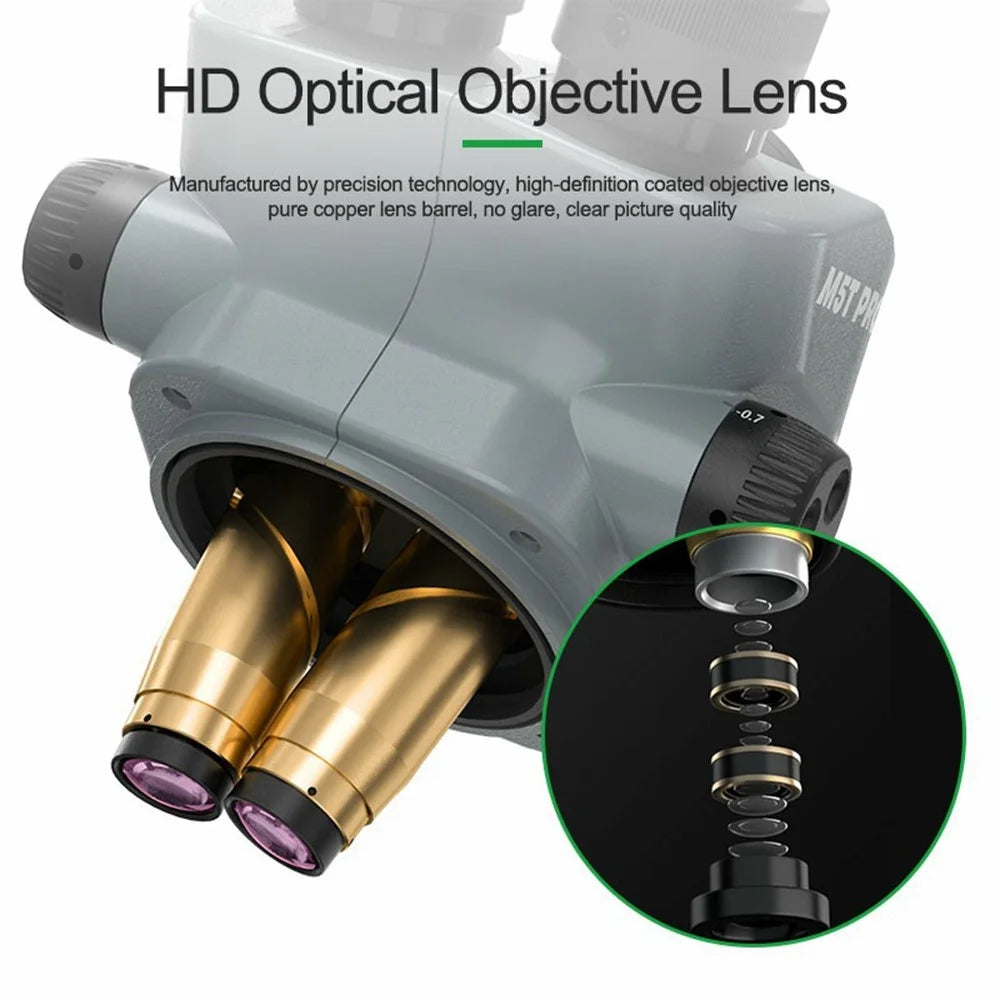

- 【HD Optical Imaging】High-definition coated objective lens with pure copper barrel construction eliminates glare and delivers crystal-clear, sharp imaging quality.
- 【Large Working Space Design】Oversized 260×320mm aluminum alloy base with guaranteed 100mm working distance accommodates large components and provides ample operation space.

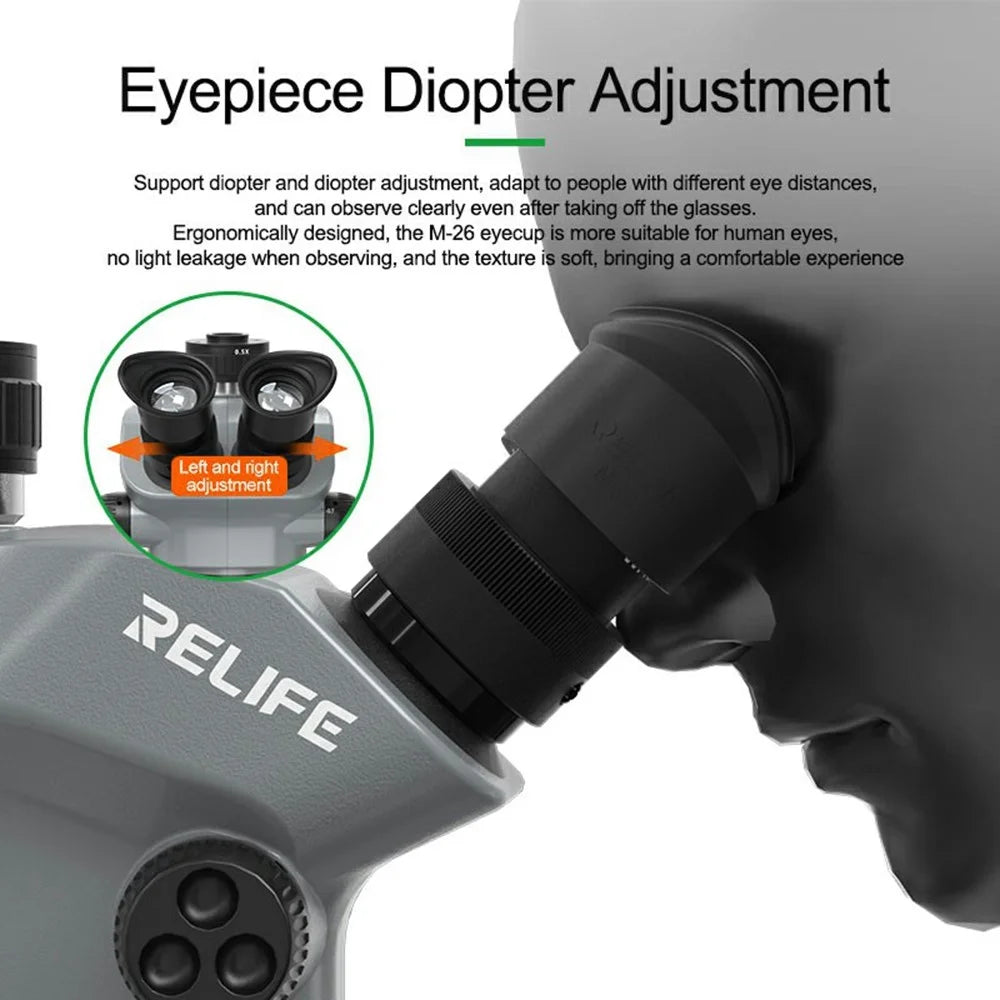

- 【Ergonomic Comfort Features】M-26 soft eyecups with diopter adjustment (±5D) and interpupillary distance control (52-75mm) ensure comfortable extended use even without glasses.

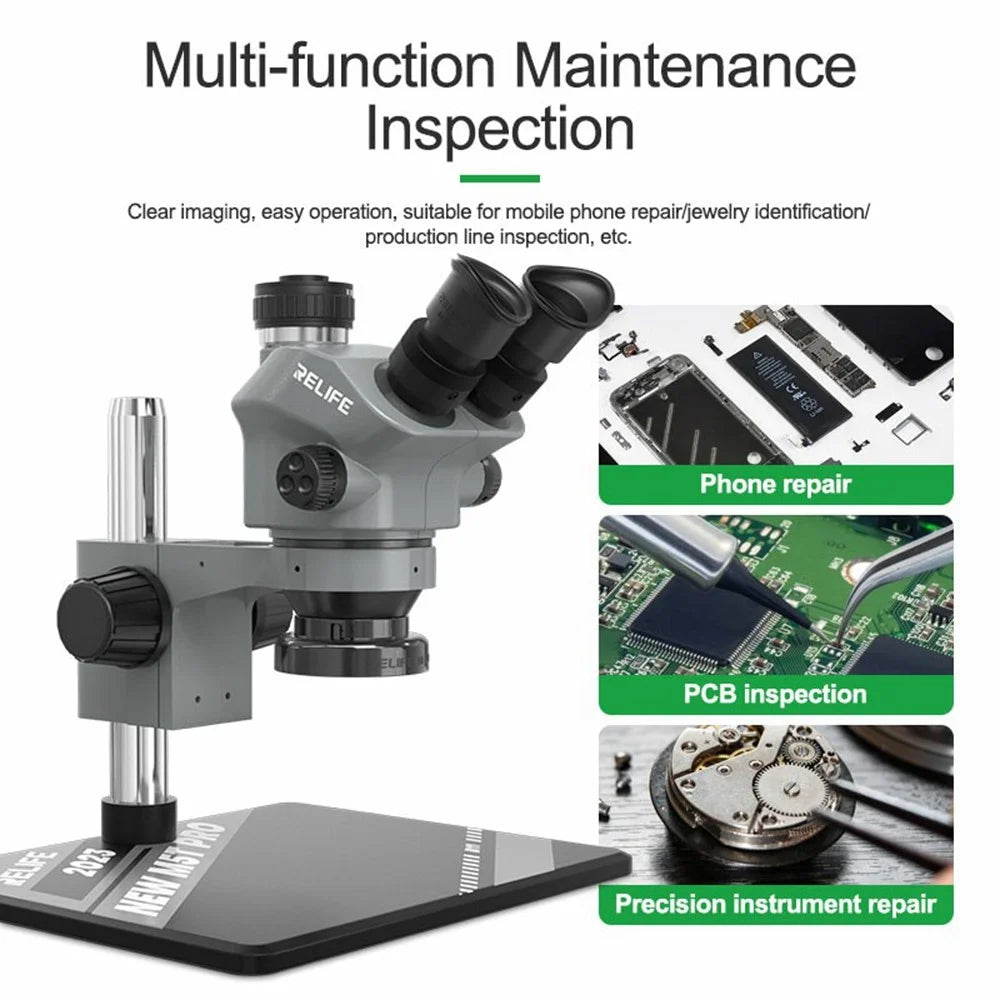

- 【Versatile Professional Applications】Ideal for mobile phone repair, PCB inspection, precision instrument maintenance, jewelry identification, and production line quality control.
- 【Adjustable LED Illumination】RL-033D quick-mount ring LED light source with brightness control provides strong focused lighting without obstructing workspace.
Specifications:
- Model: RL-M5T Pro-B11
- Optical System: 0.7X-5.0X continuous zoom objective
- Eyepieces: WF10X/22mm wide-angle high eye-point eyepieces (2 pieces)
- Total Magnification: 7X-50X
- Interpupillary Distance: 52-75mm adjustable
- Diopter Adjustment: ±5D with M-26 eyecups
- Working Distance: ≥100mm guaranteed
- Microscope Column: 245x32mm stainless steel
- Base Dimensions: 260x320x17mm aluminum alloy
- Light Source: RL-033D adjustable ring LED
- CTV Adapter: M-28 0.5X for external display connection
- Net Weight: 3kg
In the box
- 2 x M-26 Eye Mask
- 1 x CTV Adapter
- 1 x Microscope Head
- 2 x WF10X22 Eyepiece
- 1 x RL-033D Light Source
- 1 x 260 x 320 x 17mm Microscope Base
- 1 x 245 x 32mm Microscope Column
- 1 x Microscope Focusing Bracket
- 1 x M-28 0.5X CTV Adapter
Specifications
- SKU
- 6616001668A
- Colour
- As Shown
- Package dimensions
- 38.5 × 37 × 24 cm
- Gross weight
- 4.42 kg
- Units per pack
- 1
- Dispatch
- 1 - 3 days
- Category
- Consumer Electronics › Inspection and Imaging Devices › Digital Microscopes
What’s in the box
- 2 M-26 Eye Mask
- 1 CTV Adapter
- 1 Microscope Head
- 2 WF10X22 Eyepiece
- 1 RL-033D Light Source
- 1 260 x 320 x 17mm Microscope Base
- 1 245 x 32mm Microscope Column
- 1 Microscope Focusing Bracket
- 1 M-28 0.5X CTV Adapter
Shipping & returns
Dispatch
Orders placed before 13:00 are picked the same day. Dispatch time for each item is shown next to the price.
Delivery
Courier to your door: 2–4 working days to Gauteng, Cape Town and Durban; 3–6 days to outlying areas.
Returns
30 days from delivery for unused goods in original packaging. Faulty items are replaced or refunded in full.
Warranty
12-month warranty against manufacturing defects, handled locally — no cross-border shipping required.
