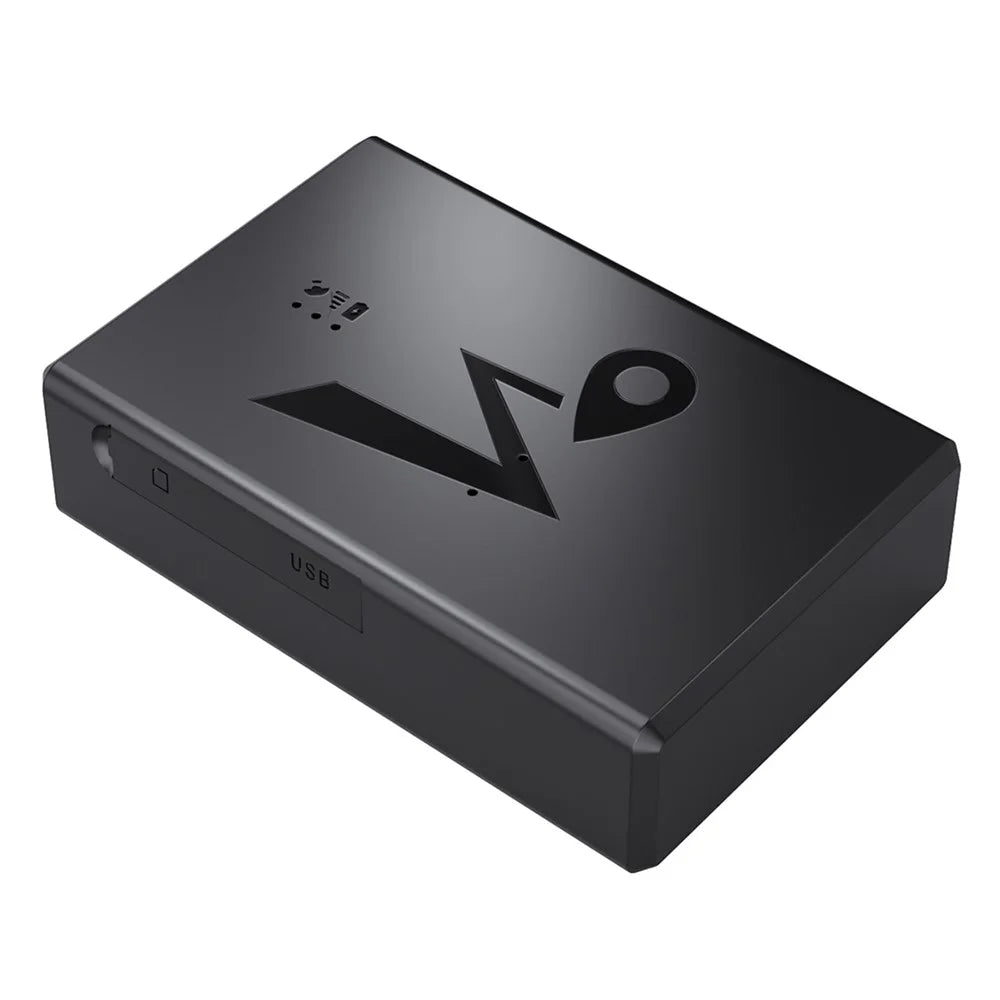

Q10 4G LTE GPS Tracker 5500mAh Battery Magnetic Real-Time BDS Vehicle Tracking Device - Black - 1
Q10 4G LTE GPS Tracker 5500mAh Battery Magnetic Real-Time BDS Vehicle Tracking Device - Black - 1

Q10 4G LTE GPS Tracker 5500mAh Battery Magnetic Real-Time BDS Vehicle Tracking Device - Black

by TVCMall
$600.00




    Delivered in 10-15 Days.
    more info Orders from overseas warehouse are delivered to our customers within 10-15 working days. We have a dedicated team to keep things moving quickly, and we will keep you updated on your order via SMS or email.
    All-Inclusive Pricing.
    more info The price you see is the price you pay. Price includes any Customs, Insurance and Courier fees. Absolutely no hidden fees. We also take care of customs clearance.
    Hassle-Free returns For 7 Days.
    more info View our Return Policy for more info.
  • 【4G LTE Connectivity】Supports LTE-FDD, LTE-TDD, and GSM quad-band networks for real-time location tracking and remote monitoring with wide signal coverage.
  • 【Magnetic Installation】Built-in strong magnets enable secure tool-free attachment to any metal surface, keeping the device firmly in place for reliable asset tracking.
  • 【Long Battery Life】Equipped with a 5500mAh high-capacity lithium polymer battery, delivering extended standby time with optimized power circuitry for long-duration tracking.
  • 【Multi-Mode Positioning】Combines satellite positioning, Assisted Positioning, LBS, and WiFi for accurate location detection in both open areas and challenging environments.
  • 【Smart Alerts】Supports multiple alarm types including displacement, vibration, overspeed, low battery, geofence, and offline alerts, with push notifications via platform, SMS, or phone call.

Specifications:

  • Model: Q10
  • Main Chip: ASR1603
  • Positioning Chip: AT6558R
  • Network: LTE-FDD B1/B3/B5/B8, LTE-TDD B34/B38/B39/B40/B41, GSM 900/1800
  • Operating Voltage: 3.4-4.2V DC
  • Charging Voltage: 5V DC
  • Device Dimensions: 87 x 57 x 23 mm
  • PCBA Dimensions: 47.5 x 24 x 4.8 mm
  • Indicators: Blue (Network), Green (Positioning Signal), Red (Charging)
  • Main Interface: Type-C
  • Positioning Antenna: Ceramic and FPC
  • GSM Antenna: FPC
  • SIM Slot: Nano Push Self-Ejecting, Dual SIM, 3GPP 31.101/31.102 Compliant
  • UART: Supported
  • USB: Supported
  • Satellite Positioning: Supported
  • G-Sensor: Supported
  • MIC: Supported
  • WiFi: Supported
  • Bluetooth-compatible: Not Supported
  • Speaker: Not Supported
  • Power On: Button Press
  • Battery: 5500mAh Polymer Battery
  • Real-Time Tracking: Supported
  • Track Playback: Supported
  • Geofence: Supported
  • Alarm Notification: Supported
  • Battery Level Display: Supported
  • Anti-Tamper Alarm: Not Supported
  • SMS Query: Location Query, Function Settings
  • Vibration Alarm: Supported
  • Assisted Positioning: Supported

In the box

  • 1 x GPS Tracker
  • 1 x English User Manual
  • 1 x USB Cable
