POWMR LCD Display PWM Solar Charge Controller 12V/24V Solar Panel IP32 PV Battery Charge Timer Regulator with Dual USB Port - 30A - 1
POWMR LCD Display PWM Solar Charge Controller 12V/24V Solar Panel IP32 PV Battery Charge Timer Regulator with Dual USB Port - 30A - 1

POWMR LCD Display PWM Solar Charge Controller 12V/24V Solar Panel IP32 PV Battery Charge Timer Regulator with Dual USB Port - 30A

by TVCMall
$950.00




    Delivered in 10-15 Days.
    more info Orders from overseas warehouse are delivered to our customers within 10-15 working days. We have a dedicated team to keep things moving quickly, and we will keep you updated on your order via SMS or email.
    All-Inclusive Pricing.
    more info The price you see is the price you pay. Price includes any Customs, Insurance and Courier fees. Absolutely no hidden fees. We also take care of customs clearance.
    Hassle-Free returns For 7 Days.
    more info View our Return Policy for more info.

The PWM solar controller is a multi-purpose solar charge and discharge controller, each parameter can be flexibly set to meet your different application needs. It can be widely used on a solar home system, traffic signal, solar street light, solar garden lamp, etc.

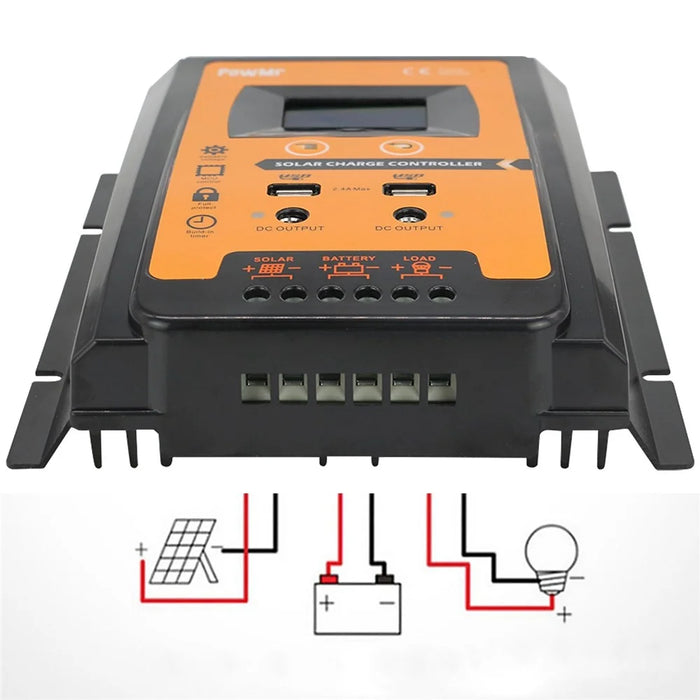

  • [Multi-ports] Solar controller with dual USB output & dual DC output, and applicable for lead-acid, batteries

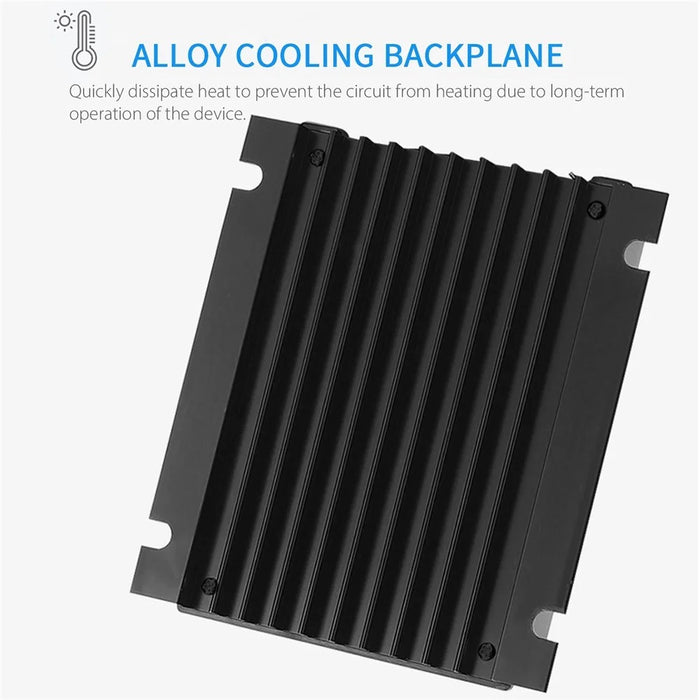

  • [Alloy Cooling Backplane] It can quickly dissipate heat to prevent the circuit from heating due to the long-term operation of the device

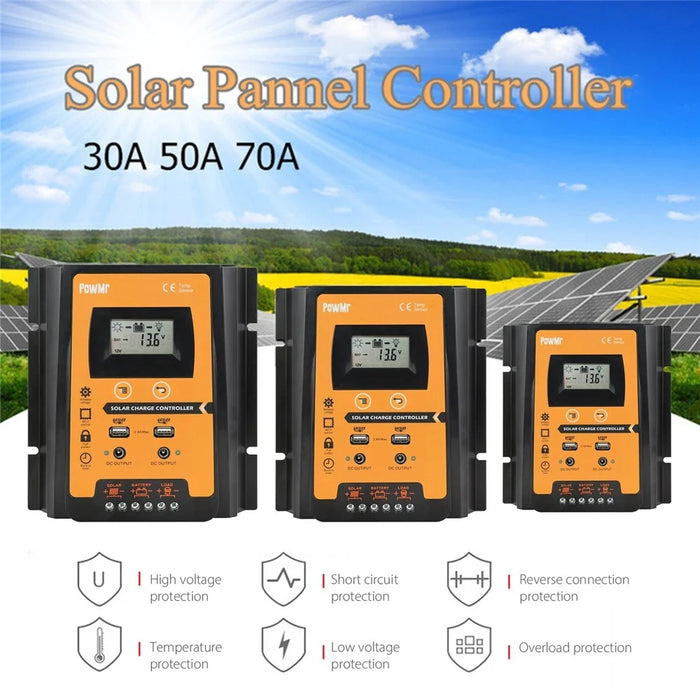

  • [Multi-protection] The PWM charging method support overload, short circuit protection, battery Undervoltage protection, temperature compensation function, reverse battery protection

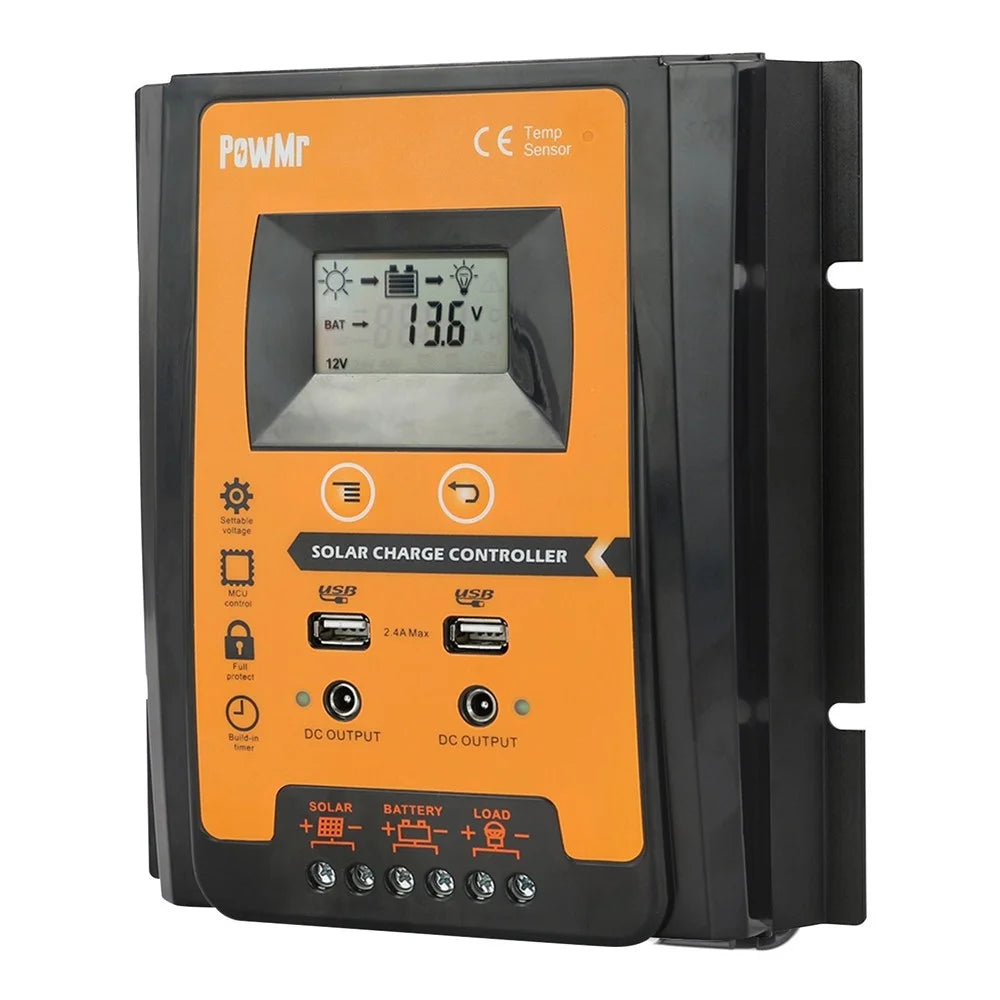

  • [LCD Display] LCD screen for dynamically displaying the device's operating data and working conditions
  • [Automatically] The solar charge controller can set time control mode, and system voltage can automatic identified

Specifications:

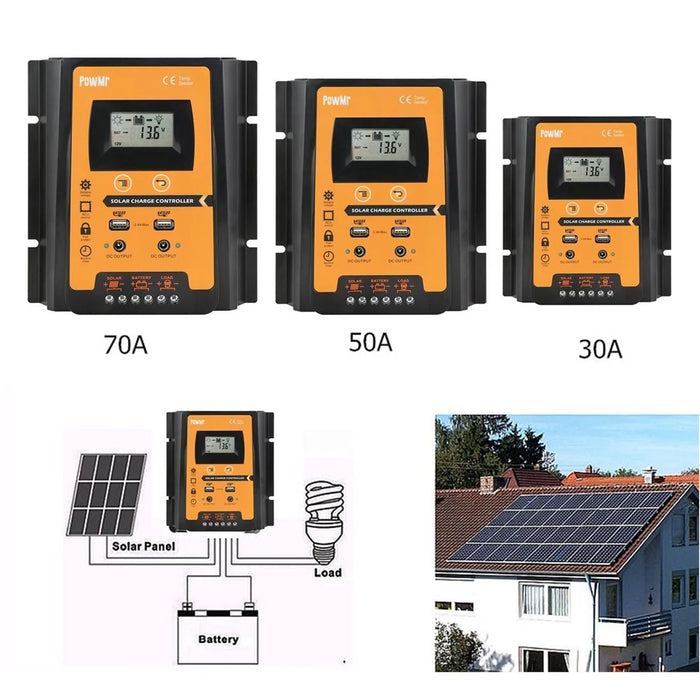

  • Rated Load Current(A): 30A;50A (Optional)
  • Rated Voltage(Va):12/24V Auto
  • USB output: 2.1A*2
  • DC output: 2
  • Over Charge Current(V): 13.7V/*2 24V
  • Over Discharge Current(V):10.5-11V/*2 24V
  • Temperature Compensation:-3mv/℃/cell
  • Empty Load Wastage:<45mA
  • Loop Voltage Drop:<200mv
  • Display: LCD display
  • Charging type: PWM
  • Waterproof grade: IP32
  • Material: Plastic
  • Occasion: Outdoor, Home, Camping, etc

Note: Only 30A Solar Controller does not show charging current, 50A shows charging current.

In the box

  • 1 x Solar Charge Controller
  • 1 x English Manual
