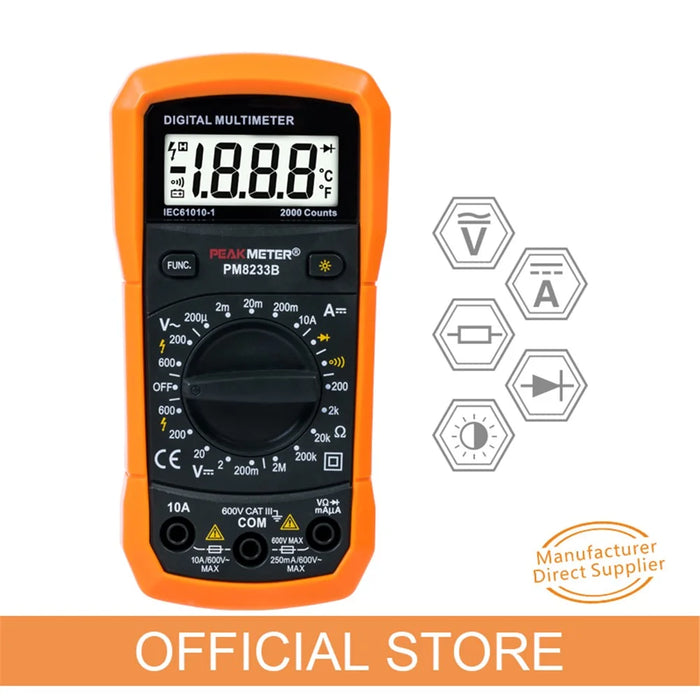

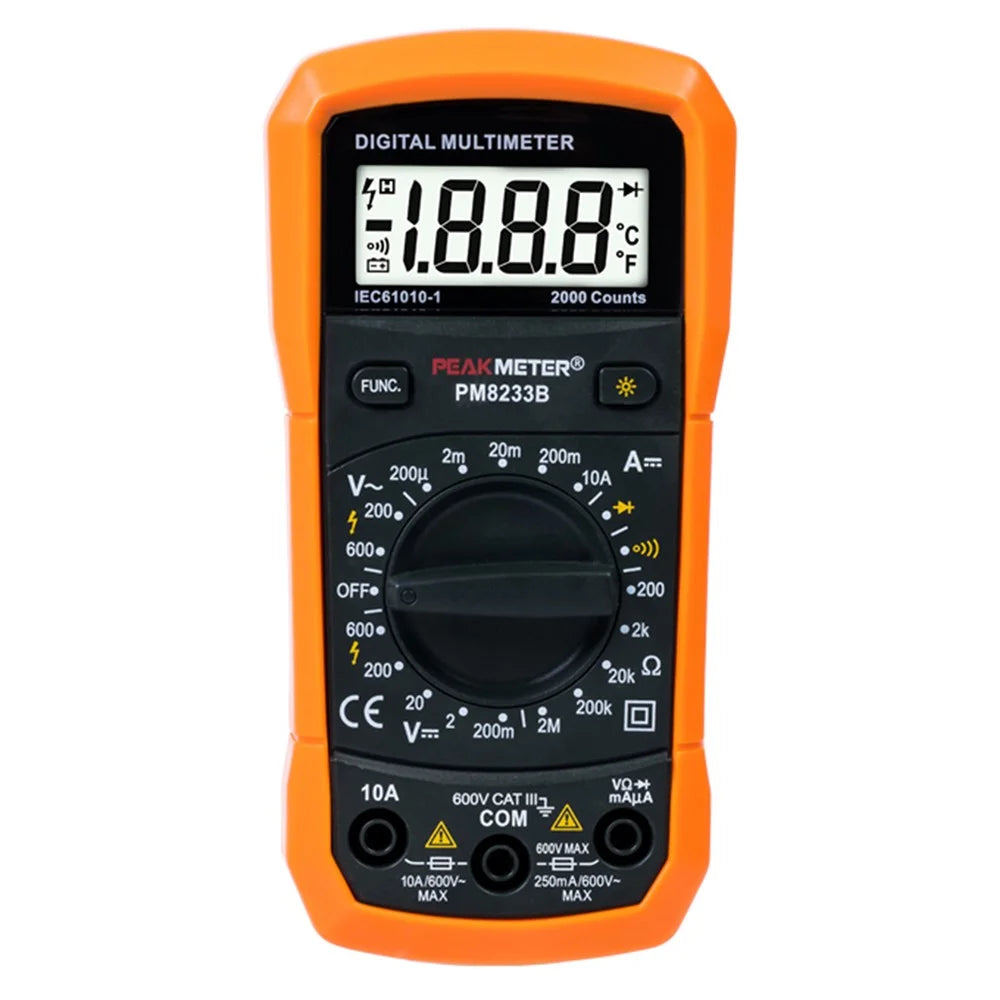

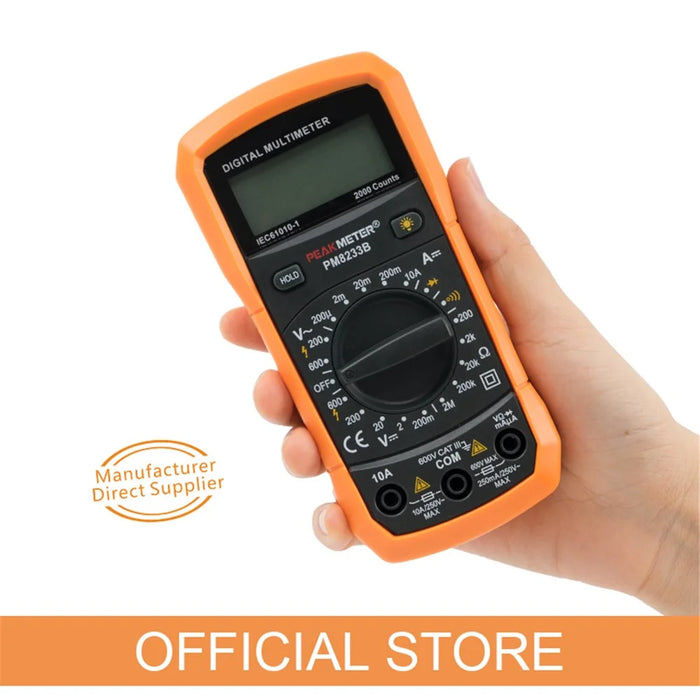

PEAKMETER PM8233B Pocket Size LCD Display Digital Multimeter AC / DC Voltage Tester with Backlit - 1
PEAKMETER PM8233B Pocket Size LCD Display Digital Multimeter AC / DC Voltage Tester with Backlit - 1

PEAKMETER PM8233B Pocket Size LCD Display Digital Multimeter AC / DC Voltage Tester with Backlit

by TVCMall
$600.00




    Delivered in 10-15 Days.
    more info Orders from overseas warehouse are delivered to our customers within 10-15 working days. We have a dedicated team to keep things moving quickly, and we will keep you updated on your order via SMS or email.
    All-Inclusive Pricing.
    more info The price you see is the price you pay. Price includes any Customs, Insurance and Courier fees. Absolutely no hidden fees. We also take care of customs clearance.
    Hassle-Free returns For 7 Days.
    more info View our Return Policy for more info.
  • Wide Range of Measurements: This digital multimeter is equipped to measure DC voltage, AC voltage, DC current, resistance, and temperature. It features a high-precision system, offering a range of DC voltage readings from 200mV to 600V and AC voltage up to 600V

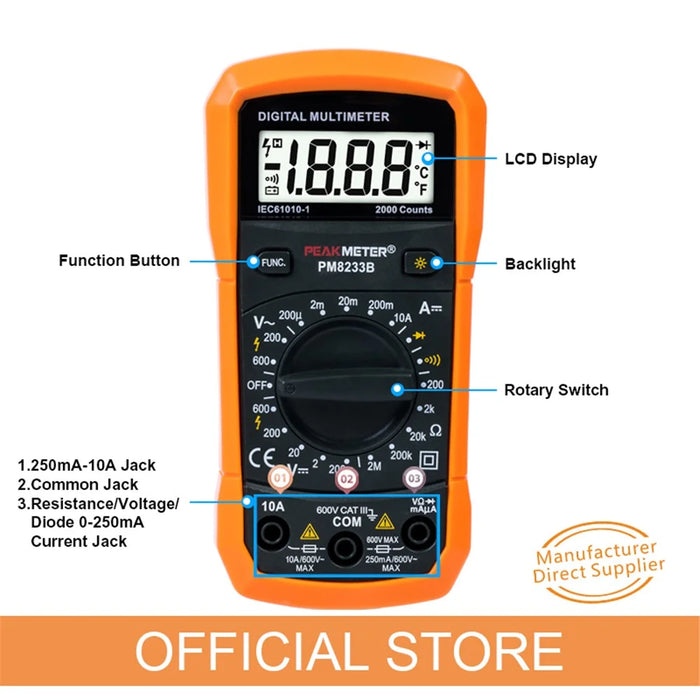

  • LCD Display with Backlight: Featuring a large, easy-to-read LCD display with a backlight option, this multimeter is designed for visibility in various lighting conditions. The intuitive interface allows for quick readings, ensuring you get the data you need with minimal effort

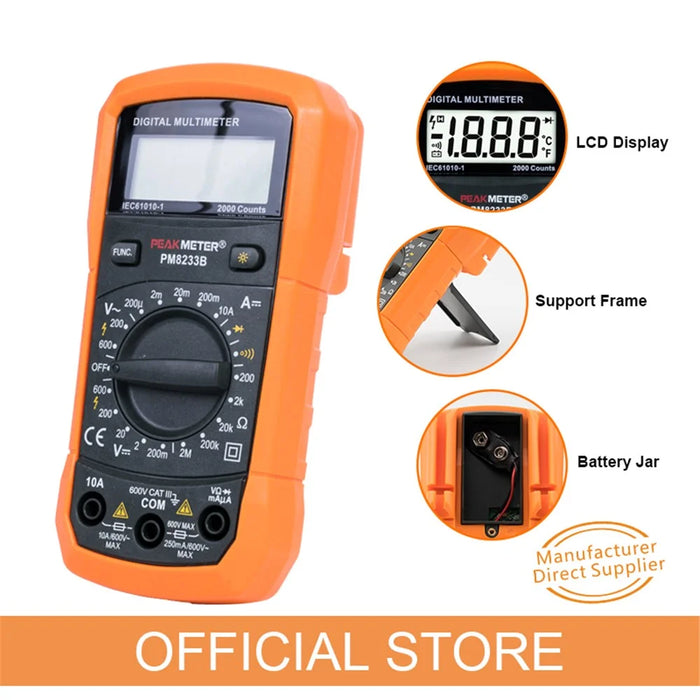

  • Convenient Design & Stand: For hands-free operation, the built-in back kickstand provides added convenience, allowing you to place the multimeter on a flat surface while working
  • Temperature Measurement Capability: In addition to voltage, current, and resistance, this multimeter includes a temperature measurement feature, capable of reading from -20℃ to 1000℃. Ideal for applications where temperature monitoring is essential, such as HVAC work or automotive diagnostics

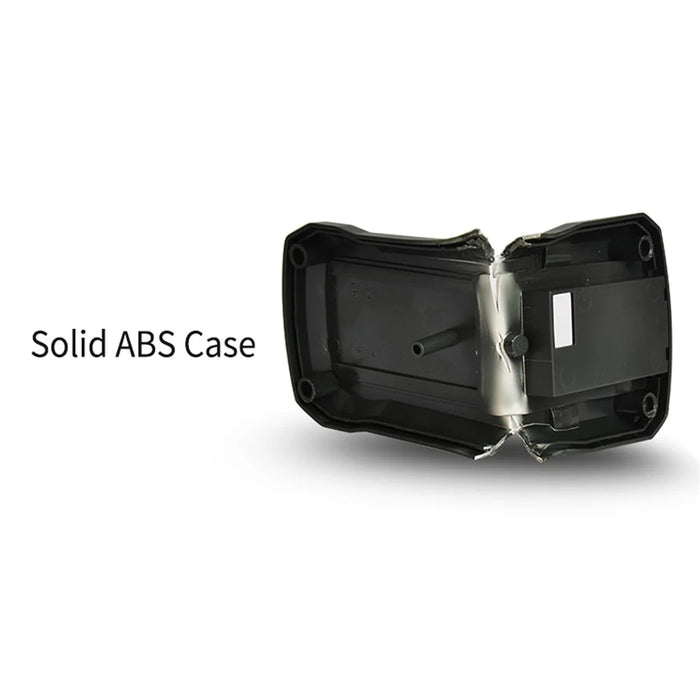

  • Durable and Battery-Powered: Powered by a 9V DC battery (not included), this multimeter is designed to last. Its durable construction and user-friendly layout make it a reliable tool for both professionals and DIY enthusiasts

Specifications:

  • DC Voltage: 200mV/2V/20V/200V ±(0.5%+2) / 600V ±(0.8%+2)
  • AC Voltage: 200V/600V ±(1.2%+10)
  • DC Current: 200μA/2mA/20mA ±(1.0%+2) / 200mA  ±(1.5%+2) / 10A ±(3.0%+2)
  • Resistance: 200Ω/2kΩ/20KΩ/200kΩ/2MΩ ±(0.8%+2)
  • Temperature: -20℃~1000℃
  • Power: DC9V 6F22 battery (not included)
  • Weight: about 110g
  • Size: 140 x 67 x 30mm

In the box

  • 1 x Digital Multimeter

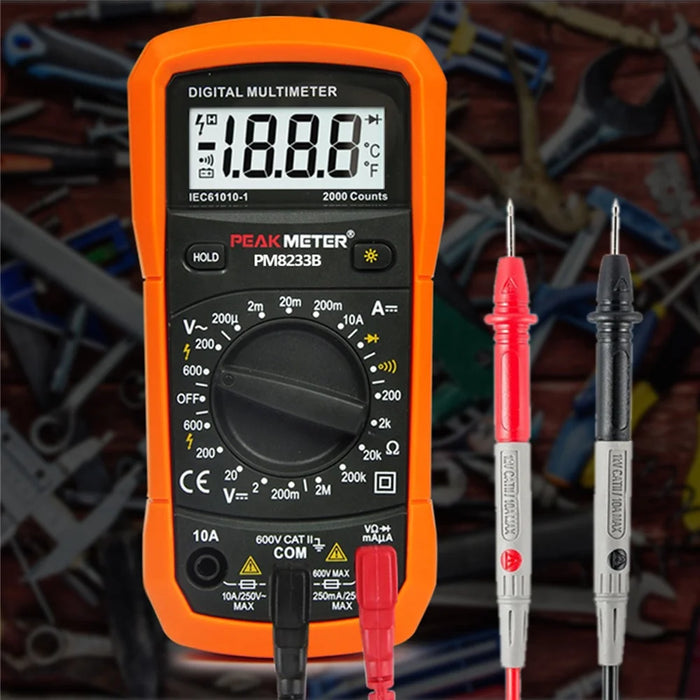

  • 2 x Test Pen
  • 1 x English User Manual
