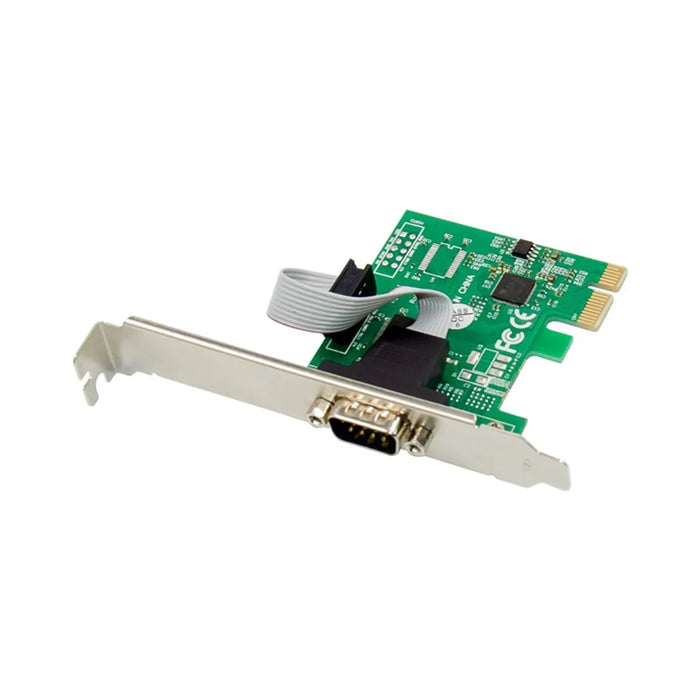

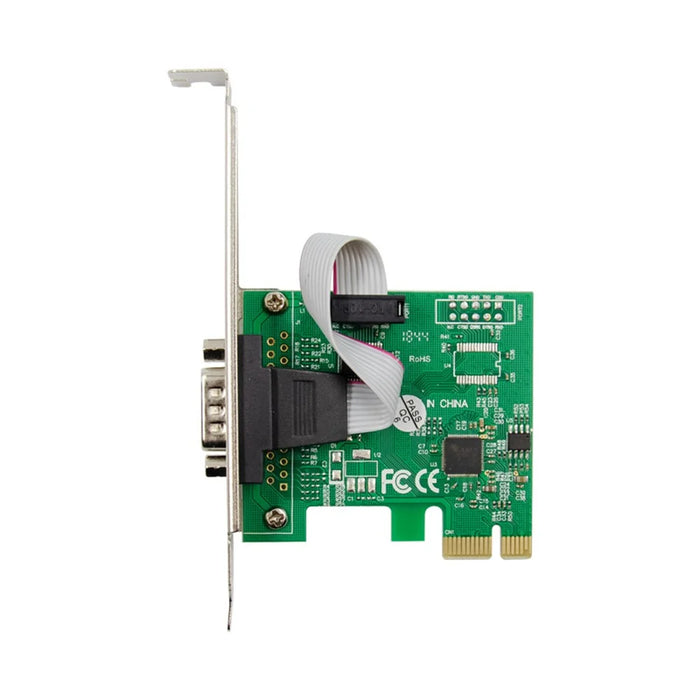

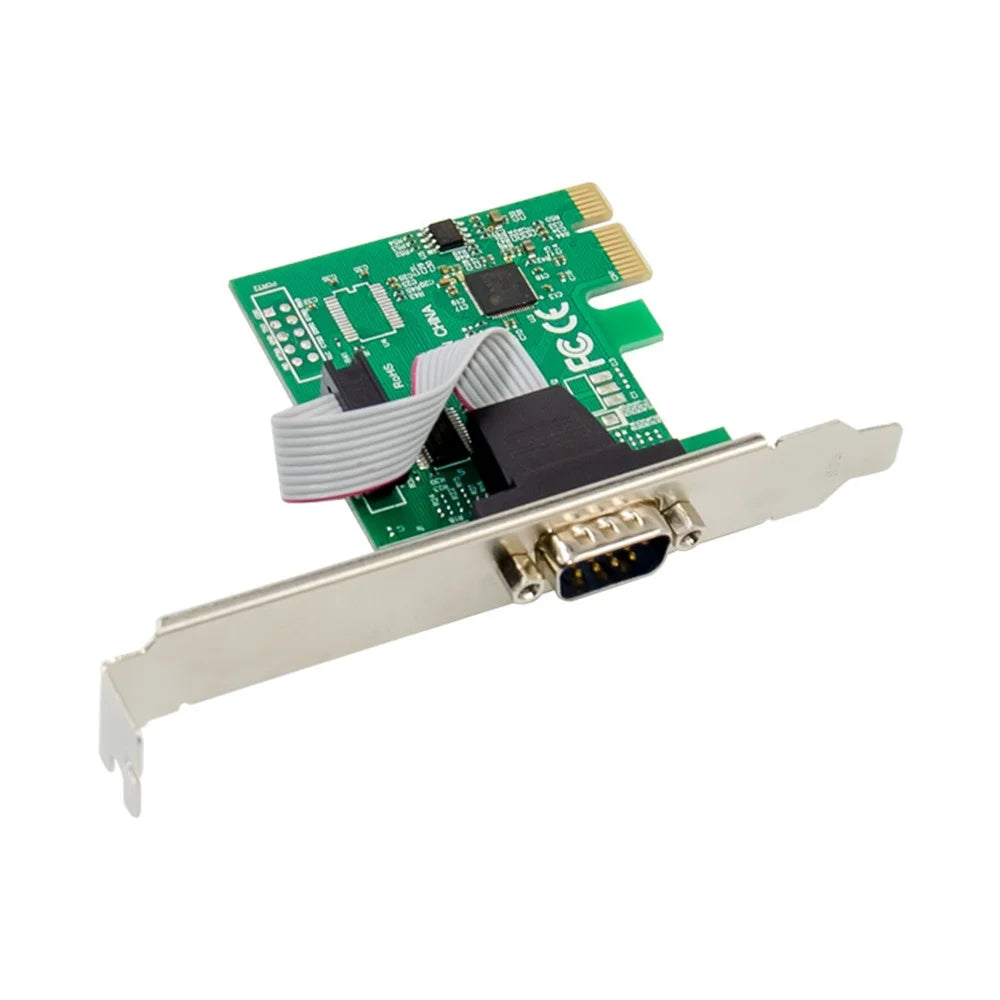

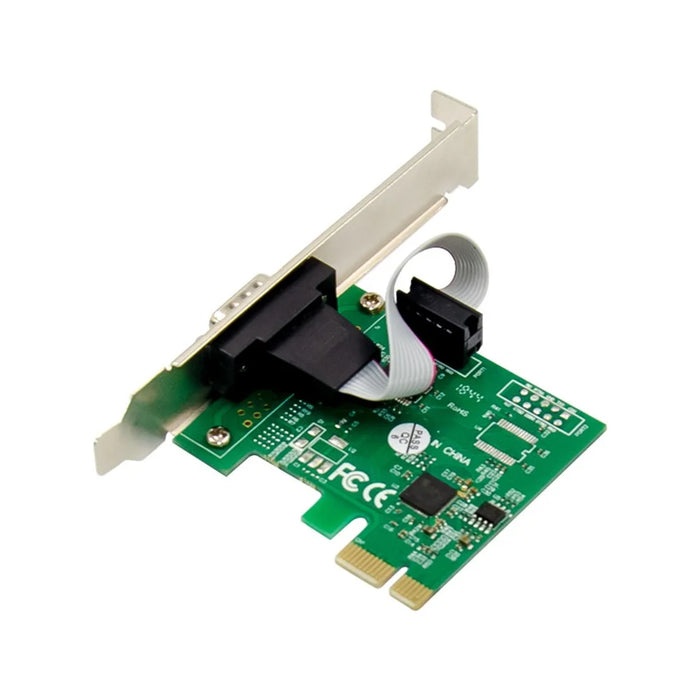

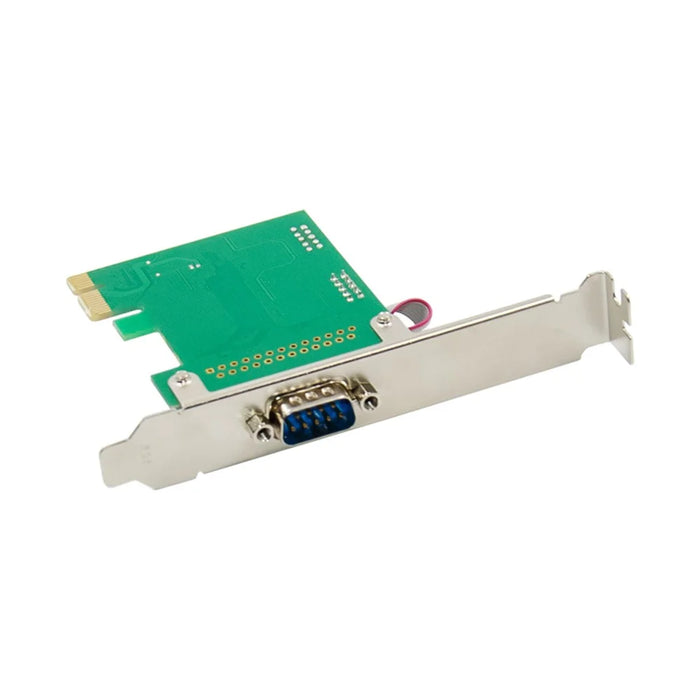

PCIE AX99100 1S DB9 RS232-Port Serial Card Native Industrial Expansion Card

by TVCMall
$420.00




    Delivered in 10-15 Days.
    more info Orders from overseas warehouse are delivered to our customers within 10-15 working days. We have a dedicated team to keep things moving quickly, and we will keep you updated on your order via SMS or email.
    All-Inclusive Pricing.
    more info The price you see is the price you pay. Price includes any Customs, Insurance and Courier fees. Absolutely no hidden fees. We also take care of customs clearance.
    Hassle-Free returns For 7 Days.
    more info View our Return Policy for more info.
  • AX99100 is a single-chip solution that fully integrates PCIe 2.0 Gen 1 endpoint controller and SerDes with various peripherals such as two/four high-speed serial ports, one parallel port, I2C master, high-speed SPI, local bus (ISA-Like) and GPIO. Serial), 2S + 1P (PCIe to Dual Serial and Single Parallel), 2S + SPI (PCIe to Dual Serial and SPI) and LB (PCIe to Local Bus/ISA) - Like) for different types of applications. The industrial-grade temperature range is -40°C to 85°C.
  • PCI Express:
  • Single lane (X1) PCI Express endpoint with integrated PHY controller
  • Compliant with PCI Express card specification, PCI Express 2.0 Gen 1
  • Compliant with PCI Power Management 1.2
  • Supports legacy and MSI interrupts, ASPM power management
  • RS-232 serial interface:
  • Dual or Quad UART
  • Supports RS-232 / RS-422 / RS-485 multi-protocol
  • Bi-directional speed up to 25 Mbps per port
  • Full serial modem control
  • Supports hardware, software flow control
  • Support for 5, 6, 7, 8 and 9-bit serial formats
  • Supports even, odd, none, space and mark parity
  • Custom baud rate support via internal PLL or external clock
  • Supports on-chip 256-byte deep FIFO, send and receive paths per serial port
  • Support for remote wake-up and power
  • Management features:
  • Serial transceiver shutdown support
  • Slow IrDA mode support (115200bps)
  • On all serial ports
  • Support for multipoint applications in 9-bit mode
  • DMA burst transfer support
  • Compatible devices:
  • Serial I/O for serially connected devices, serial network/monitoring devices, data acquisition systems, POS terminals and industrial PCs, add-on cards
  • USB, I/O expansion for embedded systems
  • Operating systems:
  • Windows 98SE/Me/NT4.0/2000/XP/Server 2003/Vista/Win 7/Win 8/Win 10, for Linux, for DOS

In the box

  • 1 x PCI-E AX99100 1S Serial Card
  • 1 x CD-Driver
  • 1 x English User Manual
  • Other things not included
