The Texas Instruments (TI) XIO2213A is a single-function PCI Express to PCI native bus conversion bridge where the PCI bus interface is internally connected to a 1394b open host controller link layer controller with a three-port 1394b PHY. When properly configured, the XIO2213A solution will provide full PCI Express and 1394b functionality and performance.
- Fully compliant with PCI Express Base Specification, Revision 1.1
- Uses 100 MHz differential PCI Express common reference clock or 125 MHz single-ended reference clock
- Fully supports IEEE P1394b-2002
- Fully compliant with IEEE Std 1394-1995 for high-performance serial buses
- Fully compliant with 1394 Open Host Controller Interface Specification, Revision 1.1 and Draft Revision 1.2
- Three IEEE Std 1394b fully compliant cable ports:
- 100M Bits/s, 200M Bits/s, 400M Bits/s and 800M Bits/s
- Cable ports monitor line conditions for active connections to remote nodes
- Wired power presence monitoring
- EEPROM configuration support for loading 1394 fabrics with global individual IDs
- Support for D1, D2, D3hot
- Active link power management when packet activity is idle on the PCI Express link using L0 and L1 states
- Power savings available
- Eight 3.3V, multi-function, universal I/O terminals
- Provides three FireWire 800 (1394b) ports for multiple 1394b device connections
- Supports data transfer rates of 100, 200, 400 and 800 Mbps
- Built-in 4-pin power connector to provide additional power when connected to system power (recommended)
- Supports hot-swappable and plug-and-play connections for peripheral devices
- Suitable for all types of FireWire 800 (1394b) devices, including portable hard drives, DV camcorders, digital cameras
- CD-RW/DVD-ROM drives and other audio/video devices
- System requirements Windows® 2000 / XP / Server 2003 SP1 or higher / Vista / Win 7 / Win 8.x, for Linux with an available PCI Express slot on board
- Optional accessories: short iron sheet, IEEE 1394 data cable (need to purchase separately)
In the box

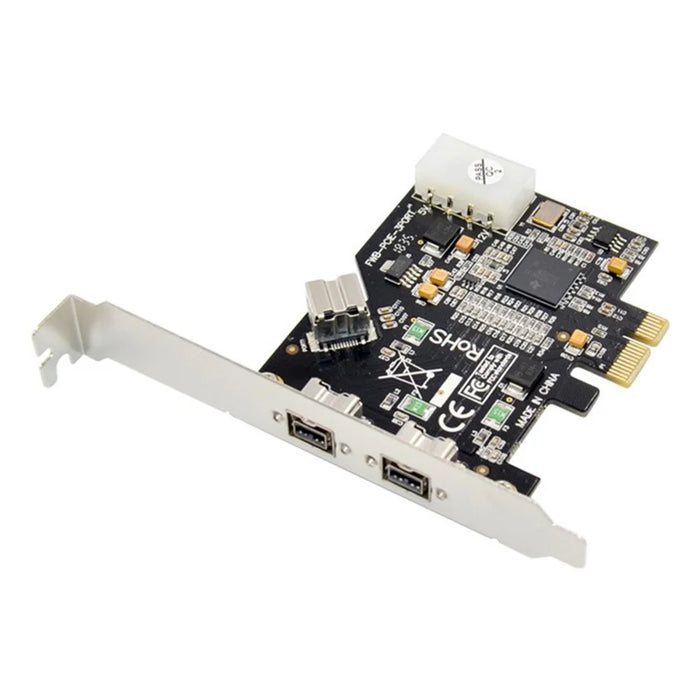

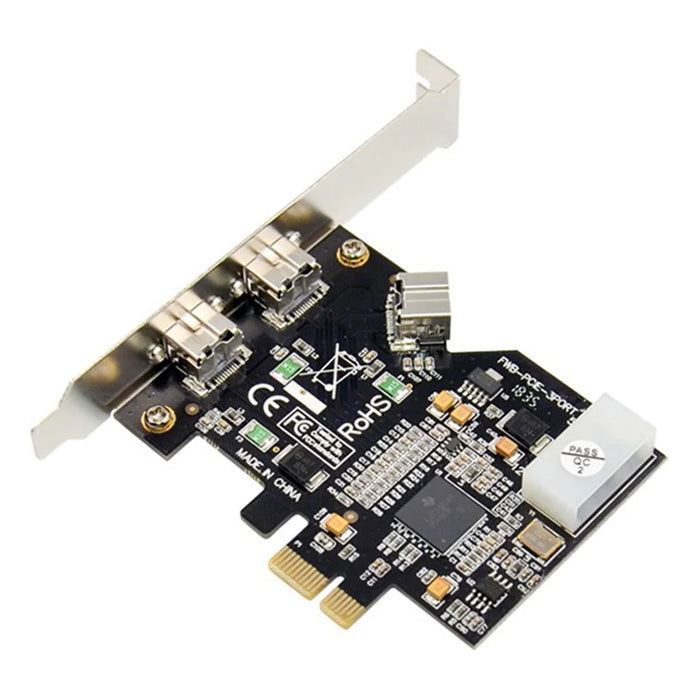

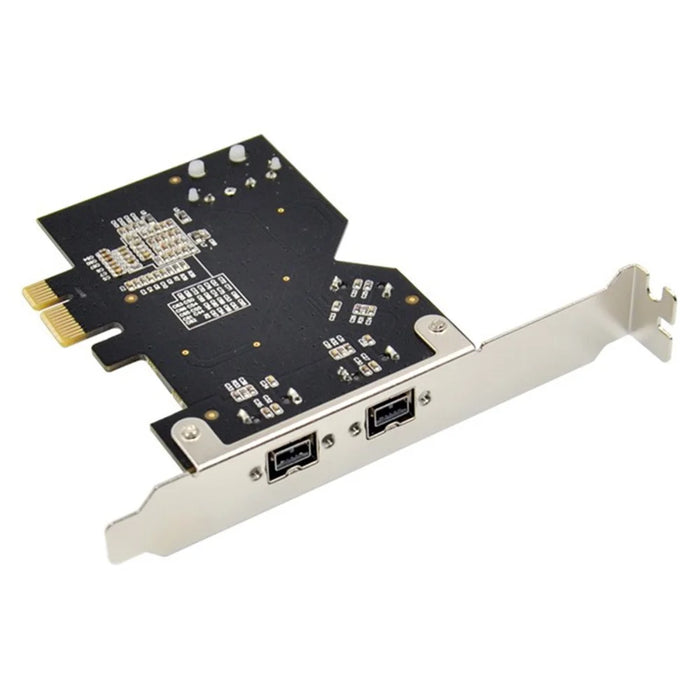

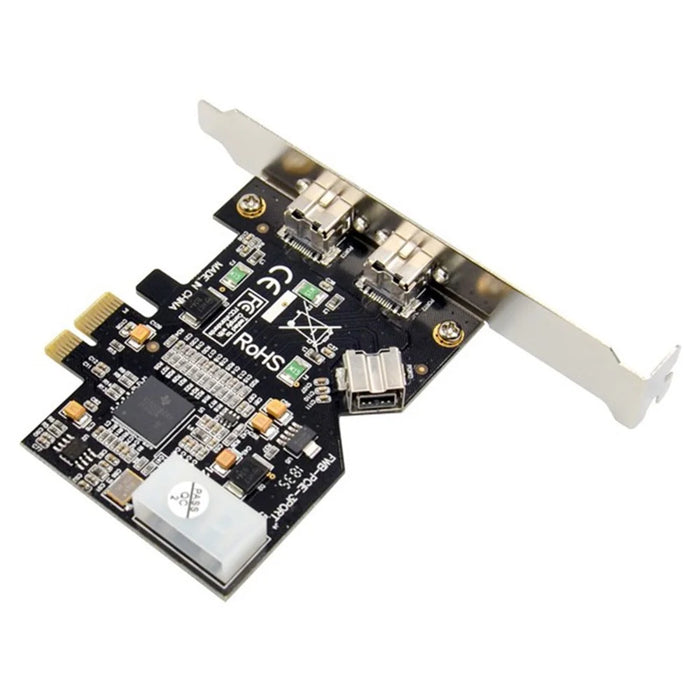

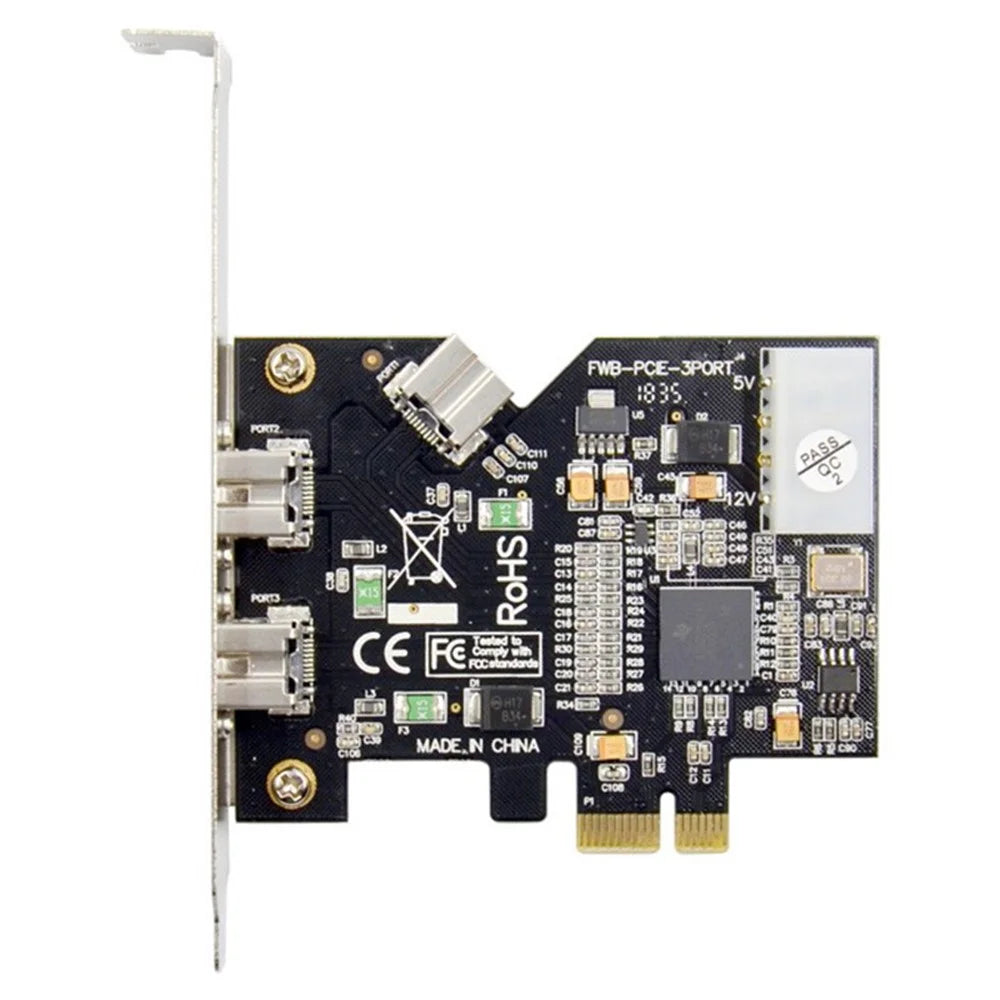

- 1 x PCI-E TI XIO2213AZAY FireWire 800 Capture Card
- 1 x English User Manual
- Other things not included
