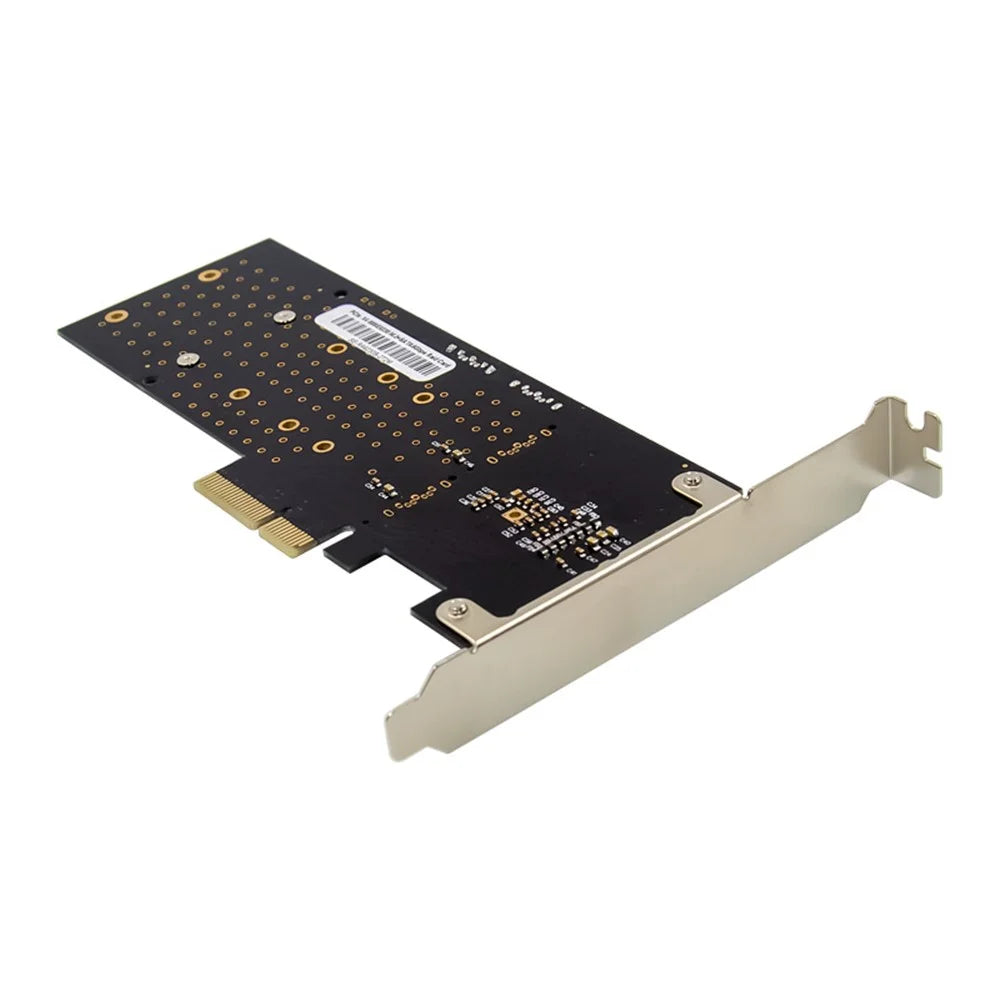

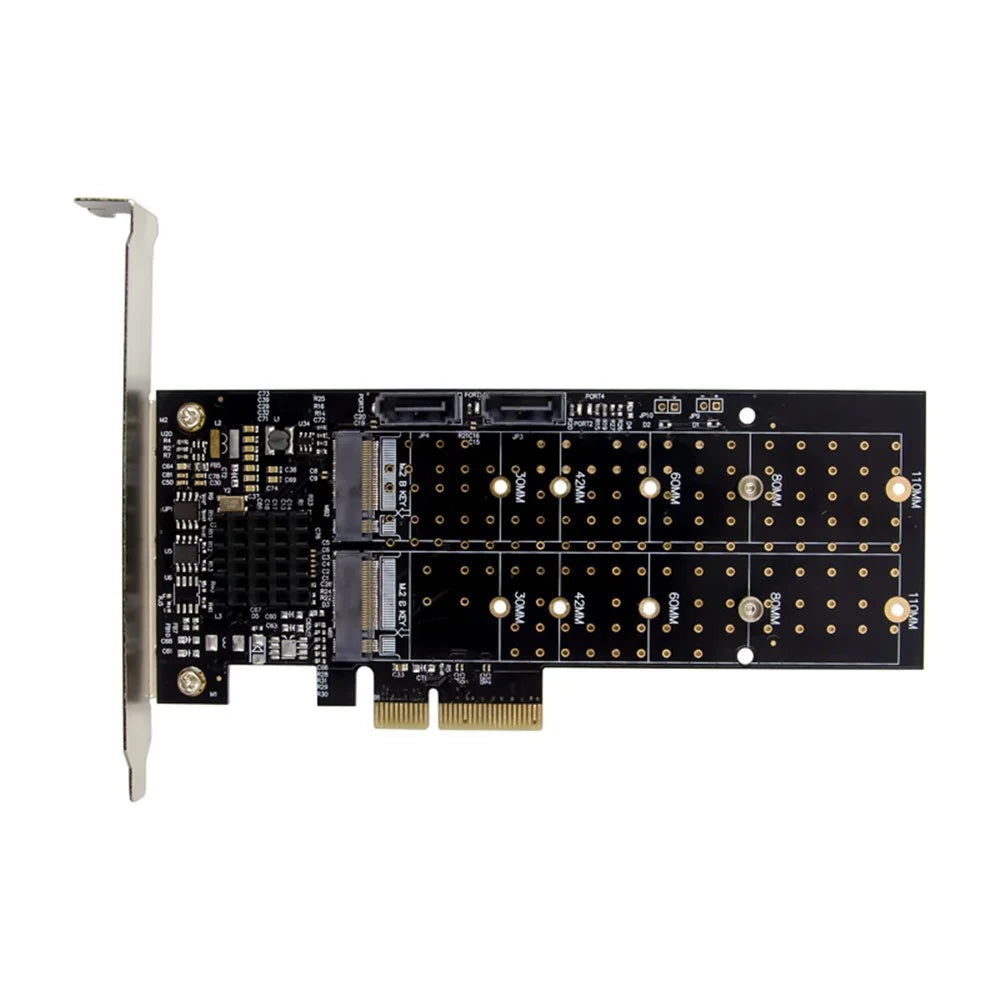

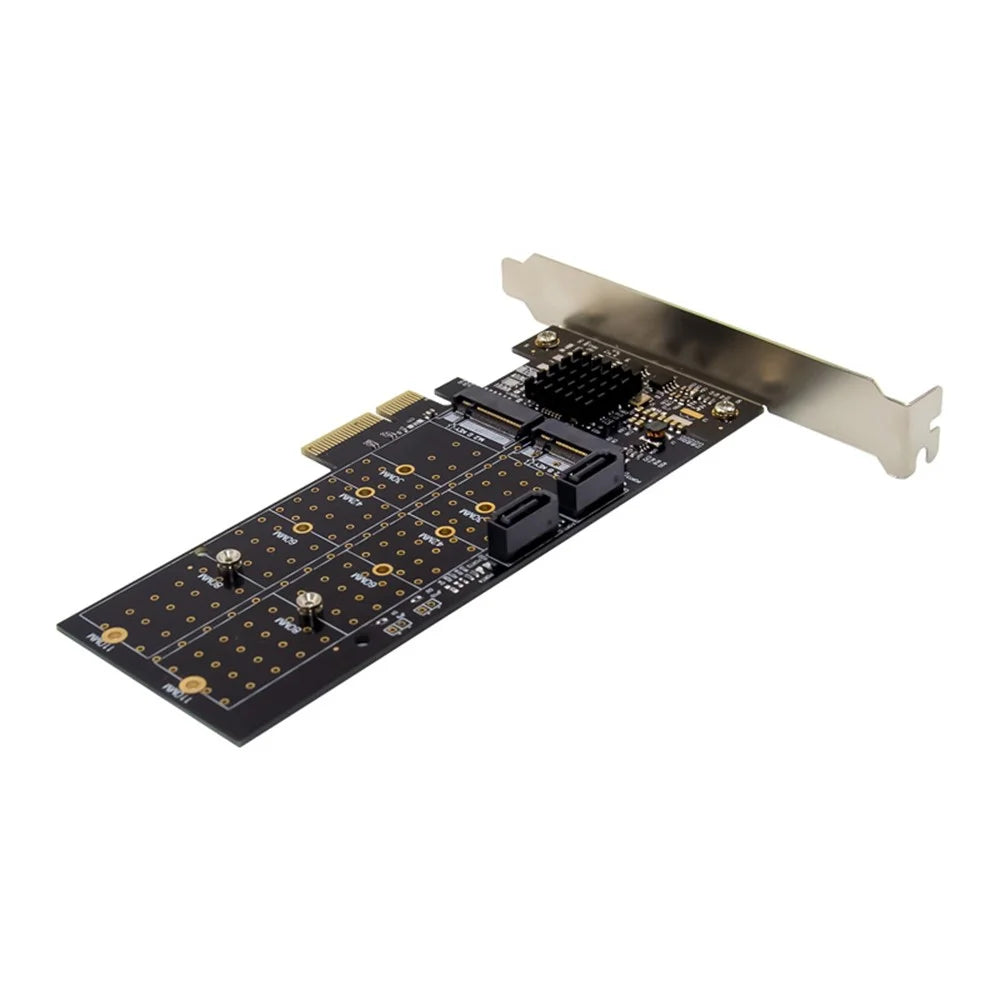

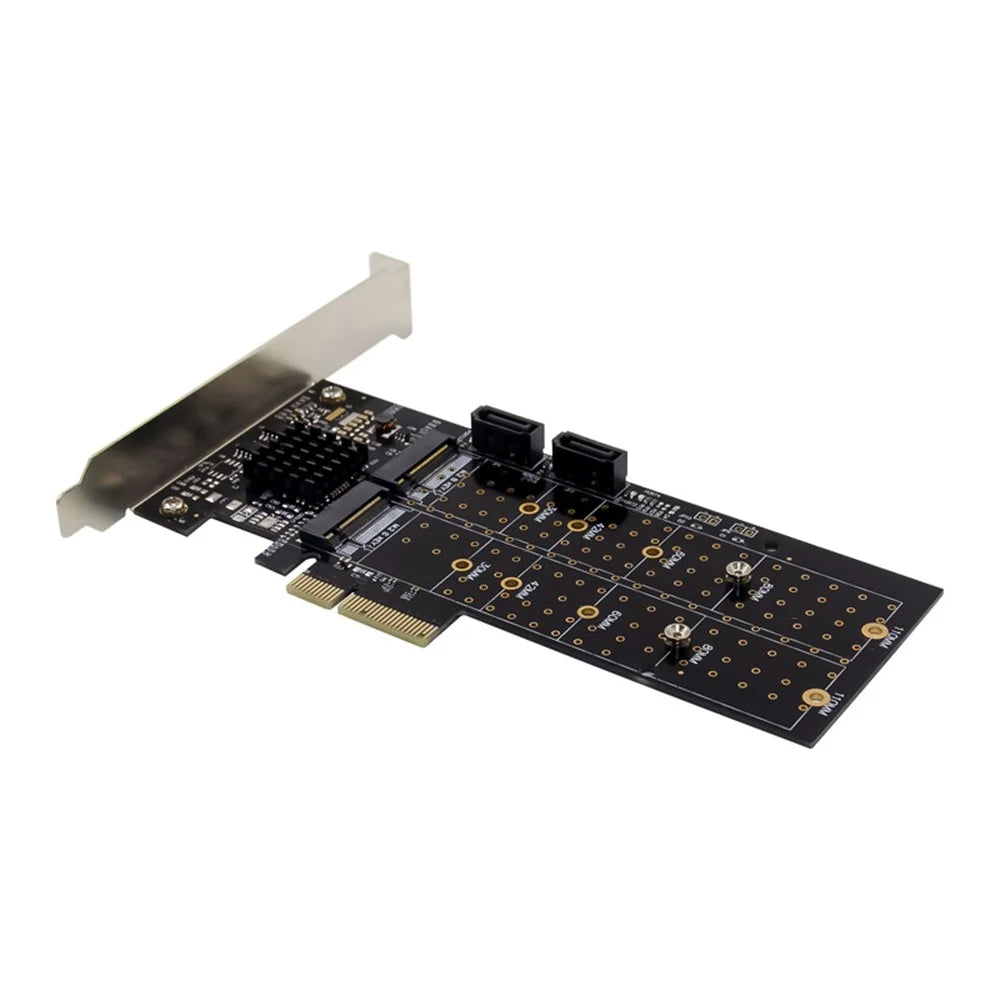

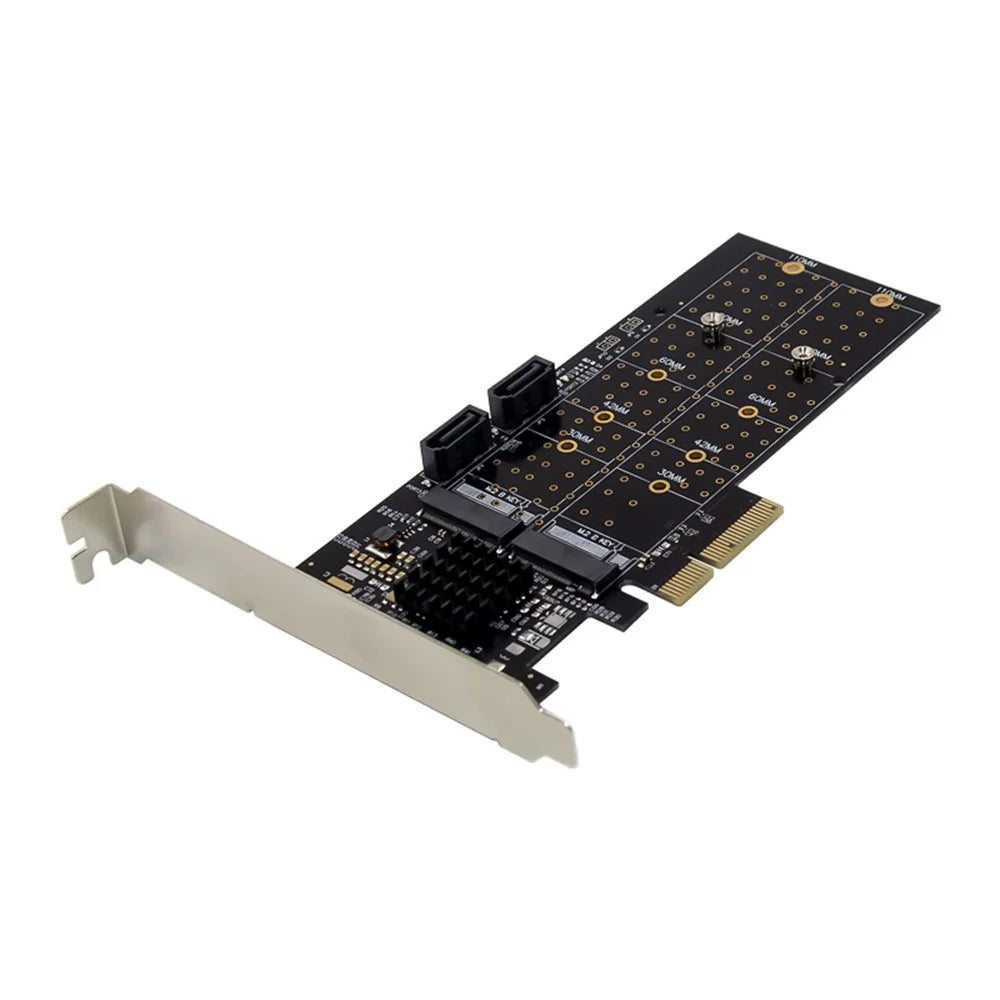

PCI-E SATA 6G RAID Expansion Card NGFF Service Storage Adapter with Marvell 88SE9230 Processor
R2 030
incl. VAT
Dispatches in 1 – 3 days
Nationwide delivery
2–4 working days to major metros
Secure checkout
Card, EFT, Ozow and PayFast
30-day returns
Unused, in original packaging
Description
- PCI-E M.2 NGFF+SATA RAID card, using Marvell 88SE9230 chip 6Gb/s SATA controller. Marvell's HyperDuo technology achieves solid state drive-like performance while allowing all data to be stored on traditional SATA hard disk drives (HDDs)
- Compatible, stable performance, high-speed transmission characteristics
- Expand desktops, workstations or servers with two M.2 NGFF slots and two SATA3.0 ports, via RAID arrays
- Connect two module card types: 2280, 2260, 2242, 2230 M.2 NGFF solid state drives, there are four types of products with different lengths
- It is convenient for users to expand the storage capacity. In addition, it is also possible to connect SSD or HDD hard disks through two SATA interfaces to form a hybrid hard array
Function:
- Compliant with PCI Express Rev2.0, backward compatible with PCIe Rev1.0 motherboards
- Compliant with PCI Express X4 interface, compatible with PCI Express X8 and X16 motherboard card slots
- Fully compatible with Serial ATA Specification 3.0
- Compliant with PCI Express M.2 Rev1.0 specification
- Support M.2 NGFF module: 2280/2260/2242/2230, or NGFF KEY B or KEY B+M
- Support SATA I and SATA II and SATA III and M.2 NGFF SSD
- Support SATA 6.0Gbps, SATA 3.0Gbps and 1.5Gbps transfer rate
- Support hot swap, support native command queue (NCQ)
- Supports porter FIS-based switching or command-based switching
- Supports RAID functions: RAID 0, RAID 1, RAID10, and hyperduo
Applicable fields:
- Provide users with solutions in the field of large-capacity data storage, data and other server fields. Committed to the entry-level array card users, make full use of idle M.2 NGFF and SATA interface SSD group arrays to provide higher performance indicators, data integrity than usual disk storage and data availability
System Requirements:
- Windows 10/Win 8/Win 7/ Vista/ Server 2003/ 2008/ XP/ 2000 32&64 bit, for Linux 2.6.x and above
- Motherboard with available PCI-E x4, x8, x16 slots
Specification:
- Main Controller: Marvell 88SE9230
- Bus Type: PCI Express 2.0 x4
- Transmission interface: 2 x SATA Gen III connectors, 2 x M.2 KEY B NGFF connectors
- Product Dimensions: L157 x W170 mm (without PCIe bracket)
- Product weight: 56.4g

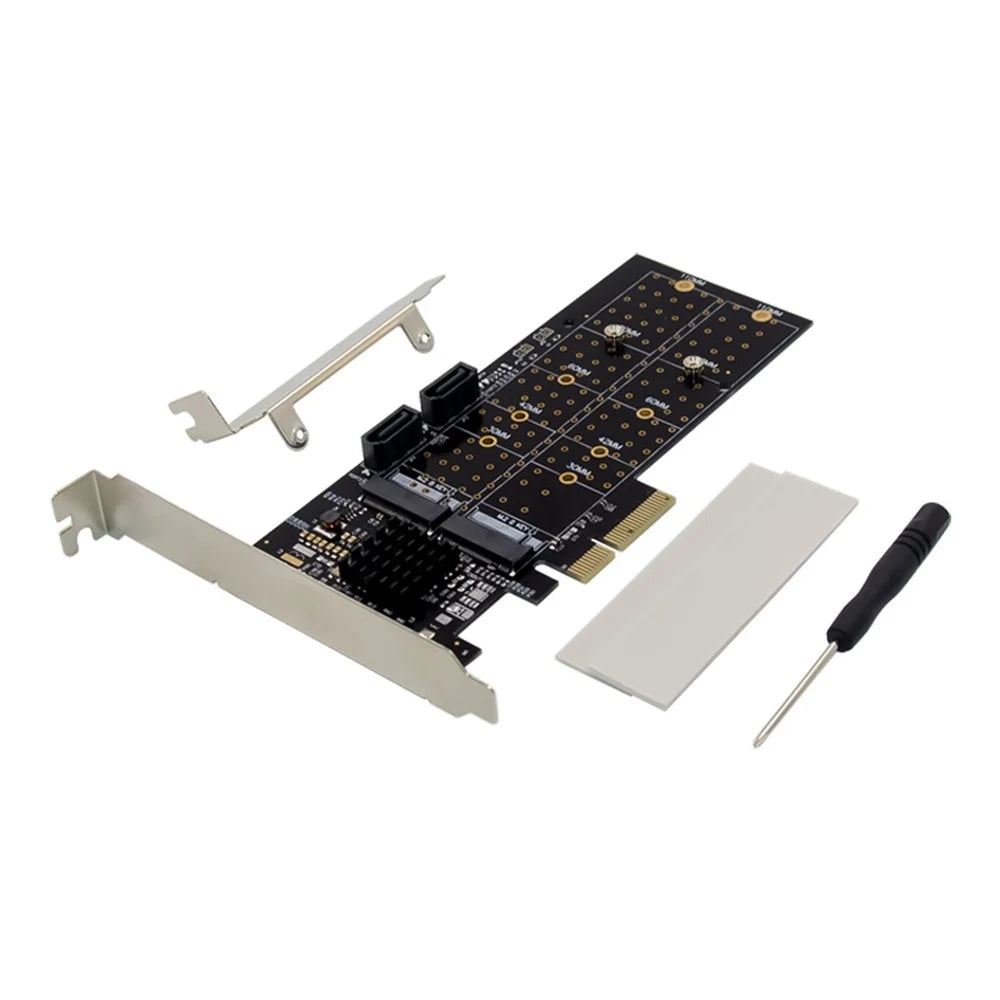

In the box
- 1 x PCI Express 2xM.2 NGFF Expansion Card
- 2 x SATA Adapter Plate
- 1 x CD Drive
- 1 x Fixing Screw + Screwdriver Kit
- 1 x Short Iron Plate
- 1 x English User Manual
Specifications
- SKU
- 610500119A
- Colour
- As Shown
- Package dimensions
- 18 × 15 × 3 cm
- Gross weight
- 0.1 kg
- Units per pack
- 78
- Dispatch
- 1 - 3 days
- Category
- Computer & Networking › Computer Peripherals › Cables & Adapters
What’s in the box
- 1 PCI Express 2xM.2 NGFF Expansion Card
- 2 SATA Adapter Plate
- 1 CD Drive
- 1 Fixing Screw + Screwdriver Kit
- 1 Short Iron Plate
- 1 English User Manual
