MG-YKQ102 WiFi Smart IR Infrared RF433 Remote Control Tuya APP Remote Air Conditioner Fan Switch

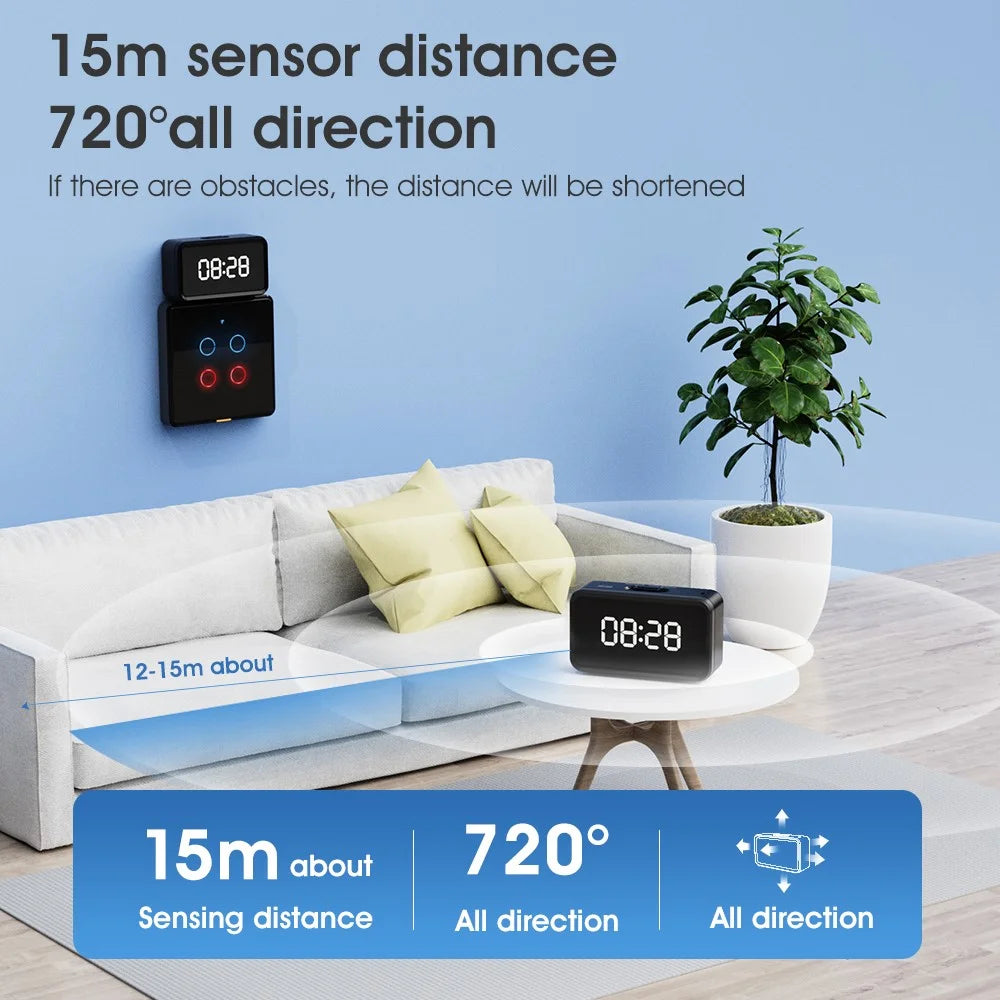

• Ultra-wide signal range: supports infrared long-distance control of about 15m (no obstacles), 720° all-round signal coverage, and can effectively control the device within this range

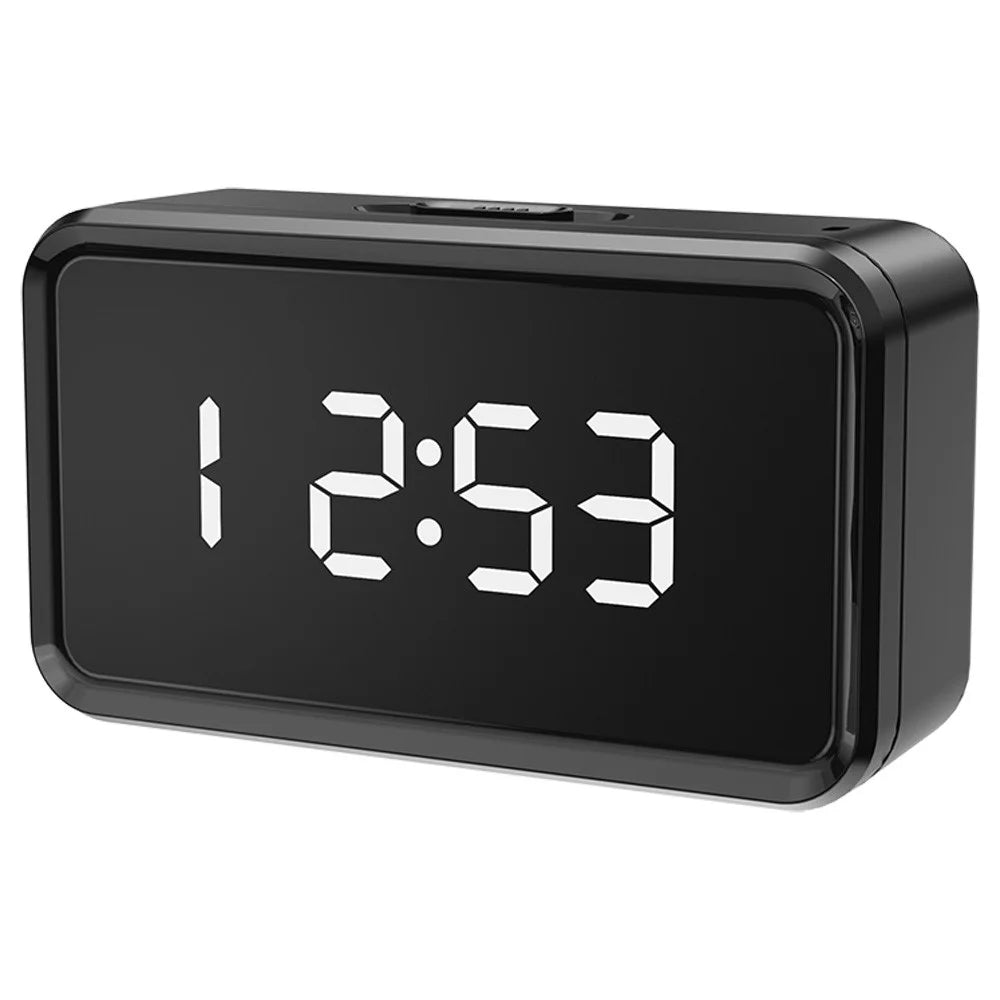

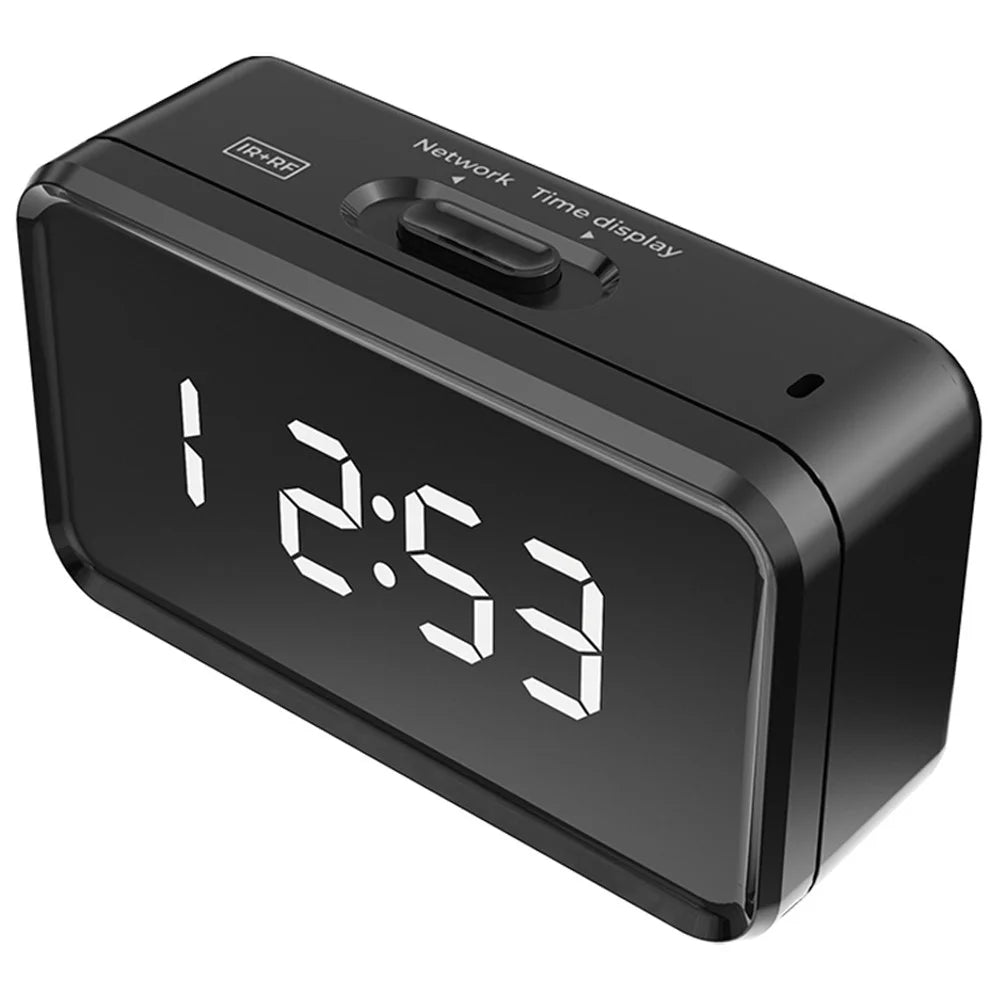

• Time display: It also has a time display function that can display the current network time. Different from traditional infrared, when the product is working silently, it brings more schedule planning by displaying time. In order not to affect your family's rest at night, you can manually turn off the time display by clicking the top right button

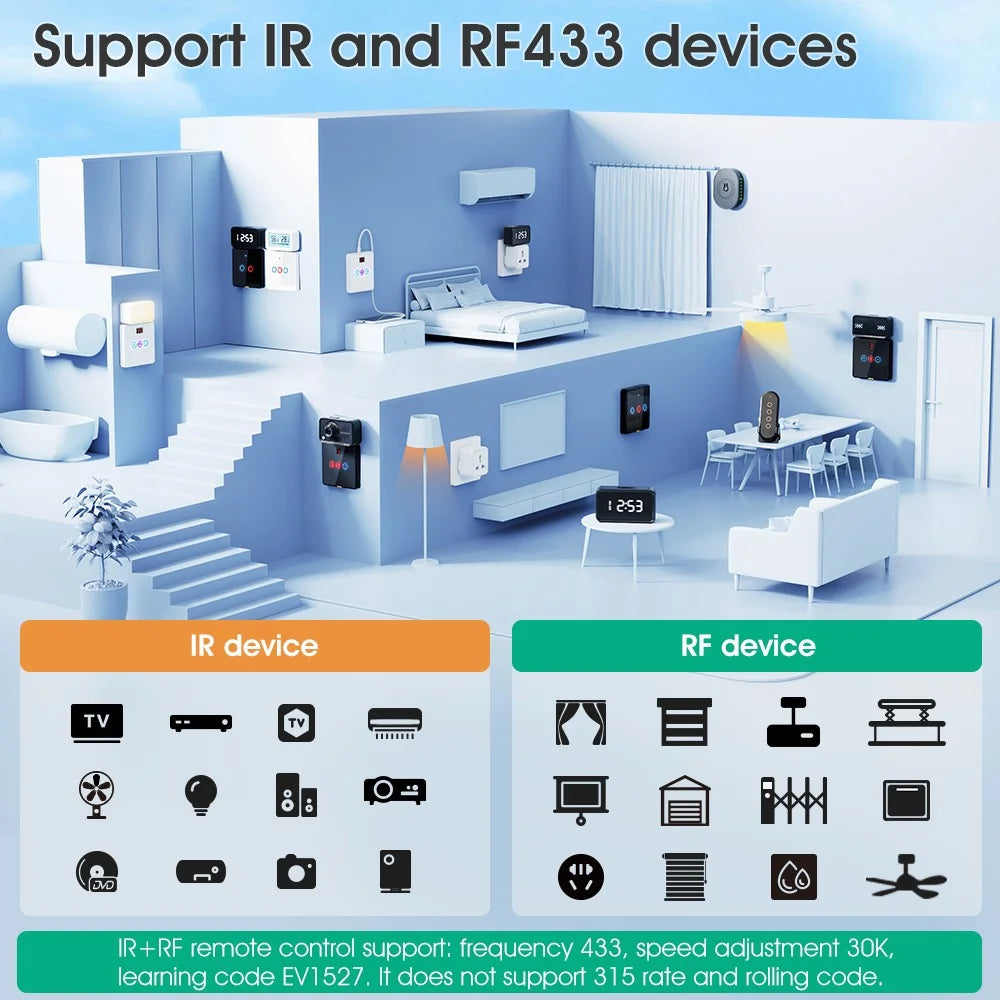

• Infrared + RF433: Control infrared appliances through Tuya Smart or Smart Life APP anytime and anywhere, and support RF433 remote control, 433MHz frequency band, 30K speed adjustment, learning code EV1527, turning most of your devices into smart devices, making life smarter and more convenient. Compatibility: Supports almost all infrared control devices, including your air conditioner, TV, infrared electric curtains, etc., with a huge IR database

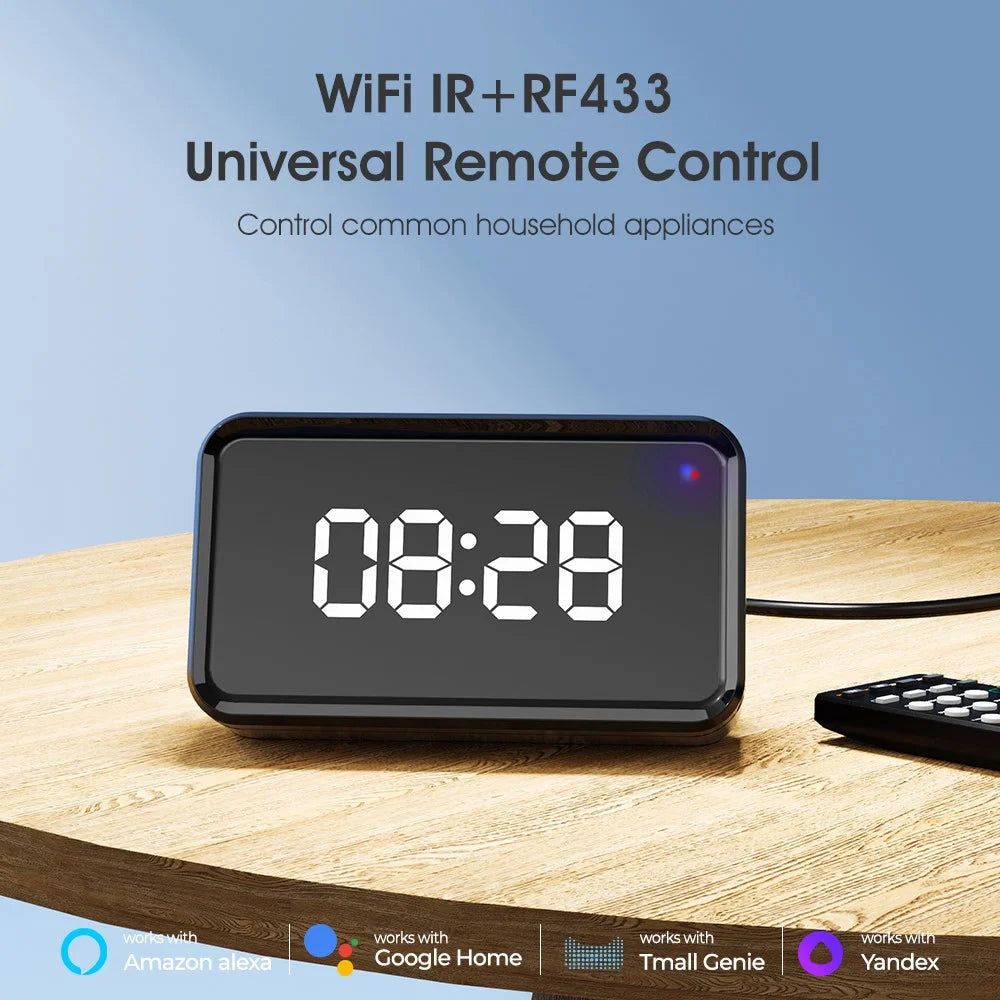

• Voice control: By connecting the App to Amazon Alexa, Google Home, Tmall Genie, Yandex, you can control your home appliances by voice. For example: Alexa, turn on the TV; Google, set the air conditioner temperature to 25℃
• Smart linkage: You can set a temperature condition by linking the temperature and humidity sensor. When the temperature reaches the limit value, the remote control will automatically start to turn on/off the air conditioner for us. Let you experience a more humane smart life
• Scene timing: Set time trigger conditions for smart home appliances, give them timing functions, and automatically switch them on and off when the time is reached. Offline reminder: There is a device offline reminder function, which can help users understand the device status in time, improve device management efficiency, and effectively prevent device failure. Device sharing: Through the device sharing function, every family member can easily enjoy the convenience of smart switches through their own mobile phones. Group control: Set up groups for infrared remote controls and control multiple smart devices with one command through the application. For example, set up a "sleep group" and when you want to go to bed, you can turn off all devices in the group at the same time with just one click. WiFi + Bluetooth-compatible dual mode: Connect to the network faster. Connect to the network twice as fast as WiFi only

Specification:

• Product size: 73x41x25mm
• Voltage: DC 5V
• Current: 1A
• Power: 5W
• Support angle: 720°
• Support devices: 20-50
• Infrared frequency: about 15m 20-60K.Hz
• Working temperature: -10℃~55℃
• Working humidity: 10%~95%RH
• Material: PC+ABS

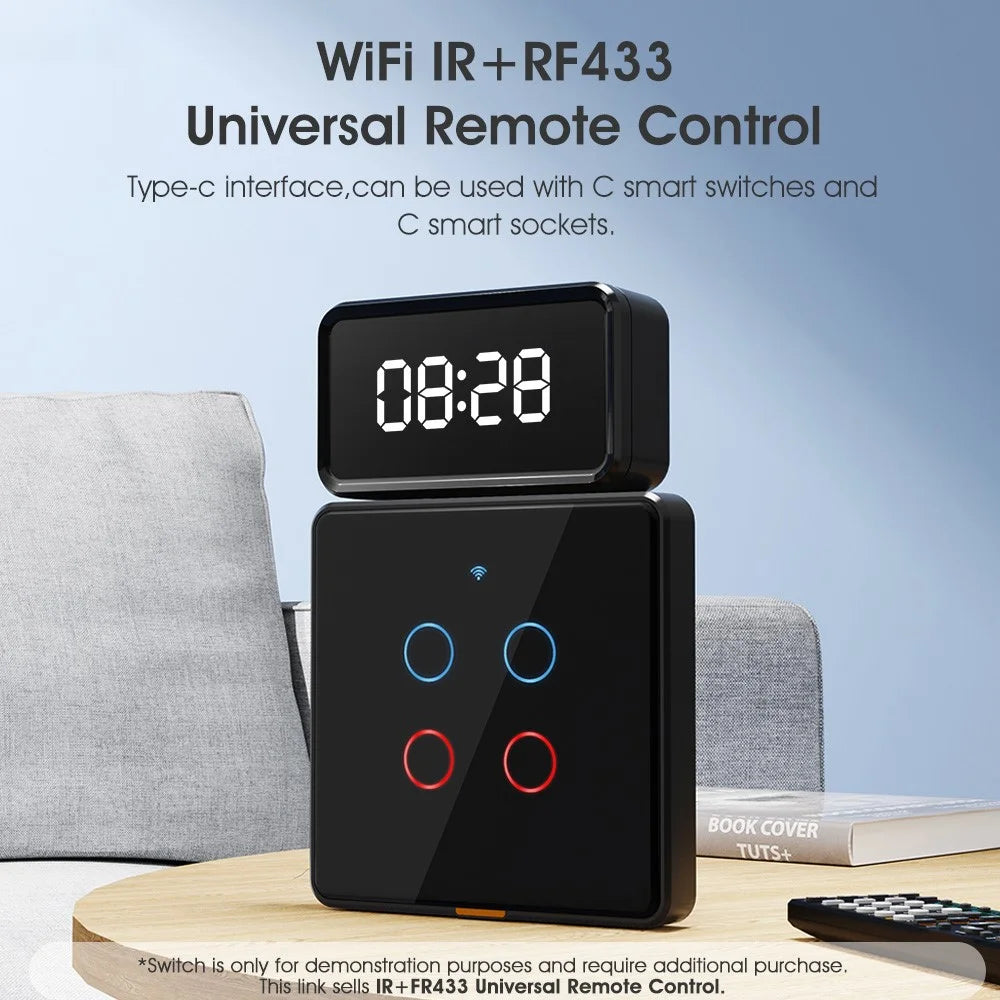

Installation Method (Using rotating Type-C design, with a 0.5m USB to Type-C data cable for multiple usage methods):

• 1. Insert the infrared remote control into the Type-C port on the top of the switch
• 2. Insert the infrared remote control into the Type-C port on the top of the socket
• 3. Install on the Type-C adapter
• 4. Install on the USB adapter
• 5. Use the free data cable to place it at a suitable height on the wall through the wall-mounting hole on the back
• 6. Use the free data cable to place the product at any position

Notes:

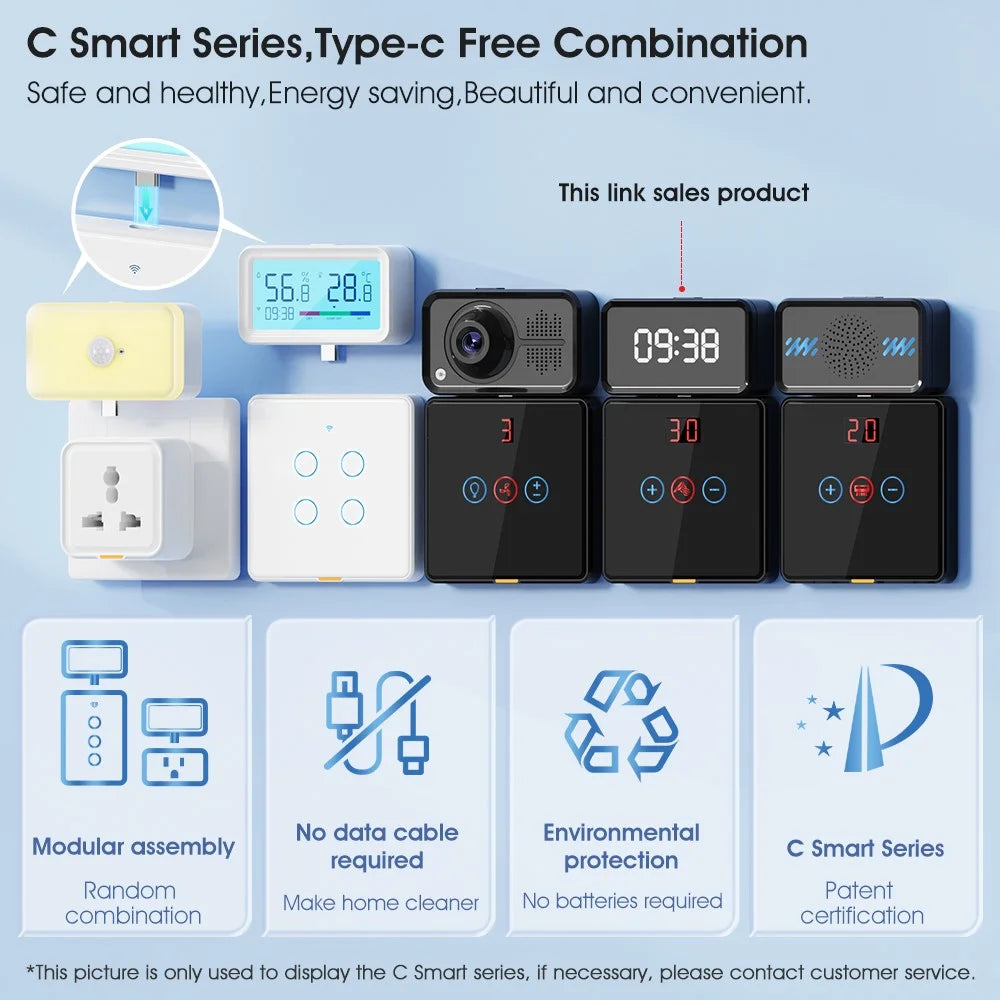

• The Type-C switches and sockets in the pictures or videos are only for display and need to be purchased separately. Only infrared remote control is included.
• Not compatible with household appliances using 2.4G remote control or Bluetooth-compatible remote control.
• Does not support 315 frequency band and rolling code.
• Bluetooth-compatible is only used for network signal connection, and Bluetooth-compatible cannot be used alone. WiFi+Bluetooth-compatible is more stable.
• If there are obstacles, the use distance will be shortened.
