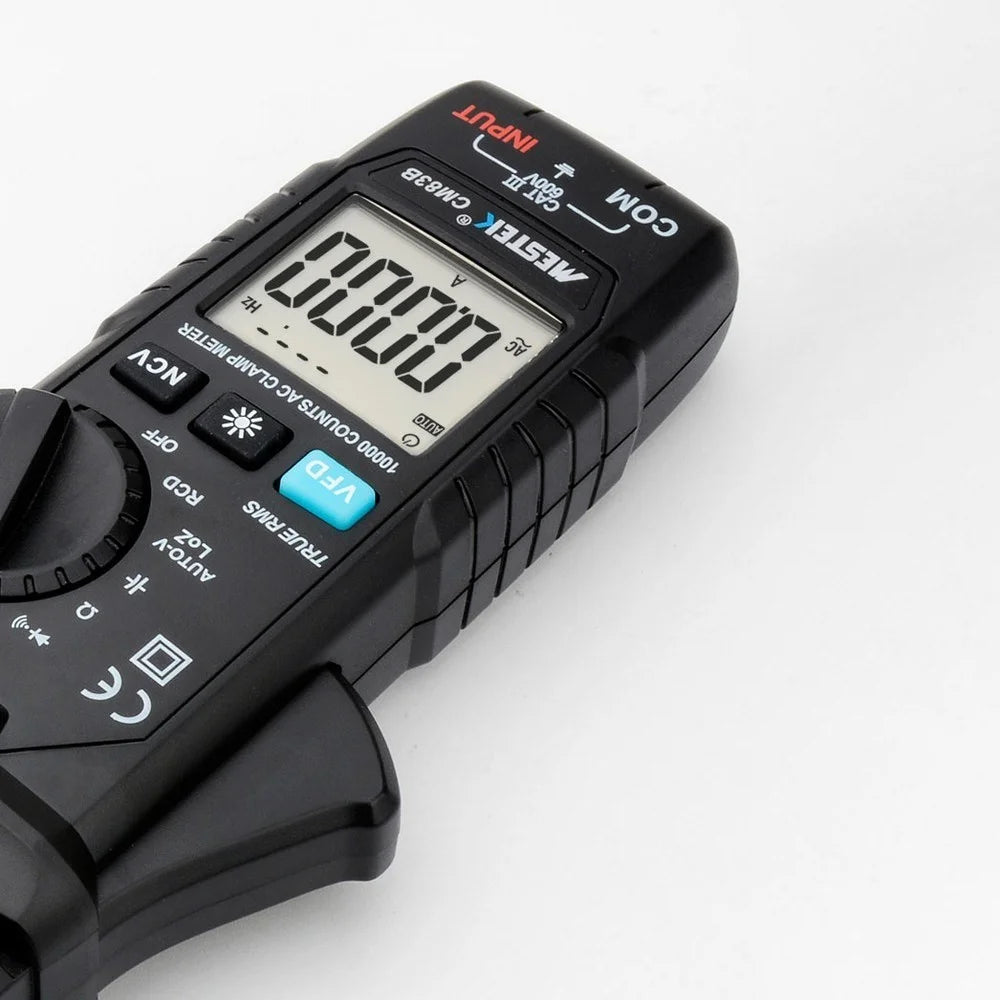

MESTEK Digital Clamp Meter 600A AC Current 600V AC/DC Voltage Capacitance Measurement Tester Multimeter Measurement Tool - CM83B Auto Range
R890
incl. VAT
Dispatches in 1 – 3 days
Nationwide delivery
2–4 working days to major metros
Secure checkout
Card, EFT, Ozow and PayFast
30-day returns
Unused, in original packaging
Description
Made of fine quality material, practical, easy to operate and use, wide application range, has a long service life.
- Useful function, fast response, simple operation, anti-burn design

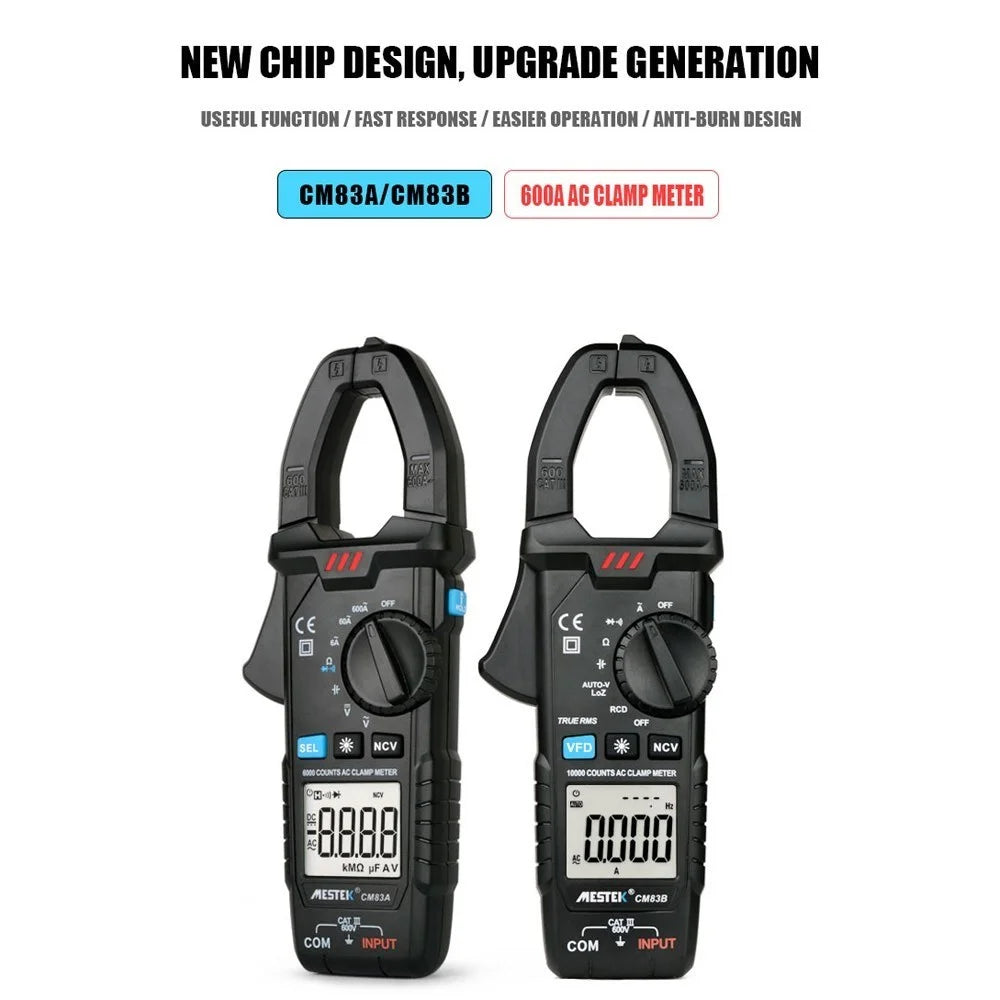

- CM83 series digital clamp meter meets different levels of measurement

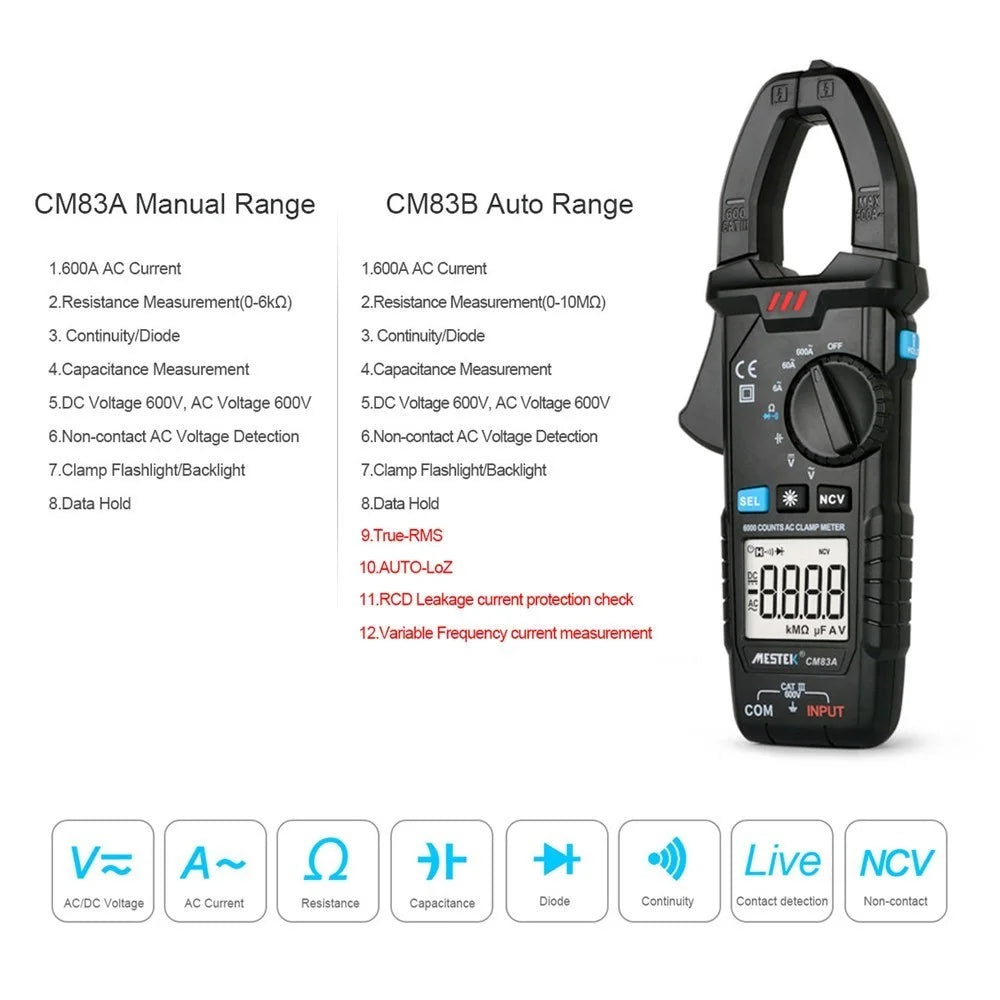

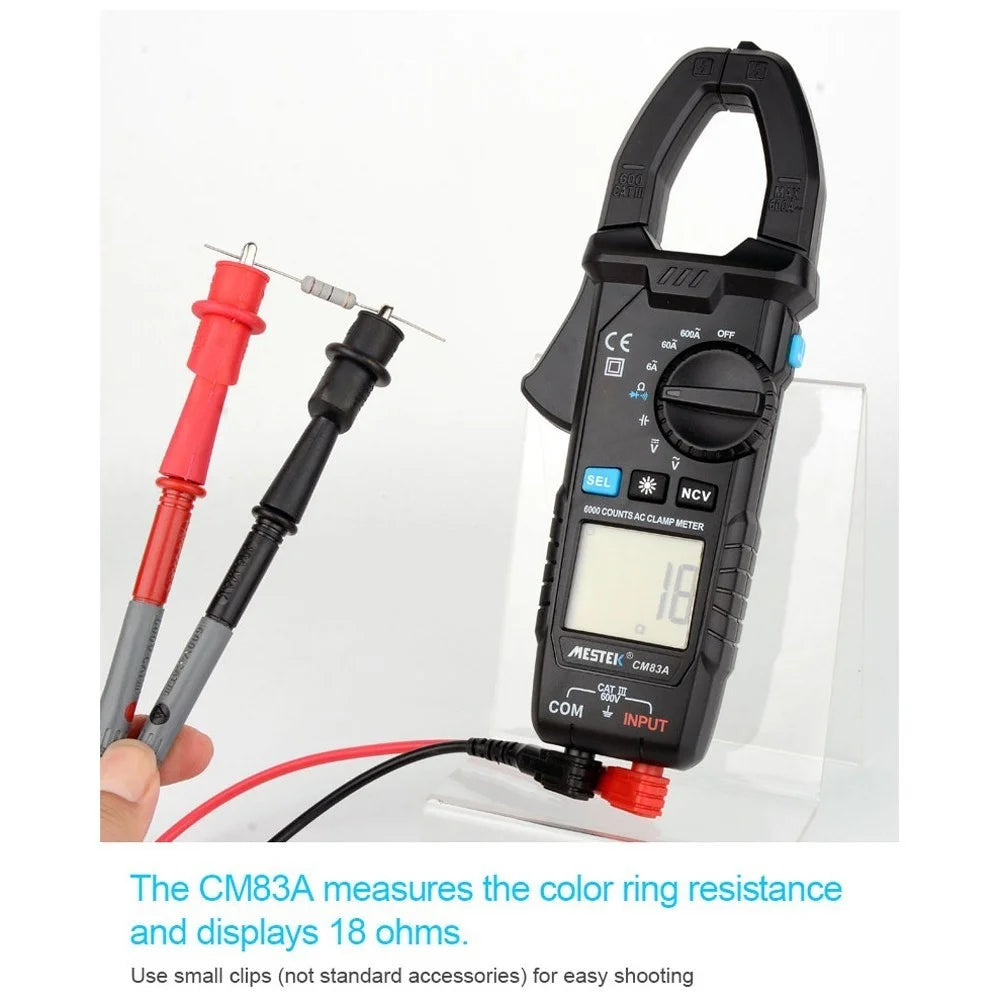

- CM83A function: manual range, 600A AC current, resistance measurement (0-6KΩ), continuity/diode, capacitance measurement, DC voltage 600V, AC voltage 600V, NCV non-contact AC voltage detection, clamp flashlight/backlight, data hold
- CM83B function: auto range, 600A AC current, resistance measurement (0-10MΩ), continuity/diode, capacitance measurement, DC voltage 600V, AC voltage 600V, NCV non-contact AC voltage detection, clamp flashlight/backlight, data hold, True-RMS, AUTO-LoZ, RCD leakage current protection check, variable frequency current measurement
- Can be used in a variety of test environments: electromechanical maintenance, air conditioning repairing, electrical maintenance, education and training

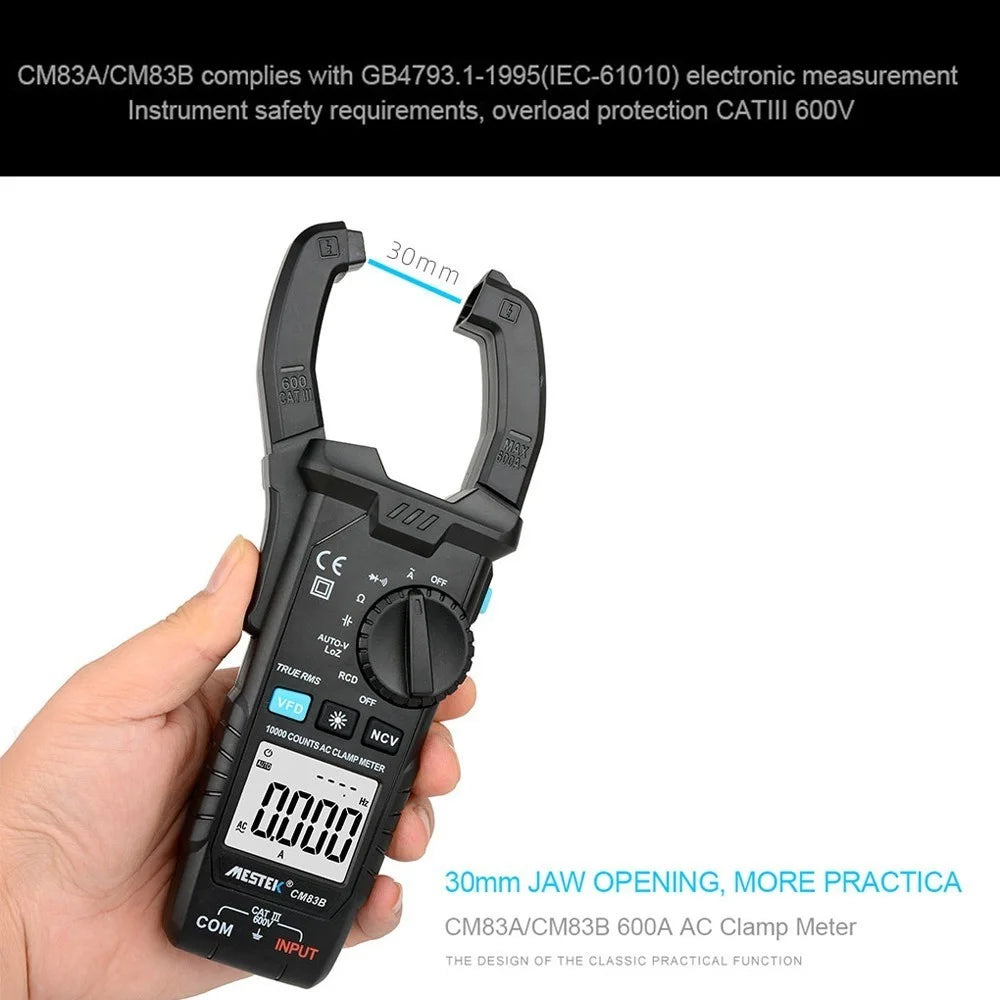

- 30mm jaw opening, more practical
- LCD large screen, high-definition digital display, fine quality backlight board with high contrast and full screen backlight design
Specifications:
- Material: ABS
- Model: CM83A, CM83B (optional)
- AC current (A):
- CM83A: 0~6A/60A/600A
- CM83B: 0~1A/10A/100A/600A
- Accuracy range: ±3.0%+6digits
- AC voltage (V):
- CM83A: 0~100V/600V
- CM83B: 0~100V/600V
- Accuracy range: ±1.0%+3digits
- DC voltage (V):
- CM83A: 0~100V/600V
- CM83B: 0~100V/600V
- Accuracy range: ±0.8%+3digits
- Resistance (Ω):
- CM83A: 0~6000Ω
- CM83B: 0~1KΩ/10KΩ/100KΩ/10MΩ
- Accuracy range: ±1.2%+3digits
- Capacitance:
- CM83A: 0~600μF/6000μF
- CM83B: 0~600μF/6000μF
- Accuracy range: ±4.0%+5digits
- Display counts:
- CM83A: 6000 counts
- CM83B: 10000 counts
- Manual/auto range:
- CM83A: manual range
- CM83B: auto range
- Continuity/diode:
- CM83A: auto distinguish
- CM83B: auto distinguish
- NCV (non-contact):
- CM83A: yes
- CM83B: yes
- Clamp flashlight:
- CM83A: yes
- CM83B: yes
- Backlight:
- CM83A: yes
- CM83B: yes
- Auto power off:
- CM83A: yes
- CM83B: yes
- Data hold:
- CM83A: yes
- CM83B: yes
- True-RMS:
- CM83A: no
- CM83B: yes
- RCD test:
- CM83A: no
- CM83B: leakage current switch protection test
- AUTO-VLoz:
- CM83A: no
- CM83B: low impedance voltage measurement
- VFD:
- CM83A: no
- CM83B: variable frequency current test
- Frequency:
- CM83A: no
- CM83B: test frequency with AC current range
- Working environment: 0~40 Celsius Degree (32~104 Fahrenheit); ＜80%RH
- Storage temperature: -10~50 Celsius Degree (14~122 )Fahrenheit; ＜70%RH
- Battery: 2 * AAA battery (not included)
- Item weight: 380g / 13.4ounce

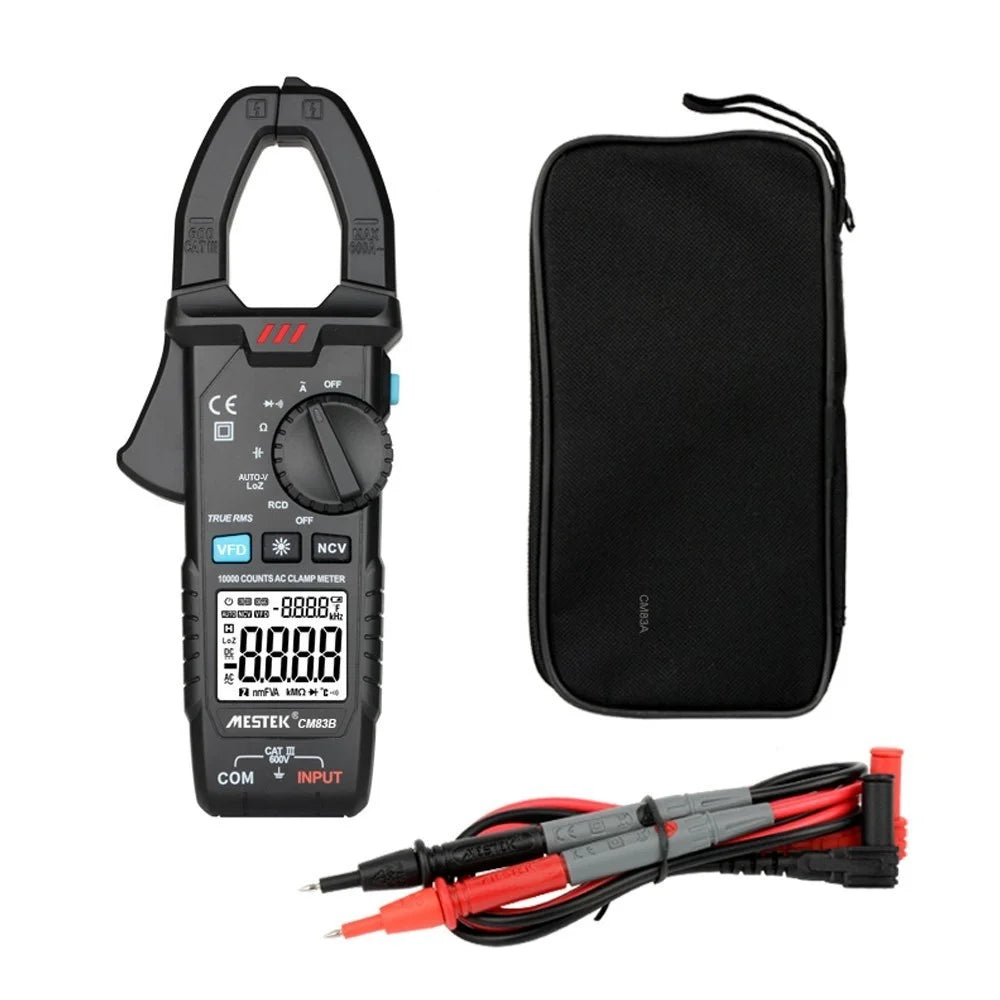

In the box
- 1 x Clamp Meter
- 1 x Pair of 10A Probe
- 1 x Bag
- 1 x English and Chinese User Manual
Specifications
- SKU
- TP10310349847B
- Package dimensions
- 21.8 × 11 × 5.2 cm
- Gross weight
- 0.45 kg
- Units per pack
- 49
- Dispatch
- 1 - 3 days
- Category
- Consumer Electronics › Test Equipment › Multimeter & Accessories
What’s in the box
- 1 Clamp Meter
- 1 Pair of 10A Probe
- 1 Bag
- 1 English and Chinese User Manual
