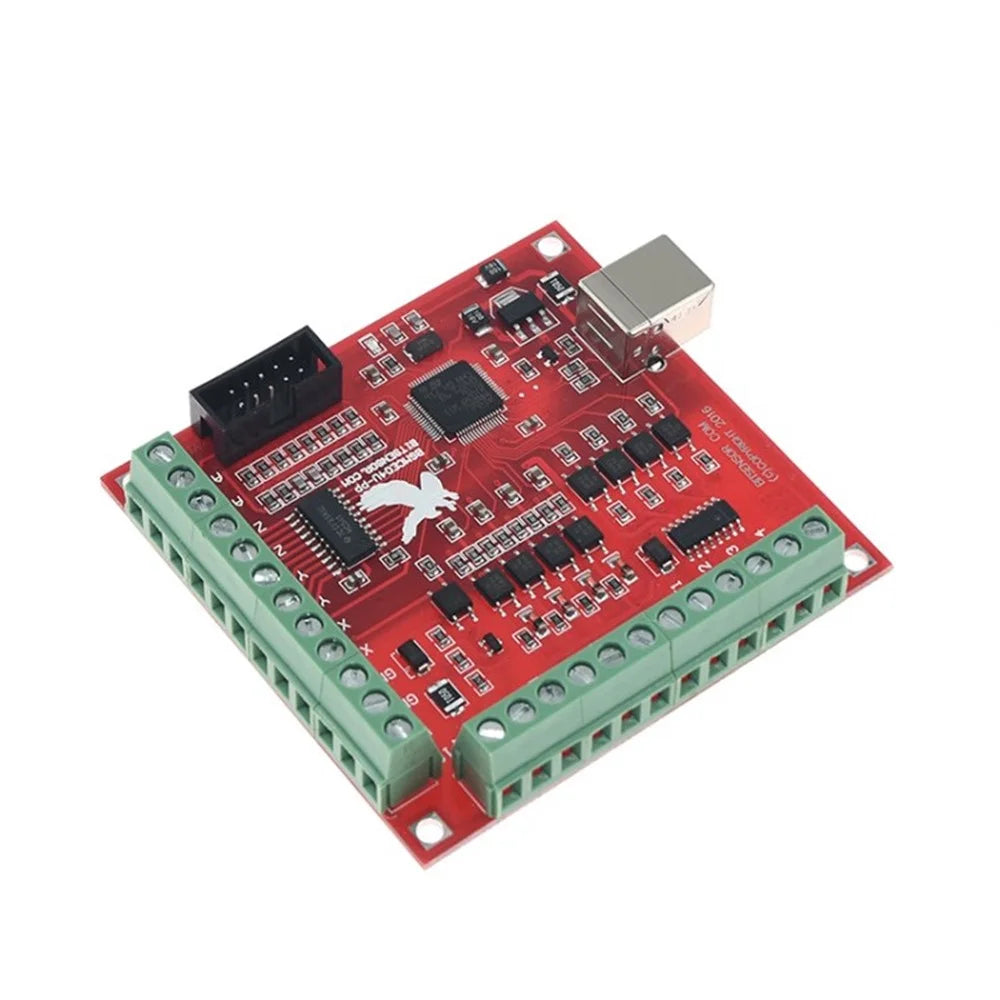

MACH3 Controller USB MACH3 100Khz Motion Controller Card Breakout Board for CNC Engraving Servo Stepper Motor

• Functions: The function of this motion control card includes that it supports an automatic probe tool, emergency input, limit switch, and supports for connecting electronic hand wheel

• 4-axis Linkage: The USB interface board supports 4-axis linkage, you can connect four stepper motor drives or servo drives. 4 general-purpose inputs, you can connect the limit switch, estop switch, probe switch, back to zero

• Use: The maximum step-pulse frequency of the motion control card is100KHz, which is very suitable for CNC Engraving, Servo Motor, Stepper Motor Servo motor

• Advantage: The motion controller needs to use external 24V DC power to isolate USB and external ports, and to make the system more stable. And it has a 0-10V output port. You can use MACH3 software to control the spindle motor speed

• Drive Output Interface: The four general-purpose isolated relay drive output interfaces can drive four relays for controlling the spindle starts, forward rotating and reverse rotating pumps and other devices

Specification:

• Product: MACH3 controller

• Material: PCB
