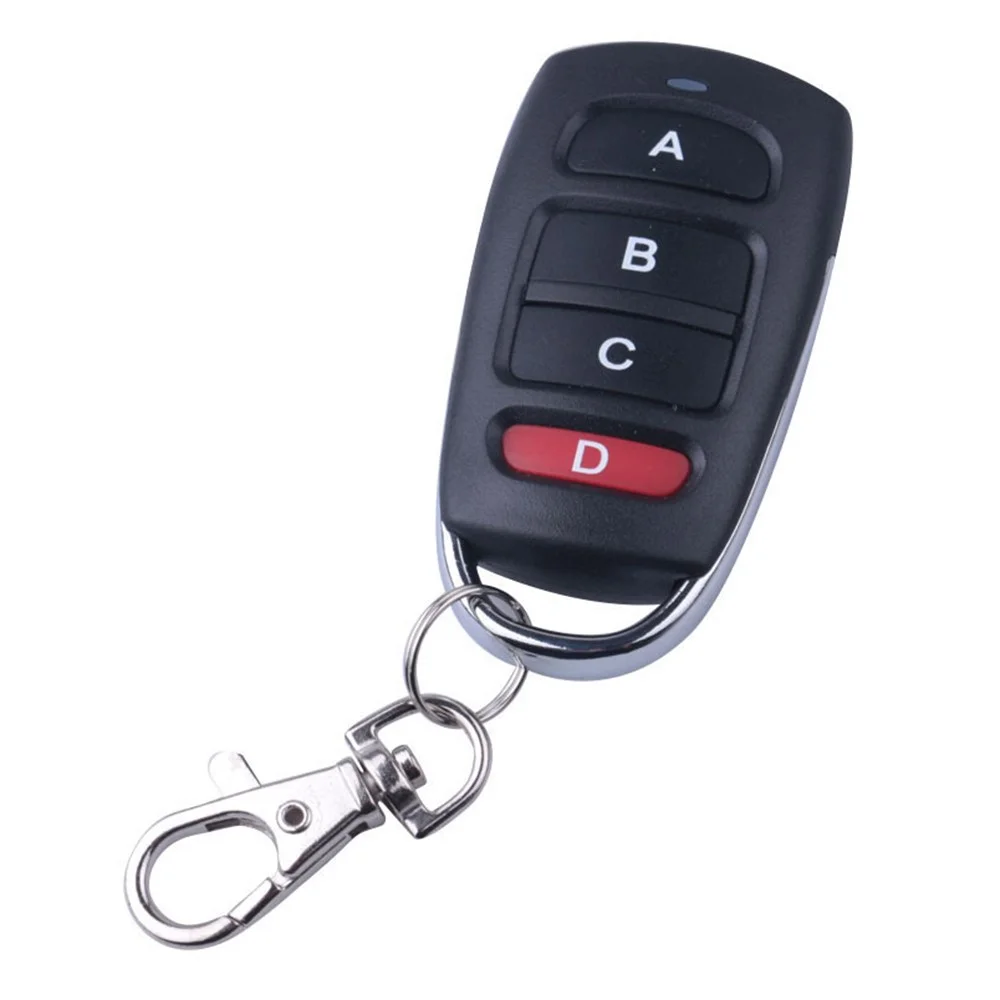

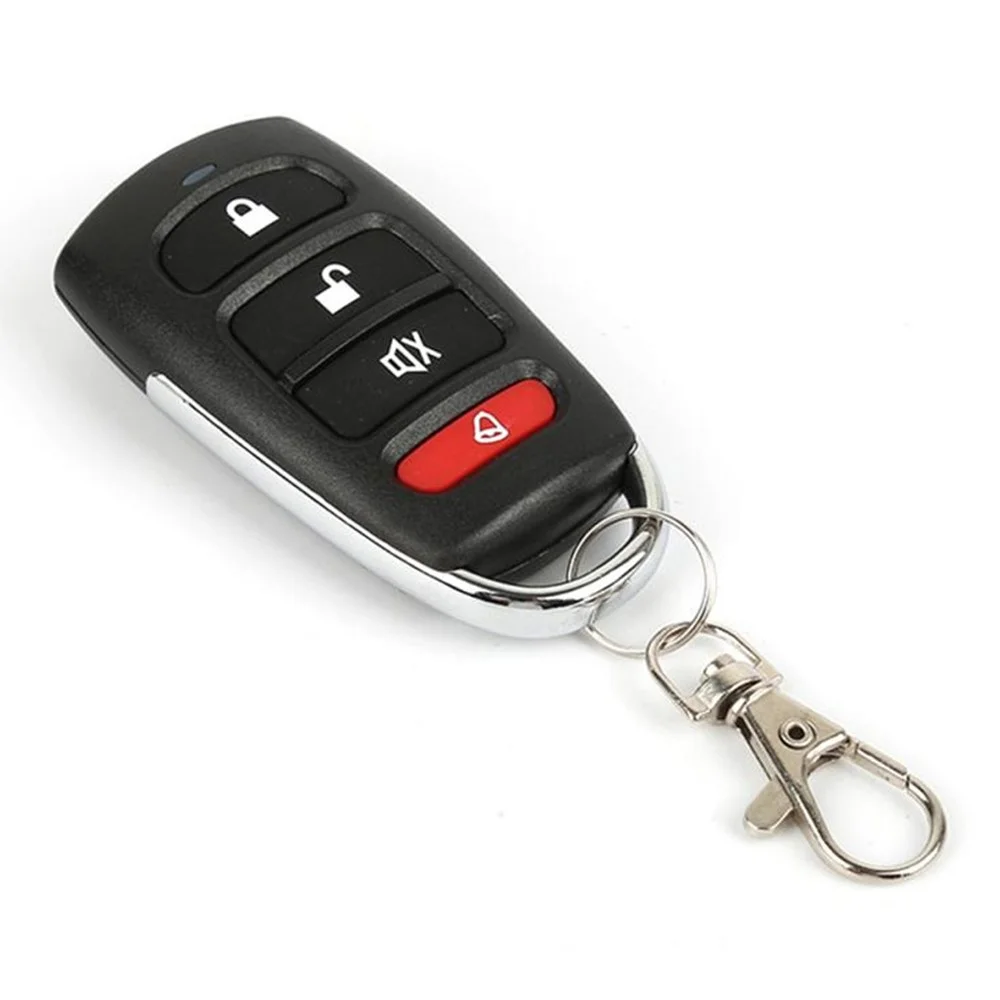

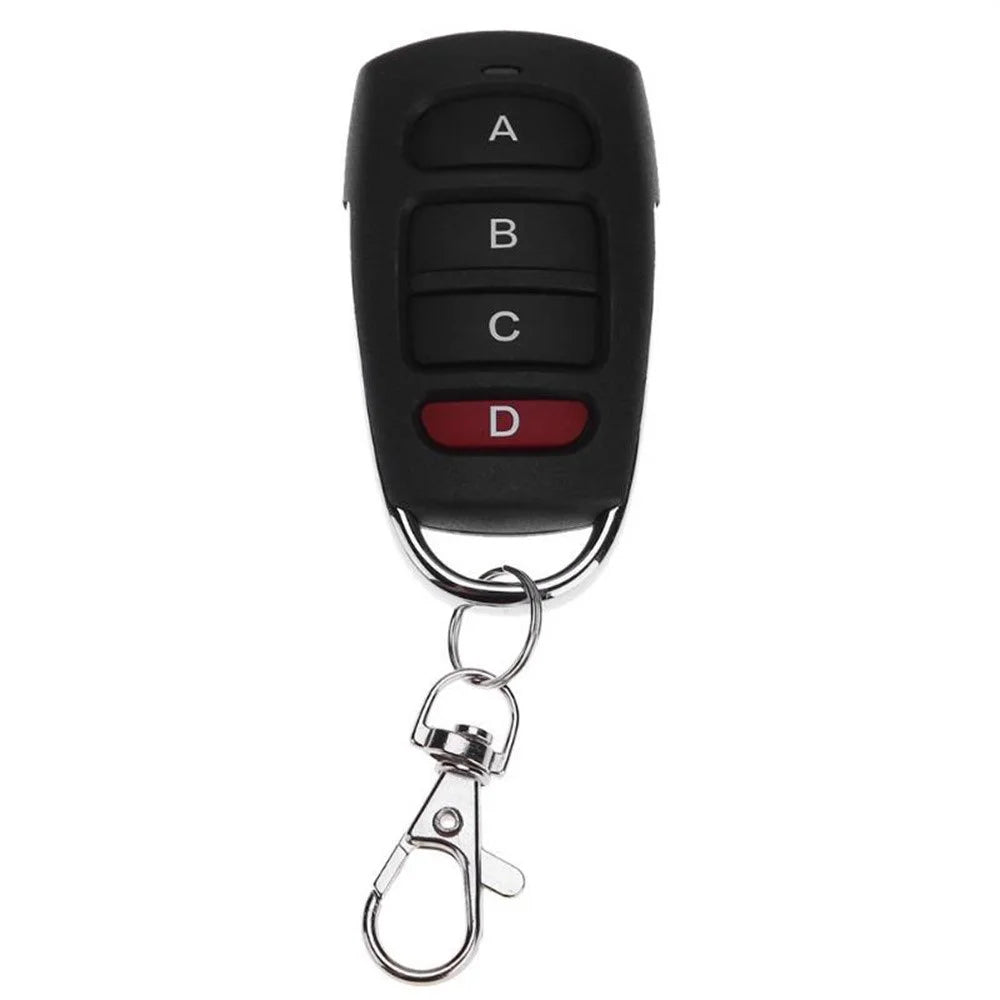

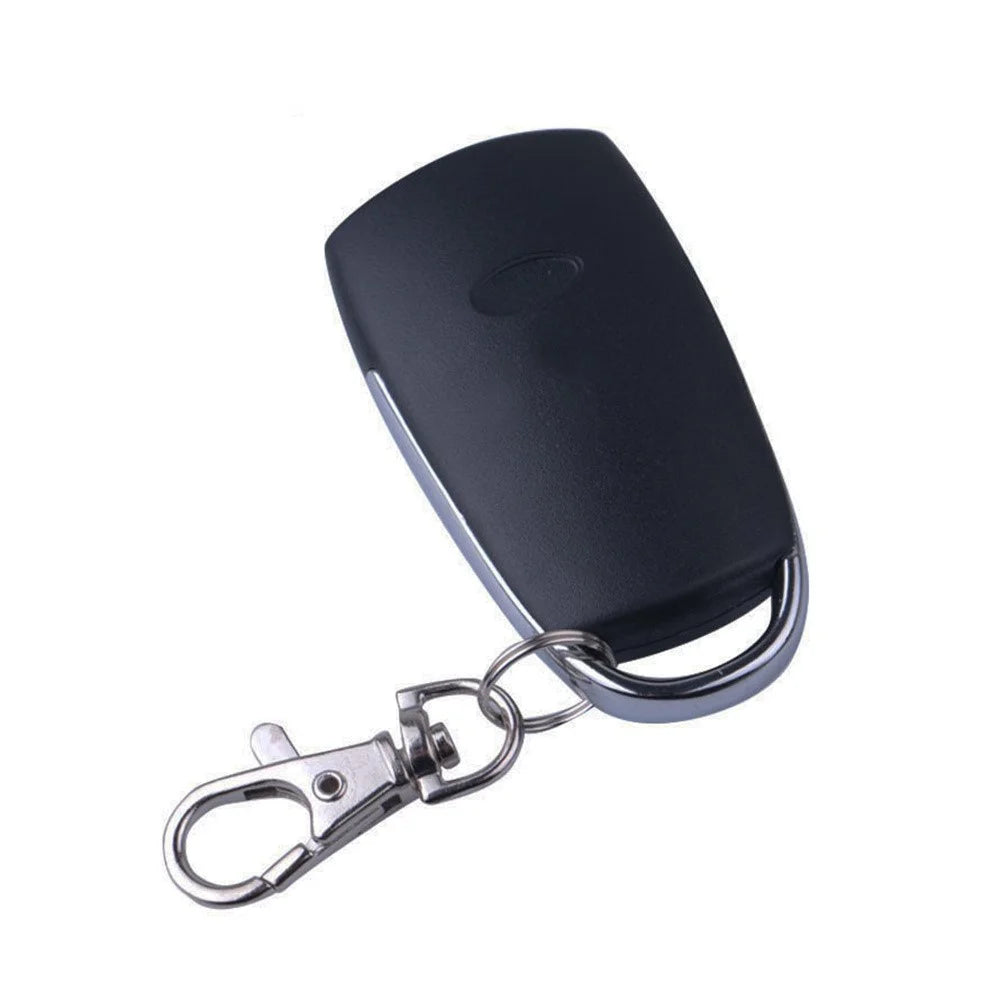

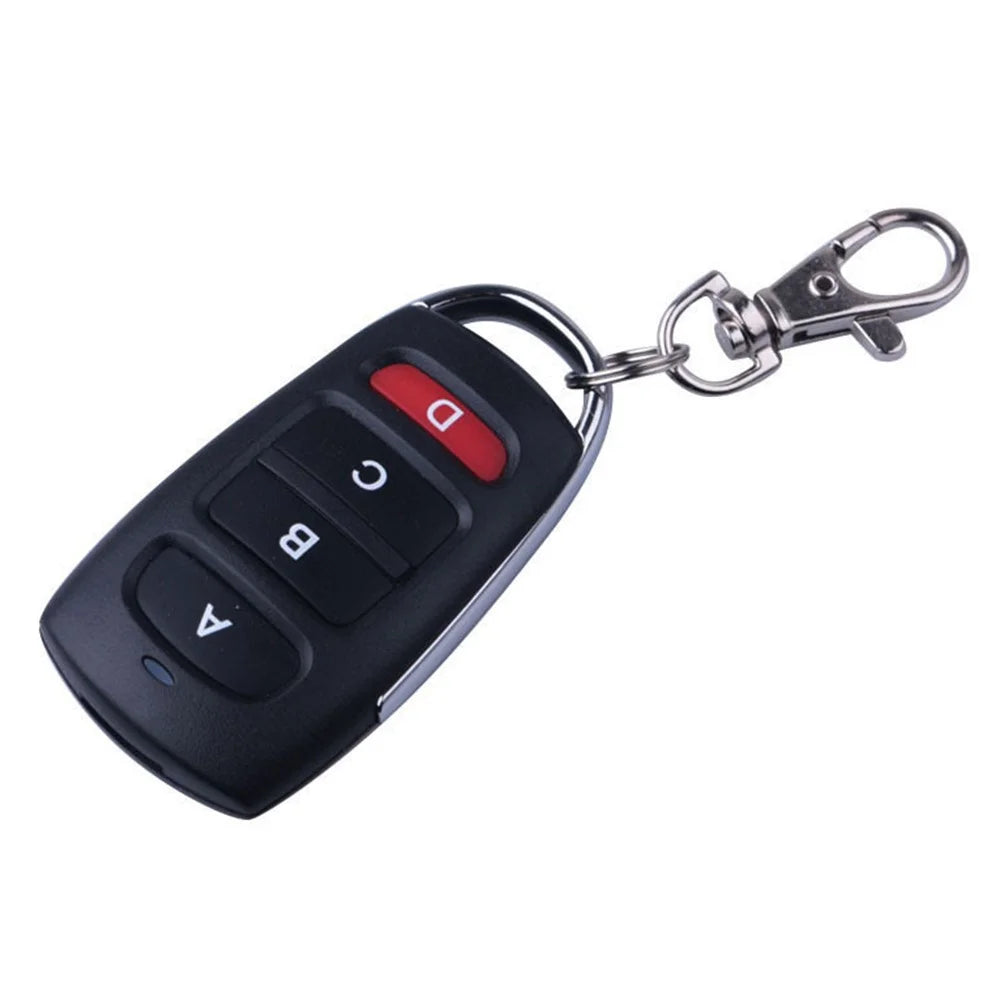

LZ-030 433MHz Universal Wireless Remote Control Copier Key Cloning 4 Button Electric Garage Gate Door Key - ABCD

• 【Universal Remote Cloning】Compatible with 433MHz frequency devices, capable of copying and learning codes from various garage doors, rolling shutters, and access control systems.

• 【Multi-Chip Compatibility】Supports cloning of multiple chip types including 2260, 2262, PT2264, 5326, 527, 1527, 2240 series and many popular brands like HCS series and learning code remotes.

• 【Long Range Transmission】Achieves 100-150 meter transmission distance in open areas with 10mW radiation power for reliable remote control operation.

• 【Easy Copy Operation】Simple two-step process: clear existing codes by pressing two buttons simultaneously, then copy new codes by placing remotes close together and pressing corresponding buttons.

• 【Compact Keychain Design】Lightweight 30-gram design with metal keychain attachment for convenient portability and everyday carry.

• 【Wide Application Range】Perfect for controlling electric gates, garage doors, rolling shutters, LED lights, car alarms, and various access control systems.

Specifications:

• Working Frequency: 433MHz
• Power Supply Type: DC 12V (CR2032 Battery x1)
• Working Current: 10mA@3V
• Radiation Power: 10mW@3V
• Remote Control Distance: 100-150m (Open Area)
• Encoder Types: Fixed Code, Learning Code, Partial Rolling Code, Program Code
• Material: ABS Plastic
• Product Dimensions: 5.8 x 3 x 1.2 cm
• Number and Type of Buttons: 4 Function Keys
• Compatibility: 433MHz Universal Remote Systems
• Clearing code method: Press both the unlock and lock buttons simultaneously (for some cases, it's the up and down buttons). The LED indicator light will flash three times. Release any one of the pressed buttons, keep the other one pressed, and click the released button three times. The LED indicator light will enter a rapid flashing state. At this point, all the data in the memory will be cleared. After clearing the data, the remote control, regardless of which button is pressed, the LED indicator light will remain off.
• Copying method: Hold the original remote control in one hand and the copying remote control in the other hand. Keep the two remote controls as close as possible. (Ideally, place the two remote controls next to each other on the table without any space between them.) Press the desired copying buttons separately. After the LED indicator light flashes rapidly three times and then rapidly flashes again, the copying is successful. The operation methods for other buttons are the same. Some remote controls have a low transmission power. It is recommended to operate the original remote control and the copying remote control back-to-back for better copying. If there are interference in the operation environment, avoid the interference and operate away from it. If the copying does not work well after clearing the code, re-copy it.
