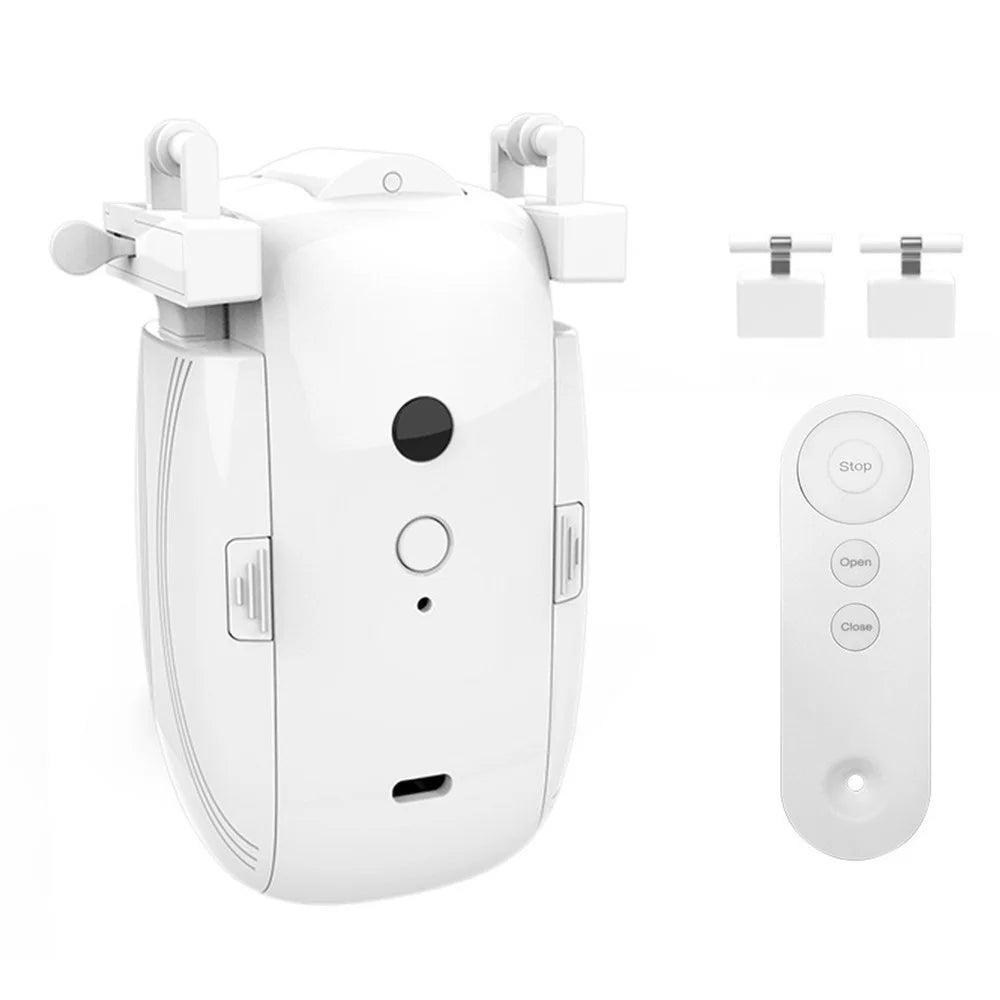

LY-1672 Single Opening Smart Curtain Robot for U Rail, I Rail Remote Control Electric Curtain Opener

• Suitable for 2 kinds of rail (U-shape/I-shape), home curtains are applicable
• Hang and use, ordinary curtains become smart curtains in a second
• Lightweight and easy to hang, two accessories can be matched with a U/I-shape track
• Built-in 4000mAh, curtain machine low-power operation, to solve the charging troubles, 6 months of long companionship

Specifications:

• No.: LY-1672
• Product speed: 10m/s
• Type: Remote control single-open I/U shape
• Battery capacity: 4000mAh
• Voltage: 3.7V
• Power: 14.8WH
• Endurance: 6 months Charging time: 8 hours
• Support rail type: U-shape rail, I-shape rail
• U-shape rail: bottom slotted width 0-15mm, bottom ring width 0-5mmm
• I-shape rail: bottom width of the track 5-40mm, bottom hanging ring width 0-5mm

Installation condition:

U-shape rail:

• 1. The width of the groove on the low side of the rail is less than or equal to 15mm, the distance from the upper surface of the bottom of the ring to the bottom surface of the rail: 3-32M, the thickness of the ring is not more than 5mm.
• 2. In addition to straight rail, curtain robot also supports arc type.
• 3. For shaped rail, in the turn to meet the conditions: from the starting point of the turn to the arc tangent reverse corresponding to the distance from the wall is greater than or equal to 25cm
• 4. Does not support the profiled track with cornering device

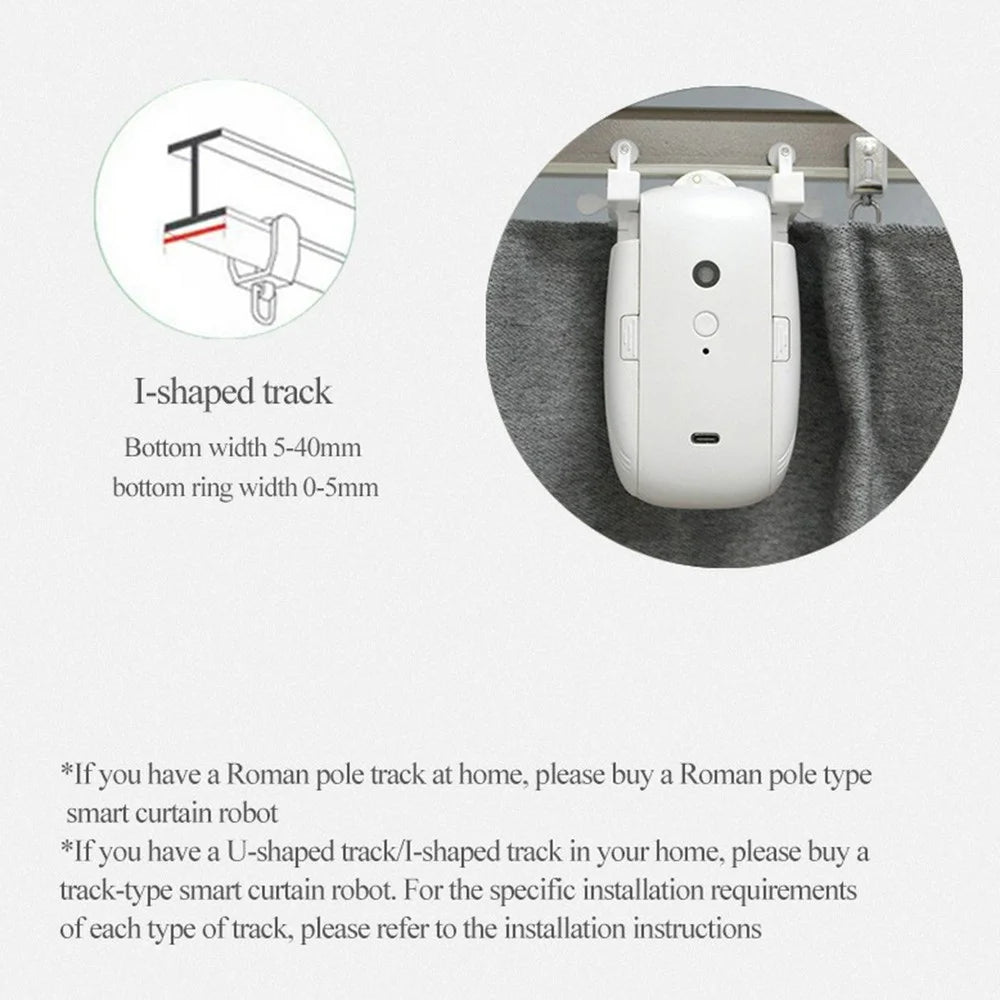

I-shape rail:

• 1. The I-rail needs to ensure that the front is flat, the distance from the upper surface of the bottom of the hook of the ring to the bottom of the rail is 3-32m, and the thickness of the ring is not more than 5rm.
• 2. In addition to straight rail, curtain robot also supports arc type.
• 3. For shaped rail, the turn needs to meet the conditions: from the starting point of the turn to the arc tangent reverse corresponding to the distance between the wall being greater than or equal to 25cm
• 4. Does not support the shaped track with a cornering device.

Installation Notes:

• 1. In order to ensure the installation effect, please wipe the surface of the track before installing the curtain machine.
• 2. If you want to use a curtain robot to control the curtains on double track curtains at the same time, you need to install the curtain robot for the front and back curtains separately, and the distance between the front and back track edges should be more than or equal to 5mm. If the distance between the front and back track is less than 5mm, the curtains may interfere with each other when they are opened and closed.
• 3. It is not recommended to install the curtain robot on a track with a long service life, due to the aging of the track or rings, the material is fragile, which may cause the curtains to fall off or fall down.
• 4. If the height of the curtain itself is too high to cause the curtain fabric dragged to the bottom, in order to ensure the product experience, please roll up the bottom edge of the curtain, to no longer contact with the bottom surface.
• 5. In order to ensure the actual effect of the product, please scan the QR code in the manual to watch the product teaching video. Follow the instructions to install and use the product.
