Description

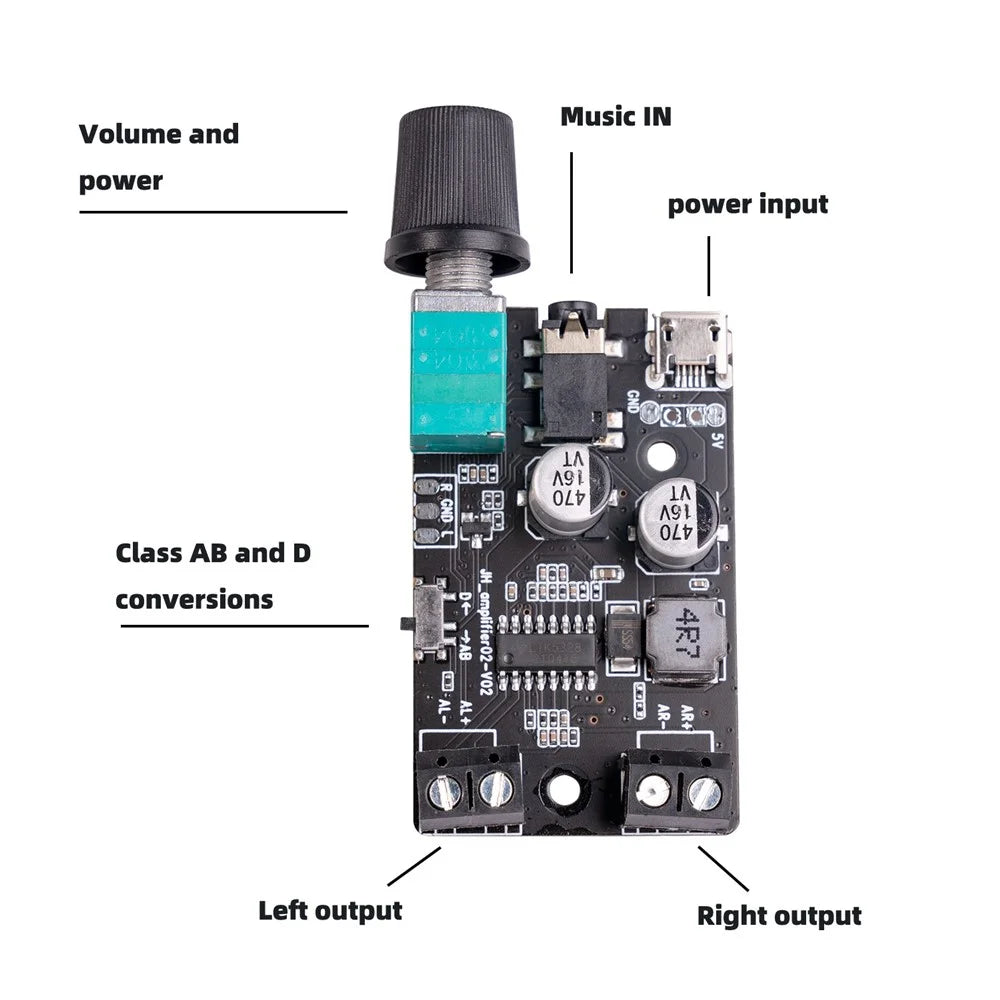

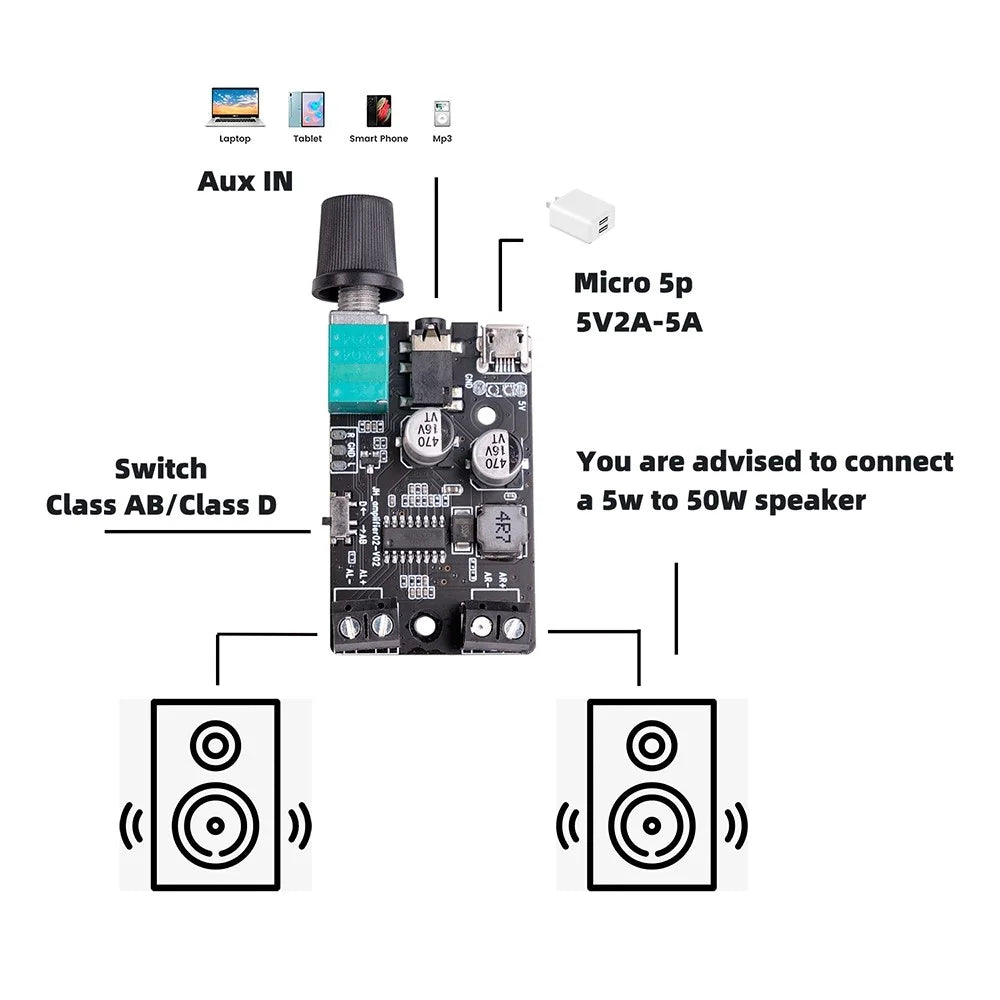

- Output interface: speaker output port x 2 groups (one group for left and right channels), it is recommended to connect 4 ohm 5W-50W power speakers for use
- Users can freely switch between CLASS AB or CLASS D working modes according to sound preference and power collocation
- The power switch and the volume knob are integrated. When the sound is adjusted to the minimum, turn it counterclockwise. When you hear a clicking sound, it is turned off. Turn clockwise to turn it on
- Powered by a Micro 5p interface, an ordinary mobile phone charger 5V 2A charging cable can be used
- The audio signals of mobile phones, laptops, and tablets can be connected to the output of the stereo power amplifier through a 3.5mm audio cable
- The power switch and the volume knob are integrated. When the sound is adjusted to the minimum, turn it counterclockwise. When you hear a clicking sound, it is turned off. Turn clockwise to turn it on
Specifications:

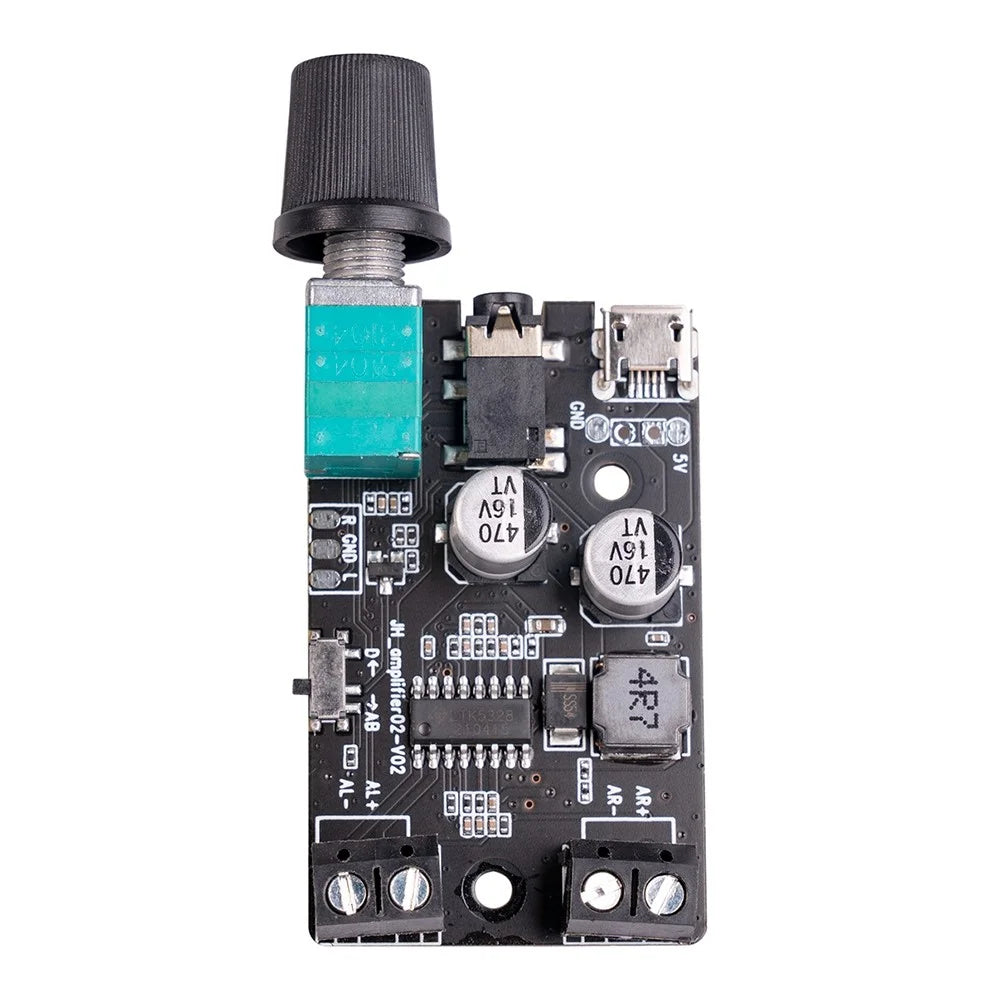

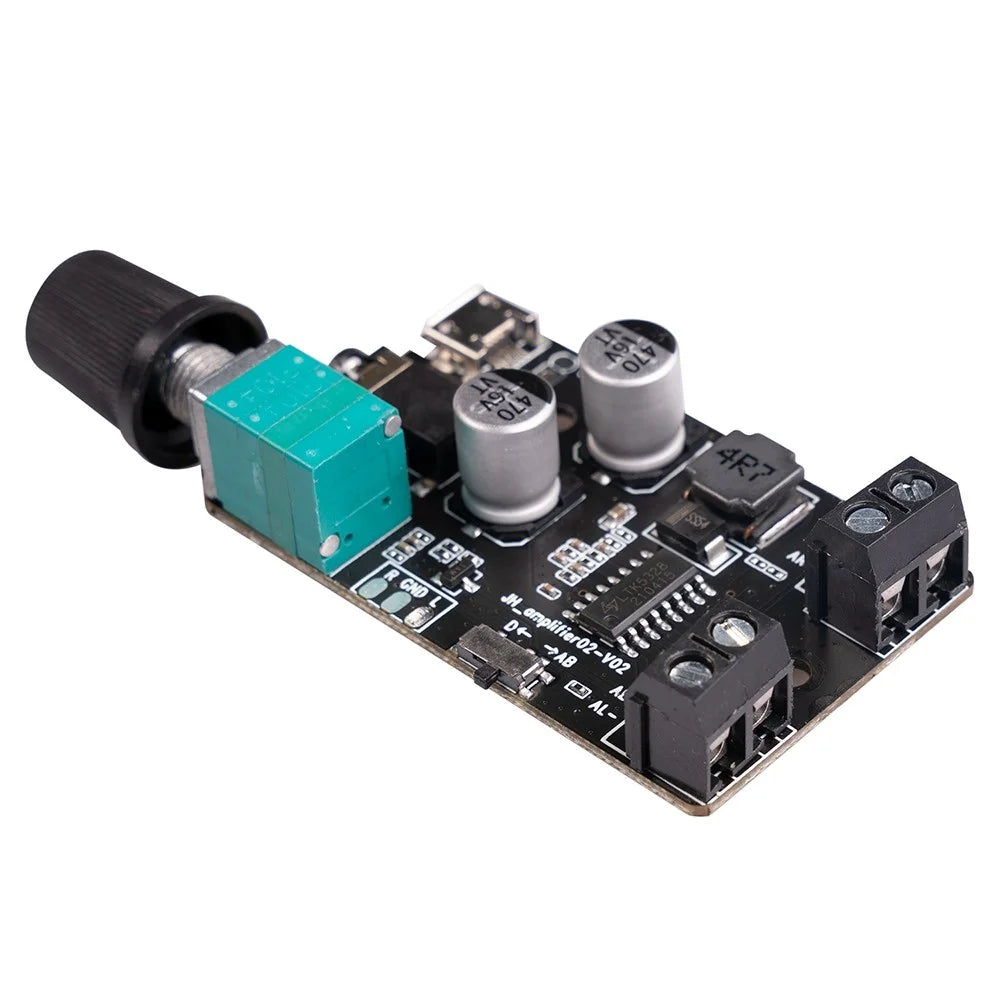

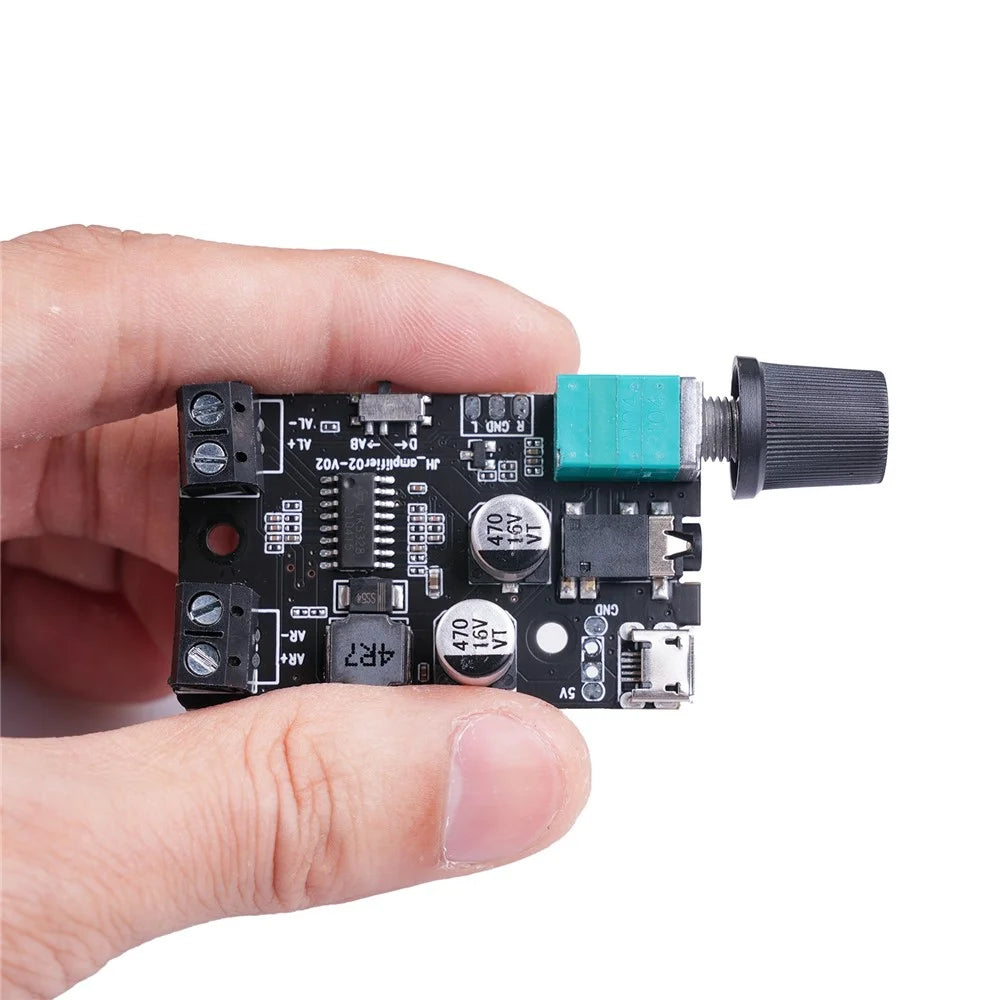

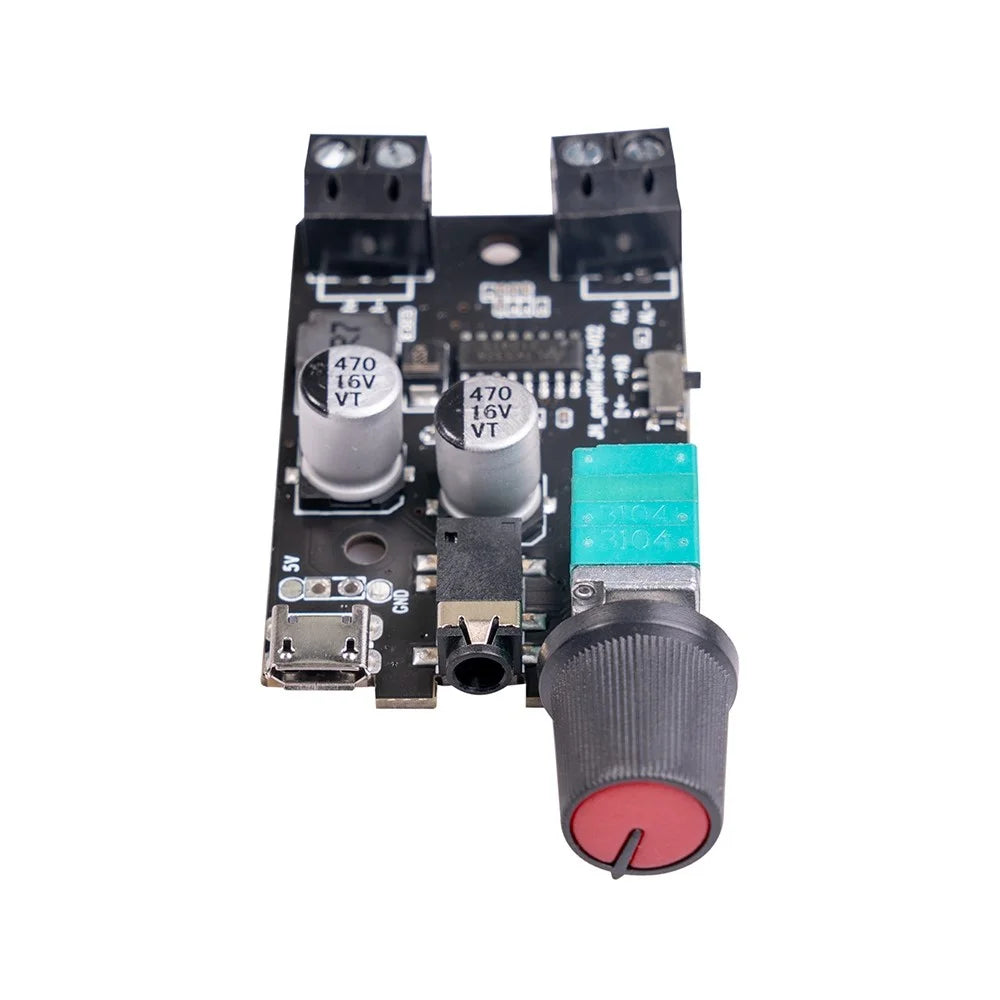

- Product name: LTK5328 Stereo Power Amplifier Board

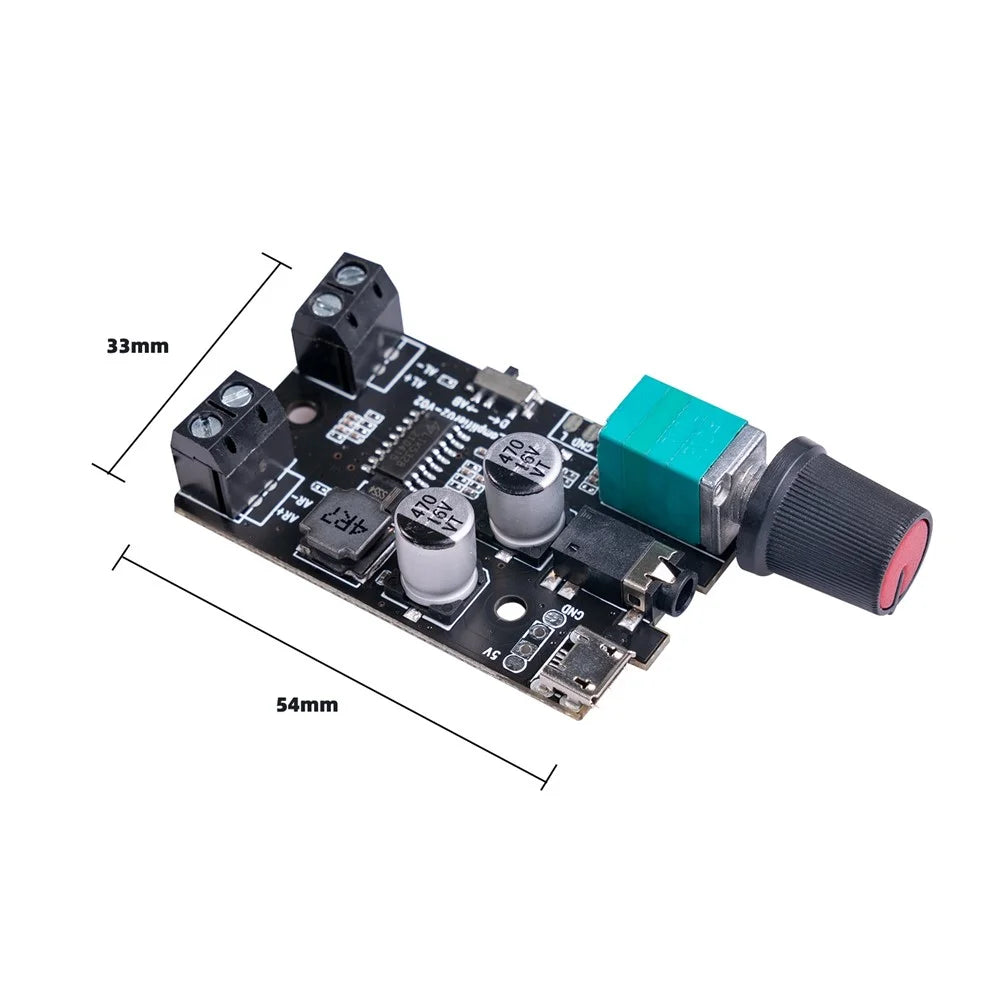

- Product size: 54 x 33 x 15mm
- Product parameters: 4Ω2x5W
- Power interface: Micro 5p (reserved 2.5mm welding port)
- Input voltage: 3.7V-5V
- Amplifier working mode: switchable class AB and class D
- Signal-to-noise ratio: 90db
- THD+N:-70db
- Crosstalk: -86db
- DNR: 91db
In the box
- 1 x Stereo Amplifier Board
- 1 x 0.7m USB Power Cable
- 1 x 1m 3.5mm Audio Cable
- 1 x Chinese Manual
Specifications
- SKU
- 689901067A
- Colour
- As Shown
- Package dimensions
- 8 × 5 × 2 cm
- Gross weight
- 0.02 kg
- Units per pack
- 952
- Dispatch
- 1 - 3 days
- Category
- Consumer Electronics › Home Audio & Video › Amplifiers
What’s in the box
- 1 Stereo Amplifier Board
- 1 0.7m USB Power Cable
- 1 1m 3.5mm Audio Cable
- 1 Chinese Manual
