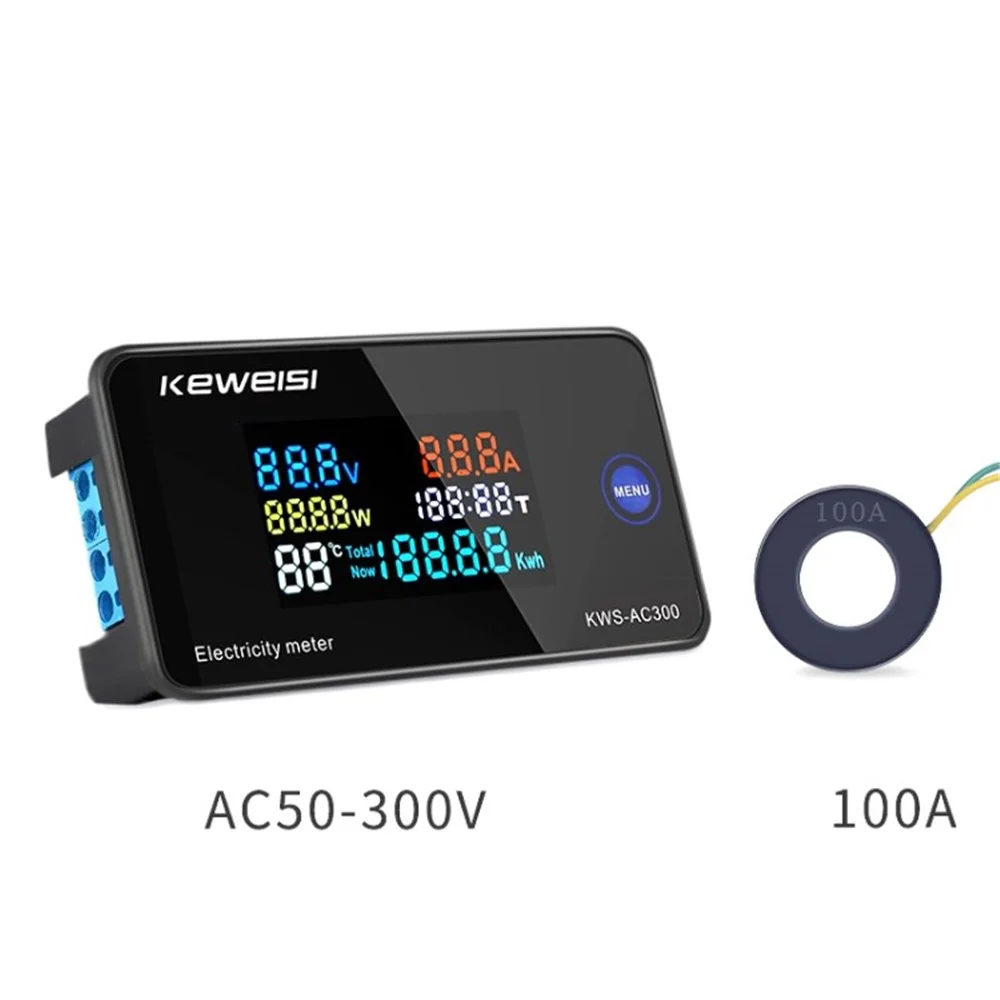

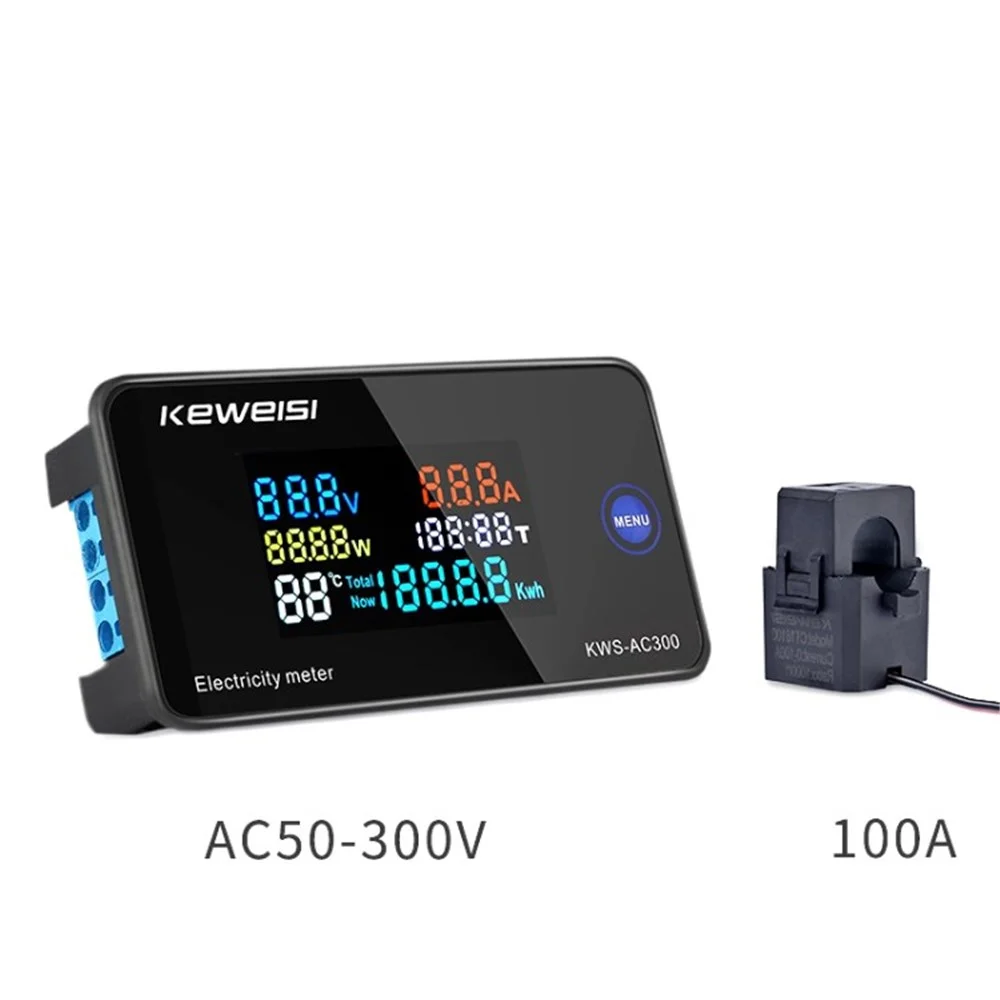

KEWEISI AC 50-300V Voltmeter Ammeter 0-100A KWS Power Energy Meter LAC Power Electricity Meter - AC300-20A

• It displays voltage current, power, iming, humily current energy, accumulated energy

• Power and üming can be reset

• Power and iming are combined with power-down memory

Specifications:

• Model: AC300-20A, AC300-100A

• Voltage: AC 50-300V

• Current: AC300-20A: 0-20A; AC300-100A: 0-100A

• Power: AC300-20A: 0-3000W; AC300-100A: 0-30KW

• Capacity: 0.01-19999Kwh

• Timing: 0-200H

• Temperature: -10°C to 99°C

• Rated frequency: 45-65Hz

Instructions:

• Click the MENU button on the panel to view the current energy and accumulated energy.

• Electric energy and timing reset method: long press the MENU button for 5 seconds, the numbers in the timing area will flash, and then click the button to select the timing, current electric energy and accumulated electric energy to clear. When the numbers are flashing, double-tap the button to reset. Press and hold the button for 5 seconds to save the setting.
