KAEMEASU KM-DM04A Auto Range High Precision Smart Multimeter 20000 Count Display AC / DC Digital Tester, without Battery - 1
KAEMEASU KM-DM04A Auto Range High Precision Smart Multimeter 20000 Count Display AC / DC Digital Tester, without Battery - 1

KAEMEASU KM-DM04A Auto Range High Precision Smart Multimeter 20000 Count Display AC / DC Digital Tester, without Battery

by Kaemeasu
$1,390.00




    Delivered in 10-15 Days.
    more info Orders from overseas warehouse are delivered to our customers within 10-15 working days. We have a dedicated team to keep things moving quickly, and we will keep you updated on your order via SMS or email.
    All-Inclusive Pricing.
    more info The price you see is the price you pay. Price includes any Customs, Insurance and Courier fees. Absolutely no hidden fees. We also take care of customs clearance.
    Hassle-Free returns For 7 Days.
    more info View our Return Policy for more info.

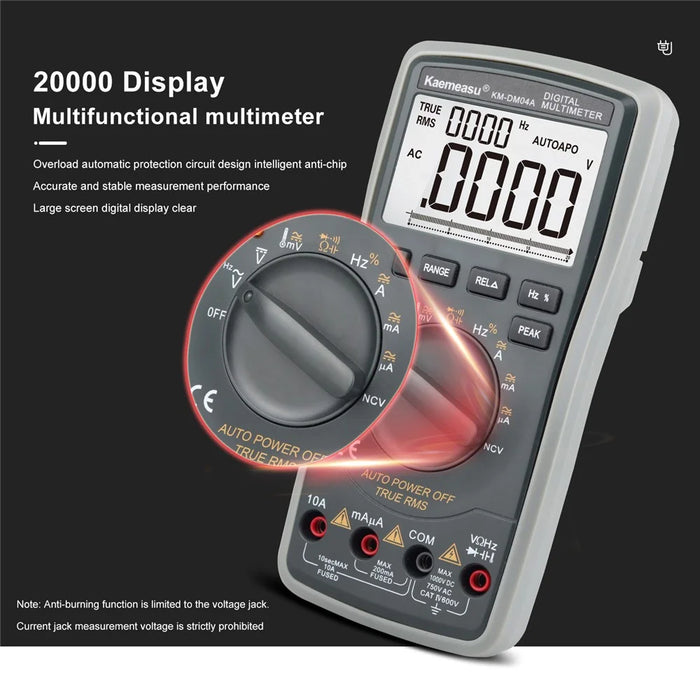

  • 20000 Display Multifunctional Multimeter: Overload automatic protection circuit design intelligent anti-chip. Accurate and stable measurement performance large screen digital display clear

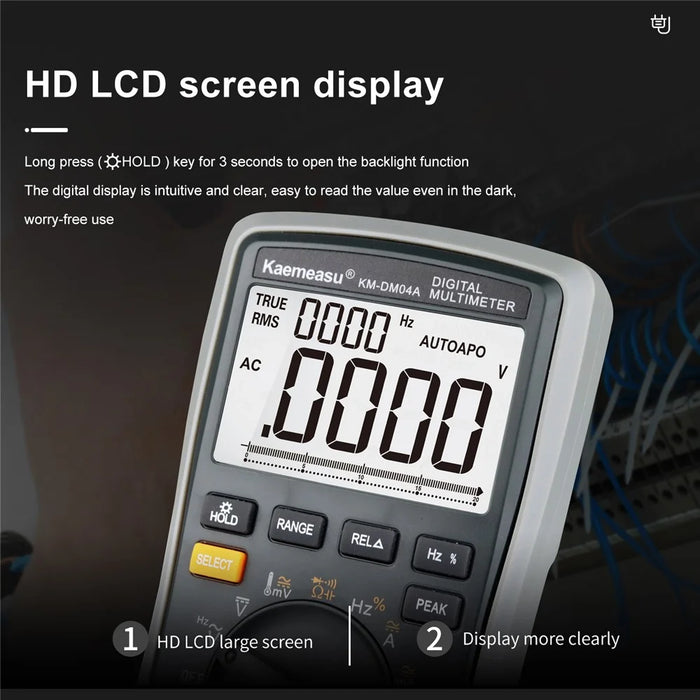

  • HD LCD Screen Display: Long press the (HOLD) key for 3 seconds to open the backlight function. The digital display is intuitive and clear, easy to read the value even in the dark, worry-free use

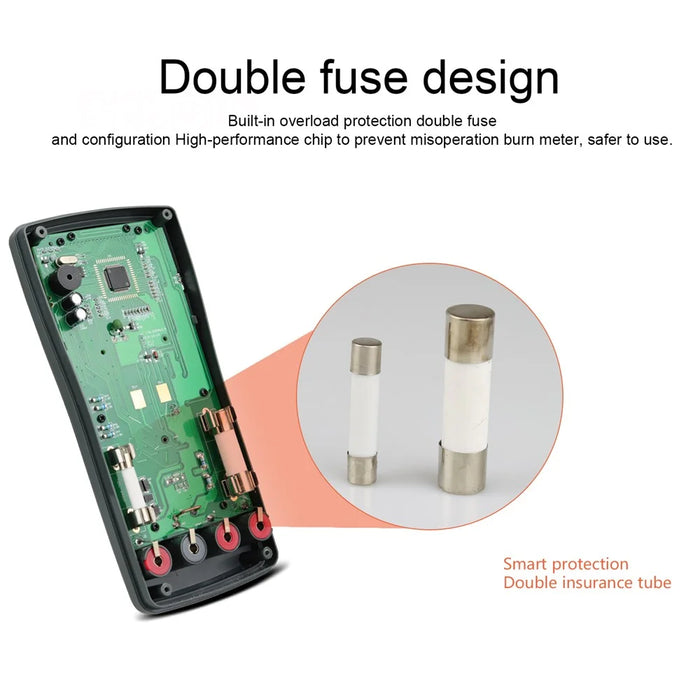

  • Double Fuse Design: Built-in overload protection double fuse and configuration High-performance chip to prevent misoperation burn meter, safer to use
  • Pen Design: Thicker and more durable, PVC is low temperature resistant, better toughness and Wear-resistant, thicker and more durable
  • Full Protection Anti-Drop Sleeve: Made of wear-resistant silicone feels comfortable and durable, prop-proof protective sleeve design, industrial grade wear-resistant

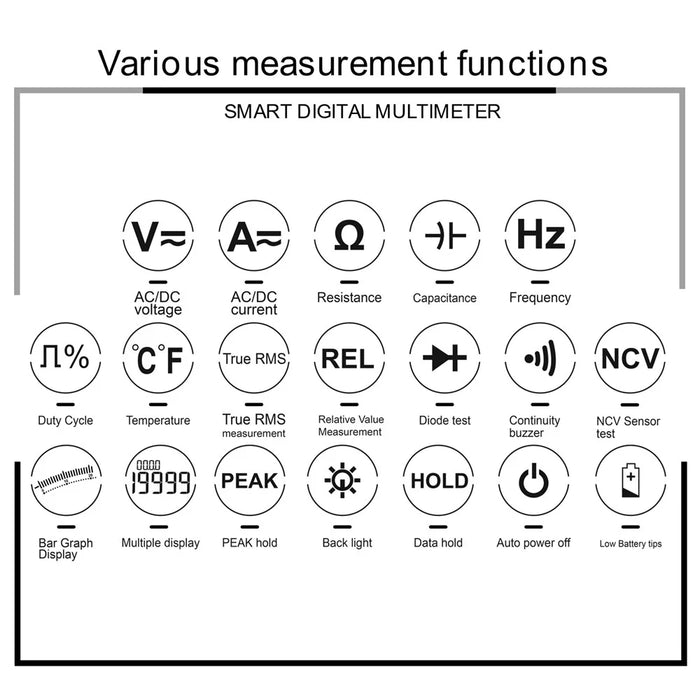

Functions:

  • Auto range
  • True RMS measurement
  • Diode testing
  • Continuity test
  • Relative value measurement
  • Voltage alarm
  • Data retention
  • Maximum value maintained
  • LCD backlight
  • Voltage undervoltage prompt
  • Automatic shut-down
  • 20-segment analog stick display
  • Multiple displays

Specifications:

  • DC voltage: 200mV/2V/20V/200V/1000V
  • AC voltage: 200mV/2V/20V/200V/750V
  • DC current: 200uA/2000uA/20mA/200mA/10A
  • AC current: 200uA/2000uA/20mA/200mA/10A
  • Resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ
  • Capacitance:20nF/200nF/2uF/20uF/200uF/2000uF
  • Temperature:(-20~1000)℃(-4~1832)℉
  • Frequency:10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/20MHz
  • Duty cycle: 0.1~99%
  • Powered by: 9V*1 Battery (not included)

In the box

  • 1 x Multimeter with Silicone Case
  • 2 x Test Pen
  • 1 x Test Cable
  • 1 x English Instruction Manual
  • Other items not included
