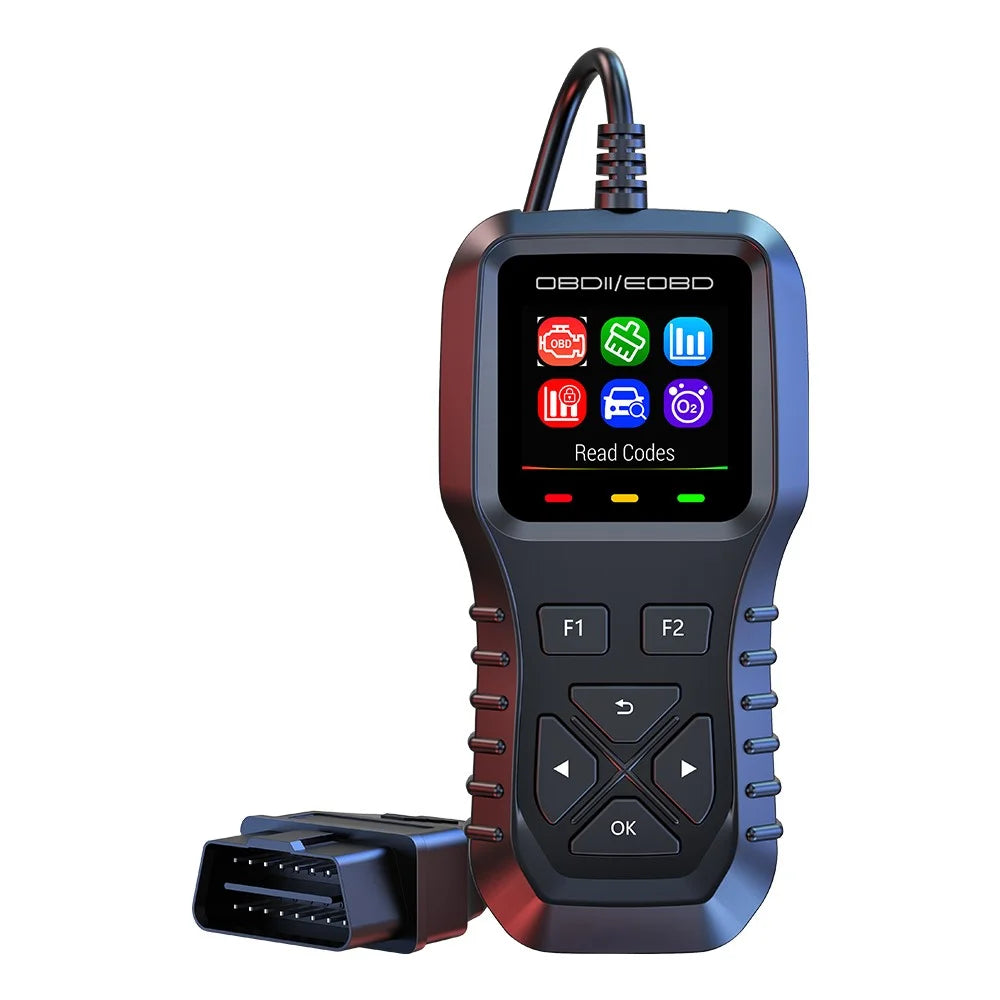

K1 Car OBD2 Diagnostic Scanner Color LCD Display 36600 Engine Codes Clear Tool Real Time Data Stream - Black - 1
K1 Car OBD2 Diagnostic Scanner Color LCD Display 36600 Engine Codes Clear Tool Real Time Data Stream - Black - 1

K1 Car OBD2 Diagnostic Scanner Color LCD Display 36600 Engine Codes Clear Tool Real Time Data Stream - Black

by TVCMall
$630.00




    Delivered in 10-15 Days.
    more info Orders from overseas warehouse are delivered to our customers within 10-15 working days. We have a dedicated team to keep things moving quickly, and we will keep you updated on your order via SMS or email.
    All-Inclusive Pricing.
    more info The price you see is the price you pay. Price includes any Customs, Insurance and Courier fees. Absolutely no hidden fees. We also take care of customs clearance.
    Hassle-Free returns For 7 Days.
    more info View our Return Policy for more info.

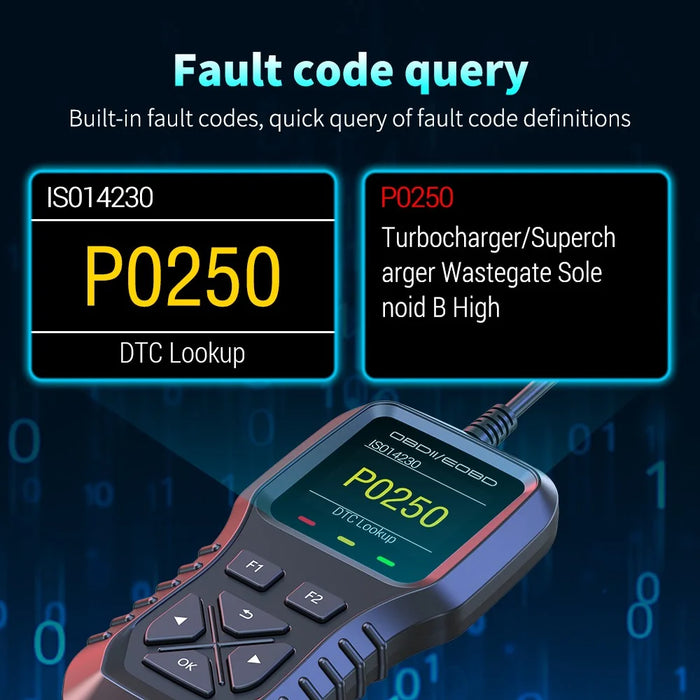

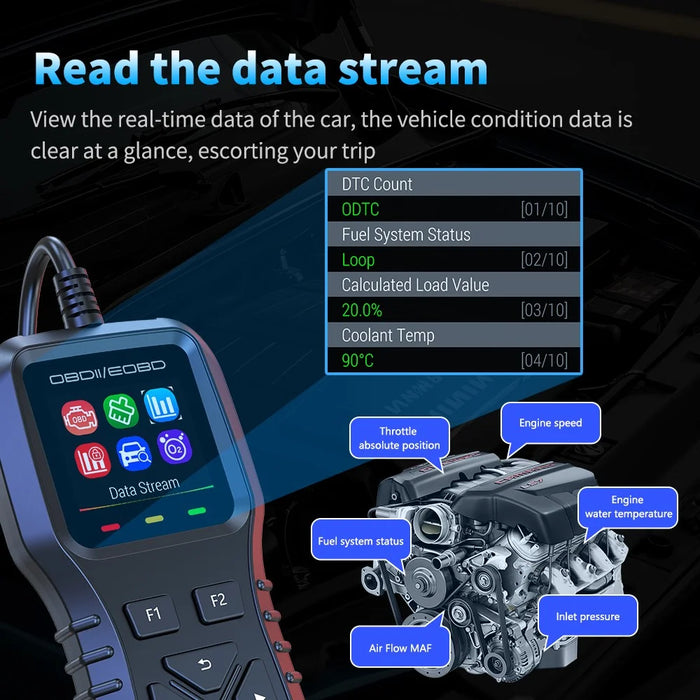

  • 【Professional Engine Diagnostics】Supports comprehensive engine fault diagnosis with 36,600 fault code definitions and real-time data stream monitoring for 10 key parameters.

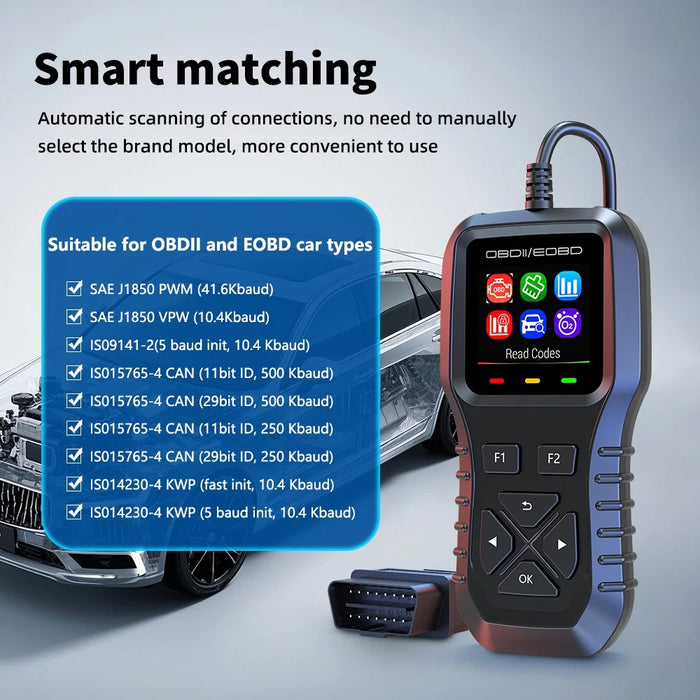

  • 【Smart Protocol Matching】Automatically scans and matches communication protocols without manual vehicle selection, supporting SAE J1850, ISO9141-2, ISO15765-4 CAN, and ISO14230-4 KWP protocols.
  • 【Color LCD Display】Features a vibrant color LCD screen with intuitive interface and tri-color status indicators (red for faults, yellow for operation, green for cleared/no faults).

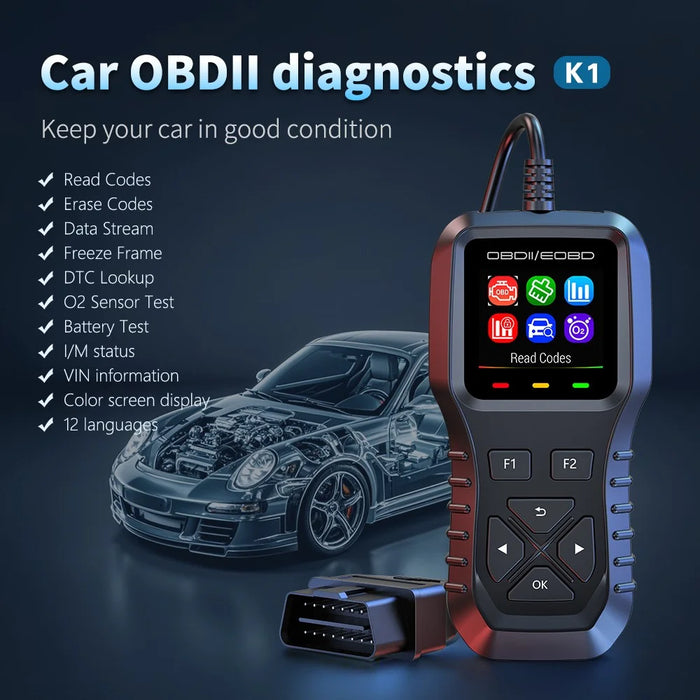

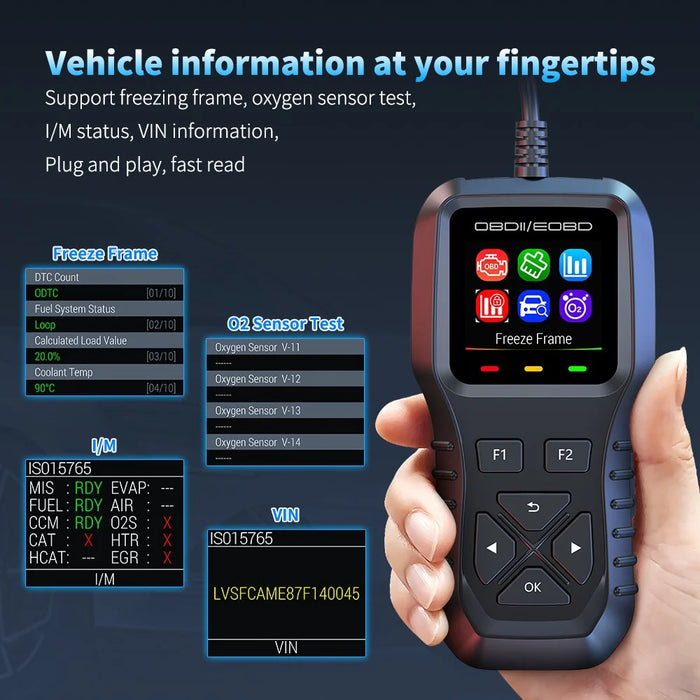

  • 【Comprehensive Testing Suite】Includes oxygen sensor testing, battery voltage testing, freeze frame data reading, and VIN information retrieval for complete vehicle diagnostics.
  • 【Plug and Play Operation】16-pin universal OBDII interface cable enables instant connection to any compatible vehicle without additional setup or configuration.

Specifications:

  • Model: K1
  • Product Dimensions: 137×68×22 mm
  • Cable Length: 50 cm
  • Operating Voltage: 9-16V
  • Working Temperature: -20℃ to 60℃
  • Storage Temperature: -20℃ to 60℃
  • Interface Type: 16-pin Universal OBDII Interface
  • Charging Port: Type-C Interface
  • Display: Color LCD Screen
  • Supported Protocols: SAE J1850 PWM/VPW, ISO9141-2, ISO15765-4 CAN, ISO14230-4 KWP
  • Fault Code Database: 36,600 Engine Fault Codes
  • Data Stream Parameters: 10 Real-time Parameters
  • Language Support: English, Chinese Simplified, Japanese, Korean, Chinese Traditional, Thai, Russian, Arabic, Spanish, German, Portuguese, Vietnamese

In the box

  • 1 x OBD2 Diagnostic Scanner
  • 1 x English User Manual
