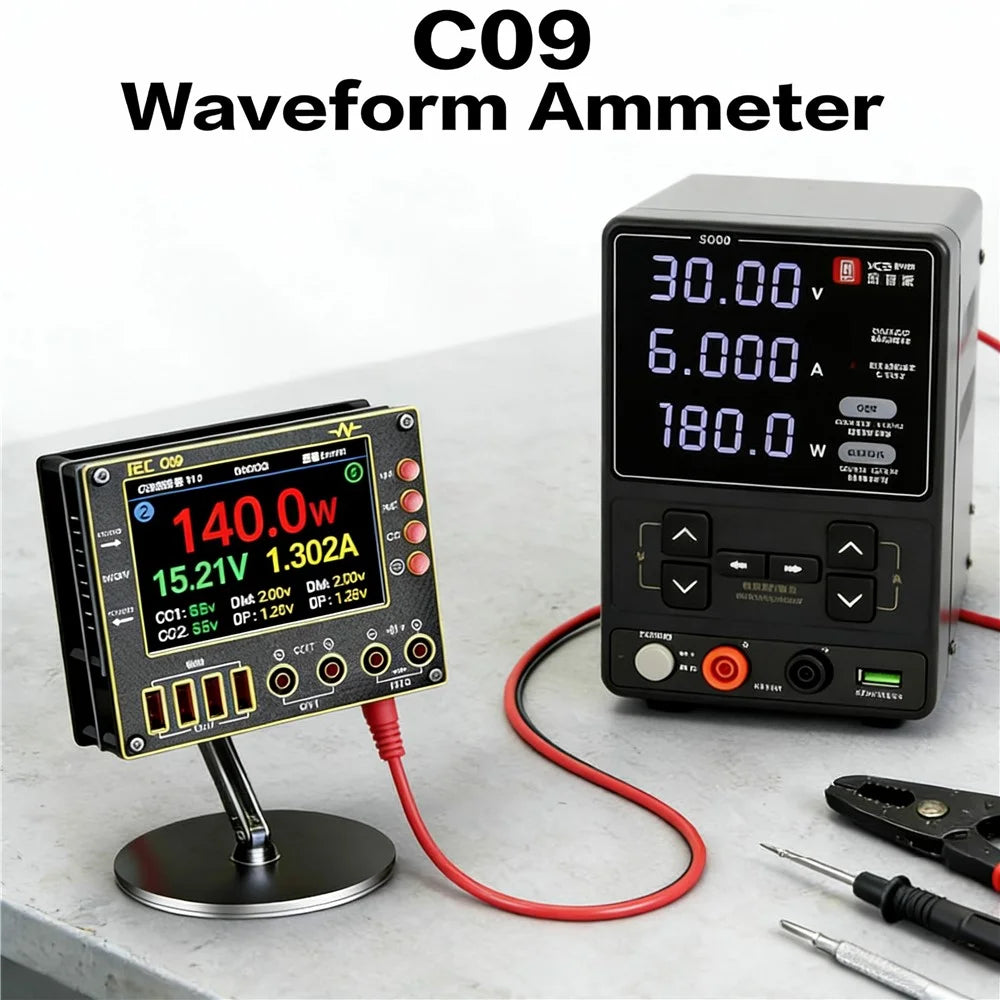

I2C C09 Digital Waveform Ammeter Dual Channel 40V Current Voltage Meter Multimeter Expansion Board
R2 030
incl. VAT
Dispatches in 1 – 3 days
Nationwide delivery
2–4 working days to major metros
Secure checkout
Card, EFT, Ozow and PayFast
30-day returns
Unused, in original packaging
Description
-

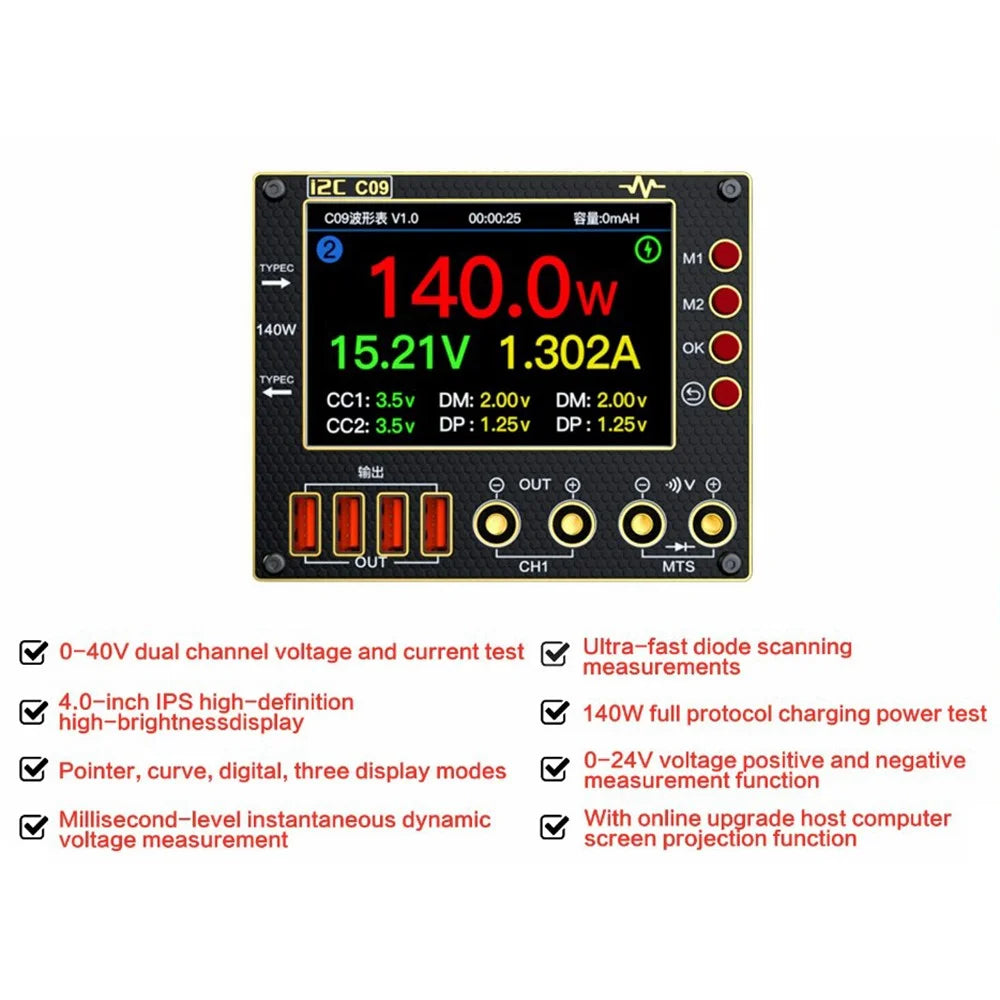

【8-in-1 Multi-Function Tester】Integrates voltage meter, current meter, power meter, waveform analyzer, and charging tester in one device for comprehensive electronic testing.
-

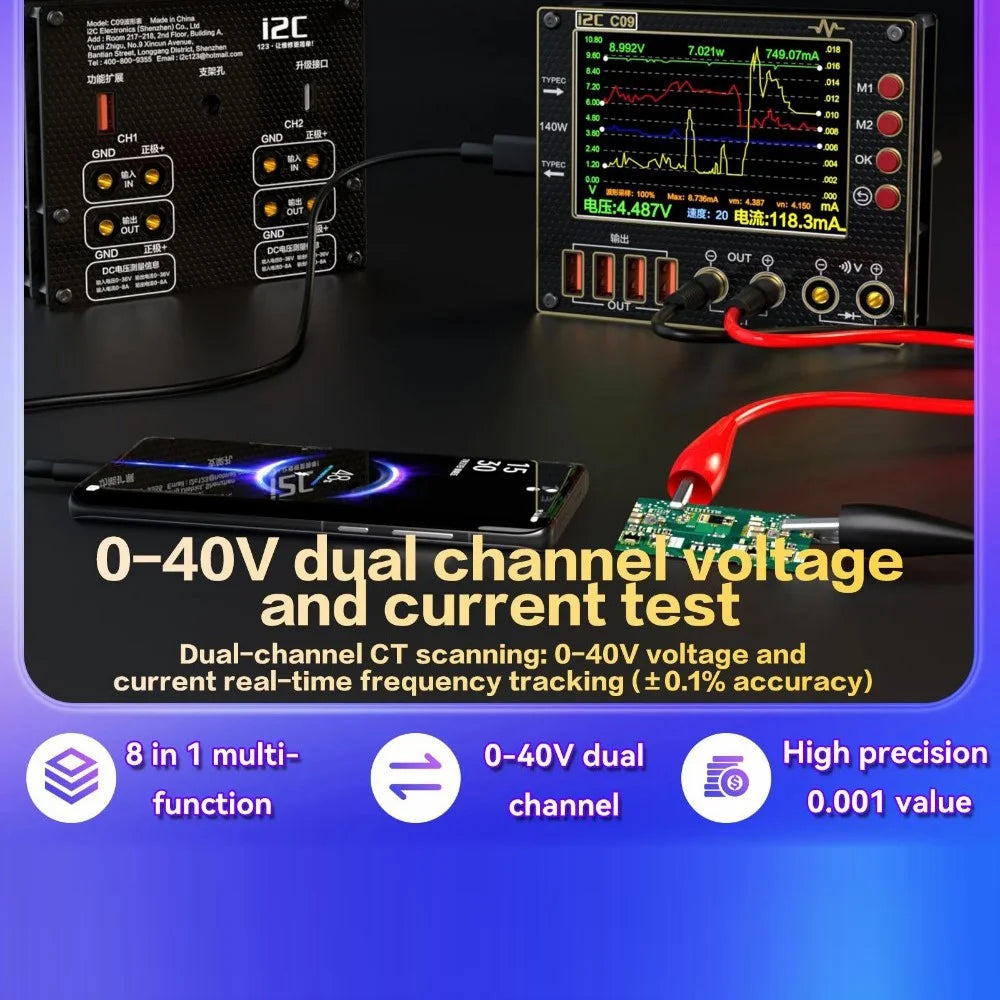

【Dual Channel 0-40V Testing】Simultaneous dual-channel voltage and current measurement with independent CH1 and CH2 channels for versatile testing scenarios.
-
【4.0 Inch IPS HD Display】High-brightness IPS screen with 320x480 resolution provides clear visibility with three display modes: pointer, curve, and digital.
-

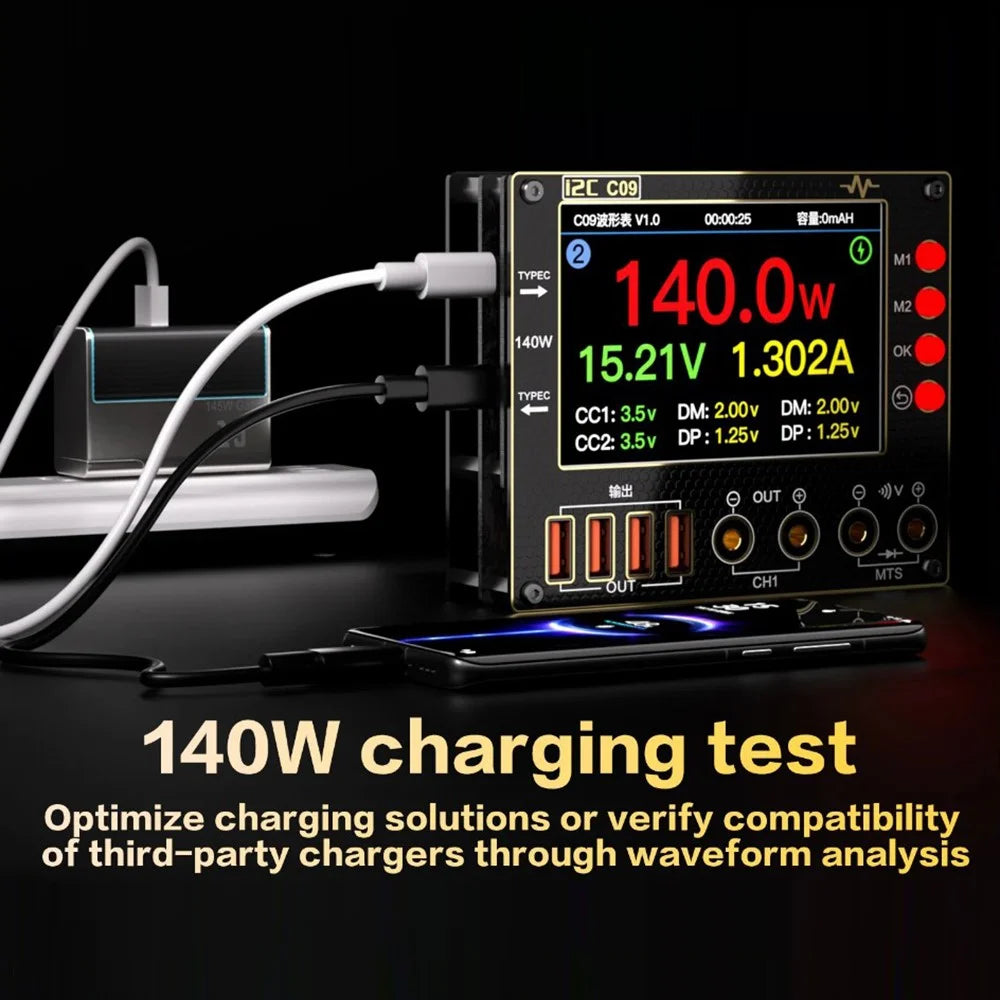

【140W Fast Charging Protocol Test】Supports comprehensive fast charging protocol testing with real-time power monitoring up to 140W capacity.
-
【Millisecond Dynamic Measurement】Ultra-fast millisecond-level instantaneous dynamic voltage measurement with 0.001 precision value for accurate readings.
Specifications:
- Input Voltage Range: DC 0-40V
- Power Supply: 5V/2A
- Diode Test Range: 0-2.8V
- Resistance Range: 0-50KΩ
- Voltage Measurement: 0-24V
- Dual Channel Voltage: 0-40V
- Current Detection: 0-8A
- Protection Voltage: <60V
- Protection Current: <15A
- Banana Plug Output: 40V/8A
- USB Output: 20V/2A
- Voltage Resolution: 1mV
- Current Resolution: 0.1mA
- Current Accuracy: 100A
- Screen Size: 4.0 inch
- Screen Resolution: 320 x 480
- Product Dimensions: 11.4 x 9.3 x 2.9cm
- Display Type: IPS High Brightness
- Measurement Precision: 0.001
- Frequency Tracking Accuracy: ±0.1%
- Power Testing: 140W Full Protocol
- Display Modes: Pointer, Curve, Digital

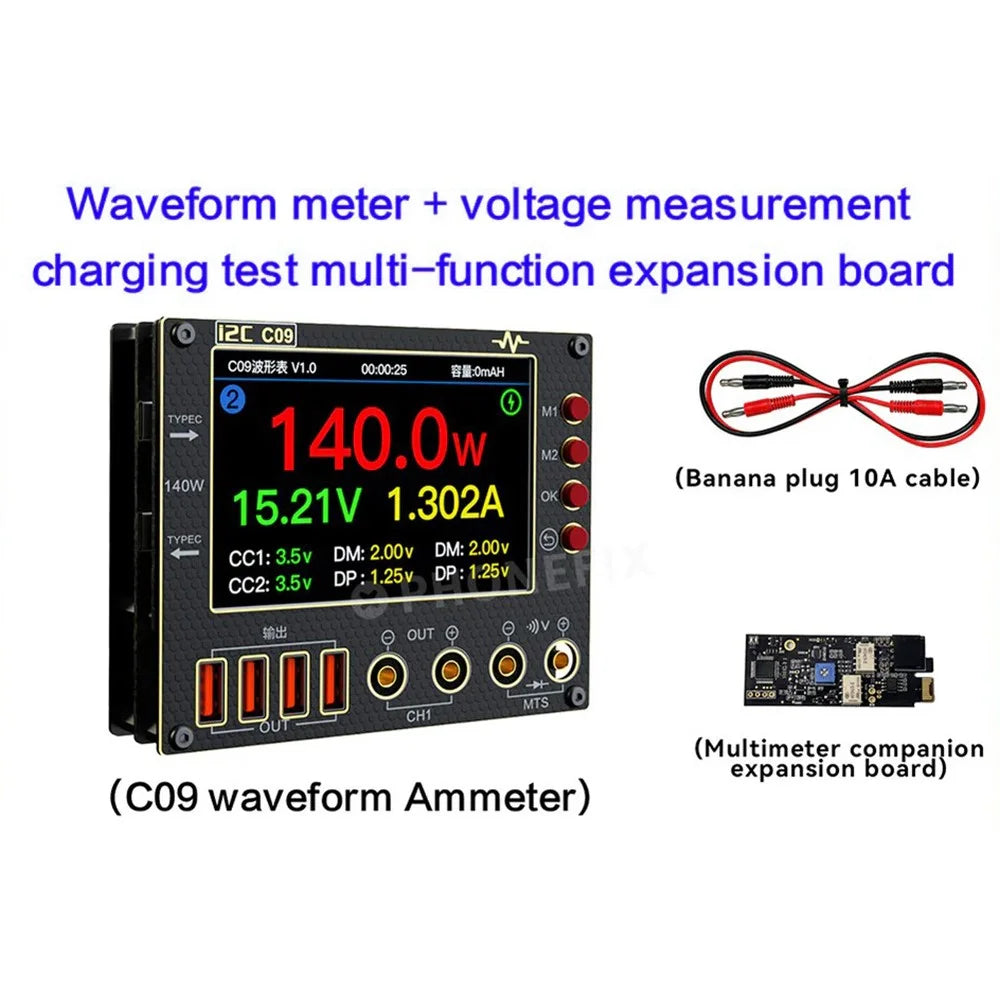

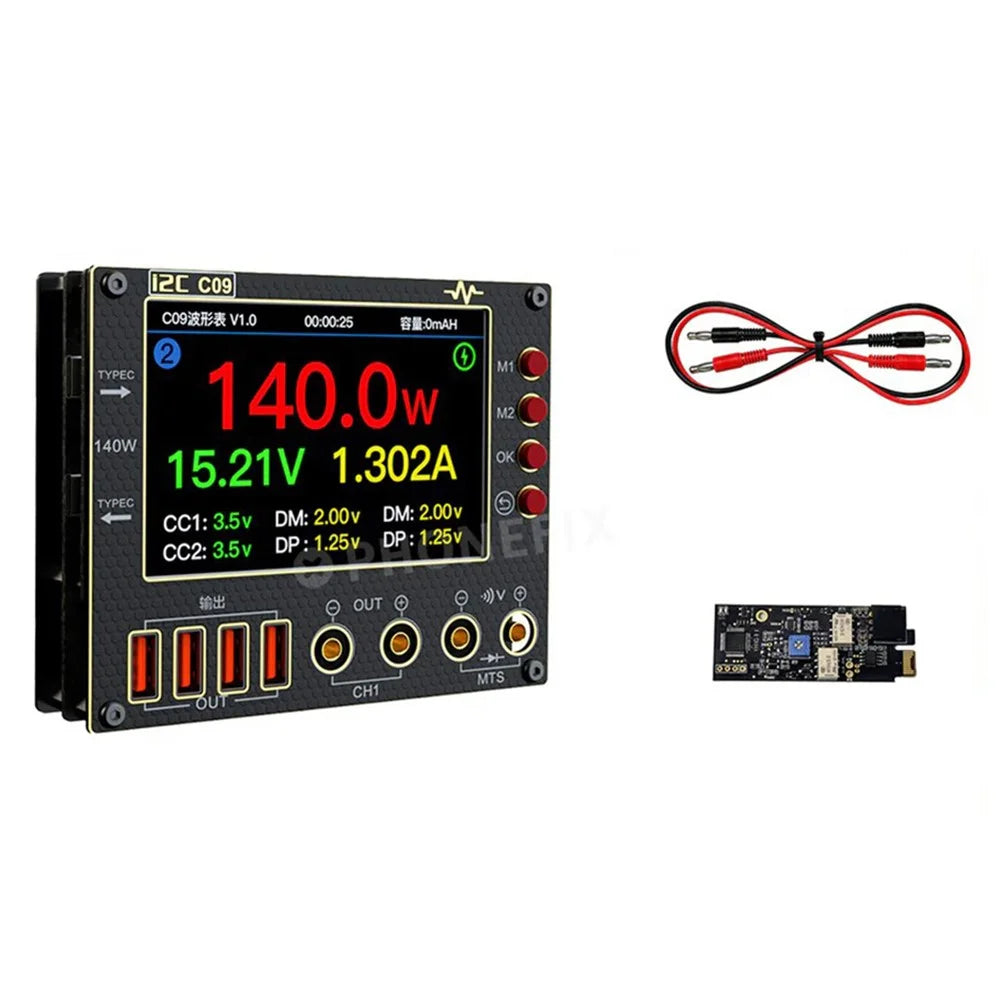

In the box
- 1 x Waveform Ammeter
- 1 x Extension Board
- 1 x USB Cable
Specifications
- SKU
- 6616001884A
- Colour
- As Shown
- Package dimensions
- 20 × 20 × 5 cm
- Gross weight
- 0.39 kg
- Units per pack
- 20
- Dispatch
- 1 - 3 days
- Category
- Consumer Electronics › Test Equipment › Current & Voltage Tester
What’s in the box
- 1 Waveform Ammeter
- 1 Extension Board
- 1 USB Cable
