HXSJ P8 Wired Keyboard Mouse Converter Portable Mobile Gaming Keyboard and Mouse Adapter with 3 USB Ports for Android Phones

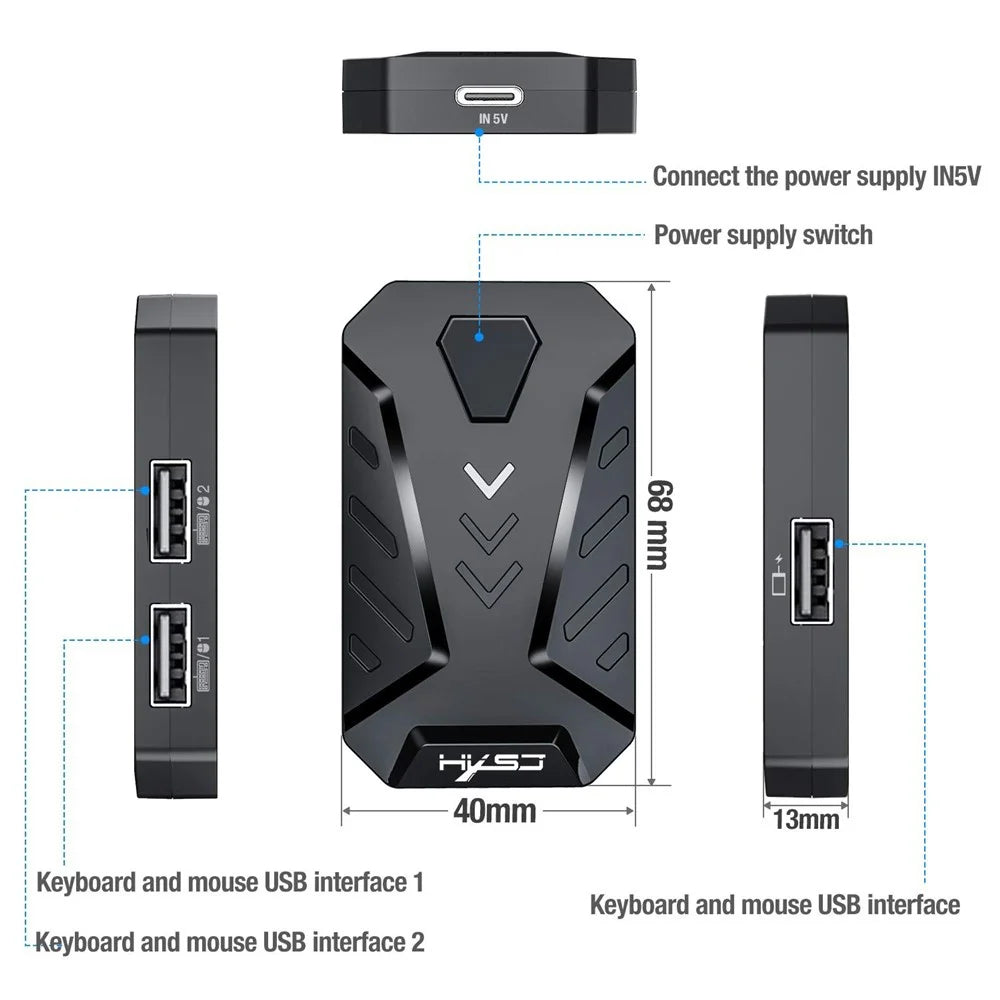

• Interface layout, as shown in the instructions: Mouse or keyboard USB 1, Mouse or keyboard USB 2, Power switch, Mobile phone interface, Power port

Specifications:

• Wired interface: USB

• Keyboard and mouse interface: USB

• Number of interfaces: 4PCS

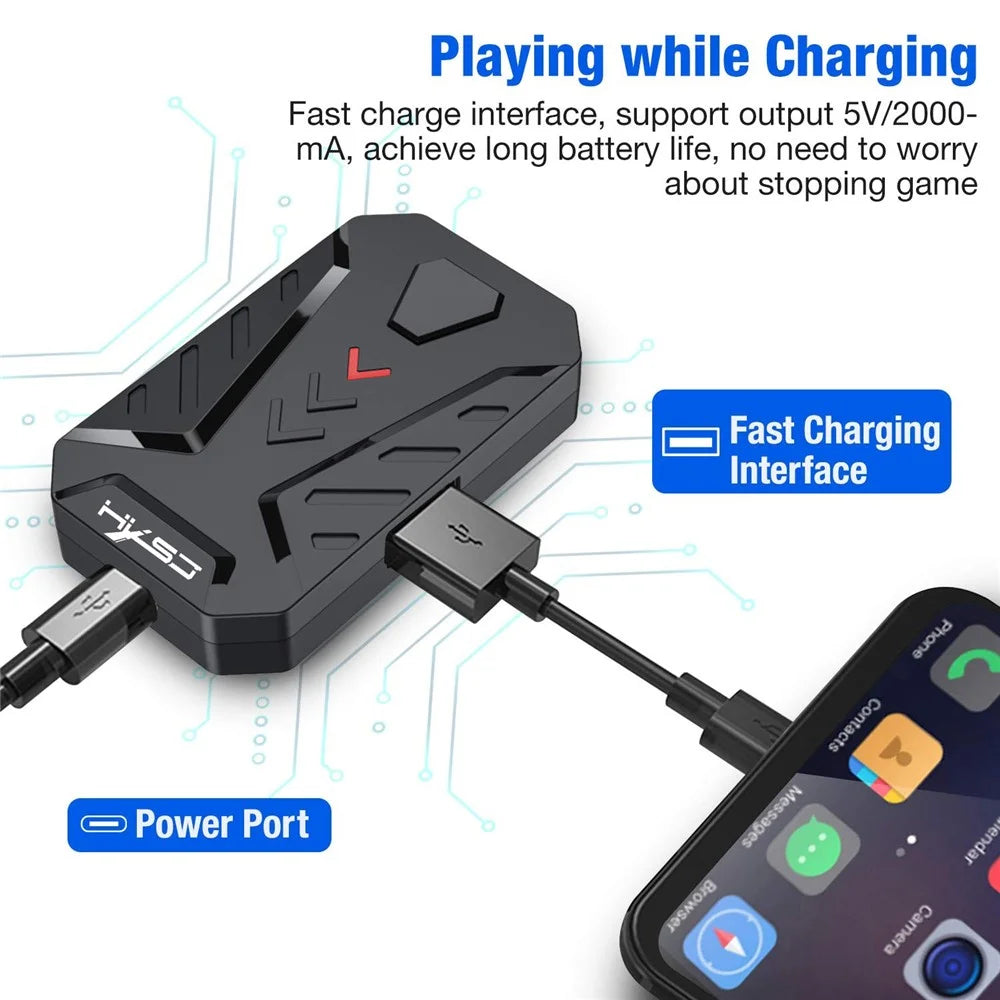

• Input voltage/current: 5V/2A

• Data cable length: 80cm

• Data cable interface: TYPE-C

• Adaptation system: for Android 6 or above

Switch Mode:

• Ctrl+F3, mapping BT mode (for MediaTek)

• Ctrl+F4, wired mode (for non-MediaTek)

BT Name:

• Mapping mode (for MediaTek): LITE-A-xxx

• Wired mode (for non-MediaTek): LITE-U-xxx

LED Light:

• BT mapping mode (for MediaTek purple light)

• Wired mode (for non-MediaTek red light)

Connection protocol:

• BT mapping mode (for MediaTek wireless BT transmission function)

• Wired mode (for non-MediaTek wired USB transmission function)

Switch Key Mode:

• Default plug-in automatic power on

• Click to shut down

• Click to turn on

• Long press for 5 seconds to reset BT

• Product weight: 21g

• Product size: 68*40*13mm

How To Use:

• Wired connection use:

• Install The App:

• Step 1: Scan QR code below to download "geekgamer"

• Step 2: Operate "geekgamer"

• Step 3: When open the "geekgamer" will ask to allow permission to get the floating window for the app to work properly click "allow"

• Step 4: Open the "Floating Windows" to allow

• Step 5: Enter the home page click+Add Game"

• Step 6: Select the game that you want to play from the list. For example “PUBG" click "Add"

• Connect The Devices:

• As shown in the instructions, connect the device to the phone, select "charge only" and allow USB debugging

• Wired Connection Mode for Android:

• For Mediatek mobile phones do not work in this way, Bluetooth-compatible needs to be turned off when using.

• Step 1: Switch mode, press the keyboard combination: Ctrl+F4, Mix Lite converter switch to "Android wire mode", the status light will turn red.

• Step 2: click "ENTER"

• Note: Wired connection use, for more instructions, please read the instructions carefully.

How To Use:

• For MEDIATEK Mobile Phone: (This mode only applies for Mediatek mobile phones)

• Step 1: Switch mode, press the keyboard, such as the picture of the manual: combination: Ctrl+F3, P8 converter switch for "Mediatek model", the status light will turn purple.

• Step 2: Click "Connect devices", such as the picture of the manual.

• Step 3: Find the "LITE-A-XX" BT and connect.

• Step 4: Return to the APP's main interface, and the device will be automatically activated.

• Step 5: If it is not activated, you need to click the "Activation" option, follow the APP prompts to enter the "Developer Options", and turn on the "USB Debugging Function".
