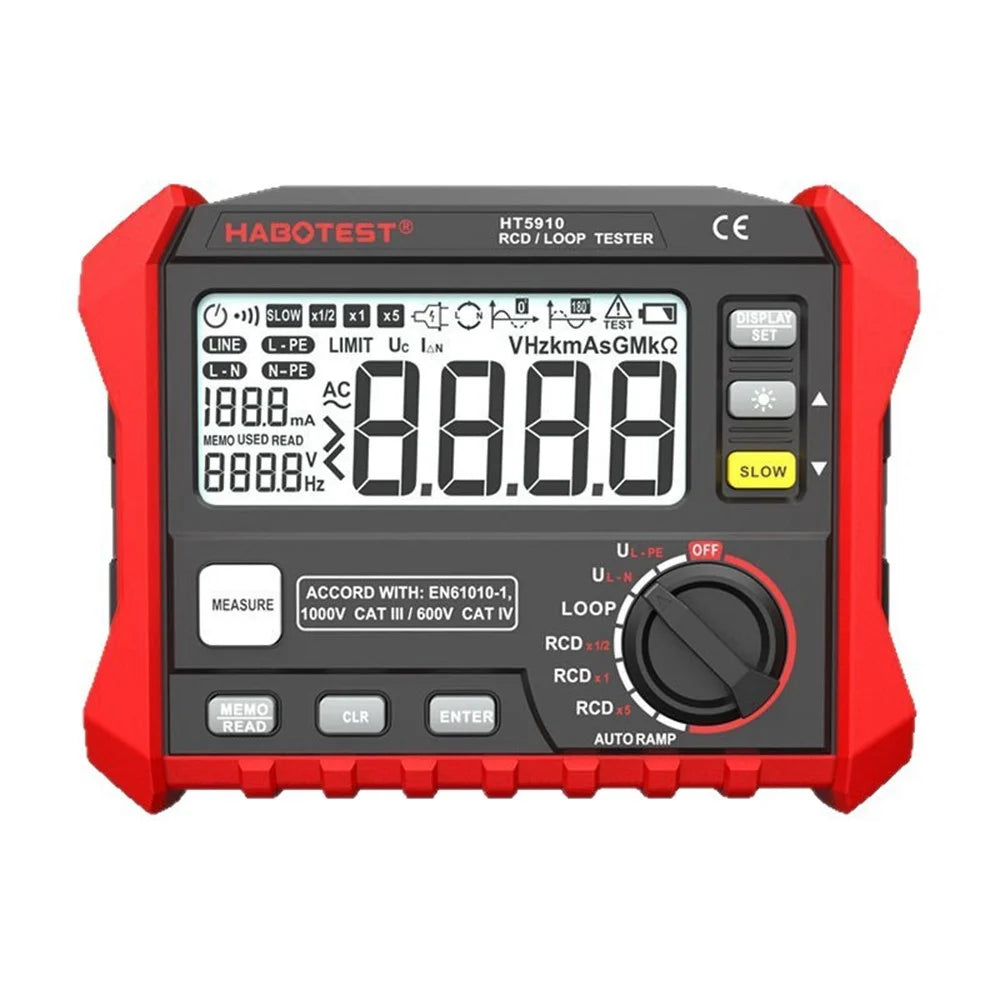

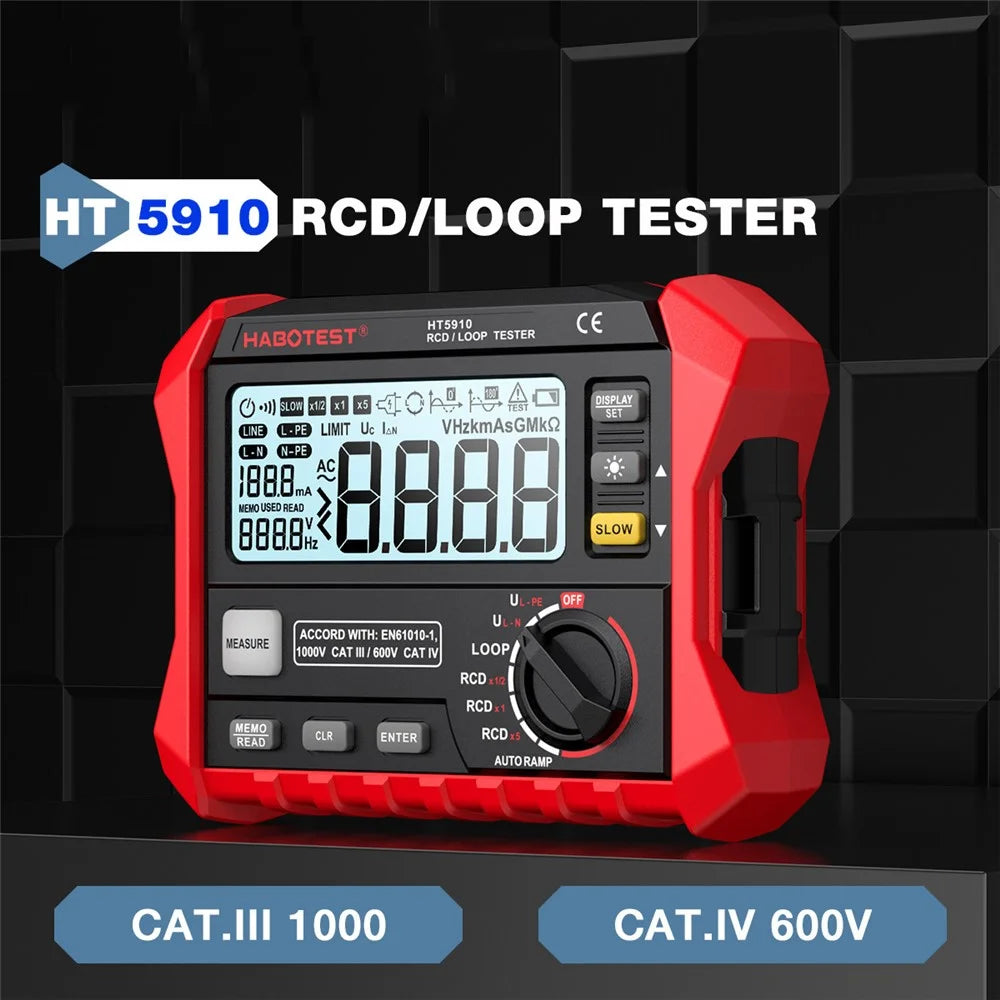

HABOTEST HT5910 RCD Loop Resistance Tester 4.7inch LCD Digital 1000V CAT III Tester (without Battery) - Black / Red
R3 410
incl. VAT
Dispatches in 1 – 3 days
Nationwide delivery
2–4 working days to major metros
Secure checkout
Card, EFT, Ozow and PayFast
30-day returns
Unused, in original packaging
Description
- 【Professional RCD/Loop Testing】Advanced electrical safety testing instrument designed for residual current device (RCD) and loop impedance testing in residential, commercial, and industrial applications.

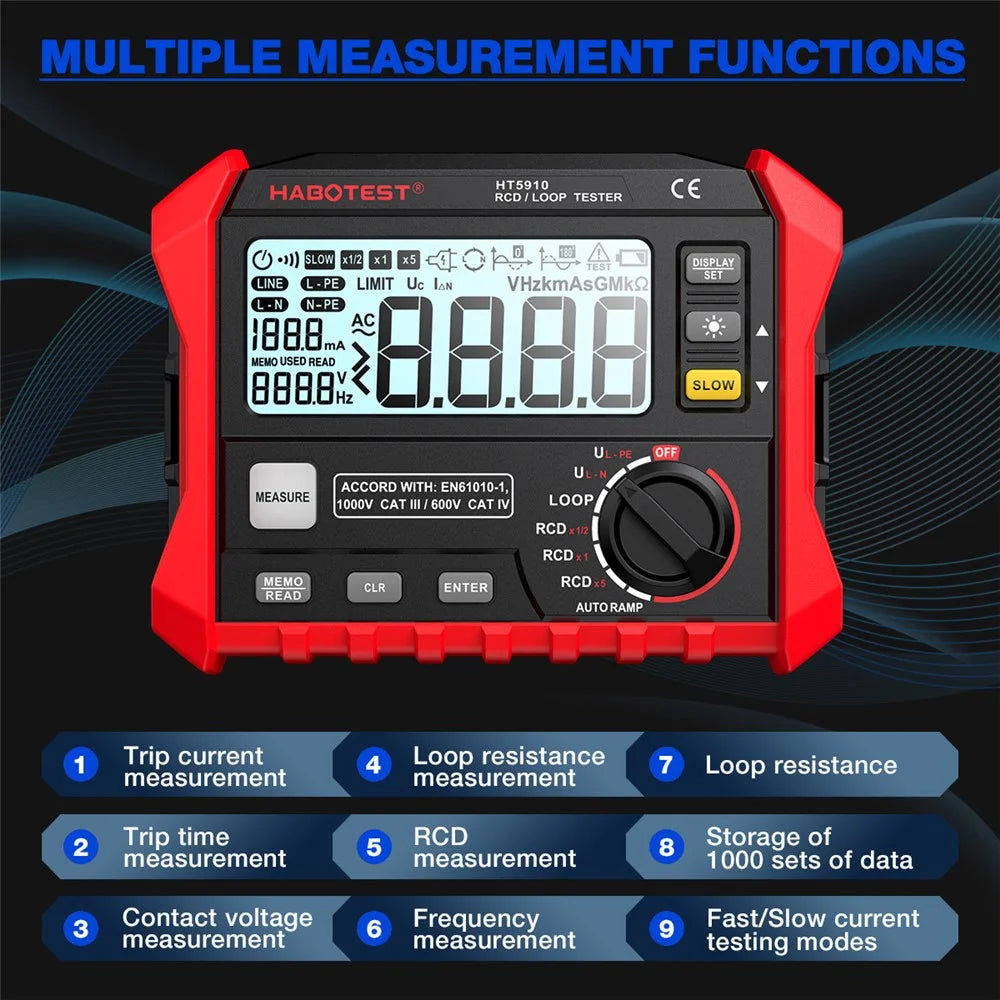

- 【Multi-Function Measurement】Comprehensive testing capabilities including trip current, trip time, contact voltage, loop resistance, frequency measurement, and voltage testing (0-440V AC).

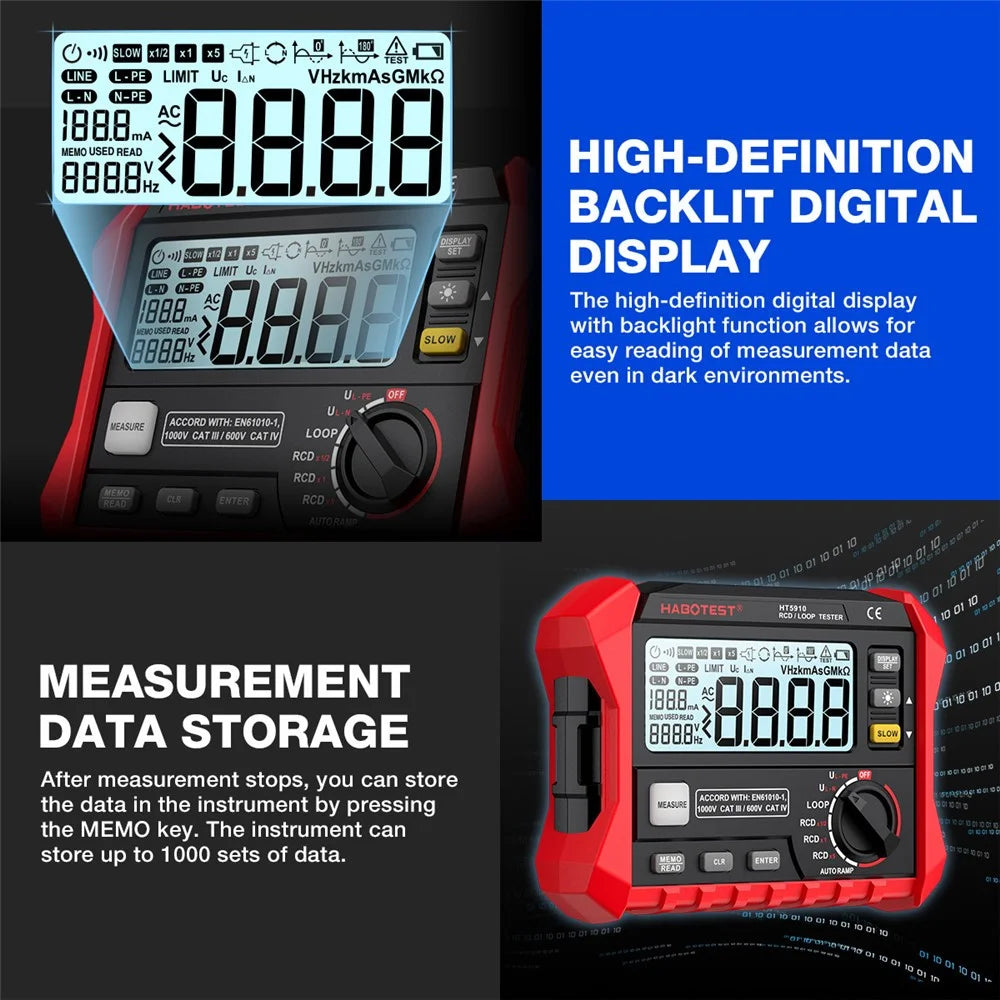

- 【Large Data Storage Capacity】Store up to 1000 measurement results with easy access through MEMO function and USB 2.0 interface for PC data transfer and analysis.

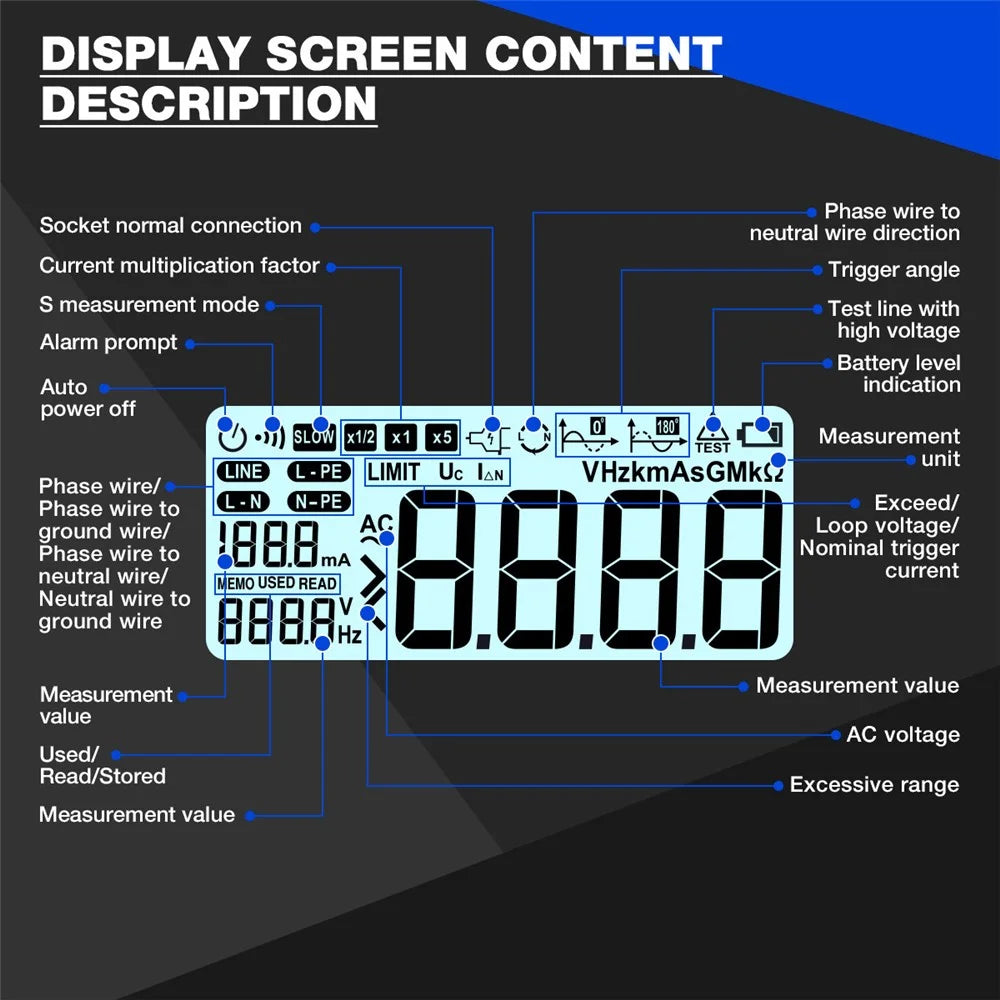

- 【High-Resolution LCD Display】4.7 inch backlit LCD screen with clear digital readouts, automatic range selection, and safety warning indicators for enhanced visibility in all lighting conditions.
- 【Multiple Test Modes】Supports various test configurations including L-N, L-PE, N-PE connections with selectable test currents (10mA, 30mA, 100mA, 300mA, 500mA) and fast/slow testing modes.
- 【Safety Compliance】Meets EN61010-1, EN61557-3, EN61326-1 standards with CAT III 1000V and CAT IV 600V safety ratings for professional electrical testing applications.

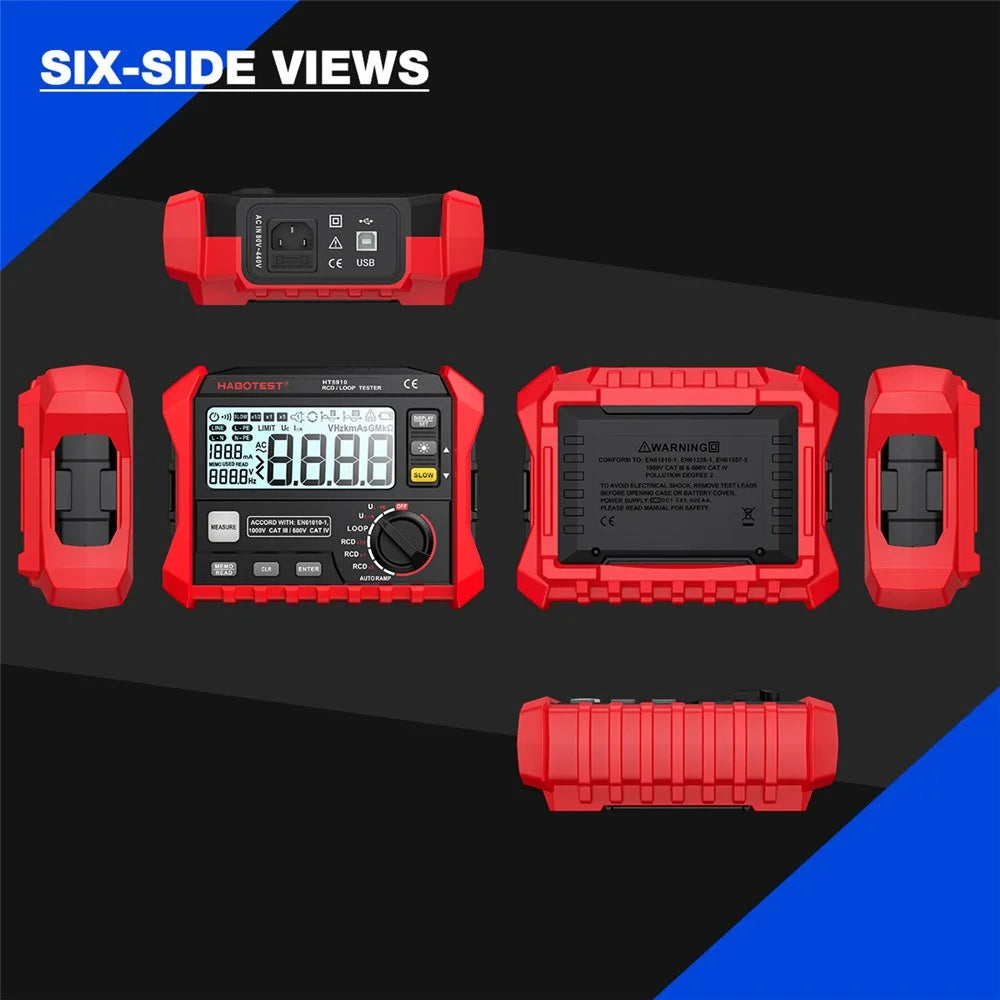

- 【Portable Design】Compact dimensions (188 x 145 x 73 mm) with protective rubber housing and carrying case for convenient field use and transportation.
Specifications:
- Model: HT5910
- Display: High-resolution backlit LCD
- Dimensions: 188 x 145 x 73 mm
- Weight: Approximately 708g
- Power Supply: 8 x 1.5V AA batteries (not included)
- Voltage Measurement Range: 0-440V AC
- Frequency Range: 45-65 Hz
- Loop Resistance Range: 0.1-2000 Ω
- Test Current Options: 0.5, 1, 5 times rated current
- Current Settings: 10mA, 30mA, 100mA, 300mA, 500mA
- Data Storage: 1000 measurement records
- Safety Rating: CAT III 1000V, CAT IV 600V
- Operating Temperature: 0-40°C
- Storage Temperature: -20 to 70°C
- Auto Power Off: 10 minutes
- Interface: USB 2.0
- Material: ABS plastic with rubber protection
In the box
- 1 x HT5910 RCD/Circuit Tester
- 1 x Carrying Case
- 1 x Alligator Clip
- 1 x USB Data Cable
- 1 x Test Lead
- 1 x English User Manual and CD
Specifications
- SKU
- 6401003294A
- Colour
- Black / Red
- Package dimensions
- 33 × 26.8 × 9 cm
- Gross weight
- 1.99 kg
- Units per pack
- 8
- Dispatch
- 1 - 3 days
- Category
- Consumer Electronics › Test Equipment › Multimeter & Accessories
What’s in the box
- 1 HT5910 RCD/Circuit Tester
- 1 Carrying Case
- 1 Alligator Clip
- 1 USB Data Cable
- 1 Test Lead
- 1 English User Manual and CD
