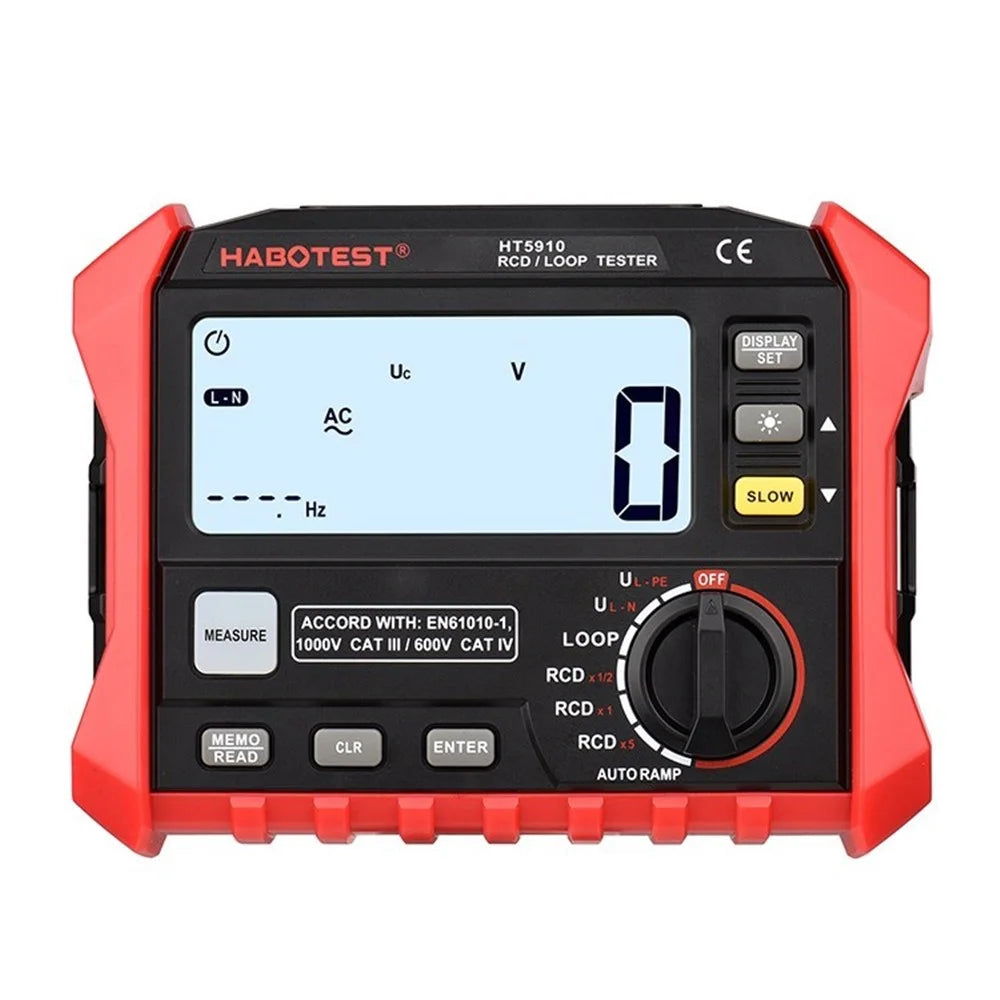

HABOTEST HT5910 Leakage Switch Tester Accurately Measures Digital Resistance Meter RCD / Loop Tester

• It can be used to measure the trip current, trip time, loop resistance of switch leakage, and the voltage, frequency of on-line voltage, RCD (earth leakage switch), and AUTORAMP (triggered current)

• Up to 1000 sets of test results can be stored, convenient for further inquiry

• The data stored in the host can be uploaded to a PC via the USB 2.0 interface

• 4.7-inch LCD screen with backlight for conveniently checking the test result in the low-lit condition

• Perfect for the electricians to do testing, inspection, and repairing

Specification:

• Material: ABS

• Size: 190 x 140 x 68mm/7.48 x 5.51 x 2.68in

• AC Phase: Voltage Measurement: 0~440V

• Frequency Measurement: DC, 45~65Hz

• Test Current Magnification: 0.5, 1, 5

• Fast/Slow Current Test Gears: 10, 30, 100, 300, 500mA

• Safety Level: CAT III 1000V, CAT IV 600

• Max. Common Mode Voltage: 600V AC RMS

• Display Type: LCD Display

• Range Selection: Fully Automatic Range

• Frequency Detection: Automatic

• Over-range Display: ">"

• Power Consumption: 100mW

• Operating Temperature & Altitude: 0~40℃, 2000m

• Storage Temperature & Altitude: -20~70℃, 12000m

• Power Supply: 8 x 1.5V AA Battery (NOT included)
