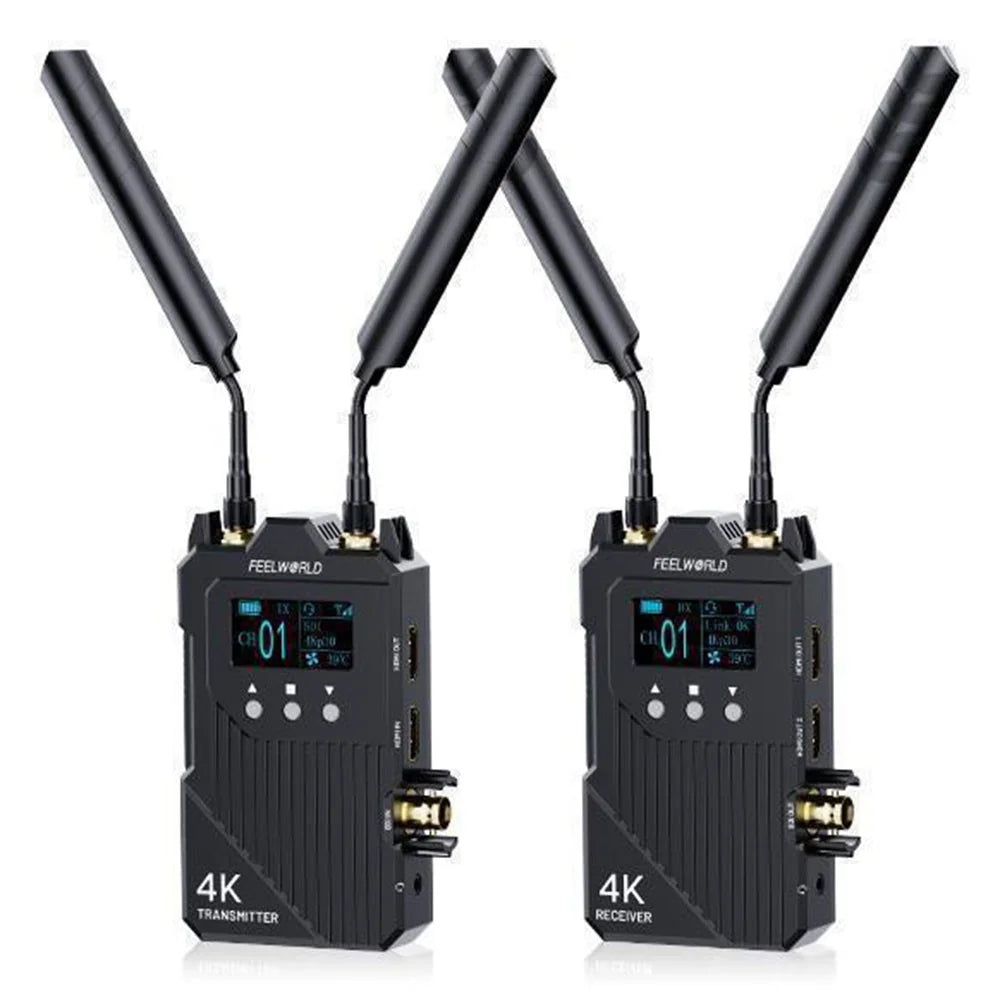

FEELWORLD WT1S Wireless Video Transmitter / Receiver Set with Dual HD + SDI Signal Port Full Duplex Voice Communication 300M Range 4K Transmission
by FEELWORLD
$8,460.00
Delivered in 10-15 Days.
more info
Orders from overseas warehouse are delivered to our customers within 10-15 working days. We have a dedicated team to keep things moving quickly, and we will keep you updated on your order via SMS or email.
All-Inclusive Pricing.
more info
The price you see is the price you pay. Price includes any Customs, Insurance and Courier fees. Absolutely no hidden fees. We also take care of customs clearance.
Hassle-Free returns For 7 Days.
more info
View our Return Policy for more info.
- 【Dual Interface Support】 Features both 2 HD and SDI signal interfaces, catering to diverse professional needs.

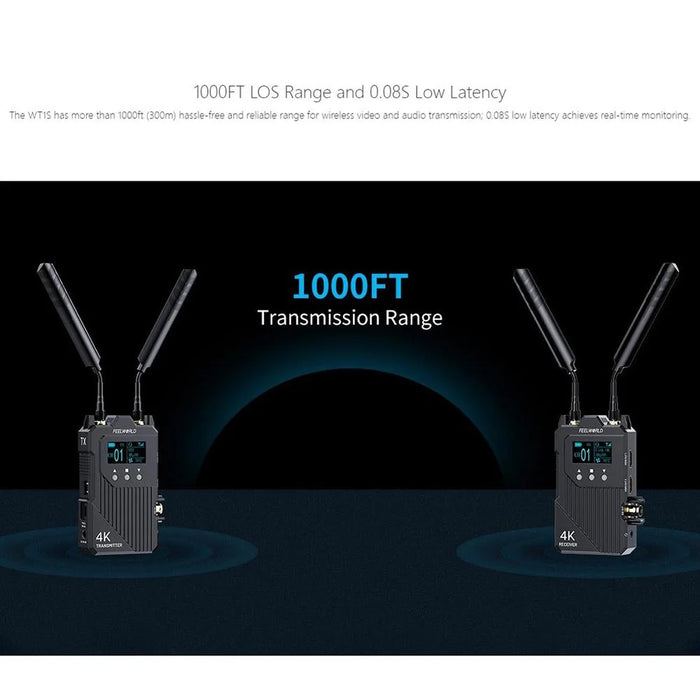

- 【Long-Range Transmission】 Offers over 1000 feet transmission range with ultra-low latency of 0.08 seconds.

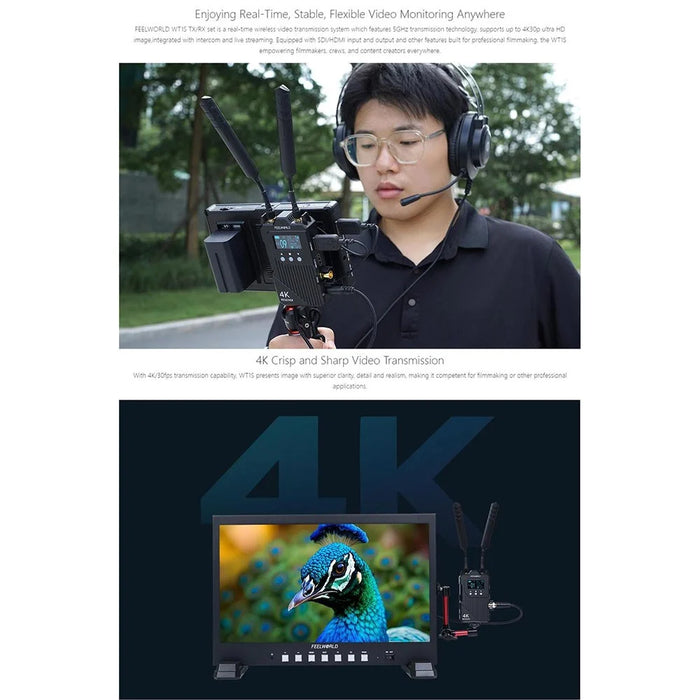

- 【High Resolution】 Supports up to 4K 30Hz resolution, delivering crisp, detailed, and lifelike images.
- 【Wireless Intercom】 Full-duplex wireless intercom allows real-time communication between director and cinematographer.

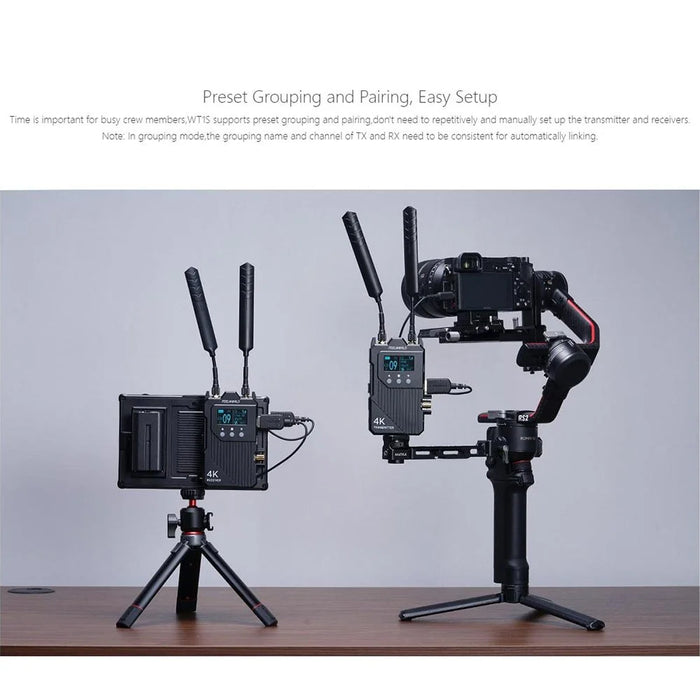

- 【Multi-Device Compatibility】 One transmitter can pair with four receivers, providing monitoring for the entire crew.

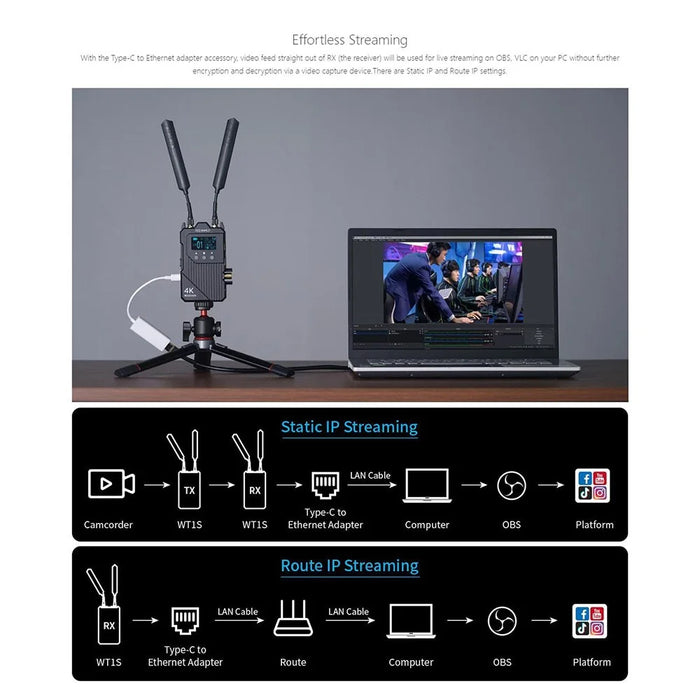

- 【Versatile Connectivity】 Includes Type-C to Ethernet adapter for real-time streaming capabilities.
- 【Mobile App Integration】 Compatible app for Android/iOS enables real-time monitoring and recording.
Specifications:
- Transmitter:
- Display: OLED
- Interfaces:
- SDI Input x 1
- HD Input x 1
- HD Output x 1
- Antenna Ports (RP-SMA Male) x 2
- DC Power Input
- 3.5mm Headphone Jack
- Type-C Port
- Power Supply / Voltage:
- NP-F Battery Slot
- Type-C Port: 5V / 1.5A
- DC Adapter: 6–16V
- Power Consumption: < 5.5W
- HD Format:
- 480P60, 576P60
- 720P60 / 59.94 / 50
- 1080P60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98
- 1080I60 / 59.94 / 50
- 2160P30 / 25 / 24
- HD Type-A
- SDI Format:
- 480P60, 576P60
- 720P60 / 59.94 / 50
- 1080P60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98
- 1080I60 / 59.94 / 50
- BNC x 1
- Frequency Range: 5.1 – 5.9GHz
- Modulation: OFDM
- Transmission Power: 22dBm
- Bandwidth: 20 / 40MHz
- Latency: Minimum 0.08s
- Intercom Frequency Response: 20Hz – 20KHz
- Operating Temperature: 0℃ – 40℃
- Storage Temperature: -20℃ – 60℃
- Dimensions: 77.1 x 30 x 118.6mm (excluding antenna)
- Weight: 138.8g
- Receiver:
- Display: OLED
- Interfaces:
- SDI Input x 1
- HD Outputs x 2
- Antenna Ports (RP-SMA Male) x 2
- DC Power Input
- 3.5mm Headphone Jack
- Type-C Port
- Power Supply / Voltage:
- NP-F Battery Slot
- Type-C Port: 5V / 1.5A
- DC Adapter: 6–16V
- Power Consumption: < 6W
- HD Format:
- 480P60, 576P60
- 720P60 / 59.94 / 50
- 1080P60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98
- 1080I60 / 59.94 / 50
- 2160P30 / 25 / 24
- HD Type-A
- SDI Format:
- 480P60, 576P60
- 720P60 / 59.94 / 50
- 1080P60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98
- 1080I60 / 59.94 / 50
- BNC x 1
- Frequency Range: 5.1 – 5.9GHz
- Modulation: OFDM
- Receiving Sensitivity: -87dBm
- Bandwidth: 20 / 40MHz
- Latency: Minimum 0.08s
- Intercom Frequency Response: 20Hz – 20KHz
- Operating Temperature: 0℃ – 40℃
- Storage Temperature: -20℃ – 60℃
- Dimensions: 77.1 x 30 x 118.6mm (excluding antenna)
- Weight: 138.8g
In the box
- 1 x Transmitter
- 1 x Receiver
- 5 x Antennas
- 1 x Cold Shoe Mount
- 1 x USB-A to USB-C Converter
- 1 x USB-C to Ethernet Converter
- 1 x English Manual
